Wiper/Washer Module: Notes

WARNING: This page is about a different car, the 2010 Mercury Milan, 2010 Lincoln MKZ, and 2010 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Instrument panel removed for clarity.

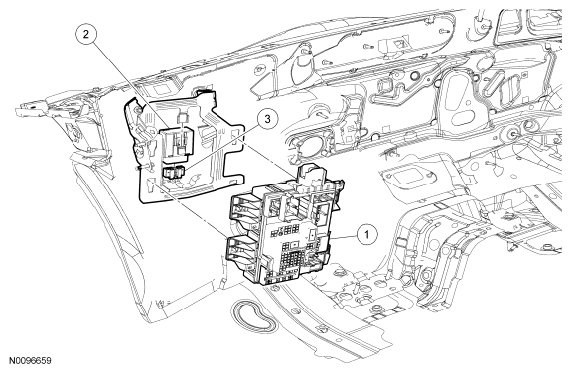

Fig 1: Identifying Wiper/Washer Module Components
G06271595Courtesy of FORD MOTOR CO.
ITEM DESCRIPTION TABLE

Item Part Number Description
1 15605 Smart Junction Box (SJB)
2 14B205 Wiper/washer module
3 14401 Wiper/washer module electrical connector
