Rear Axle Assembly: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

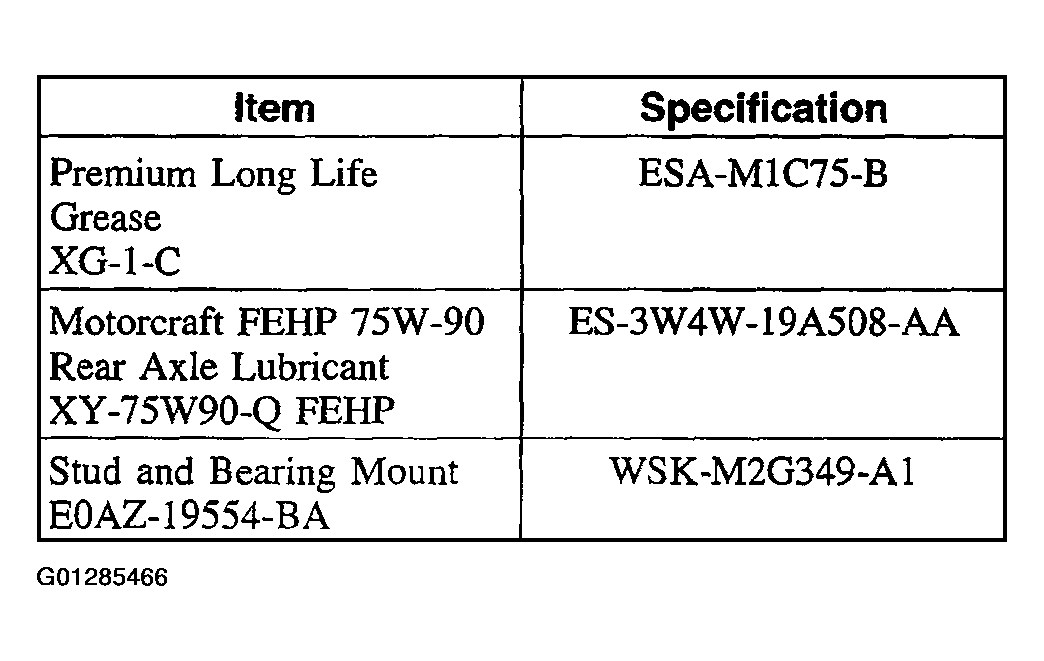

Fig 1: Item Specifications Table

Courtesy of FORD MOTOR CO.

With the vehicle in NEUTRAL, position on a hoist.
Remove the rear axle assembly. For additional information, refer to REAR AXLE ASSEMBLY .
Remove the components in the order indicated in the following 2 figures.

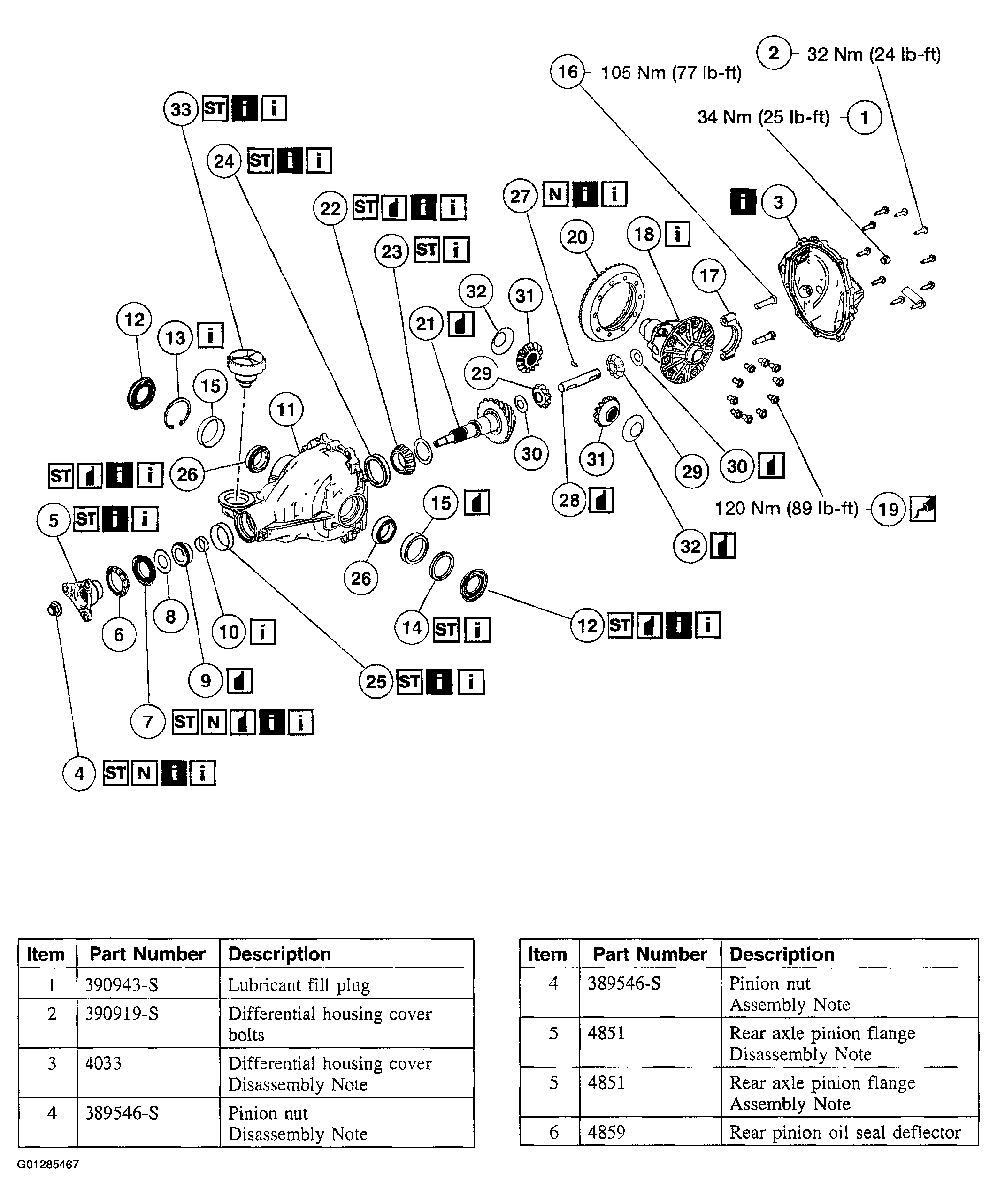

Fig 2: Disassembly Sequence Of Rear Axle Assembly
Courtesy of FORD MOTOR CO.

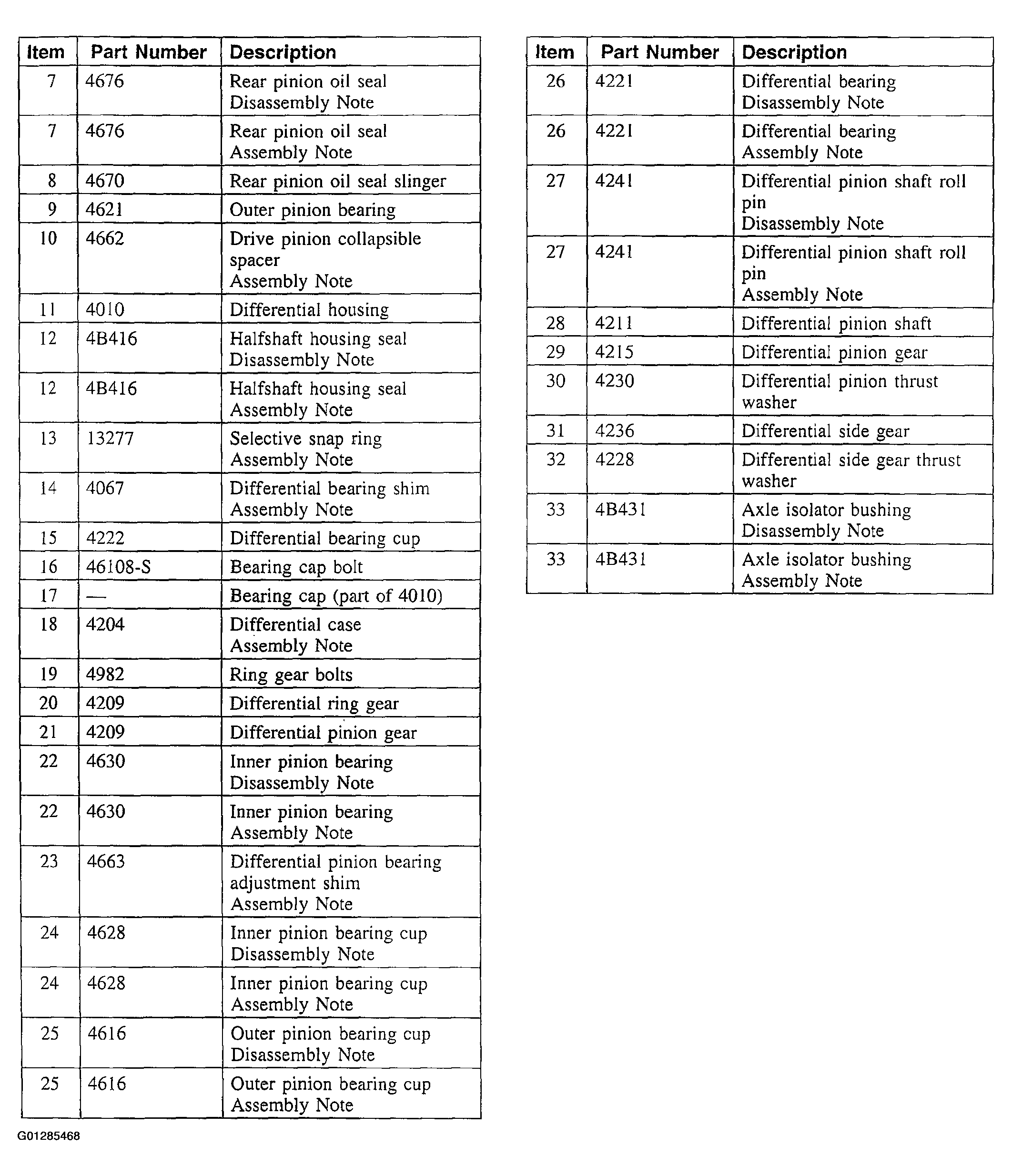

Fig 3: Items Descriptions Table
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.
Fill the axle with the specified quantity of the specified lubricant.
