Steering Gear: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not allow the steering wheel to rotate while the intermediate shaft is disconnected or damage to the clockspring can result. If there is evidence that the shaft has rotated, the clockspring must be removed and recentered. For additional information, Refer to AIR BAG RESTRAINT SYSTEMS .

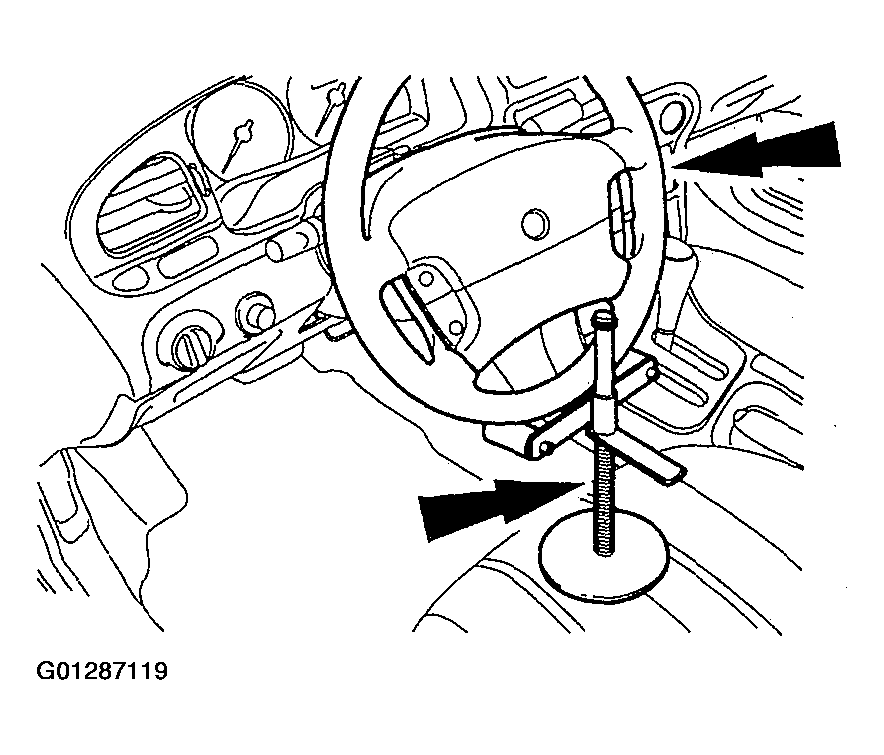

Fig 1: Attaching Steering Holding Device Tool

Courtesy of FORD MOTOR CO.

Hold the steering wheel in the straight-ahead position using a suitable holding device.
With the vehicle in NEUTRAL, position on a hoist.
Remove the components in the order indicated in Fig 2.
To install, reverse the removal procedure.

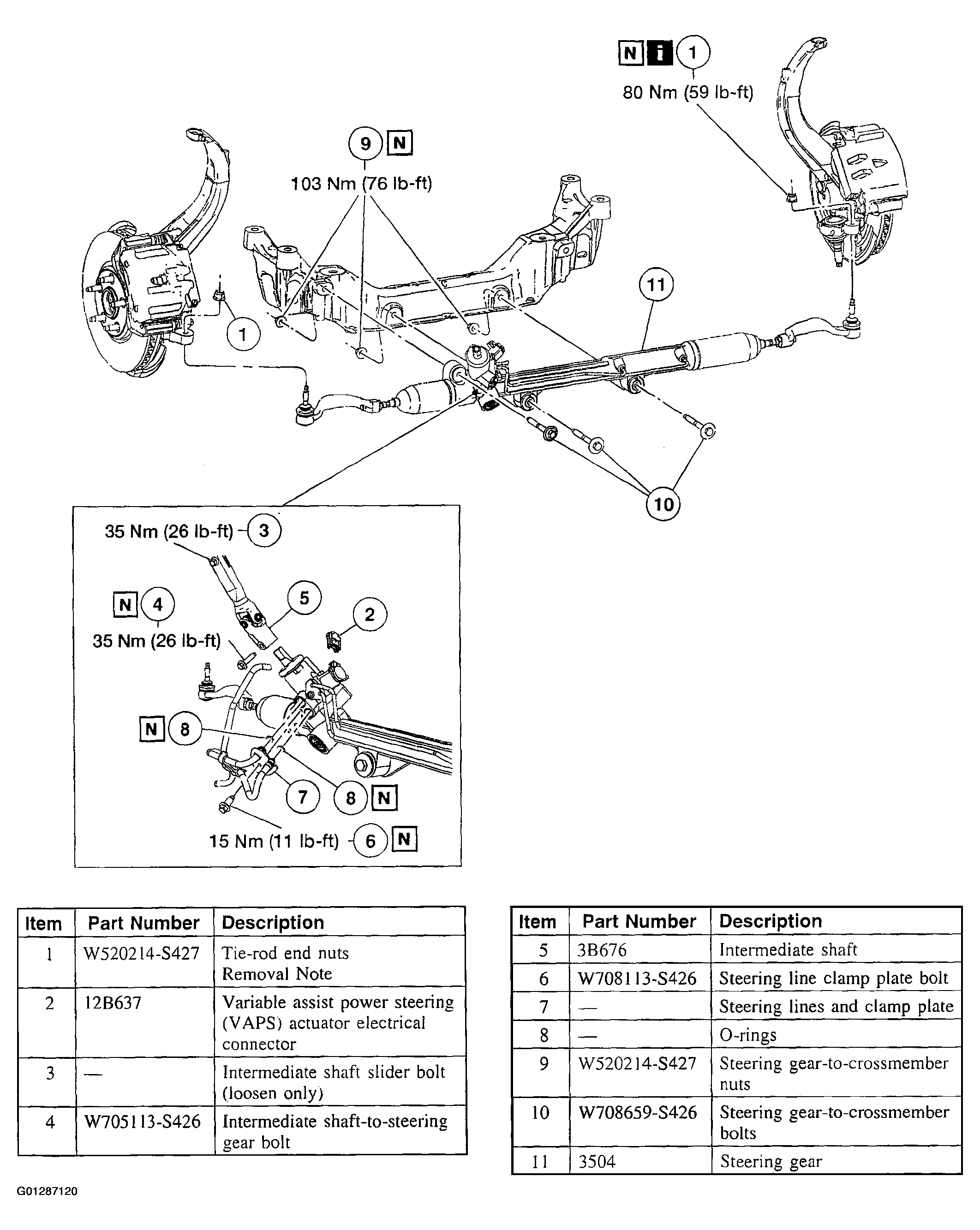

Fig 2: Removing Steering System Components And Parts Description Chart
Courtesy of FORD MOTOR CO.
Fill, purge and leak test the system. For additional information, Refer to POWER STEERING SYSTEM PURGING and POWER STEERING SYSTEM FILLING .
Check and, if necessary, adjust the front end alignment. For additional information, Refer to SPECIFICATIONS & PROCEDURES article .
