In-Vehicle Temperature Sensor

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the instrument cluster finish panel. For additional information, Refer to BODY SYSTEM - INTERIOR .
Remove the components in the order indicated in Fig 1.
To install, reverse the removal procedure.

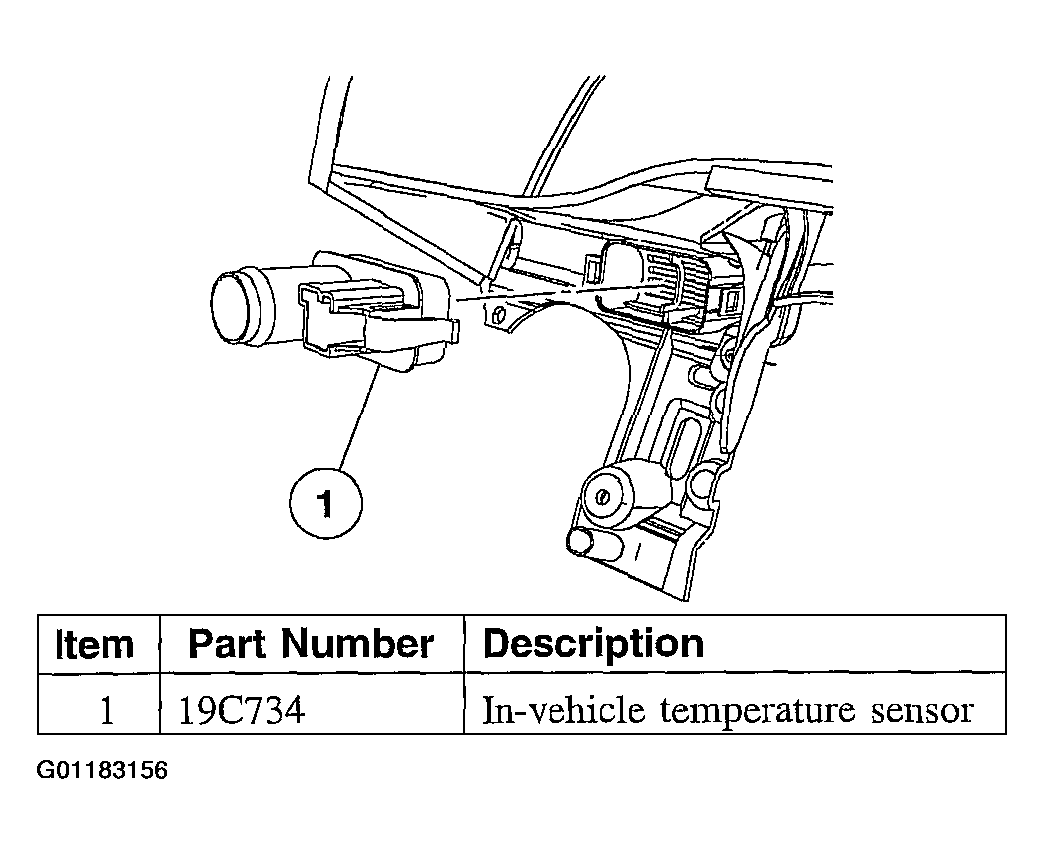

Fig 1: Removing Sequence Of In-Vehicle Temperature Sensor Components
Courtesy of FORD MOTOR CO.
