Removal And Installation: Headliner: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove both front seats. For additional information, Refer to SEATING
Remove the interior mirror. For additional information, Refer to BODY SYSTEM - EXTERIOR .
Remove the windshield side garnish panel. For additional information, Refer to INTERIOR TRIM PANELS .
Remove the upper B-pillar trim panel. For additional information, Refer to INTERIOR TRIM PANELS .
Remove the quarter trim panel. For additional information, Refer to INTERIOR TRIM PANELS .
To remove the individual components only, carry out the listed steps.

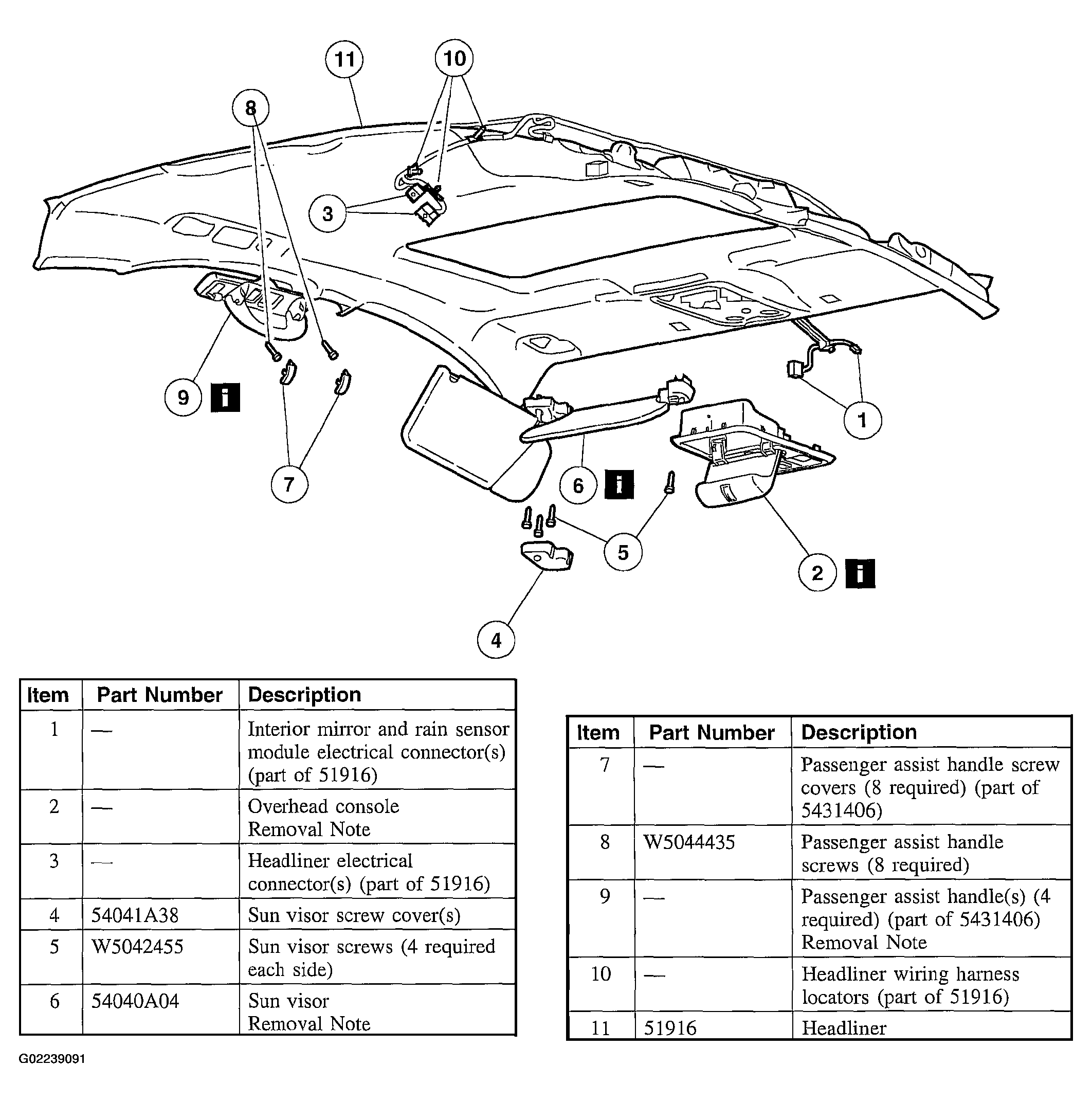

Fig 1: Identifying Headliner Components
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in Fig 2.

Fig 2: Parts Description Chart
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
