Driver Memory Seat Module C341a

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

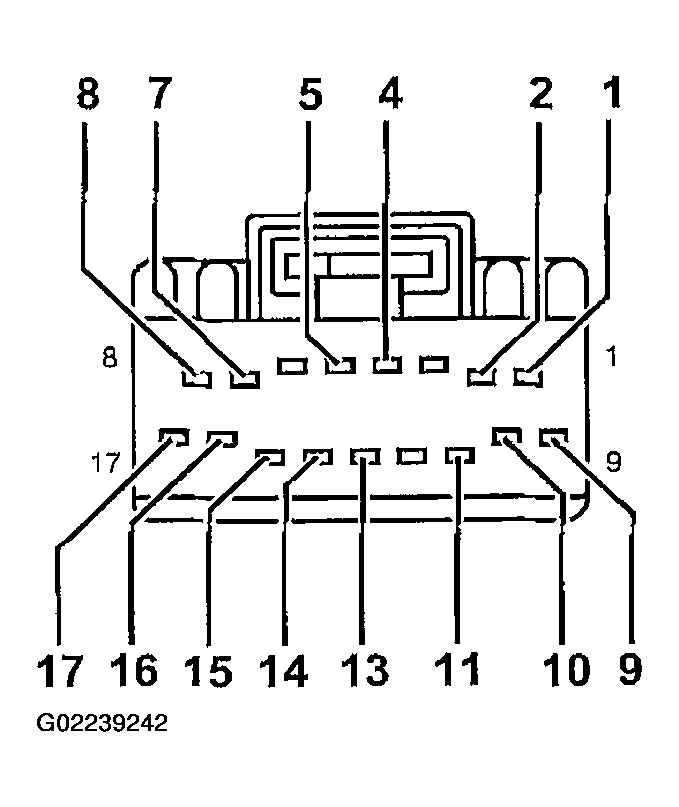

Fig 1: Identifying Driver Memory Seat Module C341a Connector

Courtesy of FORD MOTOR CO.

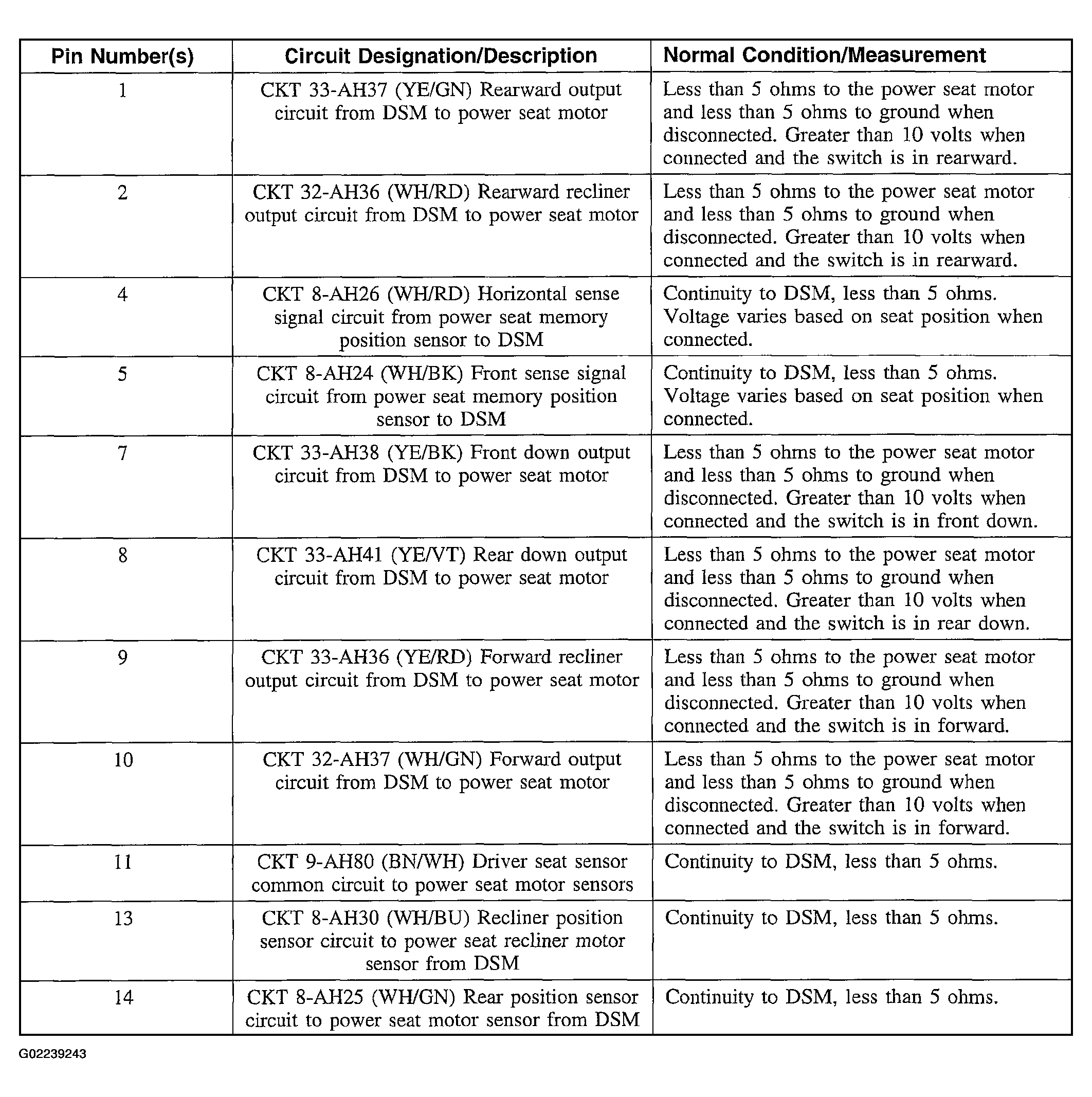

Fig 2: Measurement Specifications (1 Of 2)

Courtesy of FORD MOTOR CO.

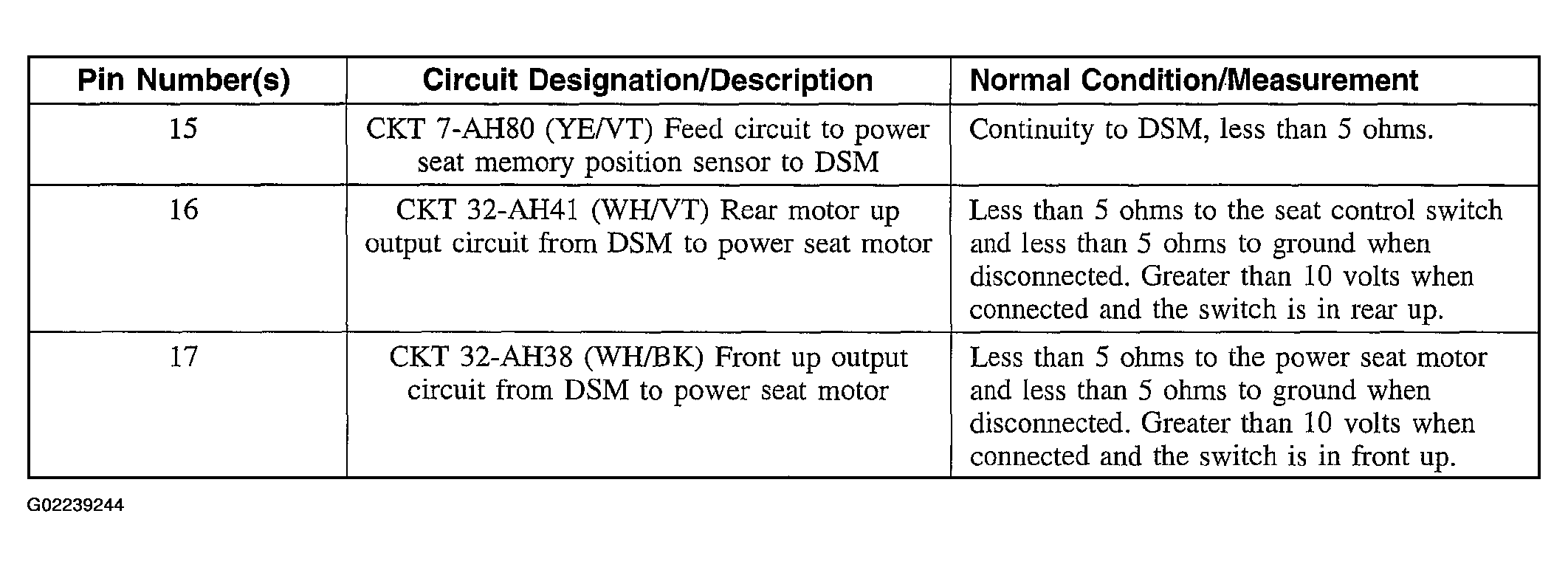

Fig 3: Measurement Specifications (2 Of 2)

Courtesy of FORD MOTOR CO.
