4.6L Engine Induction System Components

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

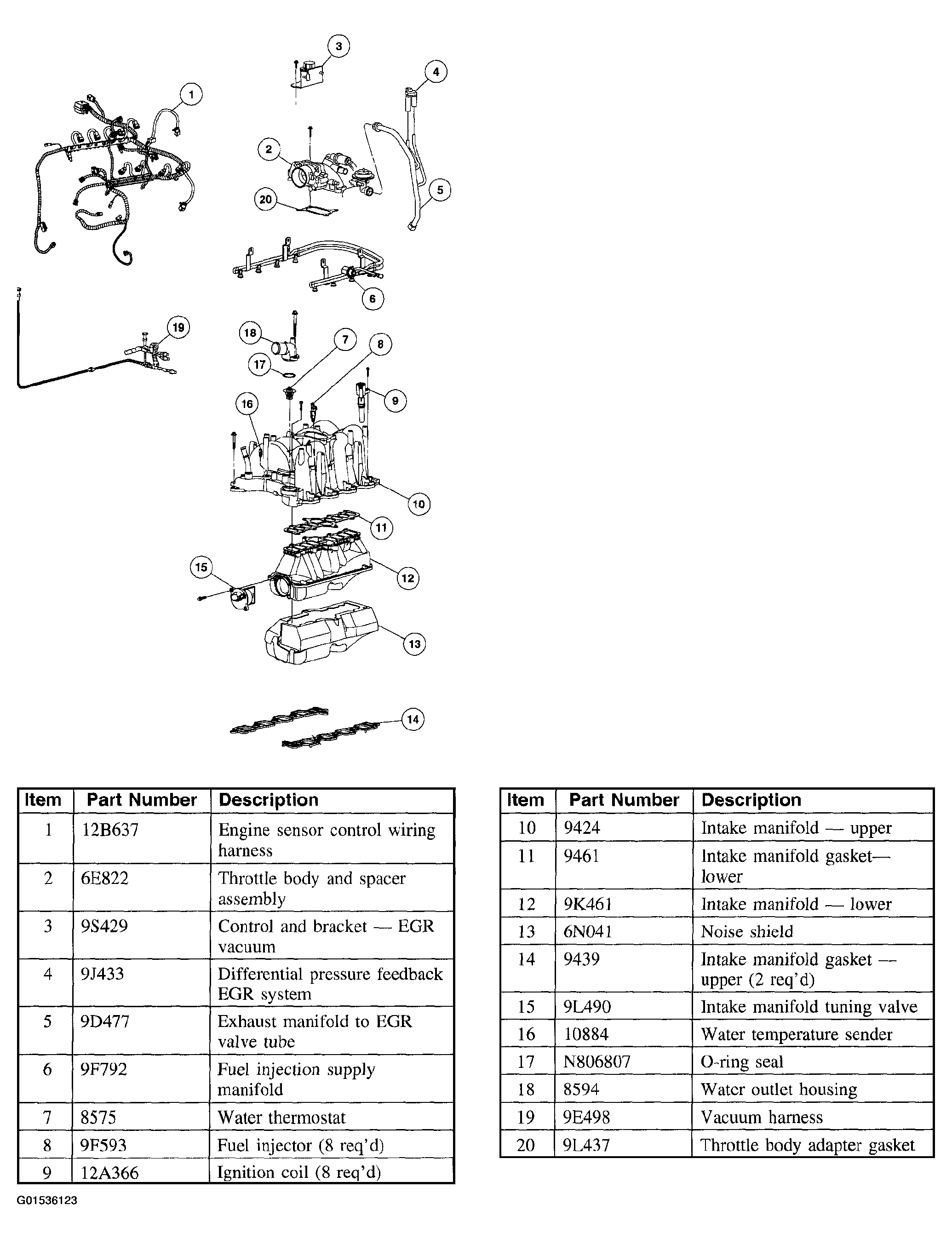

Fig 1: Exploded View Of 4.6L Engine Induction System Components
G01536123Courtesy of FORD MOTOR CO.
