Piston - Pin Connecting Rod, Floating Pin: Assembly

WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Connecting rod must be installed into piston with identification markings toward front.

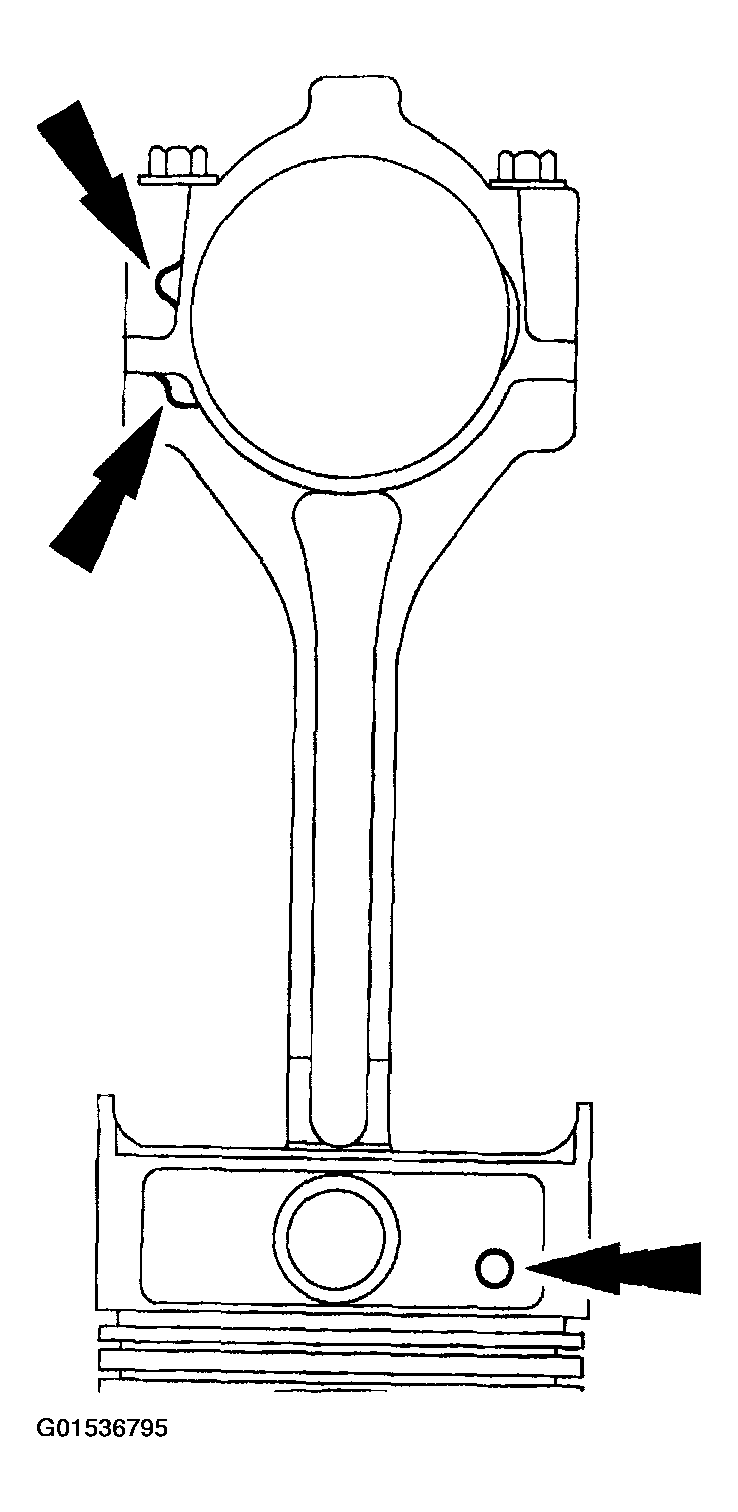

Fig 1: Positioning Connecting Rod

Courtesy of FORD MOTOR CO.

Position the connecting rod in the piston.
Lubricate the piston pin and pin bore with clean engine oil.

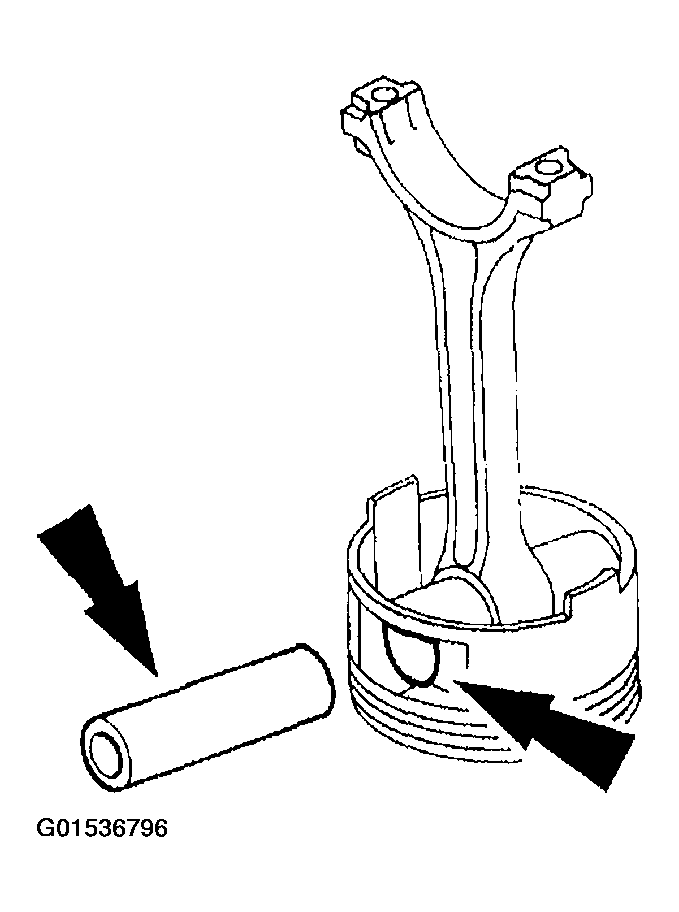

Fig 2: Lubricating Piston Pin
Courtesy of FORD MOTOR CO.
Install the piston pin in the piston and connecting rod assembly.

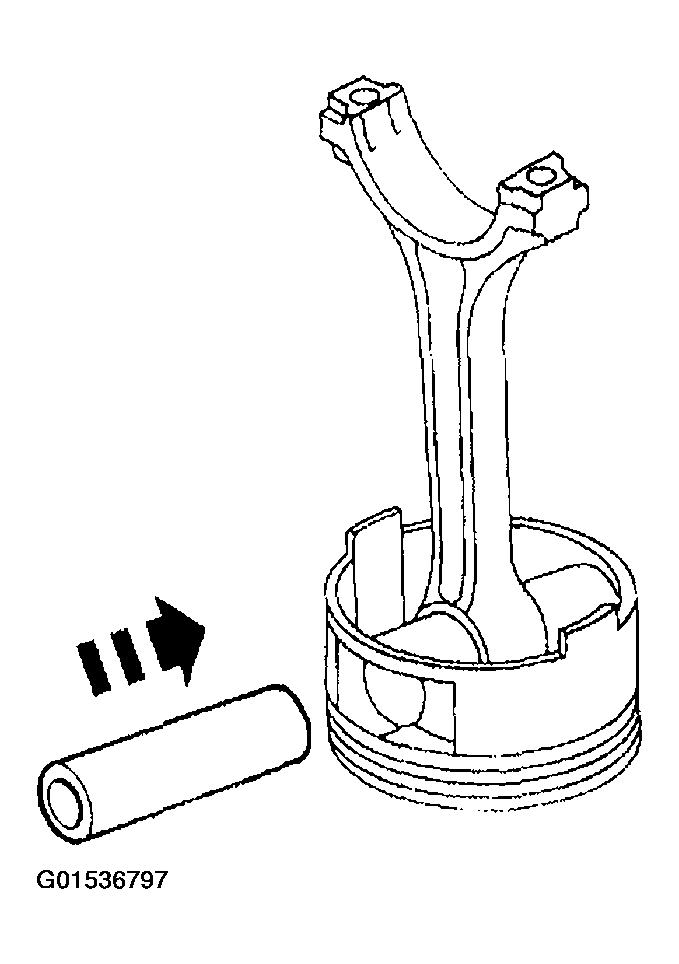

Fig 3: Installing Piston Pin In Piston And Connecting Rod Assembly
Courtesy of FORD MOTOR CO.
Install the piston pin retaining clips in the piston.

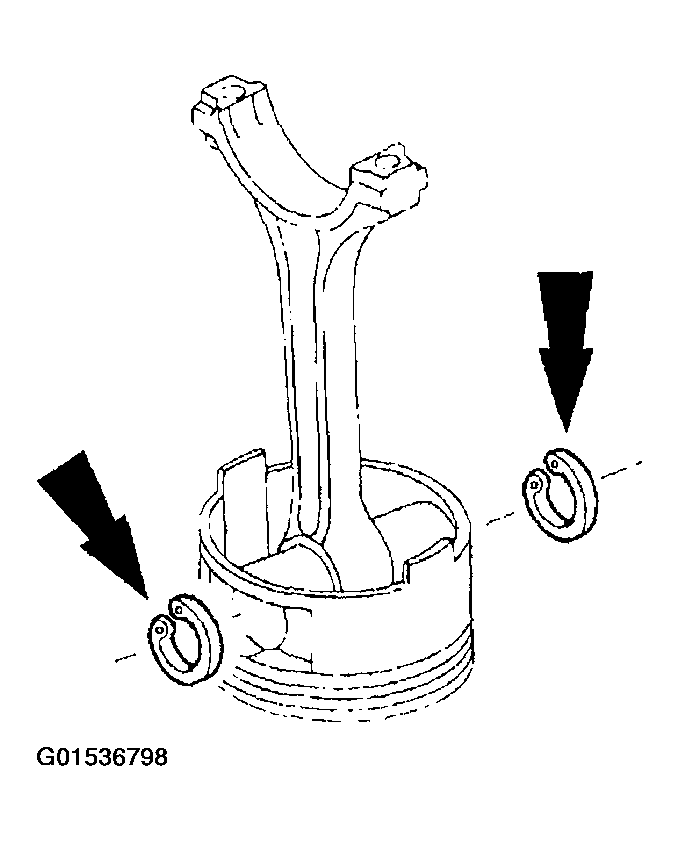

Fig 4: Installing Piston Pin Retaining Clips
Courtesy of FORD MOTOR CO.
