Module-Parking Aid: Removal

WARNING: This page is about a different car, the 2002 Ford Windstar. However, it is still accessible from the selected car via links, so may be relevant.

Remove the RR quarter trim panel. Refer to TRIM PANEL -- QUARTER .
Position the sound insulator aside.

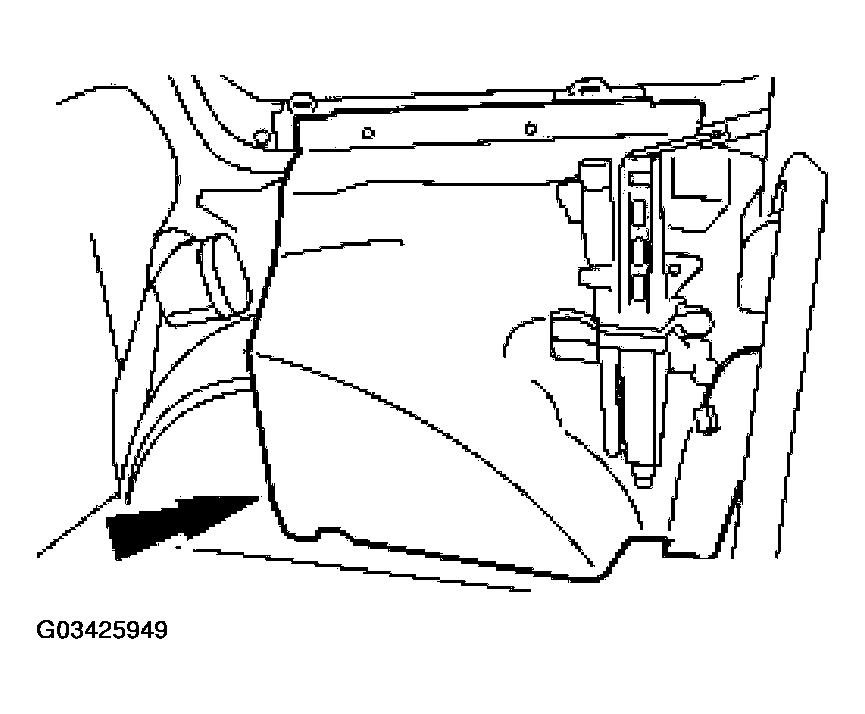

Fig 1: Removing Sound Insulator
Courtesy of FORD MOTOR CO.
Remove the PAM.
1. Disconnect the electrical connector.
2. Remove the nut.
3. Remove the PAM.

  Fig 2: Removing PAM
  Courtesy of FORD MOTOR CO.
