Driver Door Lock Control Switch C505
WARNING: This page is about a different car, the 2004 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

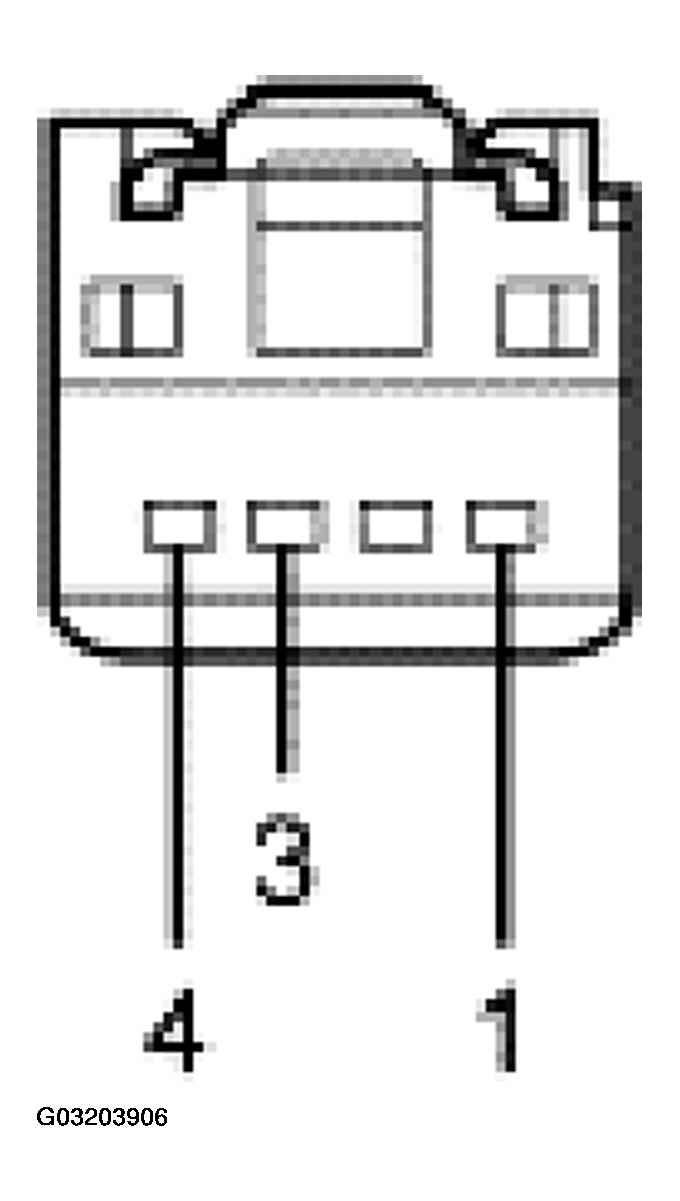

CIRCUIT DESIGNATION CHART
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 1 | 8-AA10 (WH/BK) driver door lock control switch lock input | Less than 5 ohms resistance between the driver door lock control switch and the DDM. Greater than 10,000 ohms between the driver door lock control switch and ground. |
| 3 | 8-AA11 (WH/VT) driver door lock control switch unlock input | Less than 5 ohms resistance between the driver door lock control switch and the DDM. Greater than 10,000 ohms between the driver door lock control switch and ground. |
| 4 | 31-LH28 (BK) driver door lock control switch ground | 0 voltage. Less than 5 ohms resistance between the driver door lock control switch and ground. |
