Restraint Control Module (RCM) C310a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

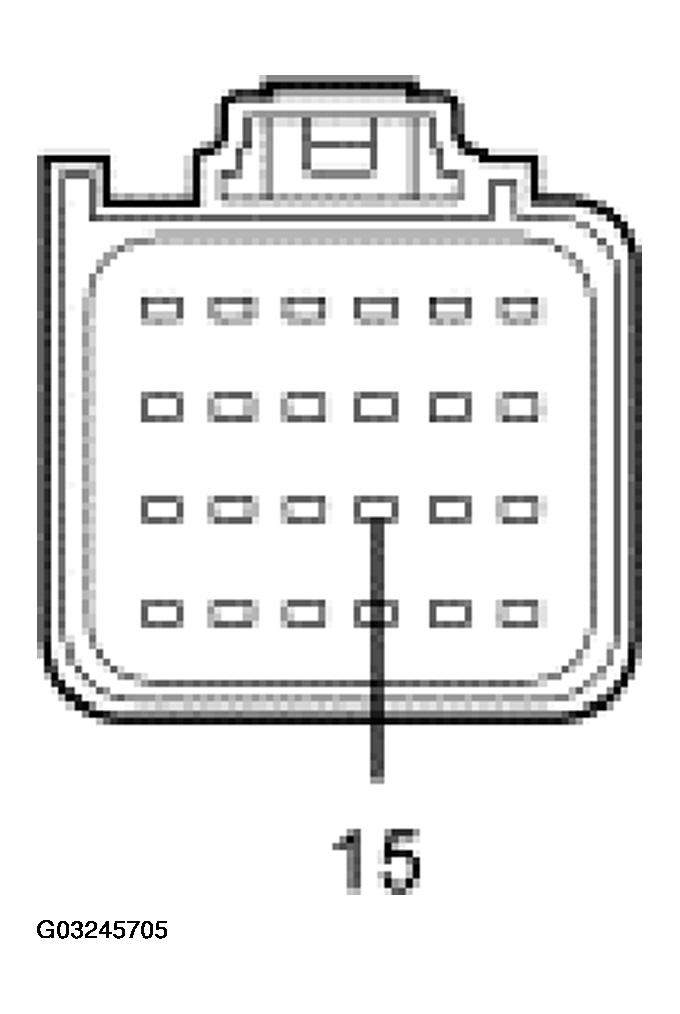

RESTRAINT CONTROL MODULE (RCM) C310A CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 15 | 608 (BK/YE) air bag warning indicator control circuit | 0 volts, less than 5 ohms resistance between the instrument cluster and the air bag module. Greater than 10,000 ohms resistance between the instrument cluster and chassis ground. |
