Anti-lock Brake System (ABS) Module C155
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

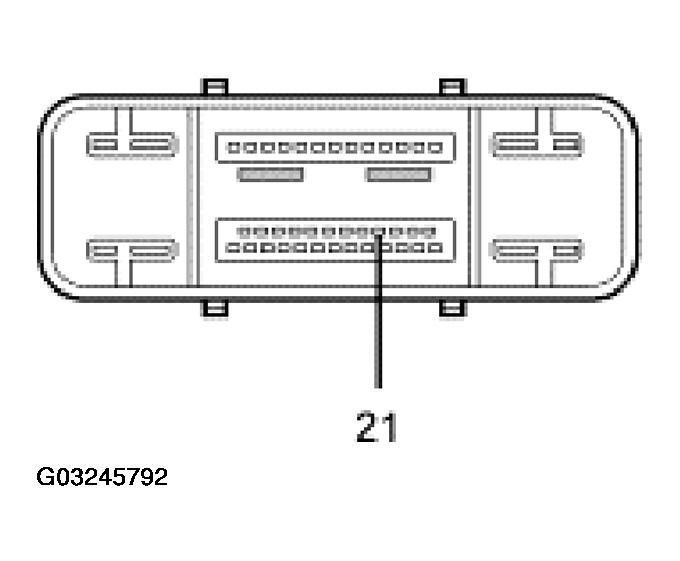

Courtesy of FORD MOTOR CO. ANTI-LOCK BRAKE SYSTEM (ABS) MODULE C155 CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) |
Circuit Designation/Description |
Normal Condition/Measurement |
| 21 |
239 (WH/OG) vehicle speed signal |
Less than 5 ohms between the ABS module and the parking aid module. |
