Restraints Control Module (RCM) C310a
WARNING: This page is about a different car, the 2004 Mercury Monterey and 2004 Ford Freestar. However, it is still accessible from the selected car via links, so may be relevant.

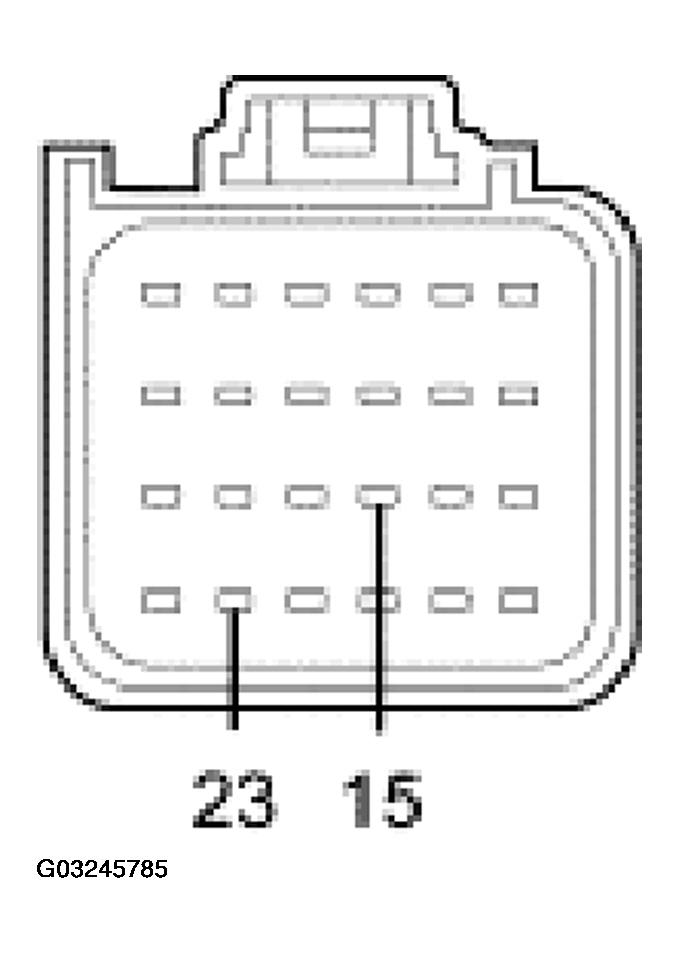

RESTRAINTS CONTROL MODULE (RCM) C310A CONNECTOR CIRCUIT REFERENCE
| Pin Number (s) | Circuit Designation/Description | Normal Condition/Measurement |
|---|---|---|
| 15 | 608 (BK/YE) air bag indicator control | Less than 5 ohms between the RCM and the instrument cluster. Greater than 10,000 ohms between the RCM and ground. |
| 23 | 1083 (LB/BK) air bag tone driver | Less than 5 ohms between the RCM and the instrument cluster. Greater than 10,000 ohms between the RCM and ground. |
