Valve - Spring Squareness
WARNING: This page is about a different car, the 2003 Ford RV Cutaway, 2003 Ford Econoline, 2003 Ford E550 Super Duty, 2003 Ford E450 Super Duty, and 2003 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.

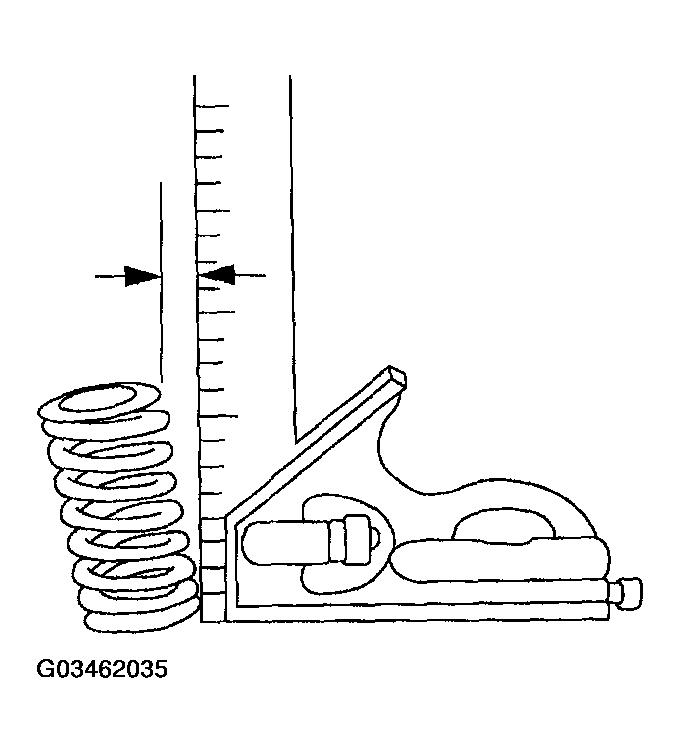

- Measure the out-of-square on each valve spring.
- Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square. Refer to IN-VEHICLE REPAIR in the appropriate ENGINE article for the procedure.
