Possible Causes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

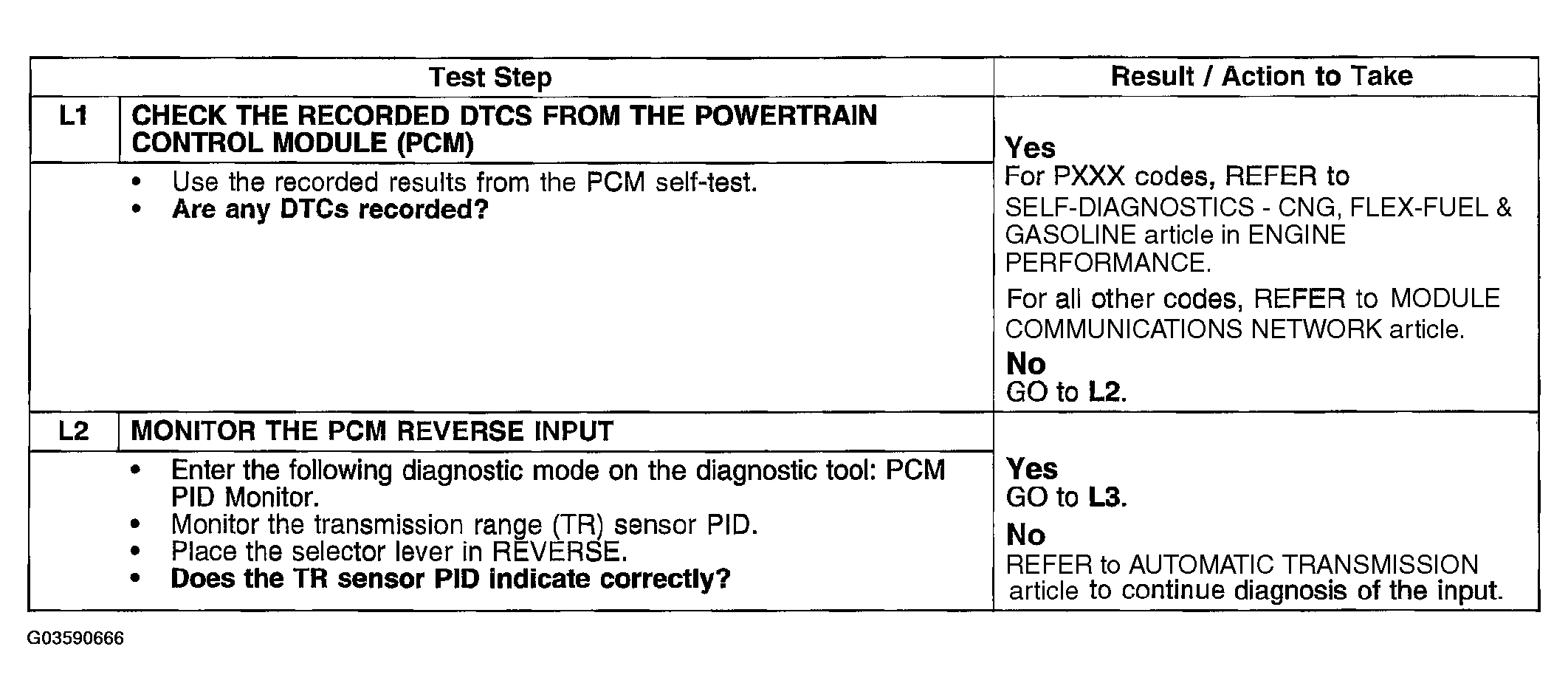

Fig 1: Pinpoint Test L: DTC U1016 - SCP Invalid Data Powertrain Control Module (Step L1-L2)

Courtesy of FORD MOTOR CO.

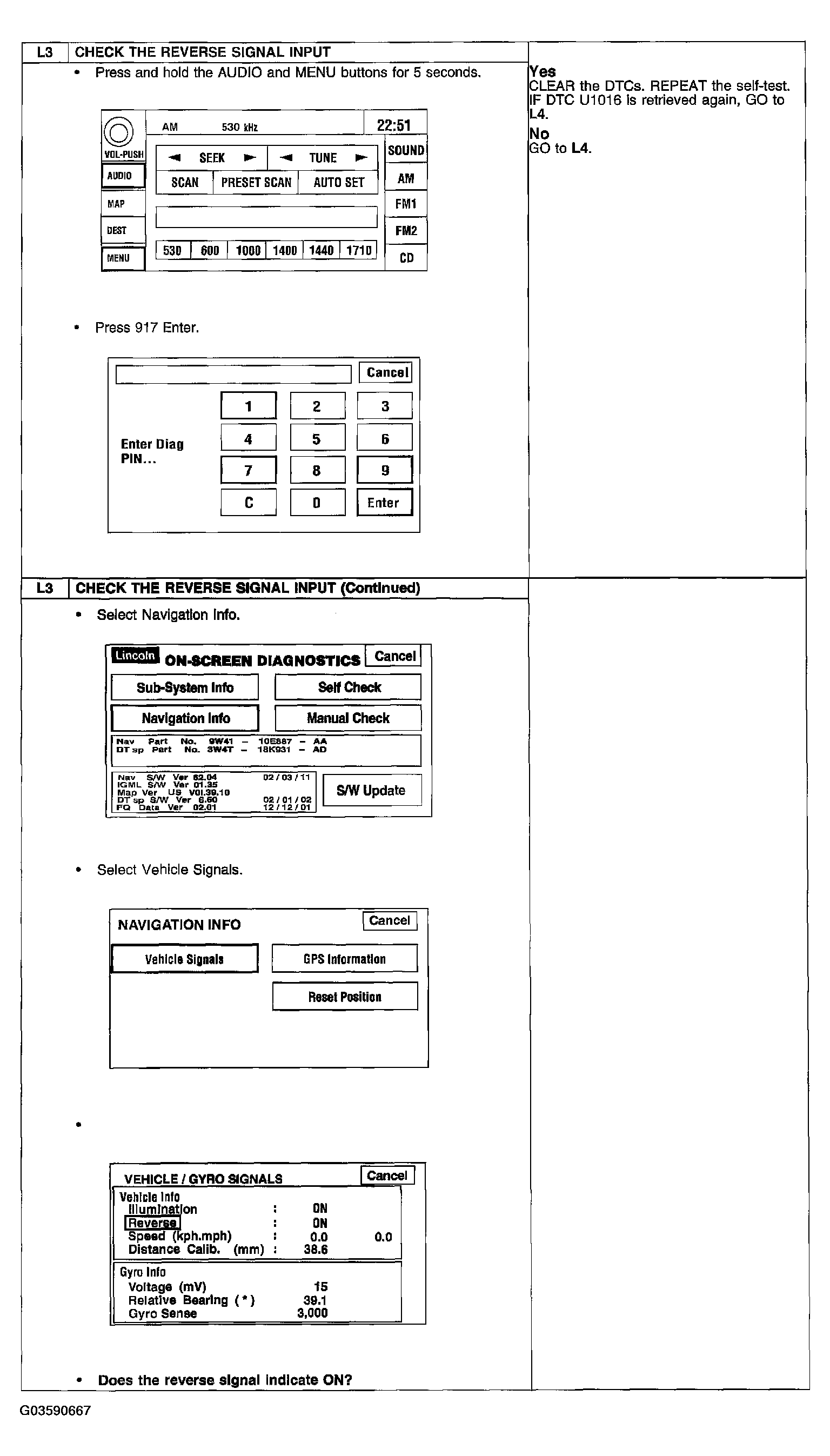

Fig 2: Pinpoint Test L: DTC U1016 - SCP Invalid Data Powertrain Control Module (Step L3)

Courtesy of FORD MOTOR CO.

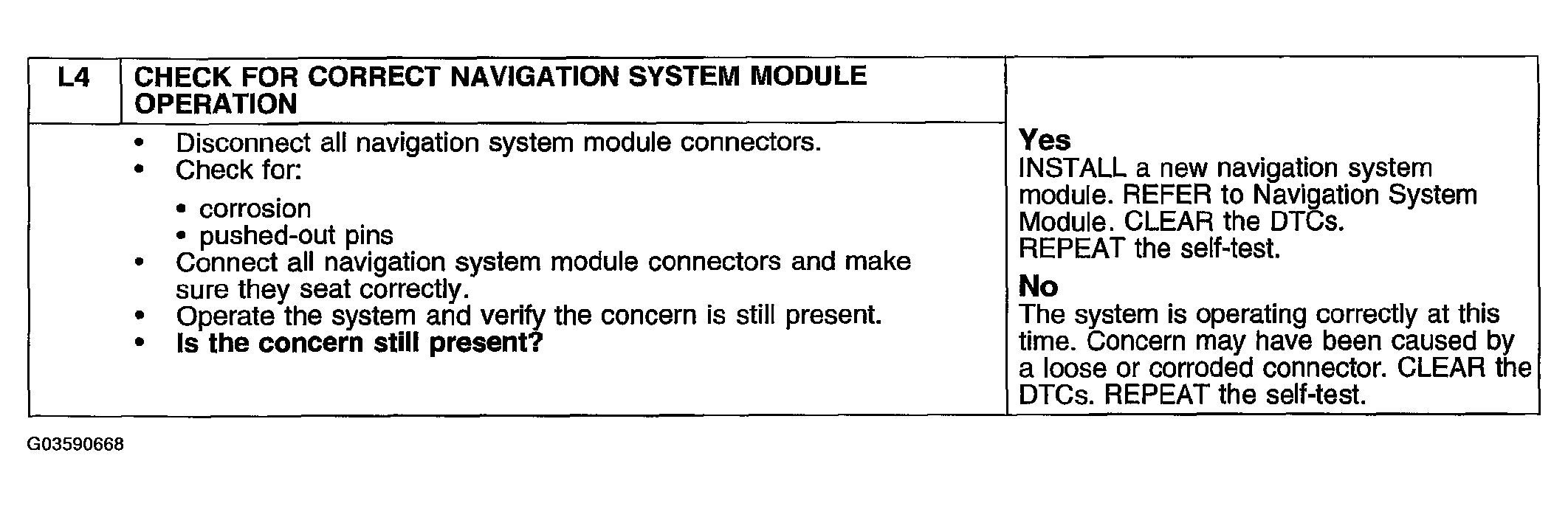

Fig 3: Pinpoint Test L: DTC U1016 - SCP Invalid Data Powertrain Control Module (Step L4)

Courtesy of FORD MOTOR CO.
