Navigation System Module
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery. For additional information, refer to BATTERY AND CHARGING SYSTEM .
- Remove the upper luggage compartment trim panel.
- Remove the package tray. For additional information, refer to BODY SYSTEM INTERIOR .

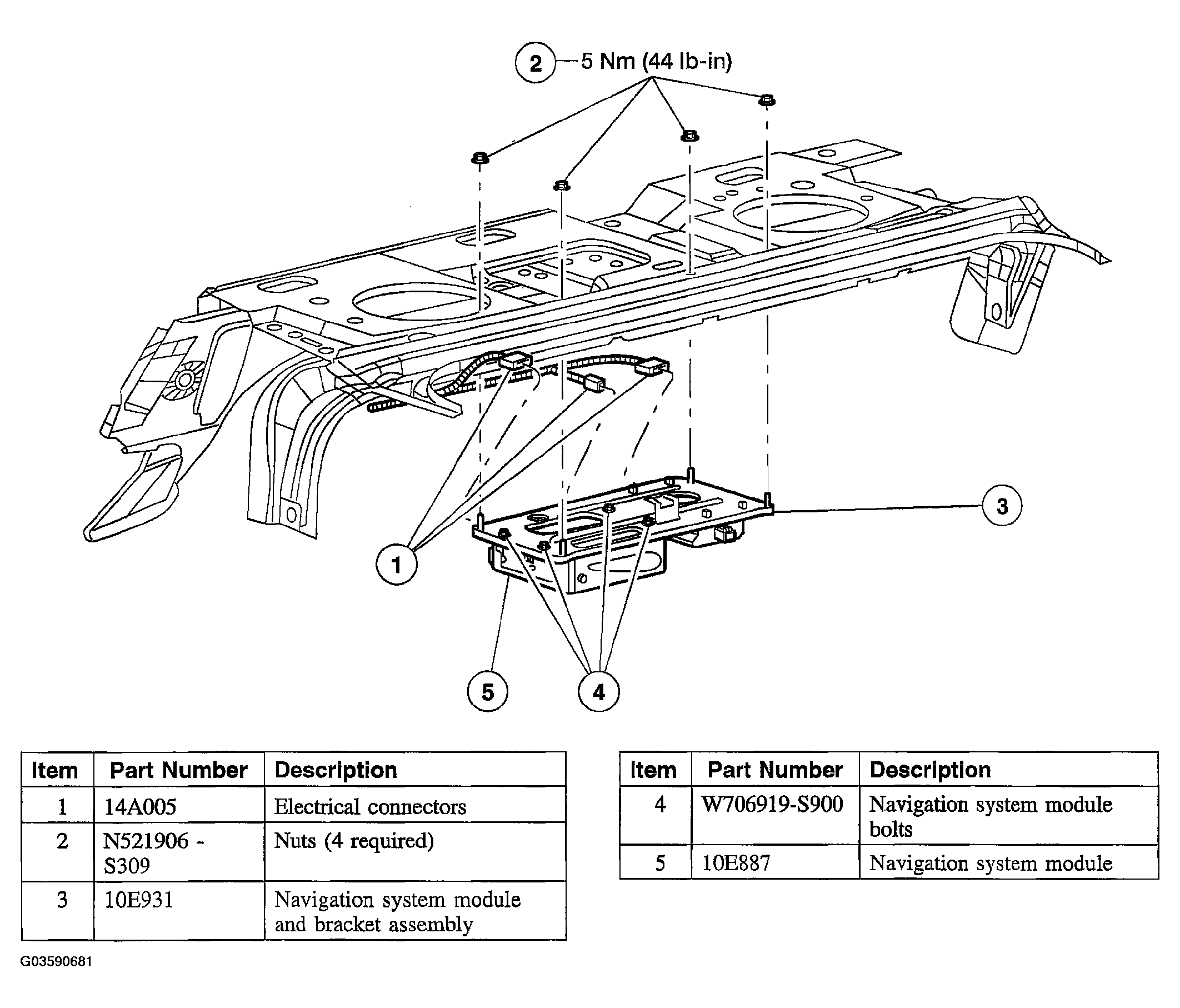

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
CAUTION:
Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.
NOTE:
Prior to removal of the navigation system module, it is necessary to remove the digital versatile disc (DVD) from the navigation system module and store it in the customer case.
