Front Electronic Module (FEM)-C201b

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

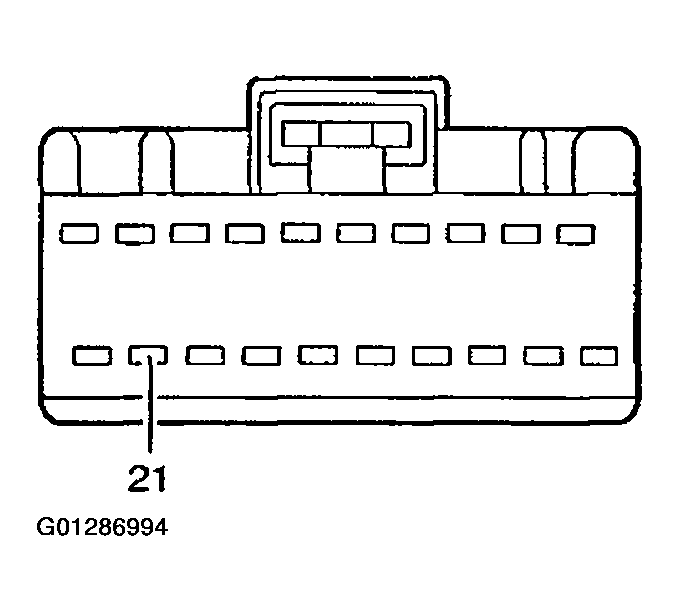

Fig 1: Identifying Front Electronic Module - C201b Connector
G01286994Courtesy of FORD MOTOR CO.

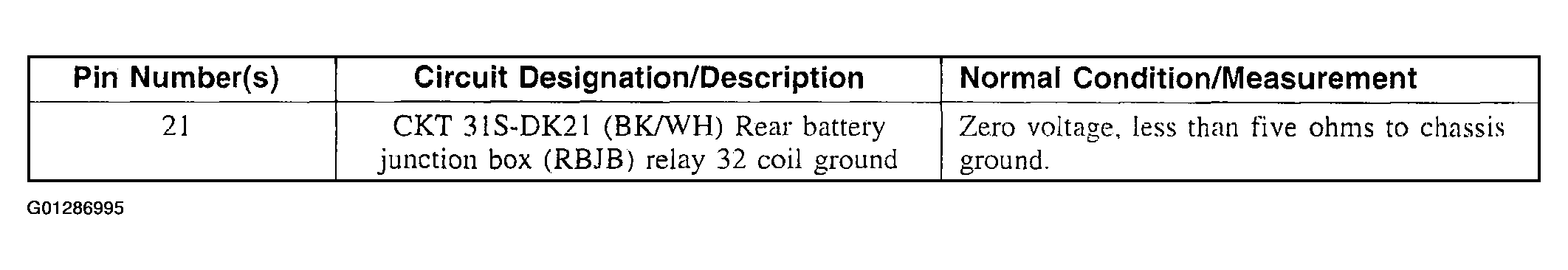

Fig 2: Front Electronic Module C201b - Circuit Description Chart
G01286995Courtesy of FORD MOTOR CO.
