Disassembled Views

Disassembled Views

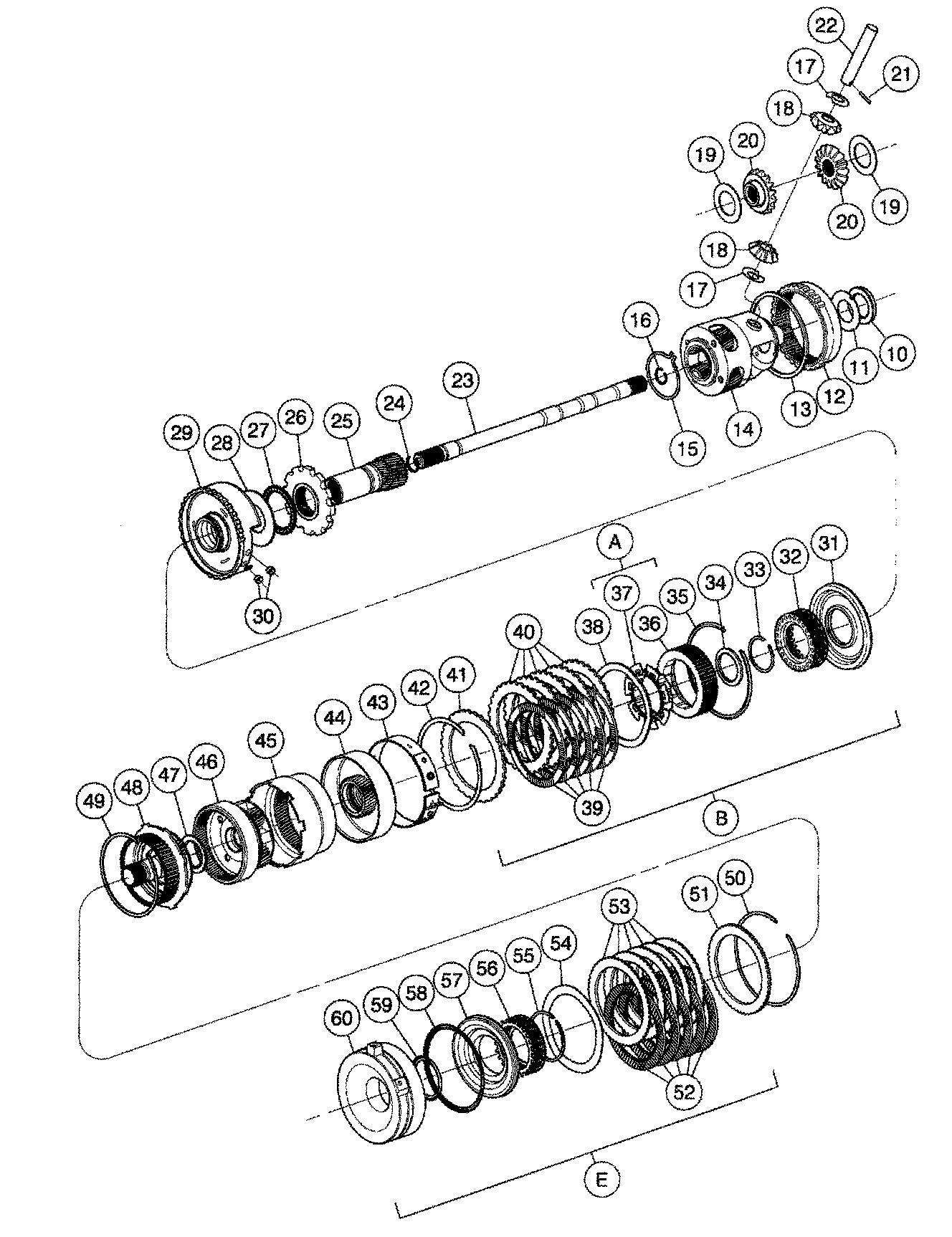

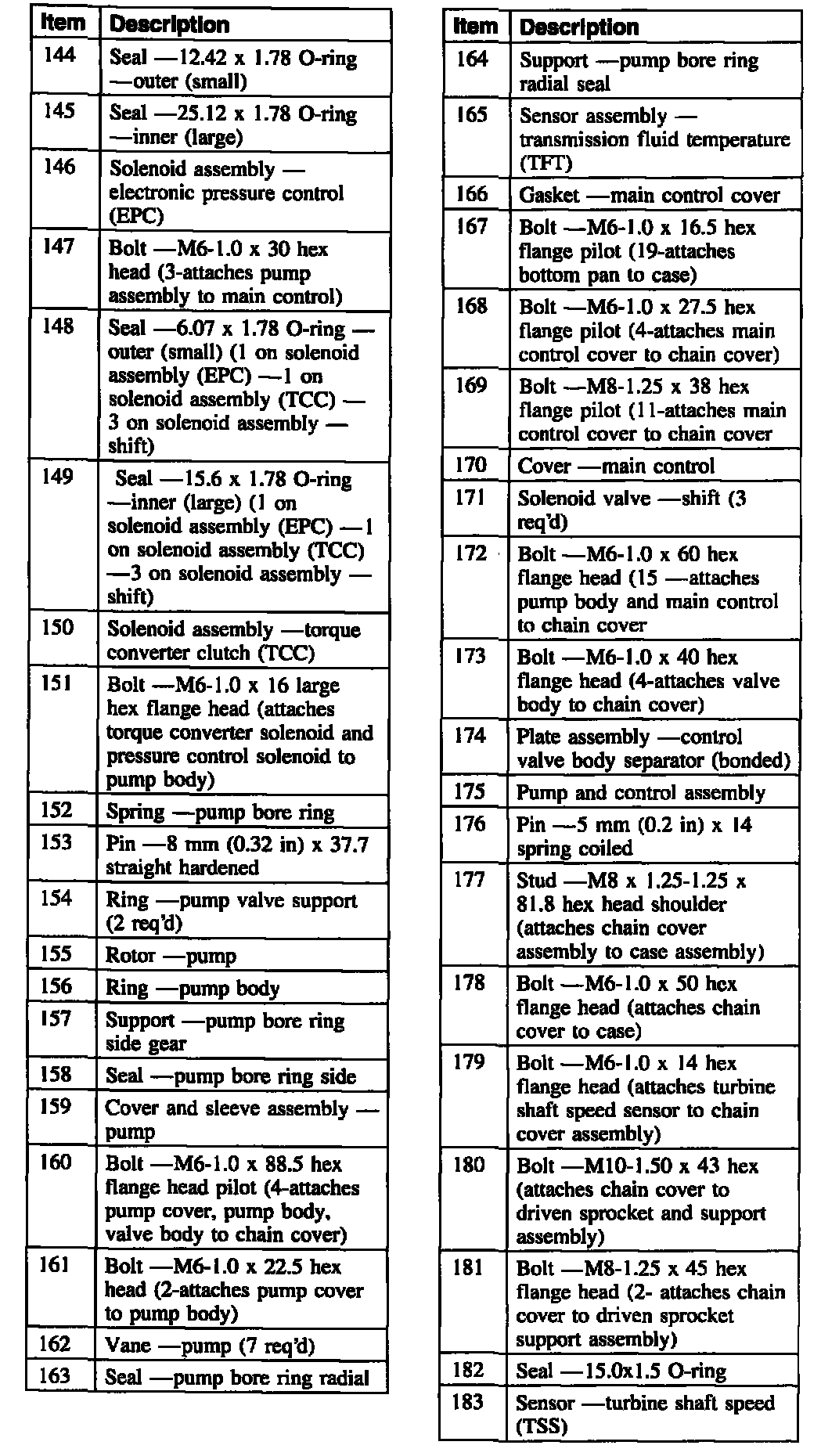

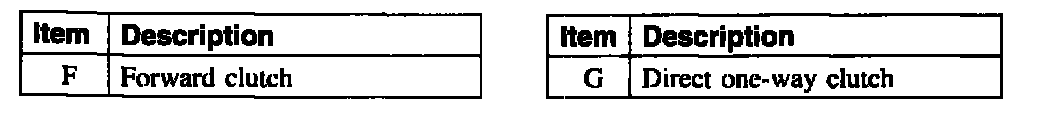

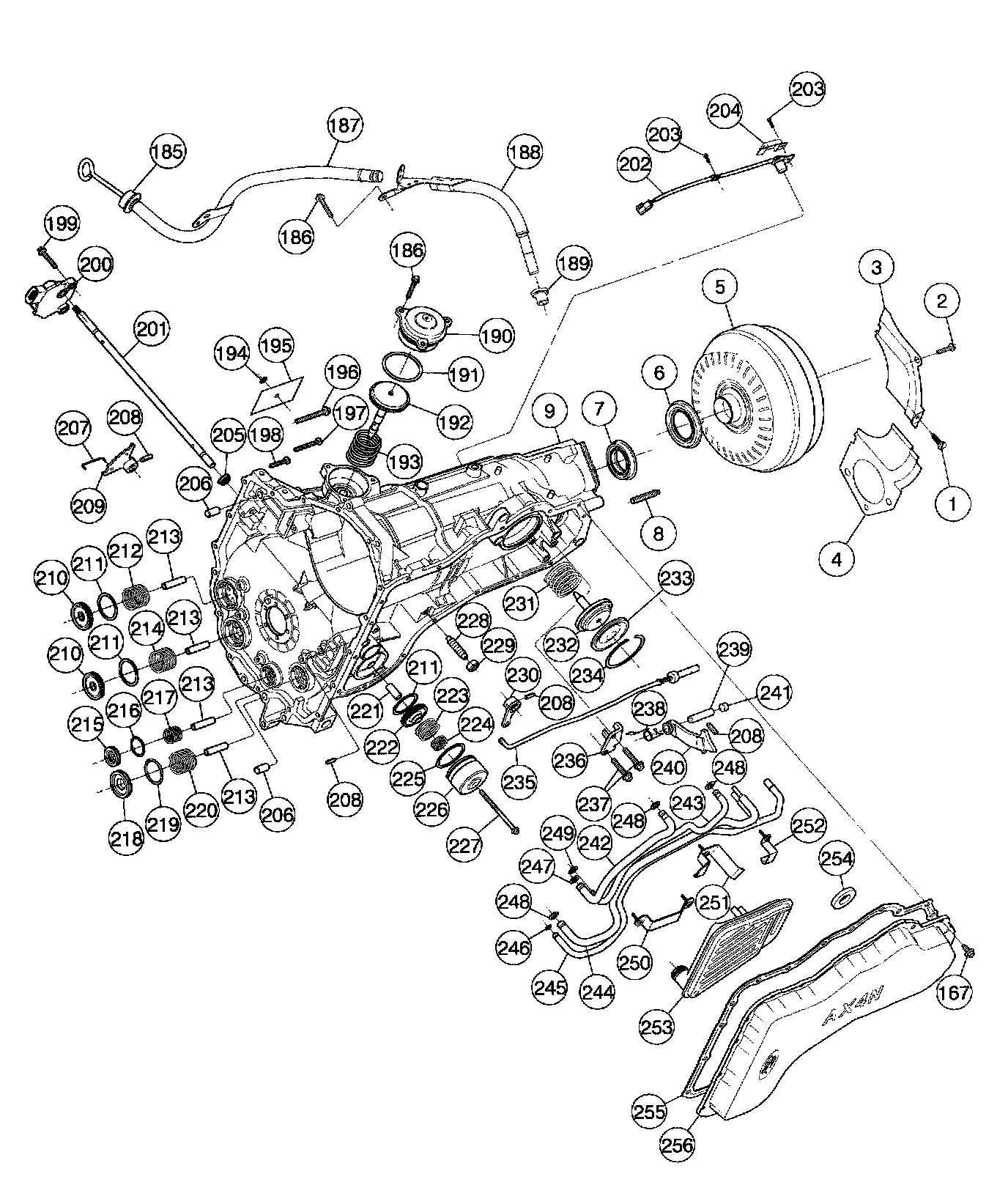

Part 1 Of 11:




Part 2 Of 11:




Part 3 Of 11:




Part 4 Of 11:




Part 5 Of 11:




Part 6 Of 11:




Part 7 Of 11:




Part 8 Of 11:




Part 9 Of 11:




Part 10 Of 11:




Part 11 Of 11:
