Pinpoint Tests

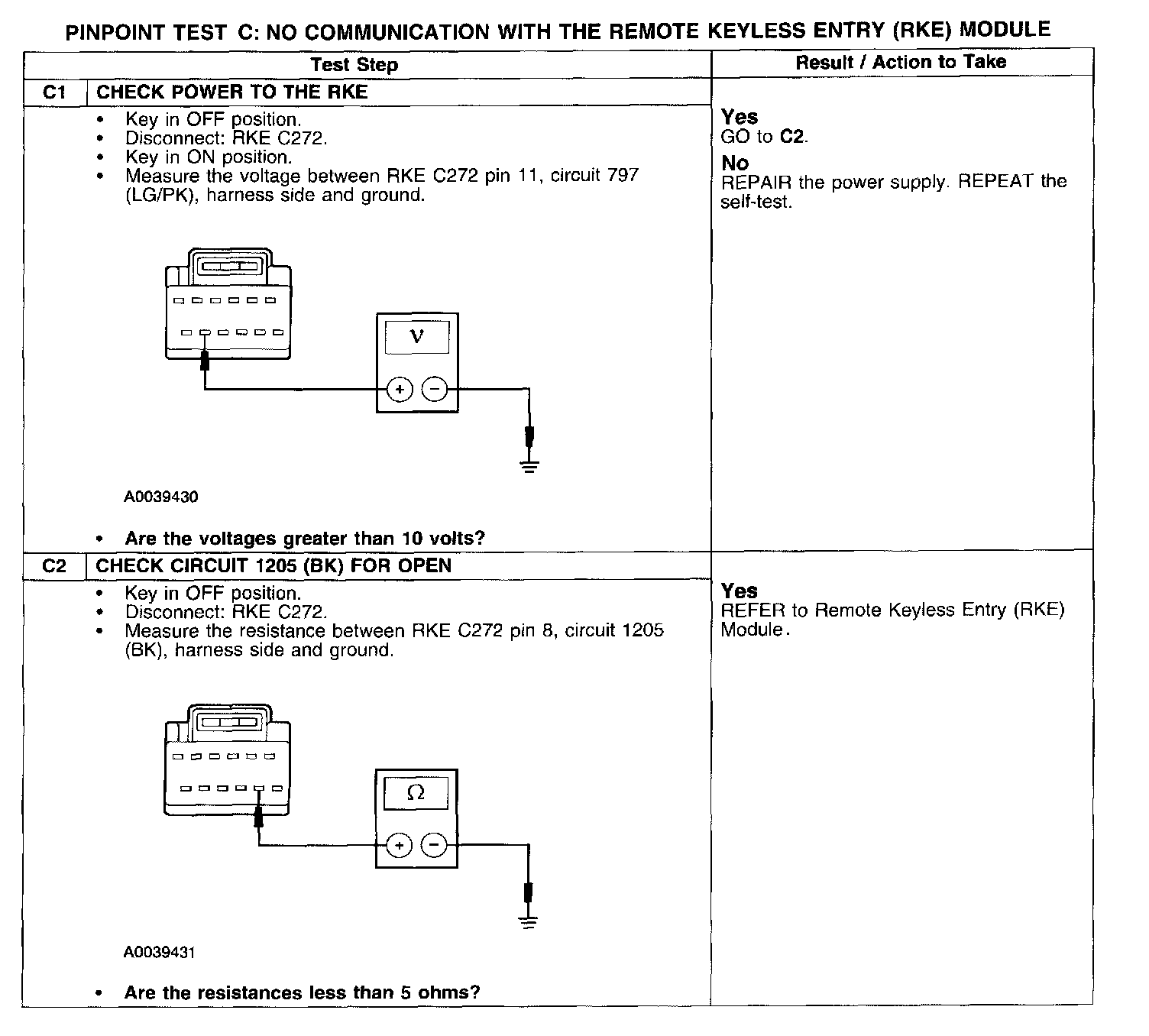

PINPOINT TEST C: NO COMMUNICATION WITH THE REMOTE KEYLESS ENTRY (RKE) MODULE


Test C1-C2:
