Module - Fuel Delivery: Removal

WARNING: Do not smoke or carry an open flame of any type when working on or near any fuel-related components. Do not work on fuel-related components when the engine is hot. Leaking fuel may contact hot engine components and be ignited, resulting in possible personal injury.
  1. Disconnect the battery ground cable.
  2. Relieve the fuel pressure; refer to FUEL SYSTEM-GENERAL INFORMATION .
  3. Remove the rear seat cushion assembly; refer to SEATING .
  4. Disconnect the two fuel delivery module electrical connectors.

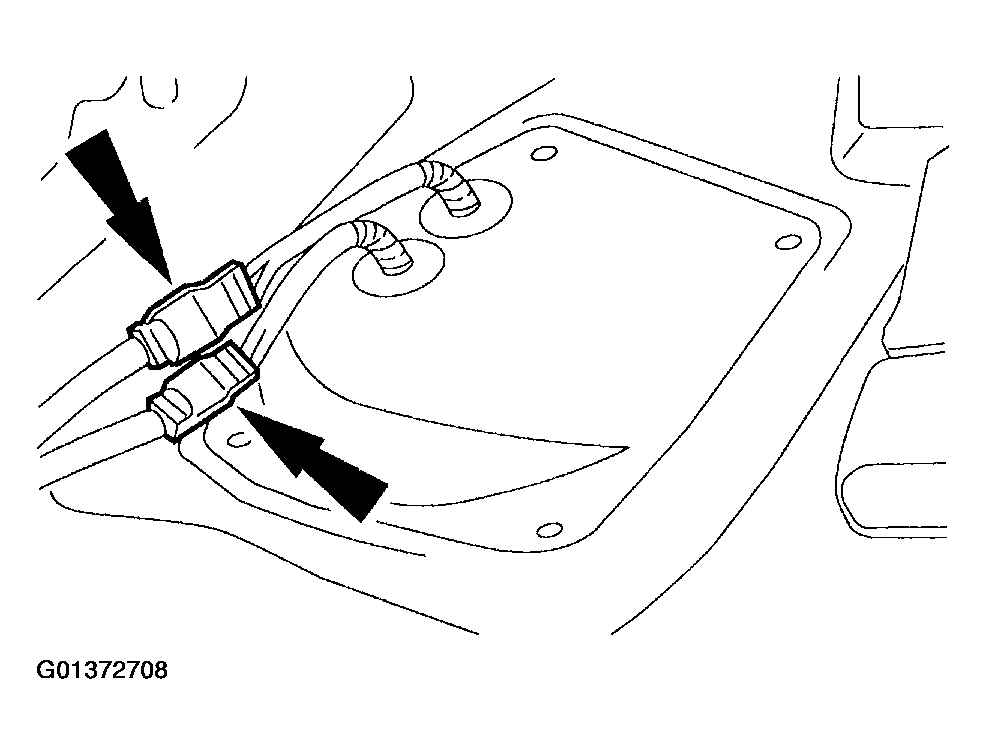

    Fig 1: Disconnecting Fuel Delivery Module Electrical Connectors
    G01372708Courtesy of FORD MOTOR CO.
  5. Remove the four fuel delivery module access cover screws and remove the fuel delivery module access cover.

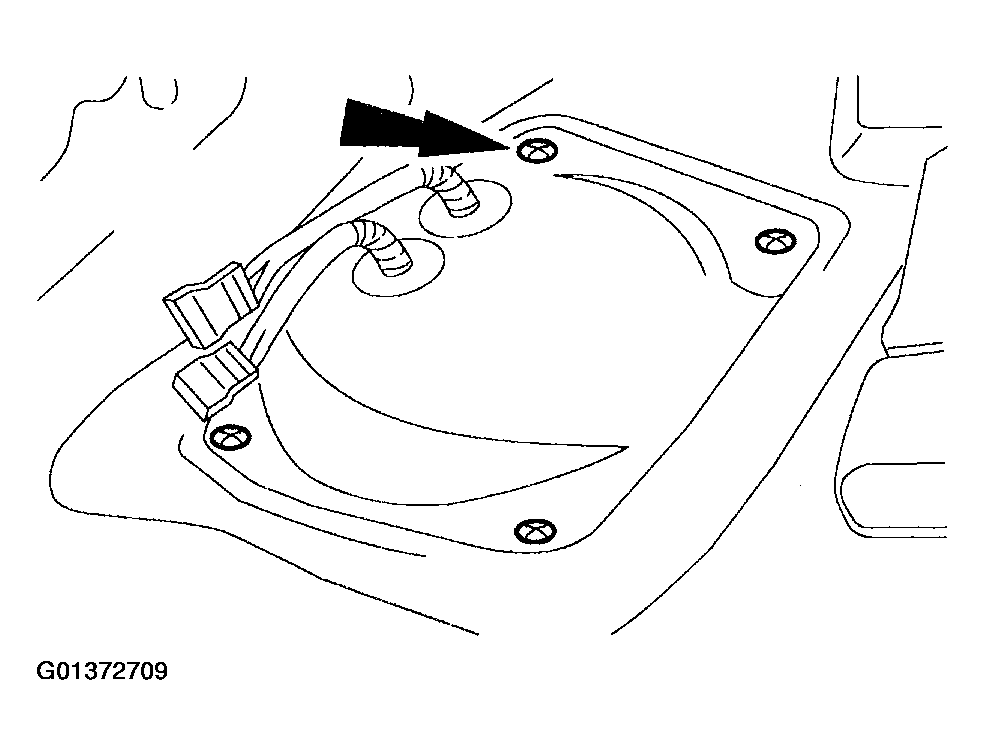

    Fig 2: Removing Fuel Delivery Module Access Cover Screws
    G01372709Courtesy of FORD MOTOR CO.
  6. Remove the fuel line clip and disconnect the fuel line.

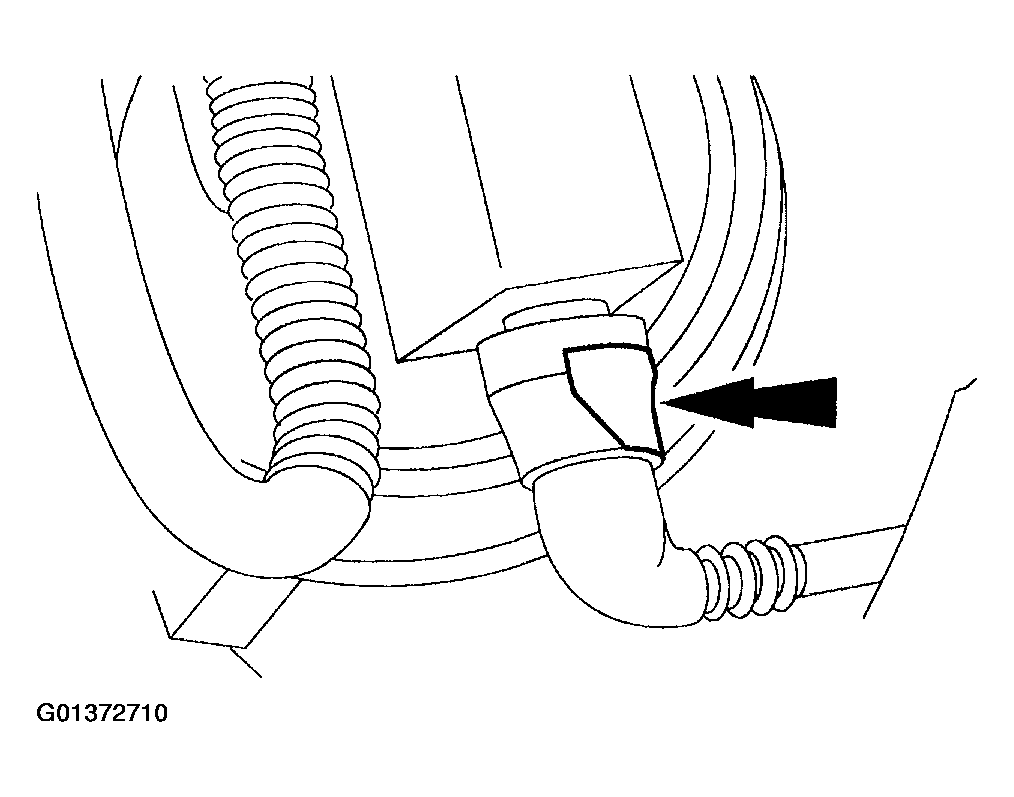

    Fig 3: Removing Fuel Line Clip
    G01372710Courtesy of FORD MOTOR CO.
  7. Open the fuel delivery module cover.
    1. Remove the retainer ring.
    2. Open the cover.

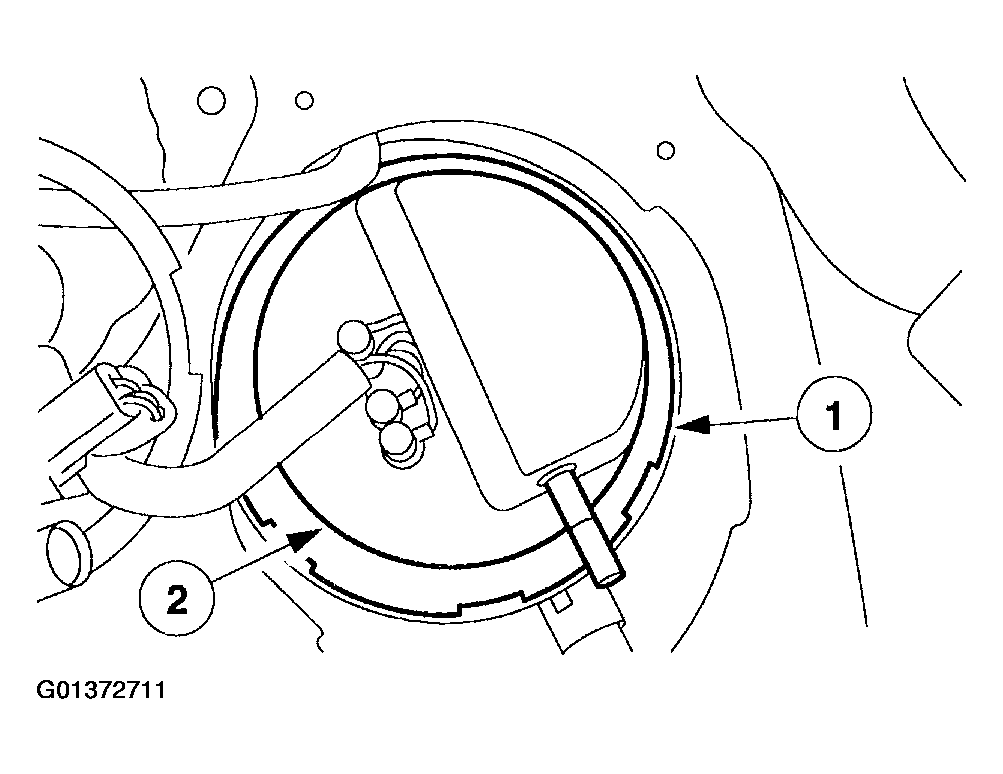

    Fig 4: Opening Fuel Delivery Module Cover
    G01372711Courtesy of FORD MOTOR CO.
  8. Remove the fuel delivery module.
    1. Depress the locking tabs.
    2. Remove the module.

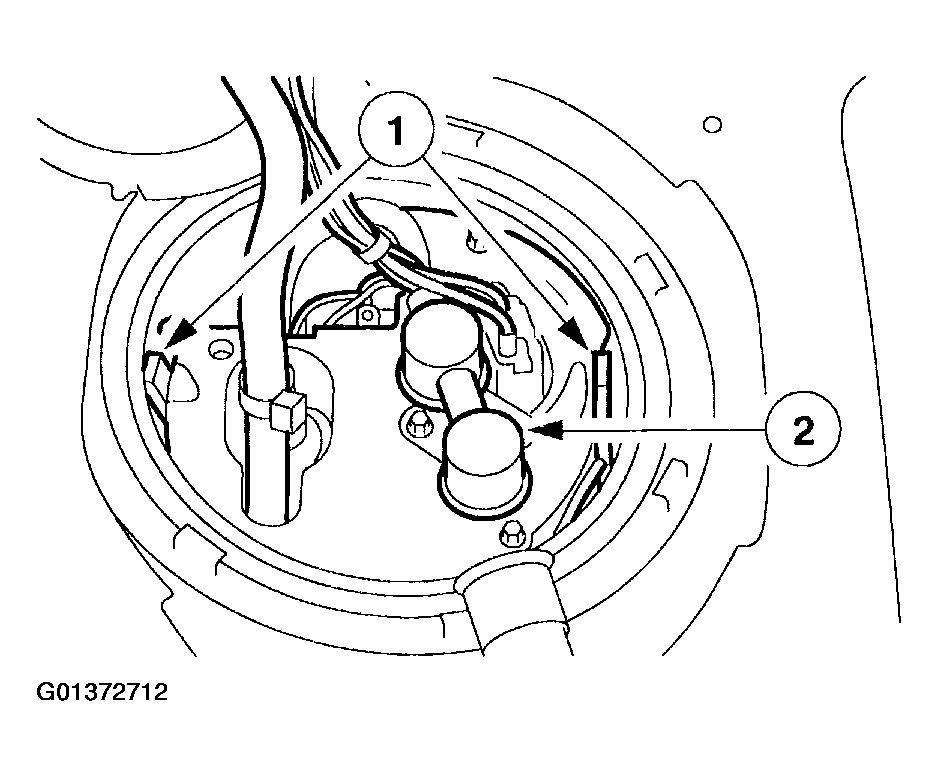

    Fig 5: Removing Fuel Delivery Module
    G01372712Courtesy of FORD MOTOR CO.
