Vehicle Security Module C3203e

WARNING: This page is about a different car, the 2005 Mercury Mountaineer and 2005 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

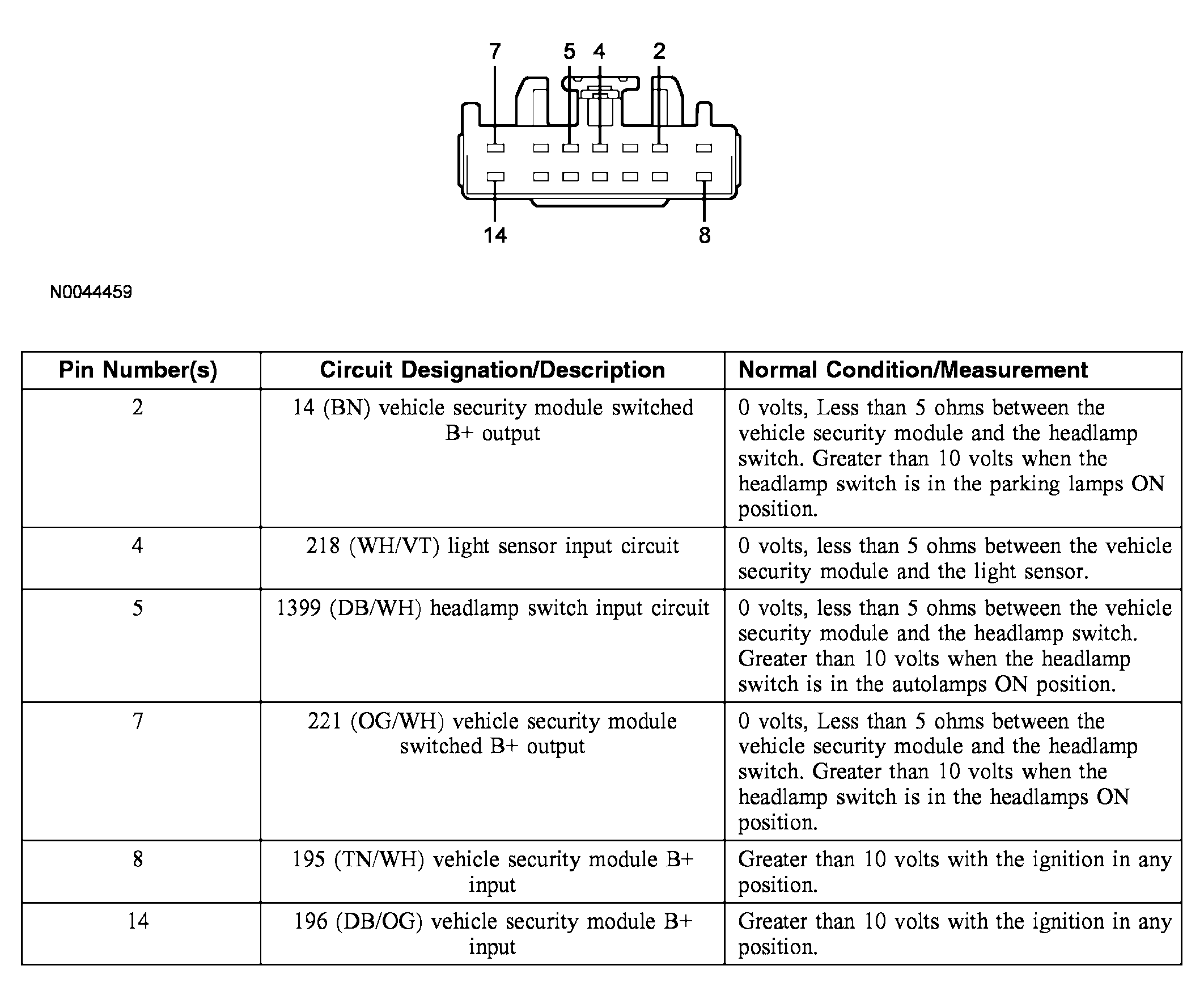

Fig 1: Identifying Vehicle Security Module C3203e Connector Pinouts
G03945606Courtesy of FORD MOTOR CO.
