Engine Component Location View

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

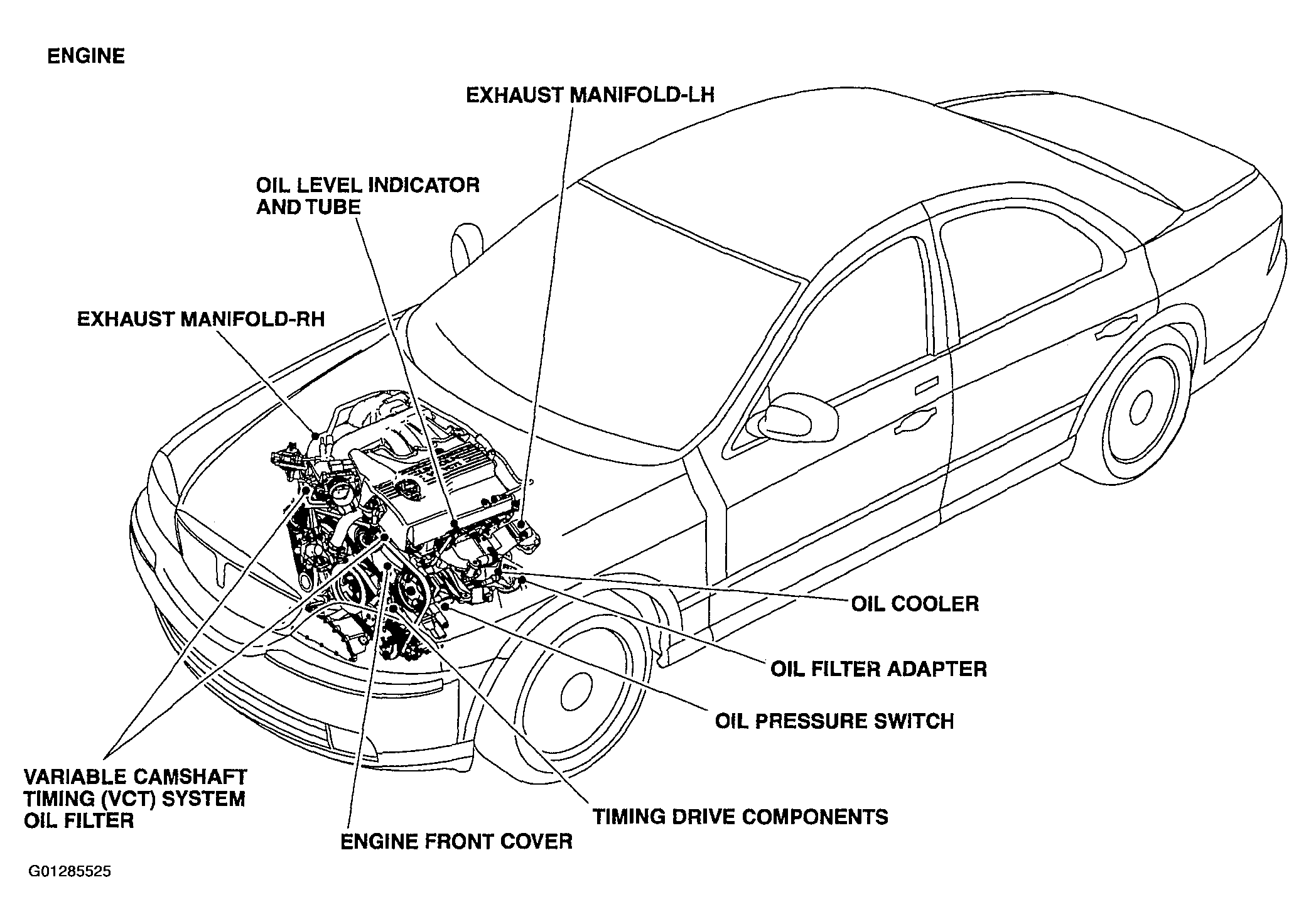

Fig 1: Identifying Engine Component Location View (1 Of 3)

Courtesy of FORD MOTOR CO.

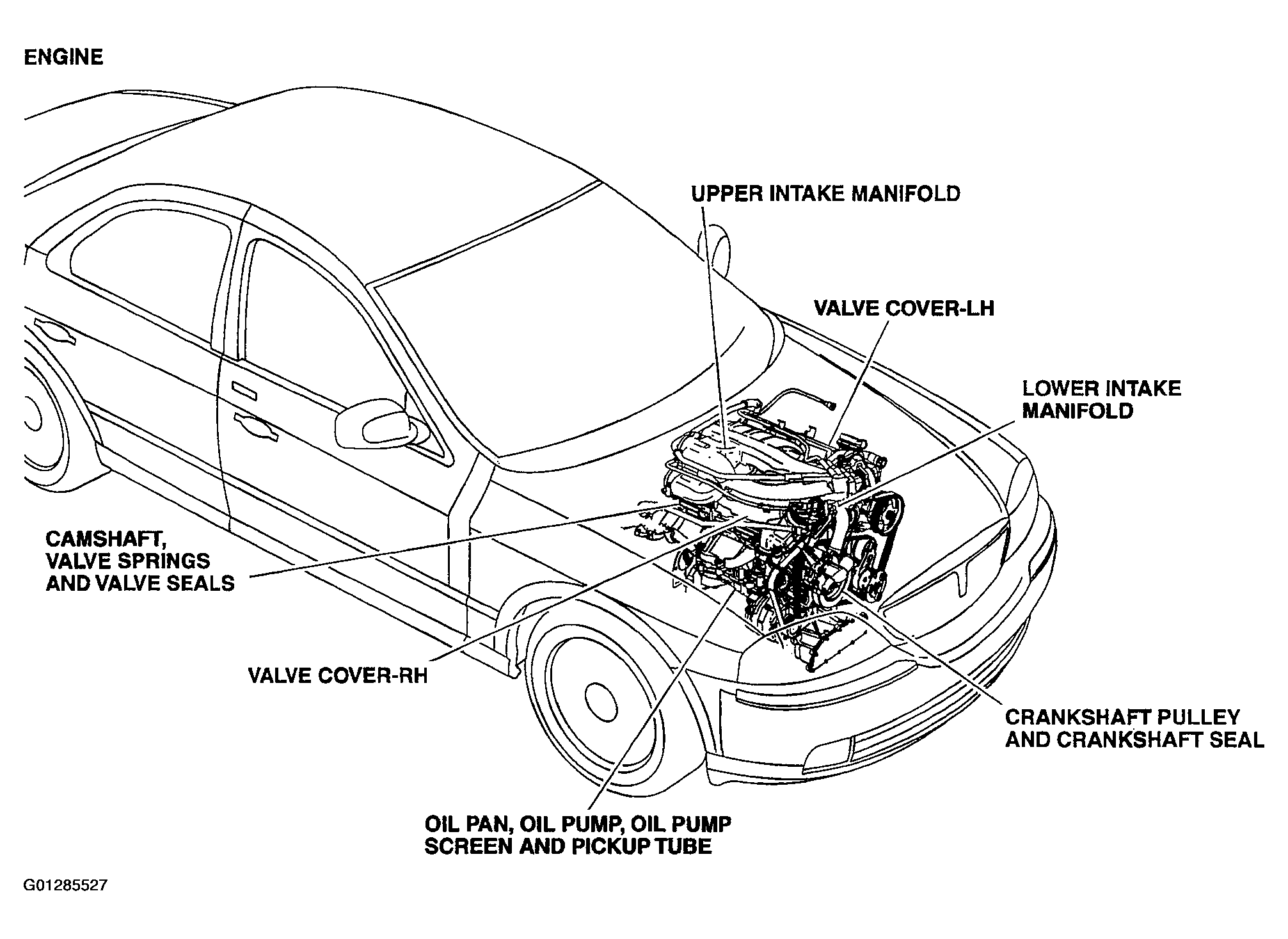

Fig 2: Identifying Engine Component Location View (2 Of 3)

Courtesy of FORD MOTOR CO.

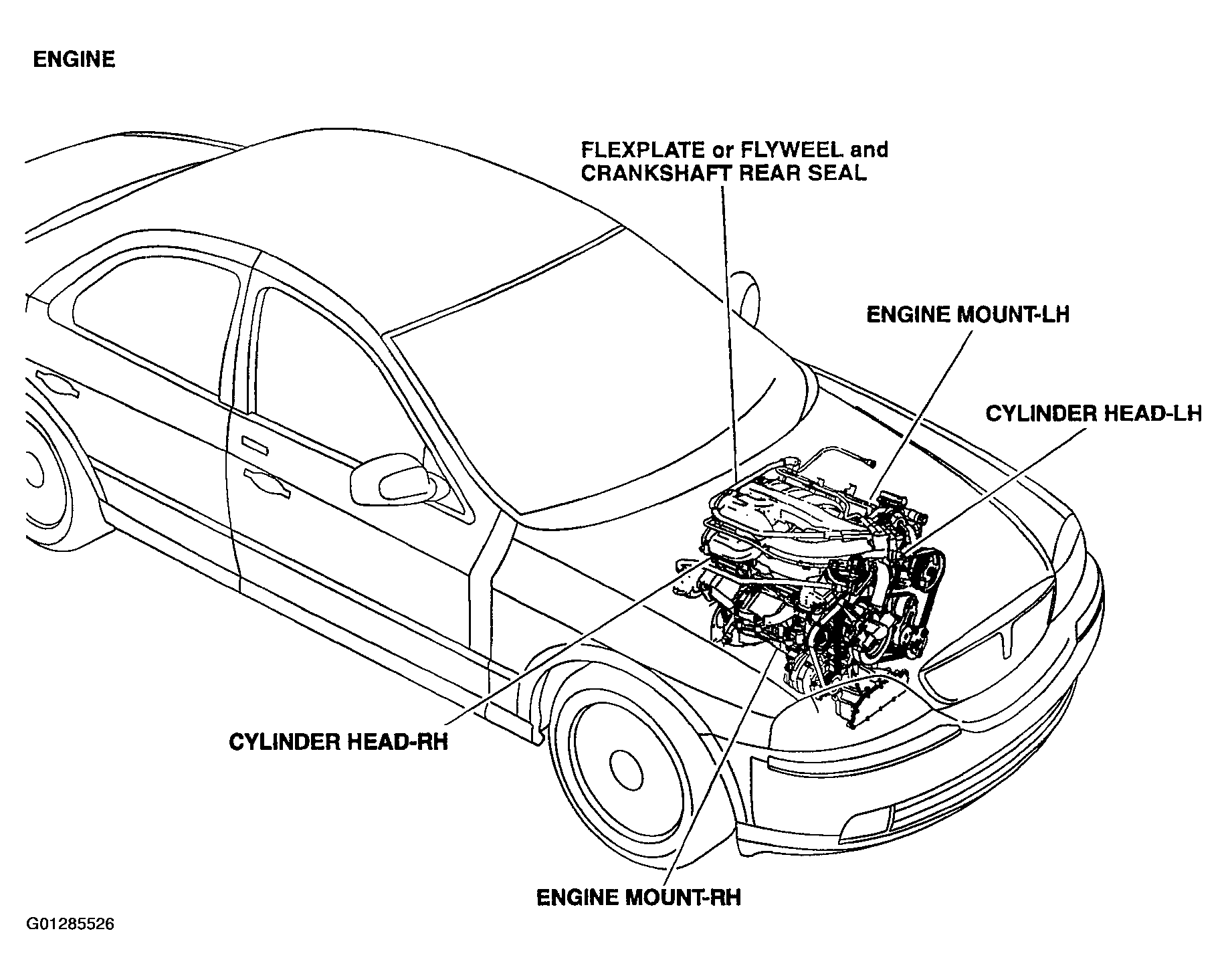

Fig 3: Identifying Engine Component Location View (3 Of 3)

Courtesy of FORD MOTOR CO.
