Section 339 (Engine-3.0L): Installation: Engine: Material

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

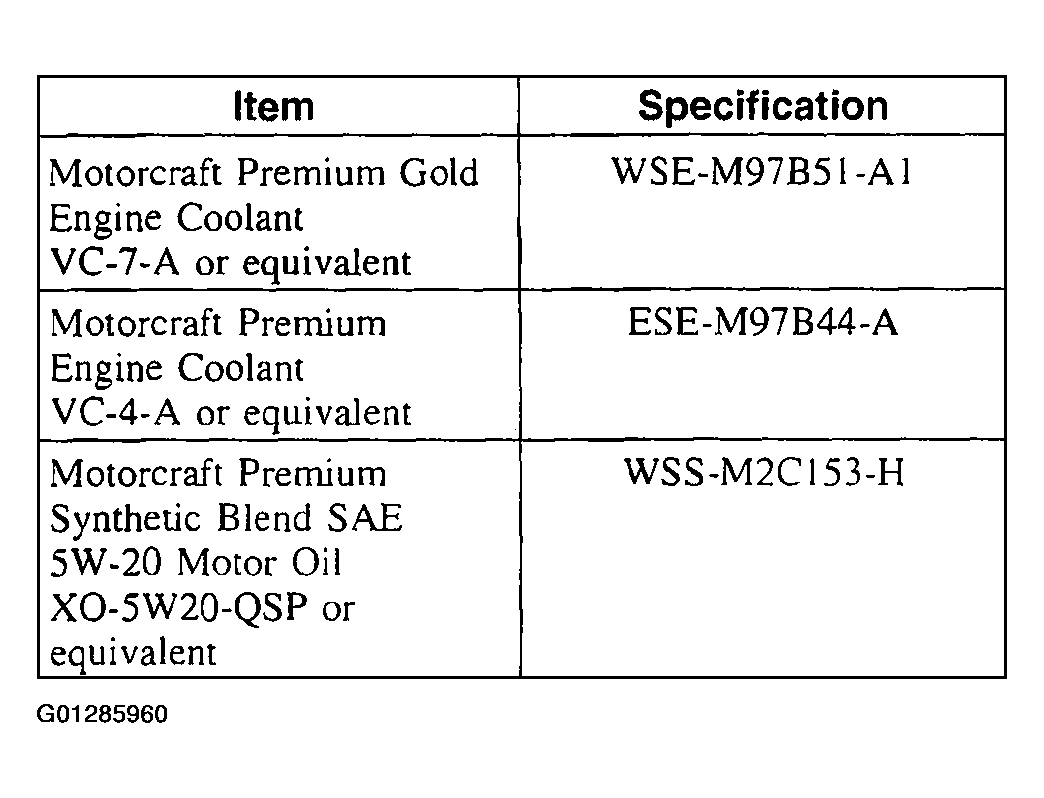

Fig 1: Specification Material

Courtesy of FORD MOTOR CO.

Illustration 1 of 17. Install the components in the order indicated in the following illustration and table.

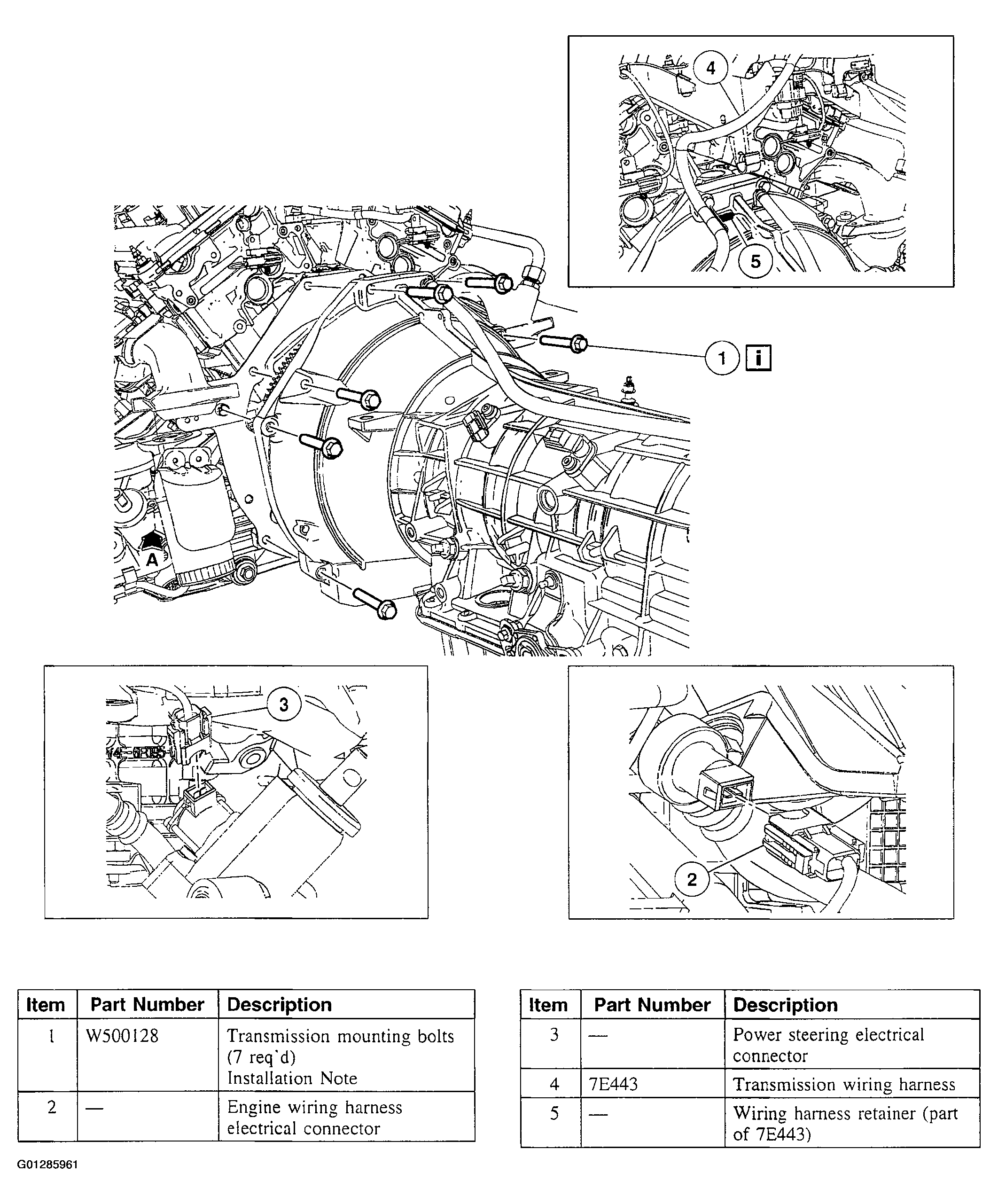

Fig 2: Installing Transmission Bolts
Courtesy of FORD MOTOR CO.
Illustration 2 of 17. Install the components in the order indicated in the following illustration and table.

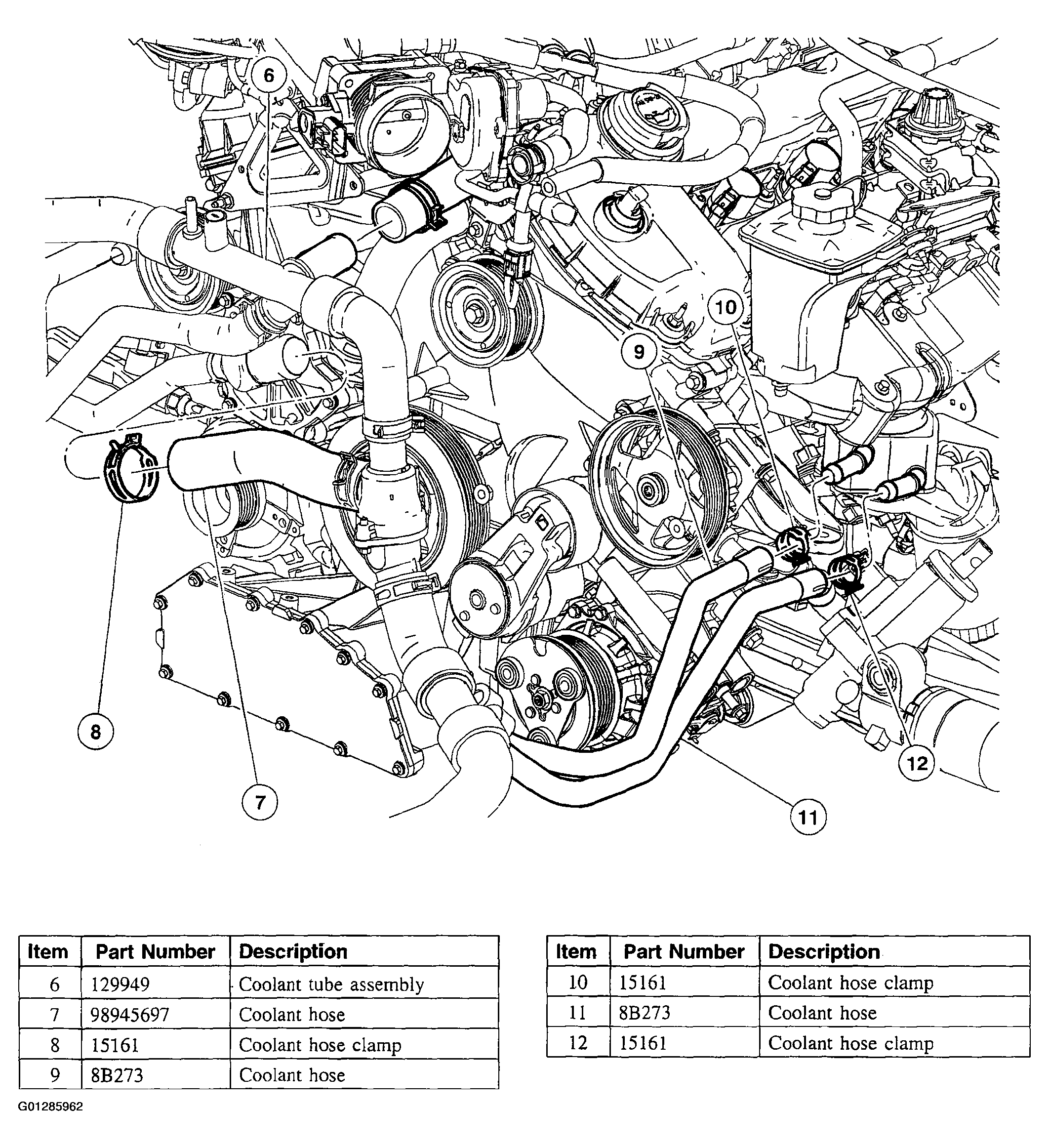

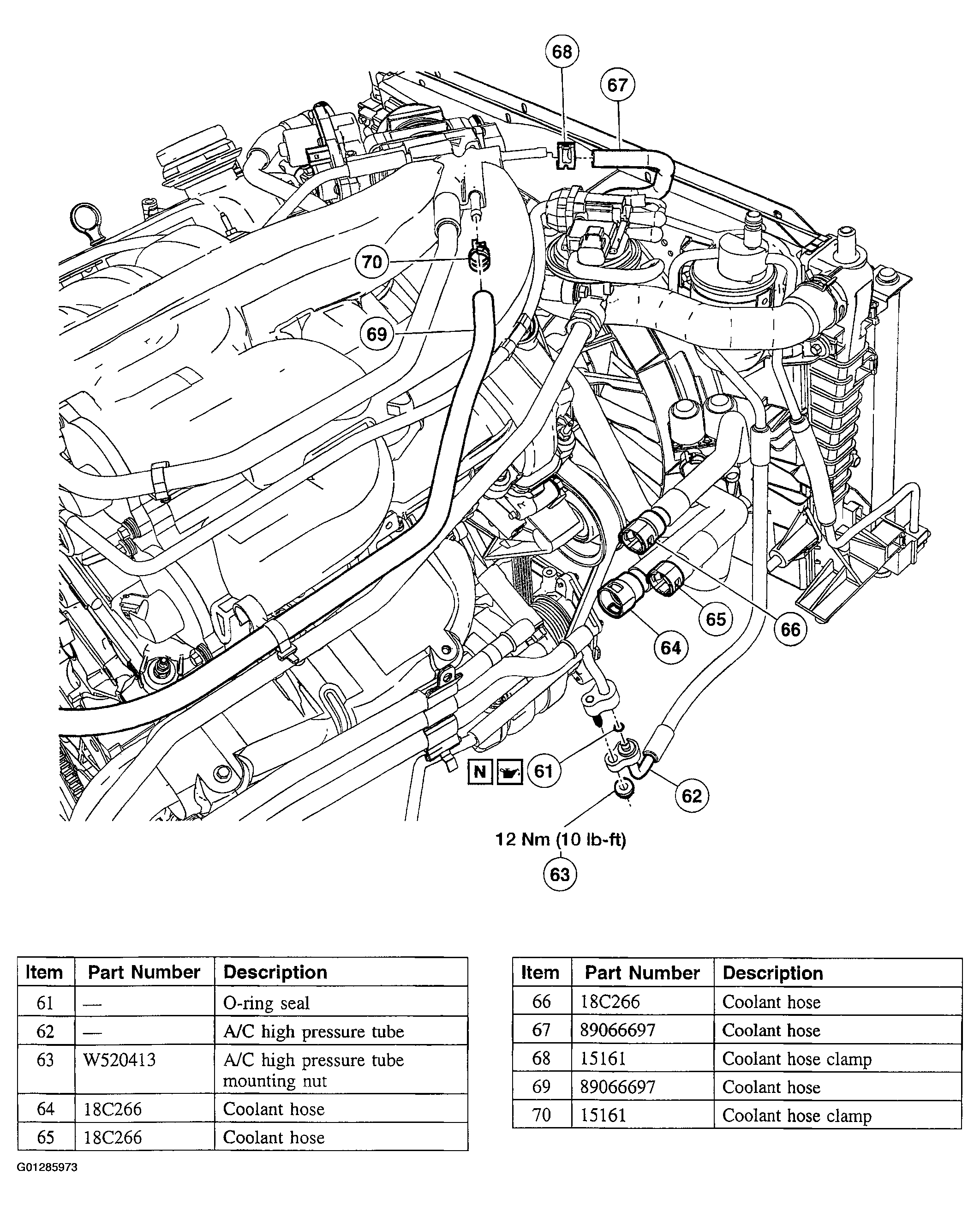

Fig 3: Installing Coolant Tube Assembly
Courtesy of FORD MOTOR CO.
Illustration 3 of 17. Install the components in the order indicated in the following illustration and table.

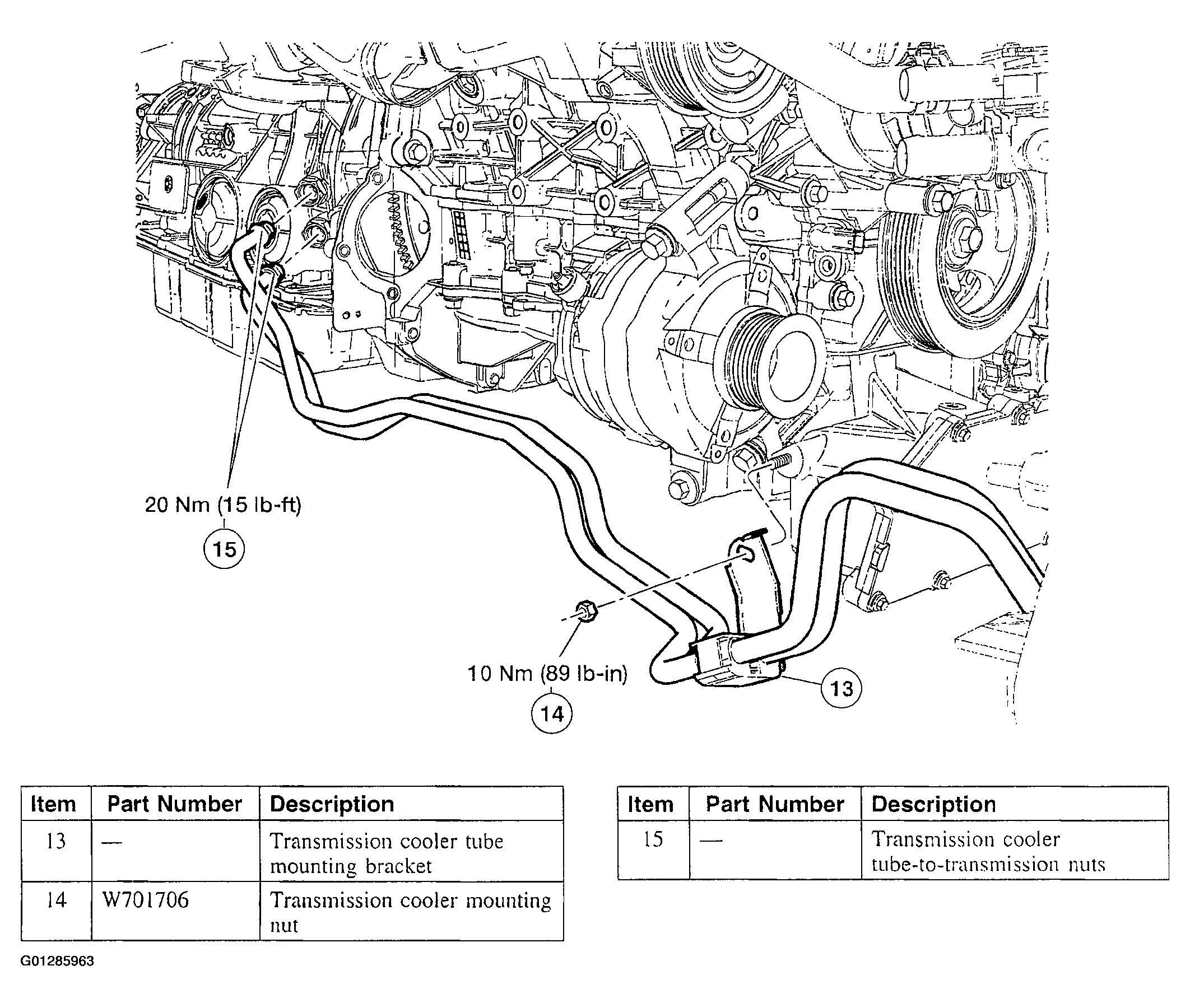

Fig 4: Installing Transmission Cooler Tube Mounting Bracket
Courtesy of FORD MOTOR CO.
Illustration 4 of 17. Install the components in the order indicated in the following illustration and table.

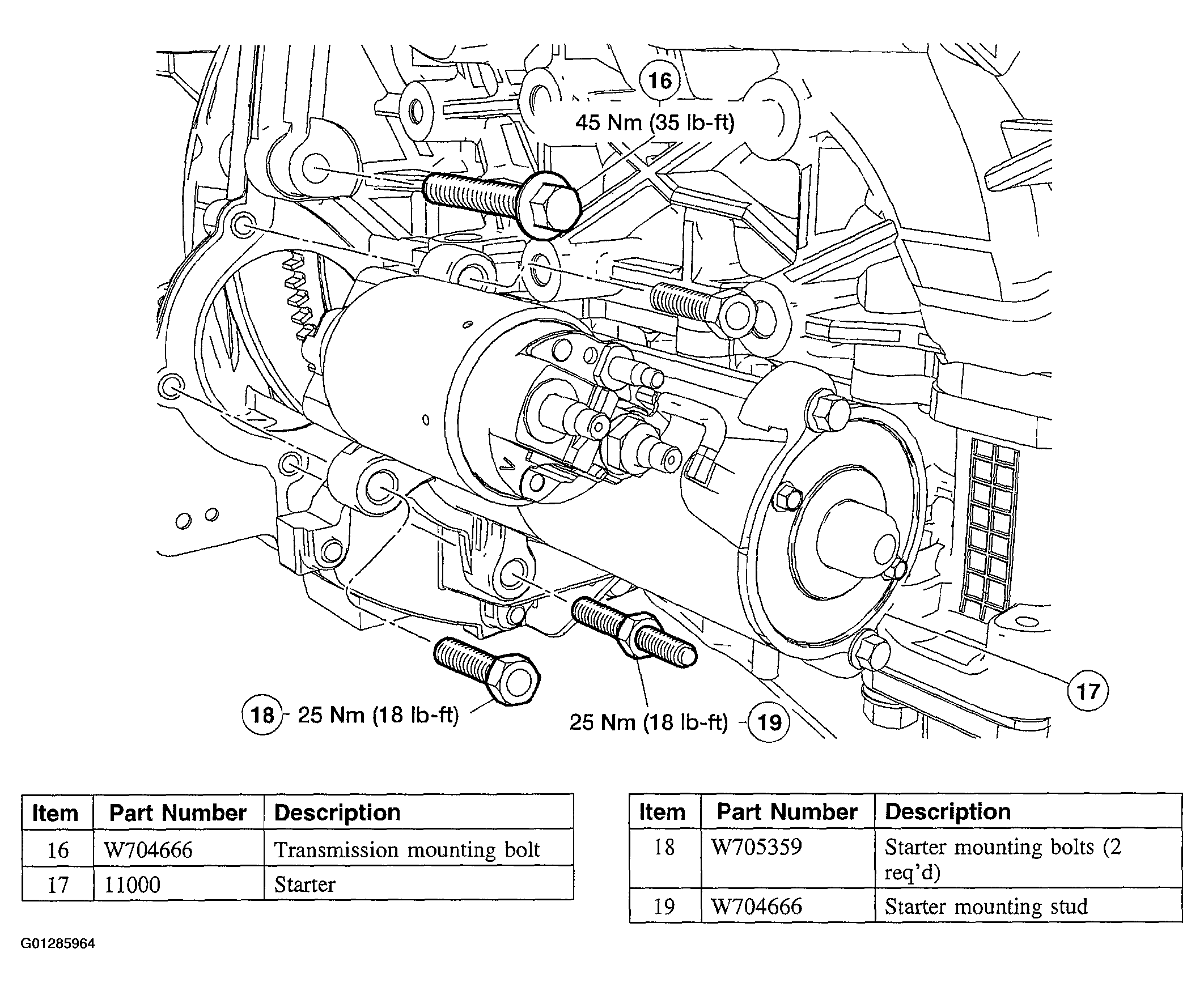

Fig 5: Installing Transmission Mounting Bolt
Courtesy of FORD MOTOR CO.
Illustration 5 of 17. Install the components in the order indicated in the following illustration and table.

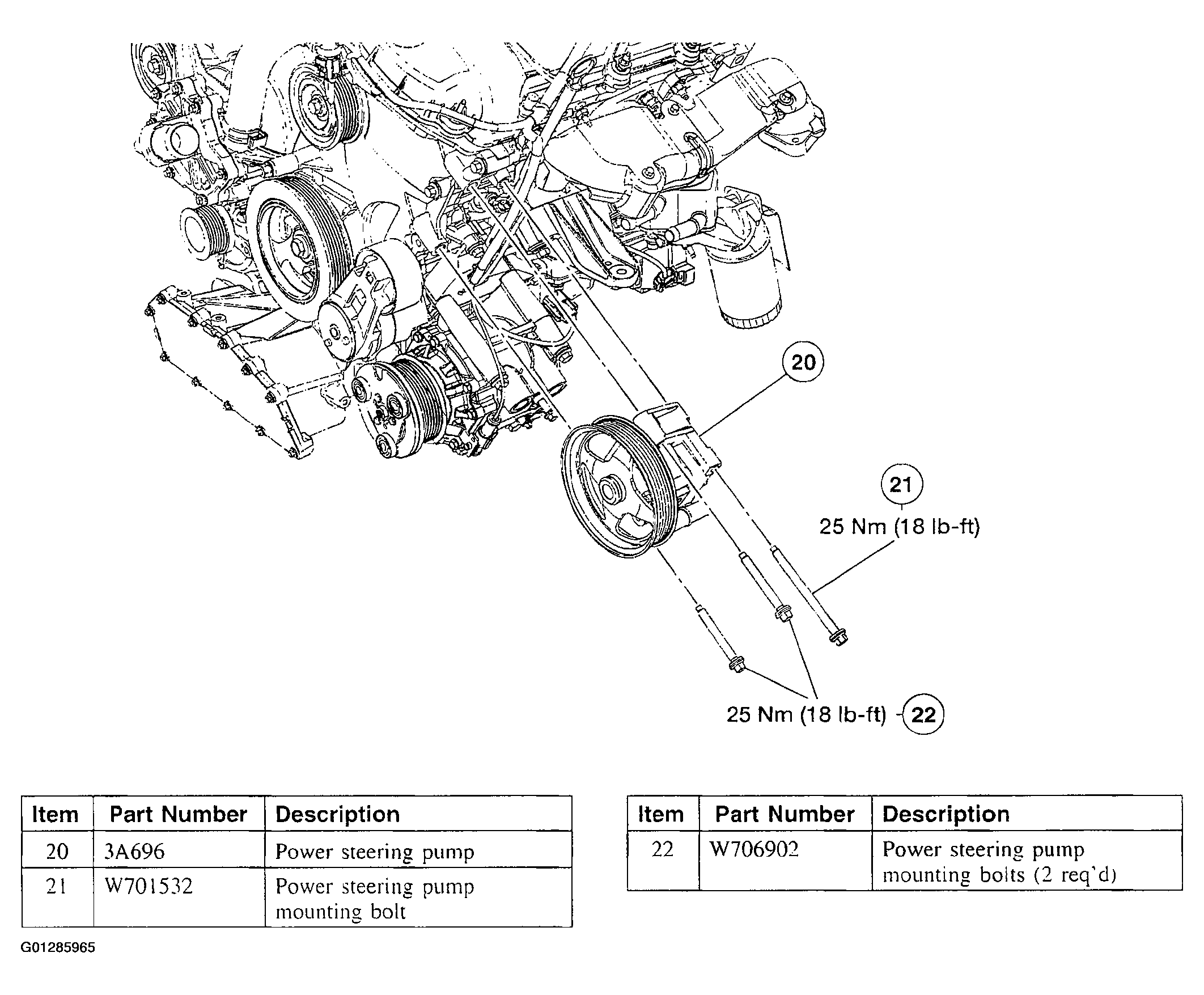

Fig 6: Installing Power Steering Pump
Courtesy of FORD MOTOR CO.
Illustration 6 of 17. Install the components in the order indicated in the following illustration and table.

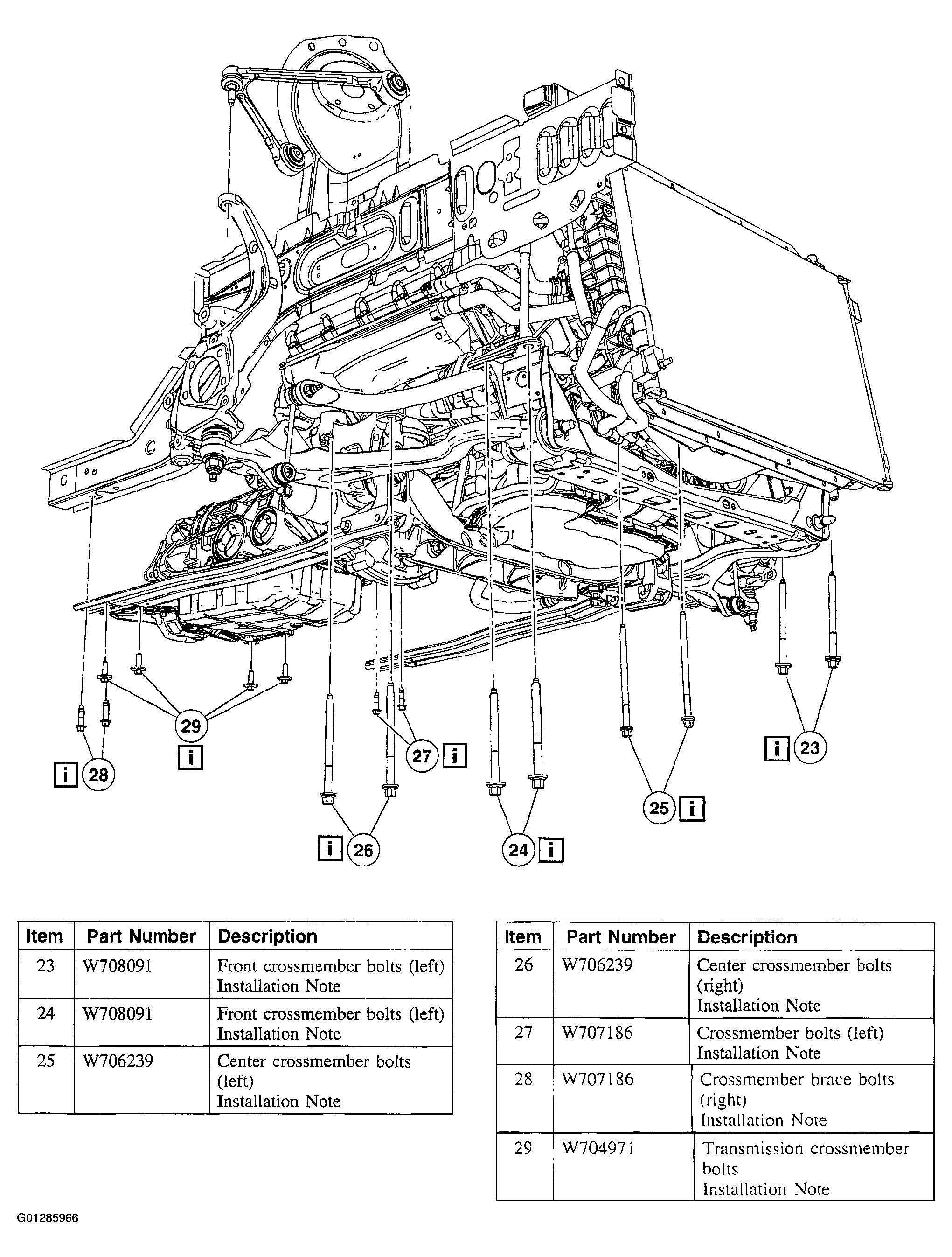

Fig 7: Installing Front Crossmember Bolt
Courtesy of FORD MOTOR CO.
Illustration 7 of 17. Install the components in the order indicated in the following illustration and table.

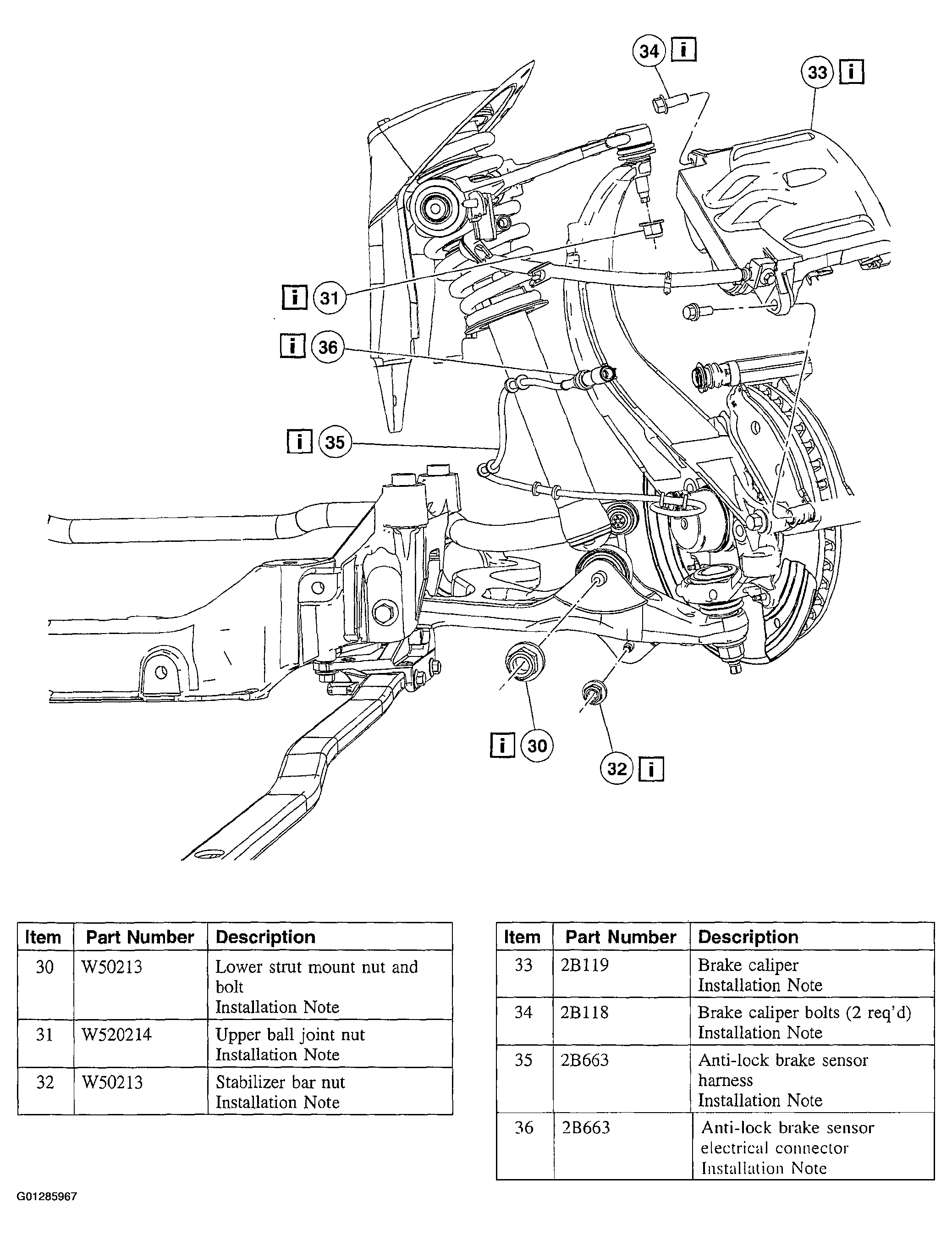

Fig 8: Installing Lower Strut Mounting And Bolts
Courtesy of FORD MOTOR CO.
Illustration 8 of 17. Install the components in the order indicated in the following illustration and table.

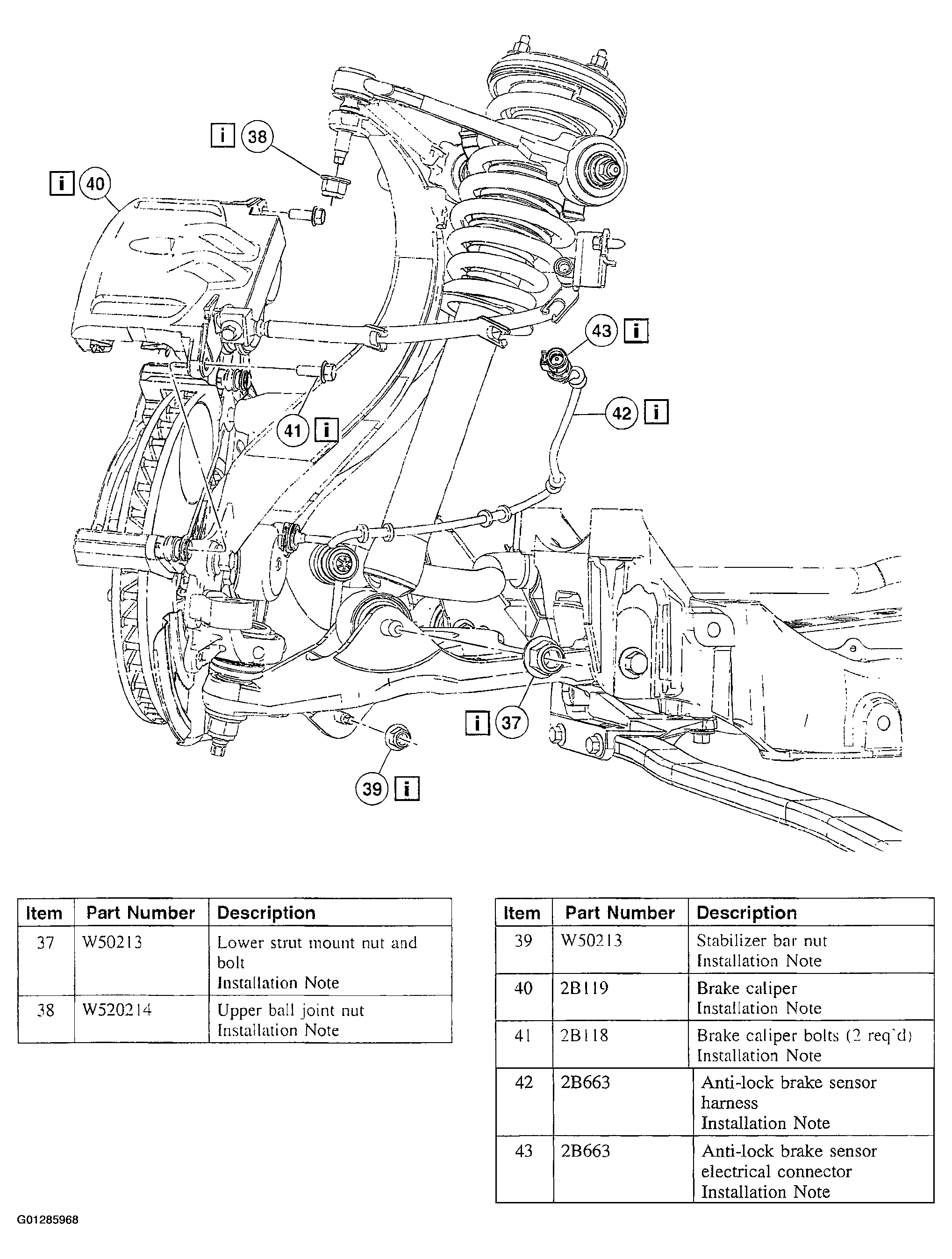

Fig 9: Installing Lower Strut Mounting Bolt
Courtesy of FORD MOTOR CO.
Illustration 9 of 17. Install the components in the order indicated in the following illustration and table.

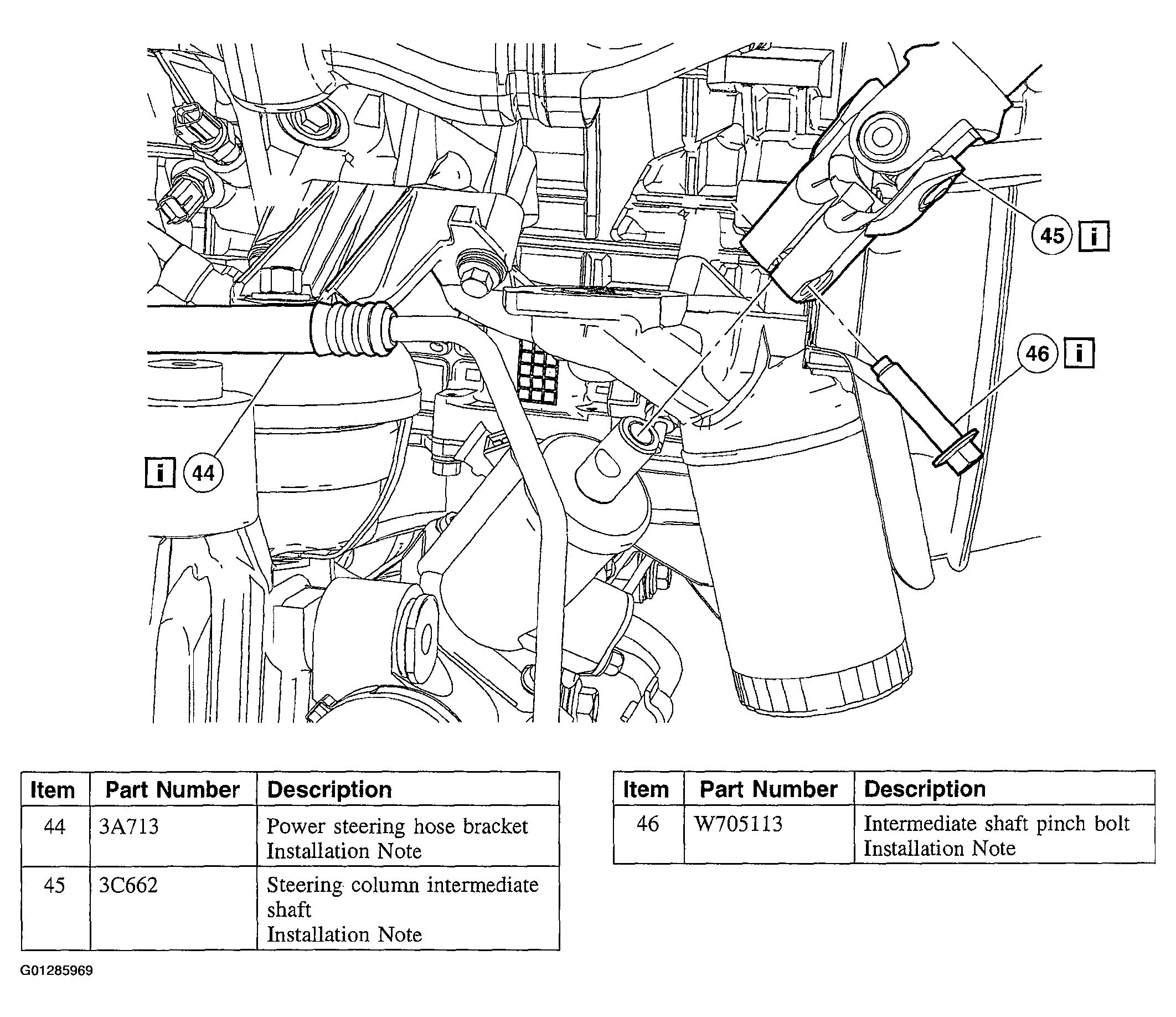

Fig 10: Installing Power Steering Hose Bracket
Courtesy of FORD MOTOR CO.
Illustration 10 of 17. Install the components in the order indicated in the following illustration and table.

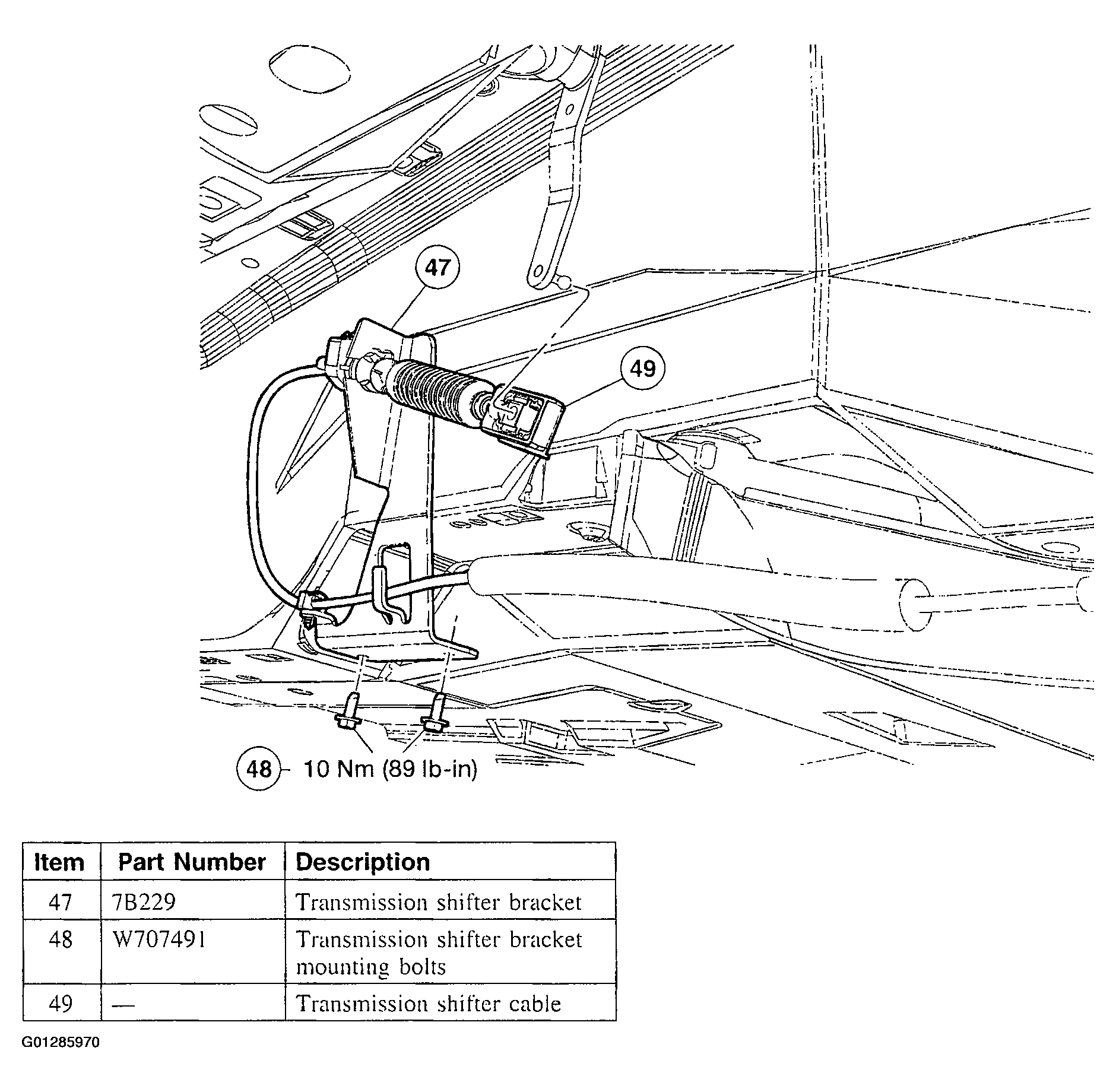

Fig 11: Installing Transmission Bracket
Courtesy of FORD MOTOR CO.
Illustration 11 of 17. Install the components in the order indicated in the following illustration and table.

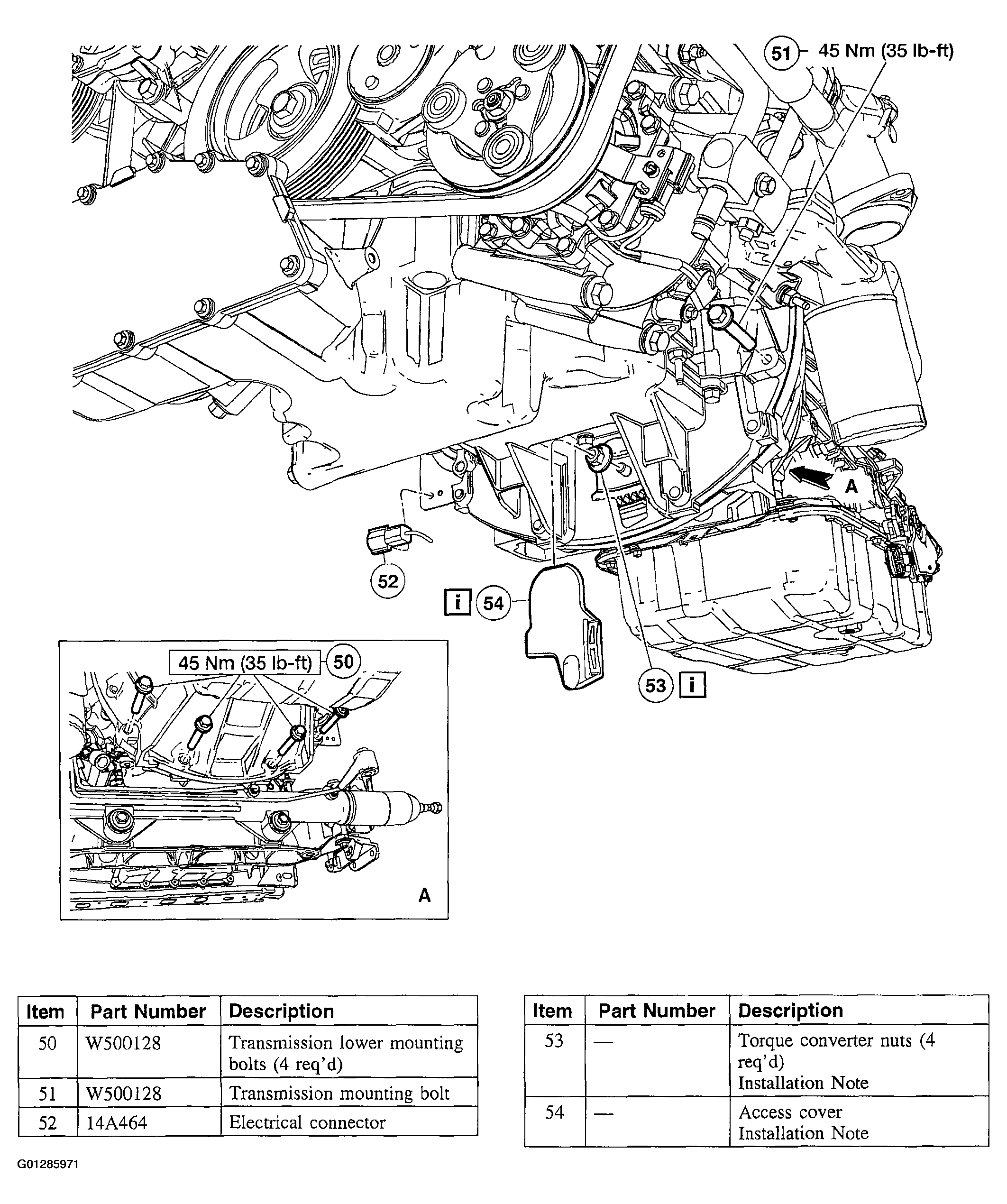

Fig 12: Installing Transmission Lower Mounting Bolts
Courtesy of FORD MOTOR CO.
Illustration 12 of 17. Install the components in the order indicated in the following illustration and table.

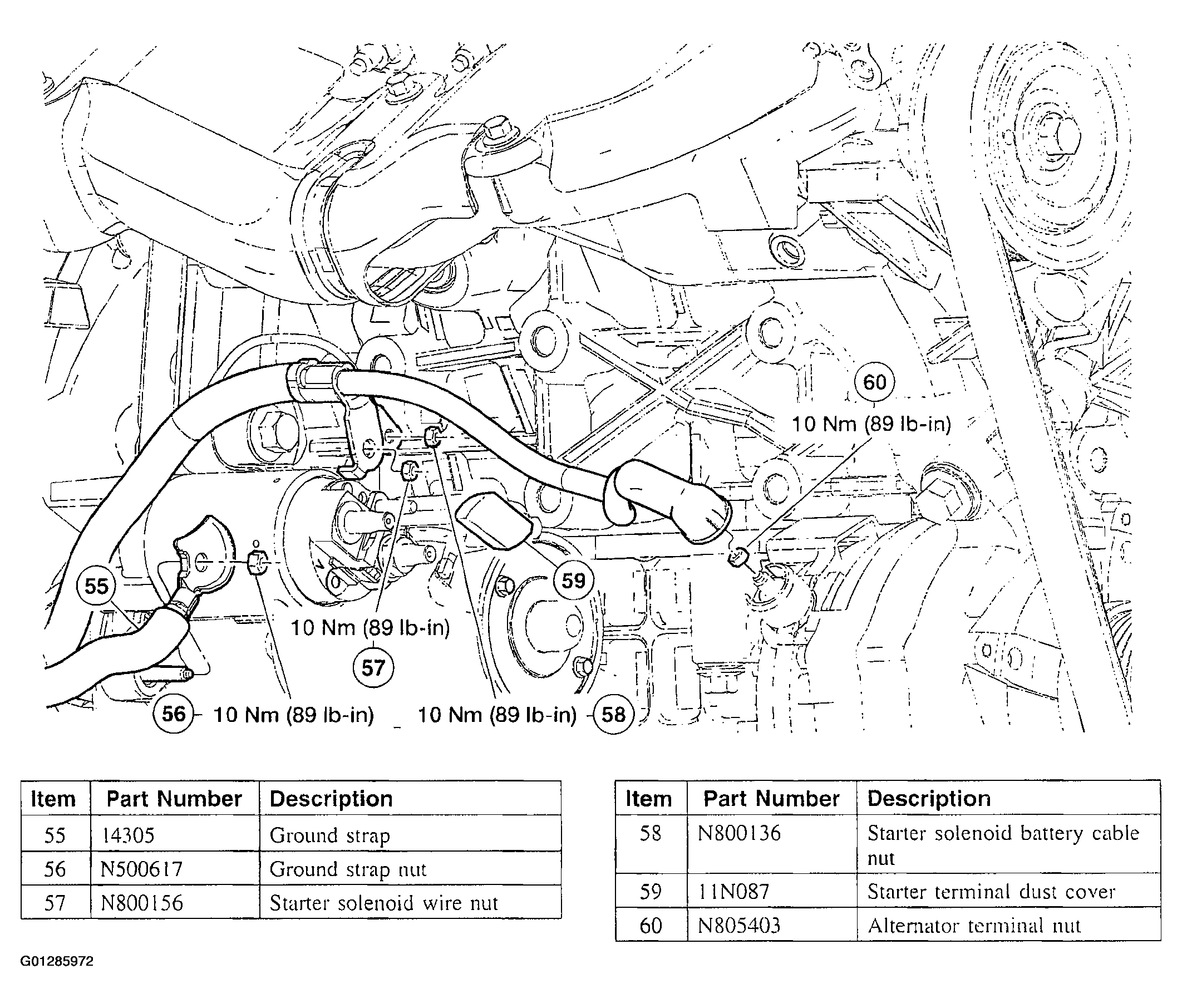

Fig 13: Installing Ground Strap
Courtesy of FORD MOTOR CO.
Illustration 13 of 17. Install the components in the order indicated in the following illustration and table.

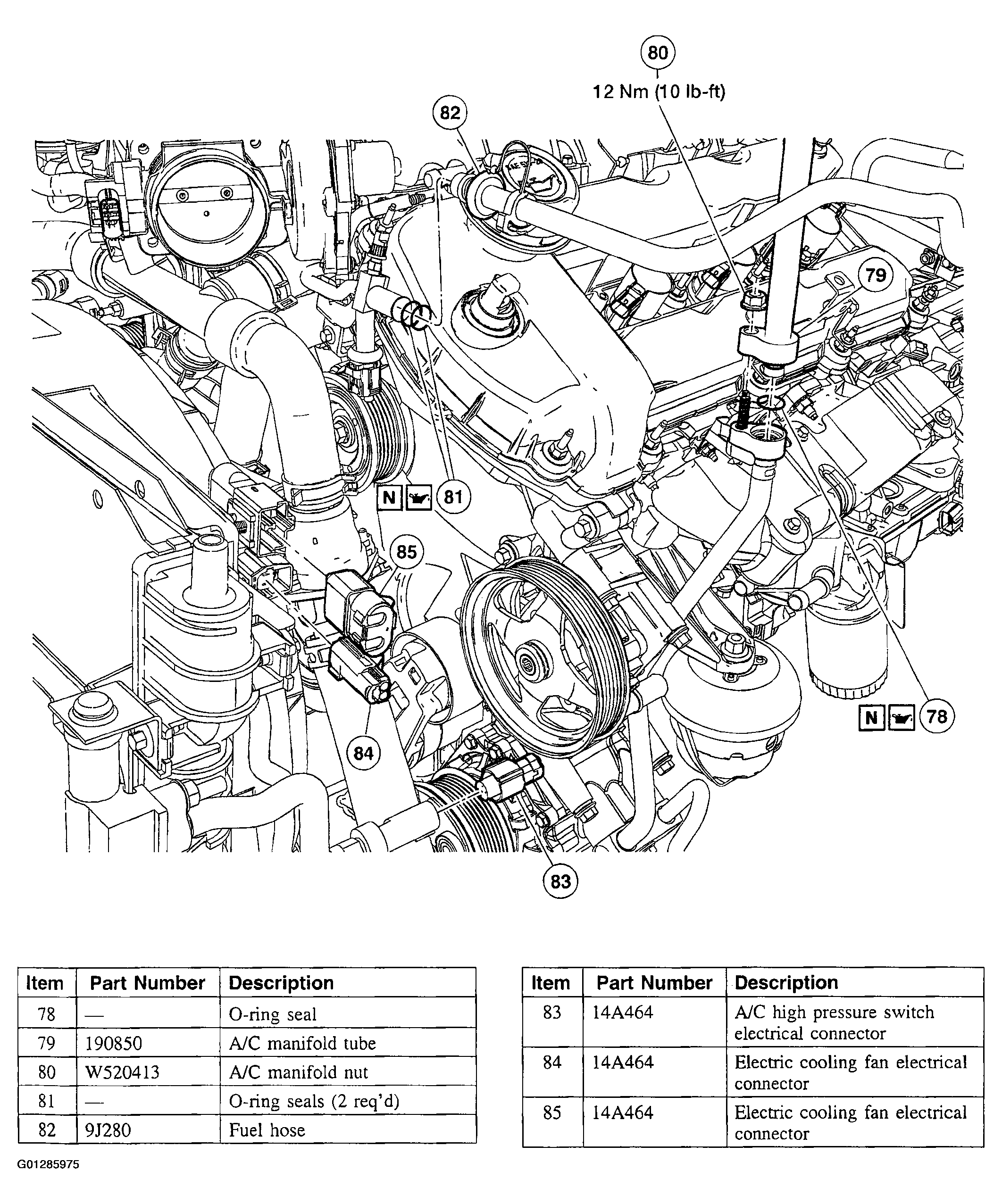

Fig 14: Installing O-Ring
Courtesy of FORD MOTOR CO.
Illustration 14 of 17. Install the components in the order indicated in the following illustration and table.

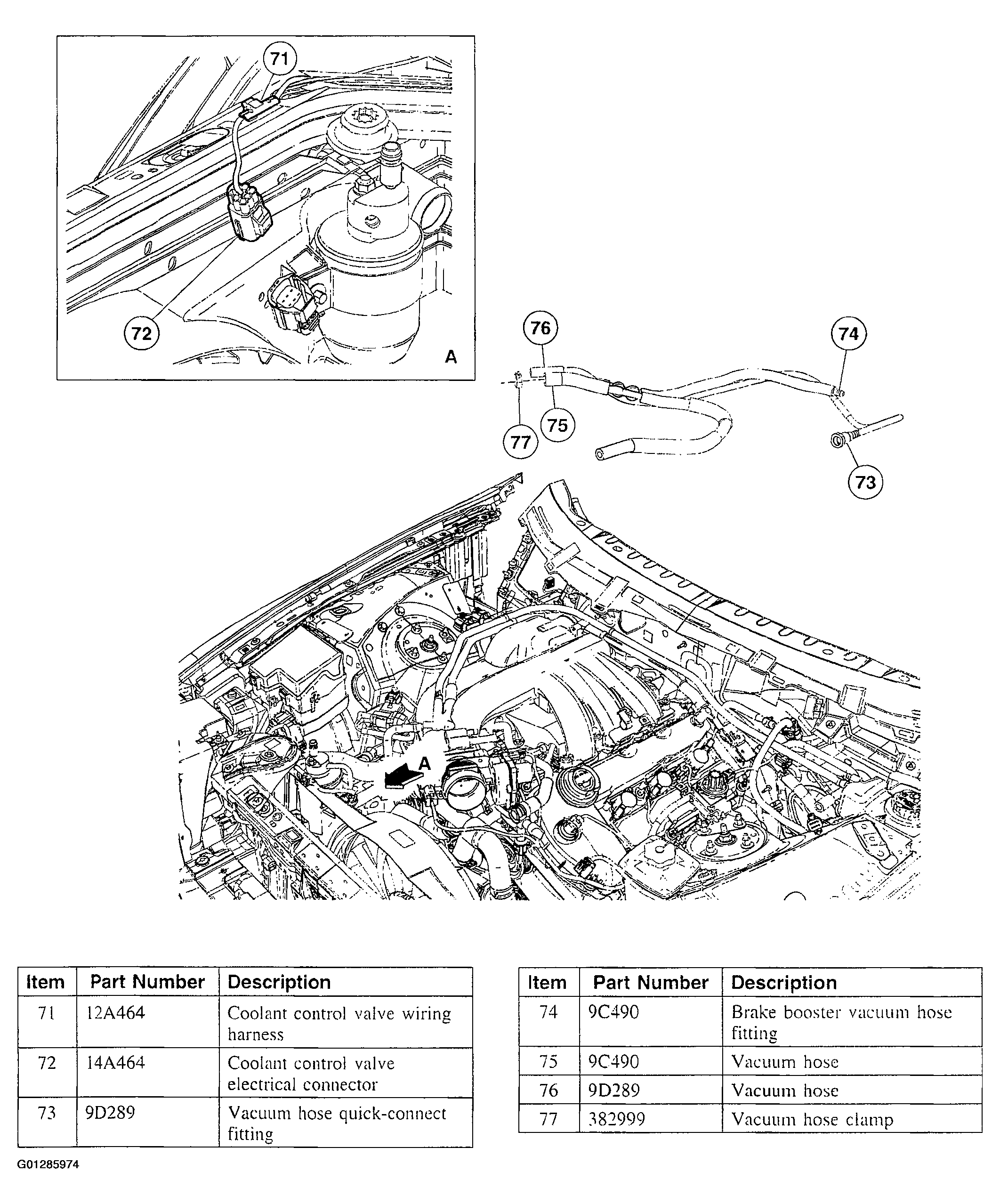

Fig 15: Installing Coolant Control Valve Wiring Harness
Courtesy of FORD MOTOR CO.
Illustration 15 of 17. Install the components in the order indicated in the following illustration and table.

Fig 16: Installing O-Ring Seal
Courtesy of FORD MOTOR CO.
Illustration 16 of 17. Install the components in the order indicated in the following illustration and table.

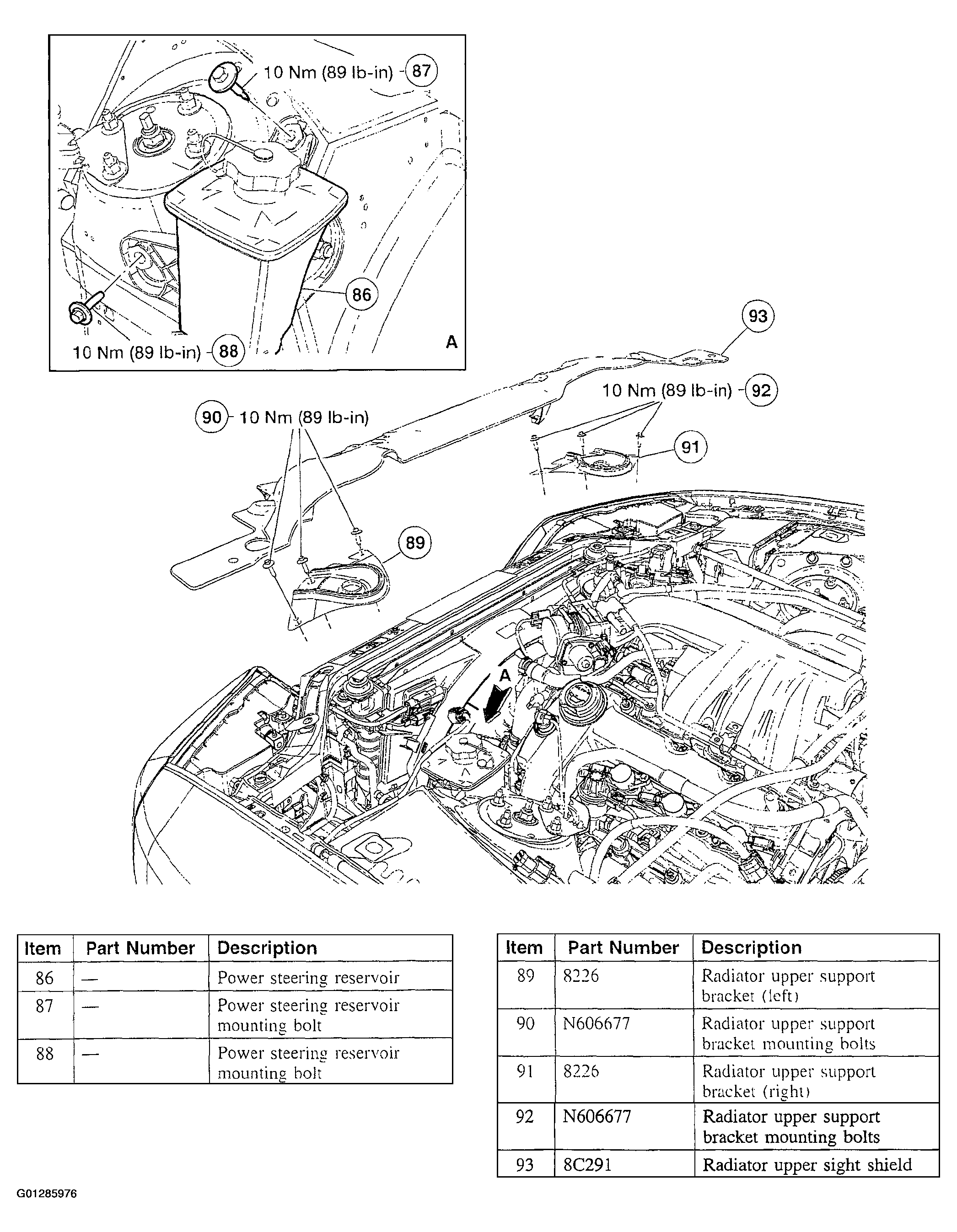

Fig 17: Installing Power Steering Reservoir
Courtesy of FORD MOTOR CO.
Illustration 17 of 17. Install the components in the order indicated in the following illustration and table.

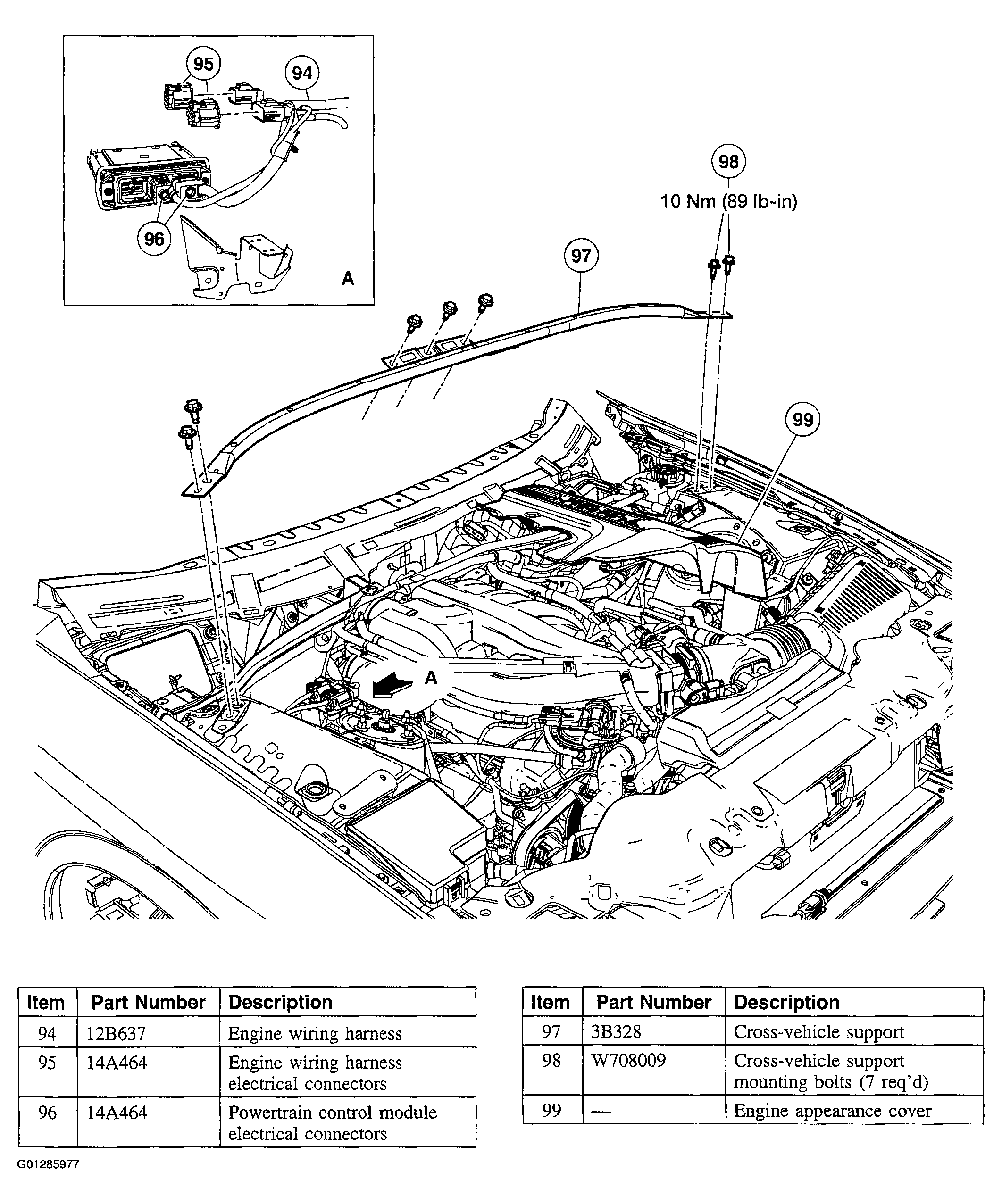

Fig 18: Installing Cross Vehicle Support
Courtesy of FORD MOTOR CO.
Install the RH and LH subframe splash shields.
Install the front splash shield.
Install the RH and LH inner fender splash shields.
Install the exhaust system. For additional information, Refer to EXHAUST SYSTEM .
Install the drive shaft. For additional information, Refer to DRIVELINE SYSTEM .
Install the clean air inlet duct. For additional information, Refer to CLIMATE CONTROL SYSTEM .
Charge the A/C system. For additional information, Refer to CLIMATE CONTROL SYSTEM .
Fill and bleed the engine cooling system. For additional information, Refer to ENGINE COOLING .
Install the air cleaner assembly. .
Connect the battery ground cable. For additional information, Refer to BATTERY AND CHARGING SYSTEM .
