Steering Column: Disassembly

WARNING: This page is about a different car, the 2004 Ford Focus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the two multifunction switches.
1. Depress the retaining tangs.
2. Lift the switches upwards.

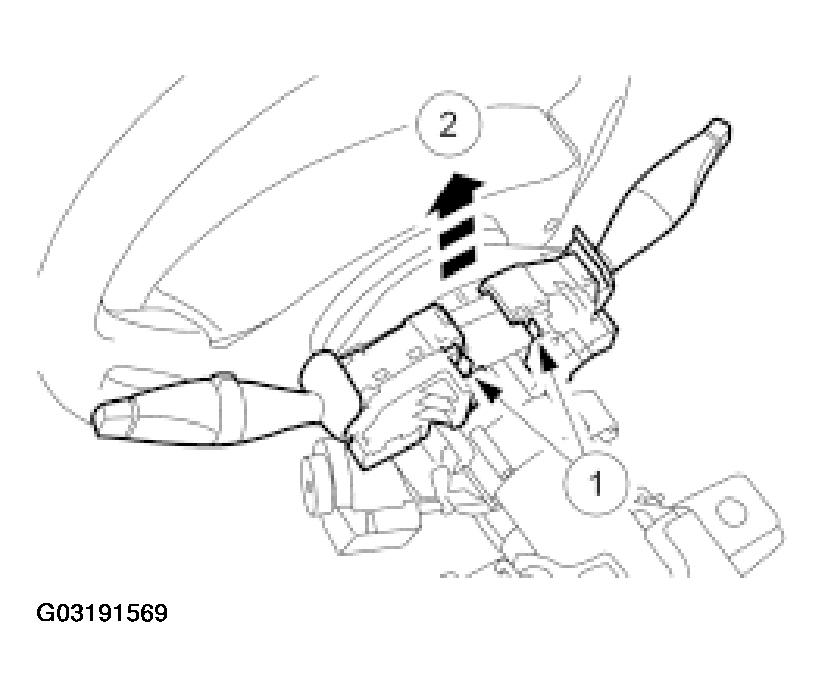

Fig 1: Removing Multifunction Switches
Courtesy of FORD MOTOR CO.
Detach the driver air bag module from the steering wheel.

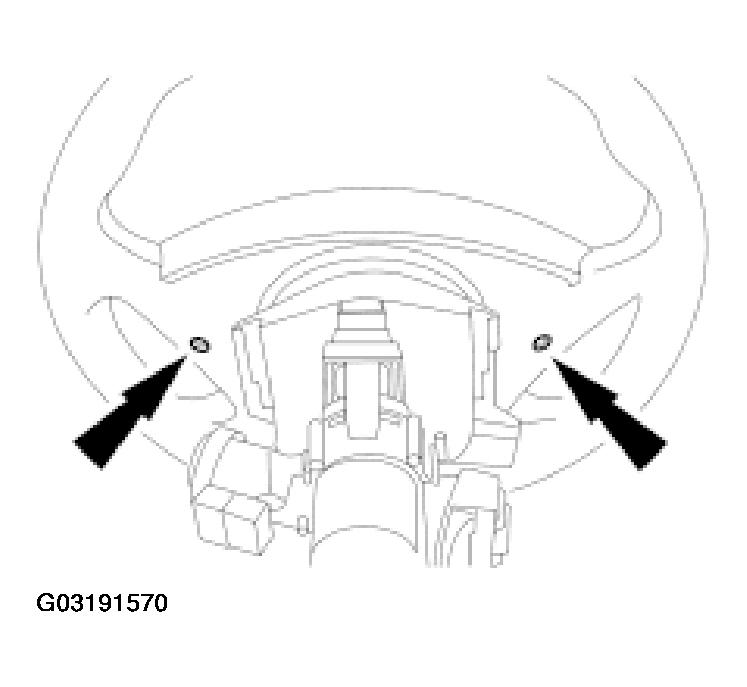

Fig 2: Detaching Driver Air Bag Module From Steering Wheel
Courtesy of FORD MOTOR CO.
Remove the driver air bag module.
- Release the three clips.
- Disconnect the air bag module electrical connector.

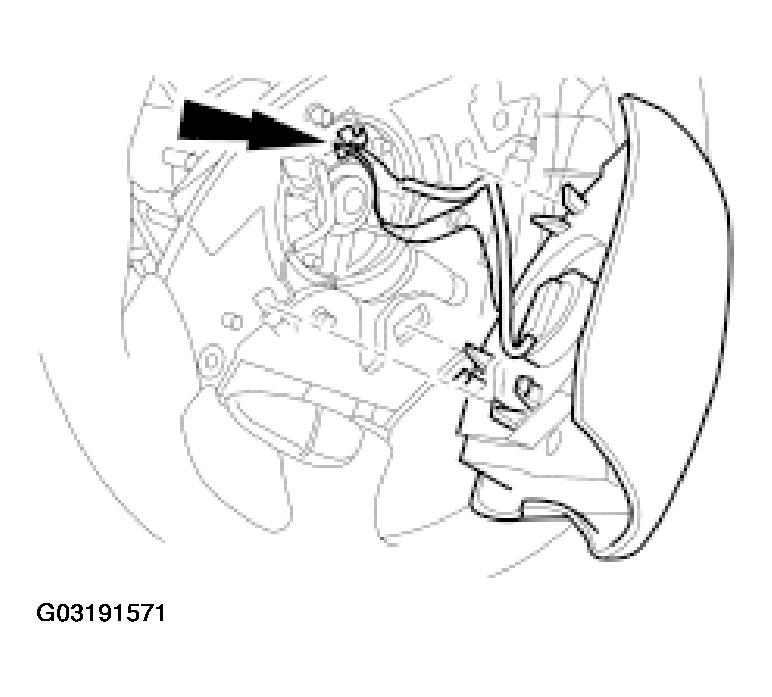

Fig 3: Disconnecting Air Bag Module Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the passive anti-theft system (PATS) transceiver.

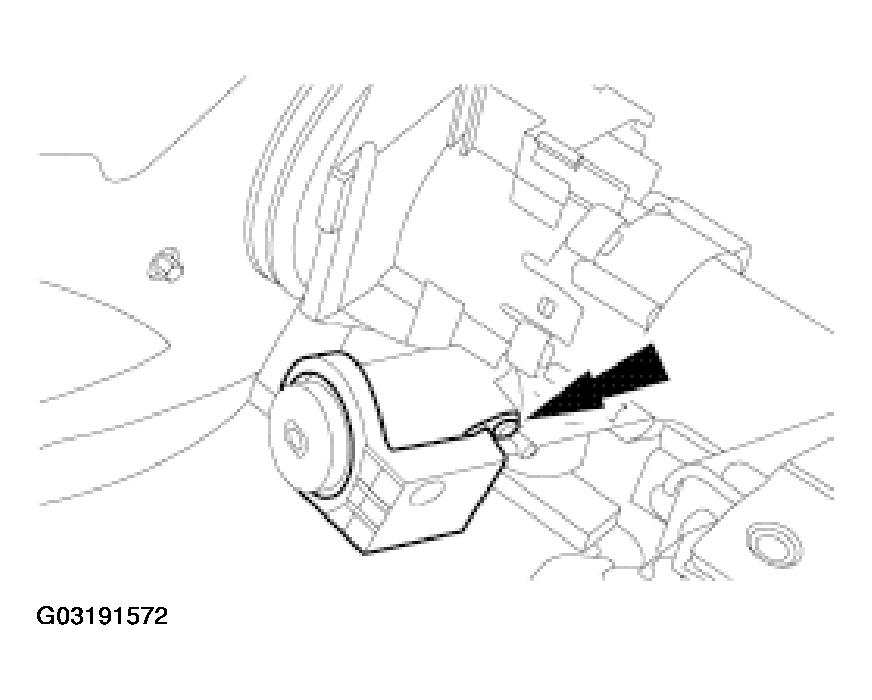

Fig 4: Removing Passive Anti-Theft System (PATS) Transceiver
Courtesy of FORD MOTOR CO.
Remove the steering wheel.
1. Disconnect the speed control electrical connector (if equipped).
2. Remove the steering wheel retaining bolt.

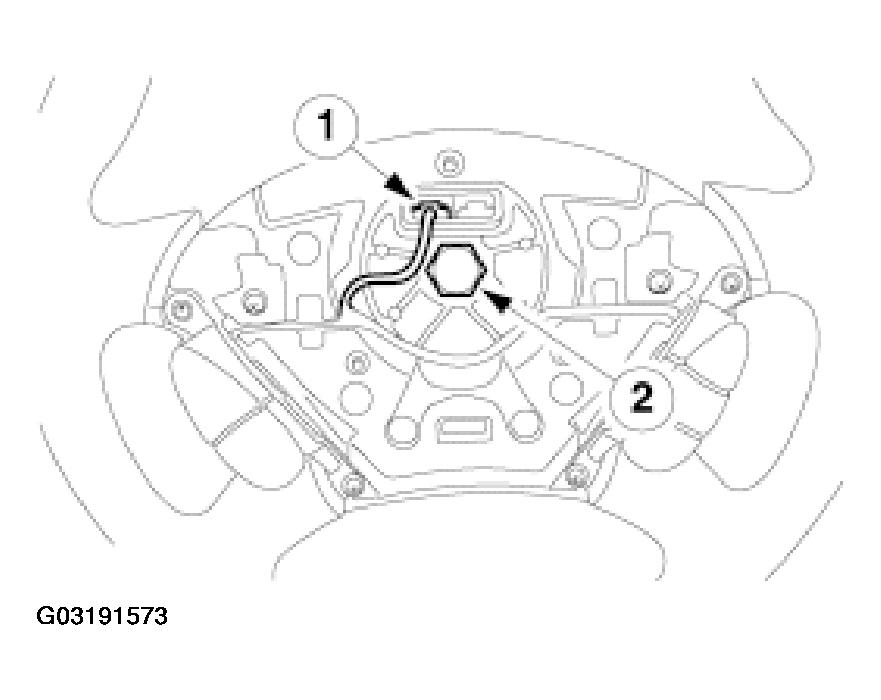

Fig 5: Removing Steering Wheel
Courtesy of FORD MOTOR CO.
Remove the spacing collar.

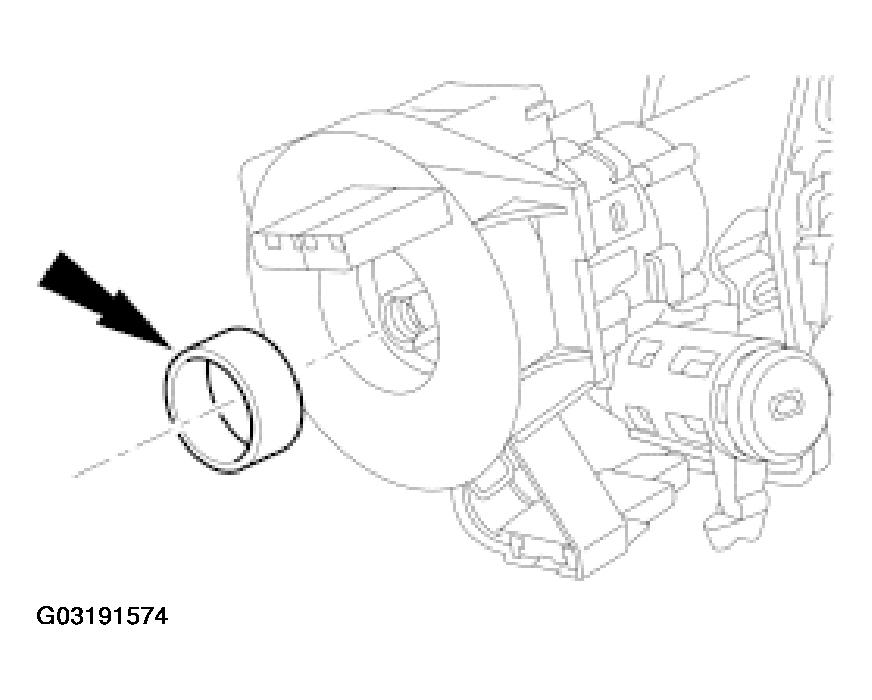

Fig 6: Removing Spacing Collar
Courtesy of FORD MOTOR CO.

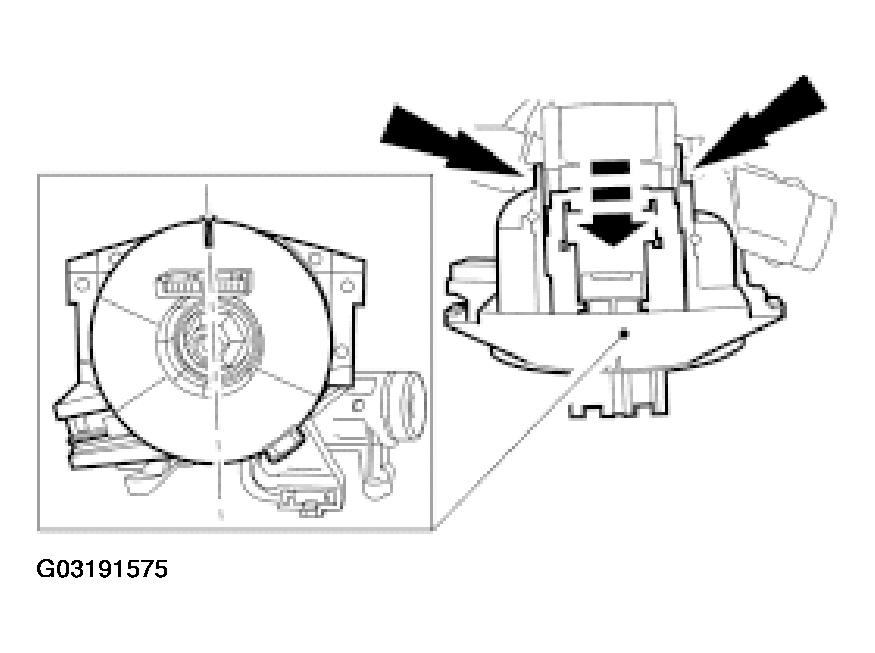

NOTE: Make sure the clockspring is not allowed to rotate. Secure in a central position with a piece of suitable tape.

Fig 7: Releasing Retaining Clips

Courtesy of FORD MOTOR CO.

Remove the clockspring.
- Using a thin bladed screwdriver, release the two retaining clips.
Remove the ignition switch.
- Release the clips.

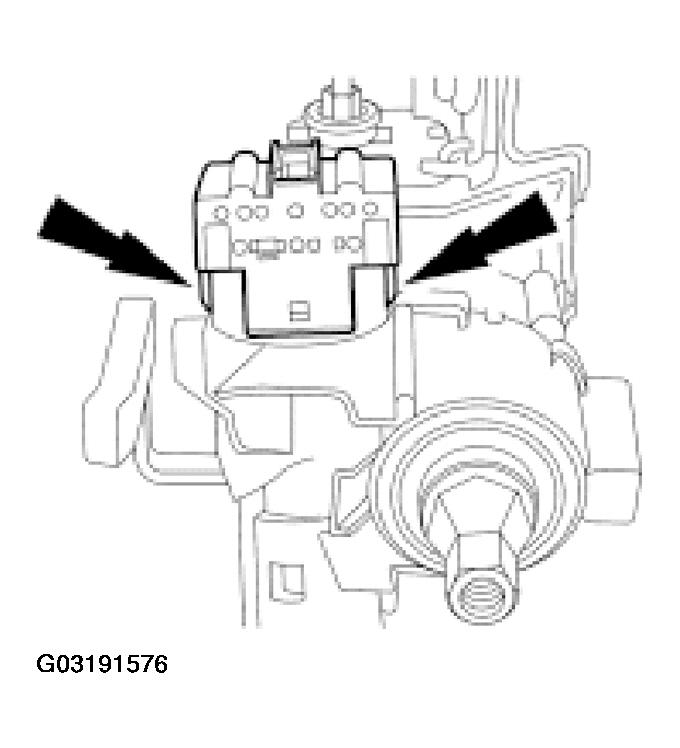

Fig 8: Releasing Ignition Switch
Courtesy of FORD MOTOR CO.
Remove the ignition switch lock cylinder.
1. Insert and turn the ignition key to position I.
2. Using a thin bladed screwdriver, depress the detent.

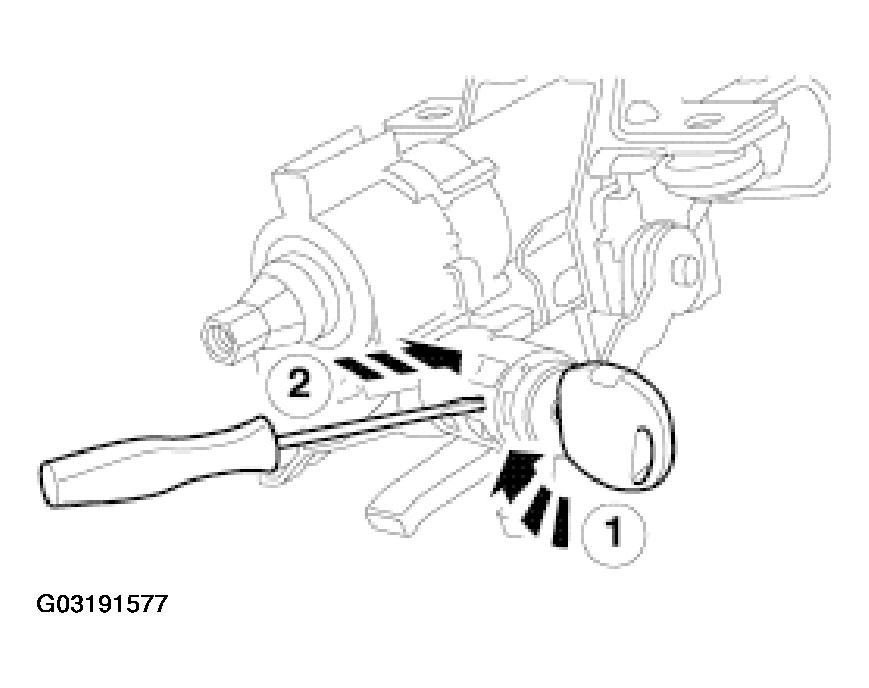

Fig 9: Removing Ignition Switch Lock Cylinder
Courtesy of FORD MOTOR CO.
