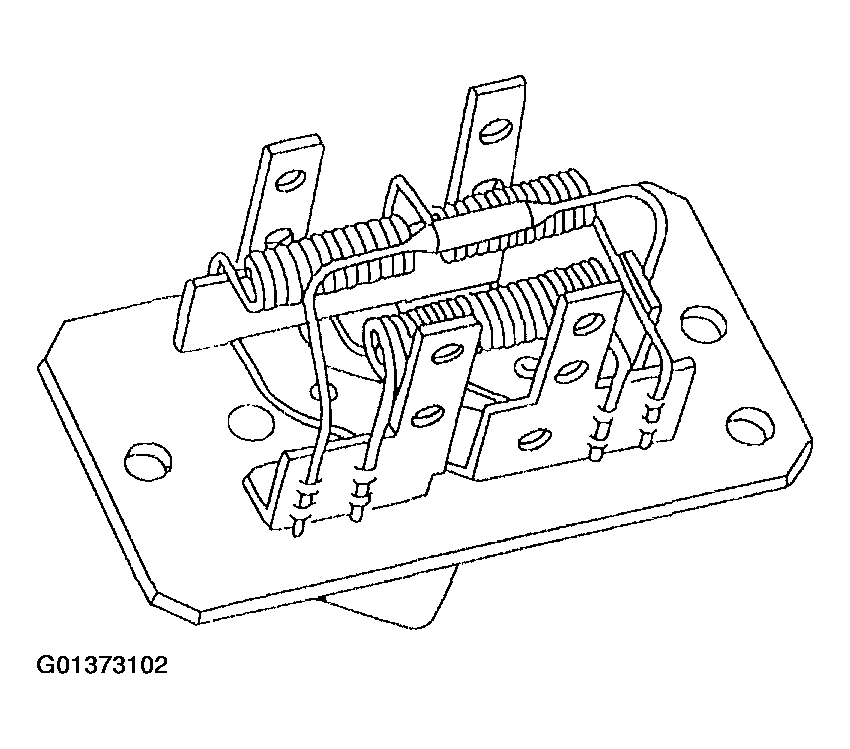

Blower Motor Switch Resistor
The heater blower motor switch resistor has the following features:
- The assembly is located on the passenger side of the plenum assembly behind the glove compartment (06010).
- Three resistance elements are mounted on the resistor board to provide four A/C blower motor speeds.
- Depending on the heater blower motor switch position, series resistance is added or bypassed in the A/C blower motor circuit to decrease or increase A/C blower motor speed.
- An overheating protective device (thermal limiter) will open the resistor coil circuit when the temperature reaches 121°C (250°F) interrupting the blower motor operation in all speeds except HI.
- The thermal limiter cannot be reset and is not serviceable.
The heater blower motor switch resistor has the following features:
- The assembly is located on the passenger side of the A/C evaporator housing (19850) behind the glove compartment.
- Three resistance elements are mounted on the resistor board to provide four A/C blower motor speeds.
- Depending on the heater blower motor switch position, series resistance is added or bypassed in the A/C blower motor circuit to decrease or increase A/C blower motor speed.
- An overheating protective device (thermal limiter) will open the resistor coil circuit when the temperature reaches 121°C (250°F) interrupting the blower motor operation in all speeds except HI.
- The thermal limiter cannot be reset and is not serviceable.
