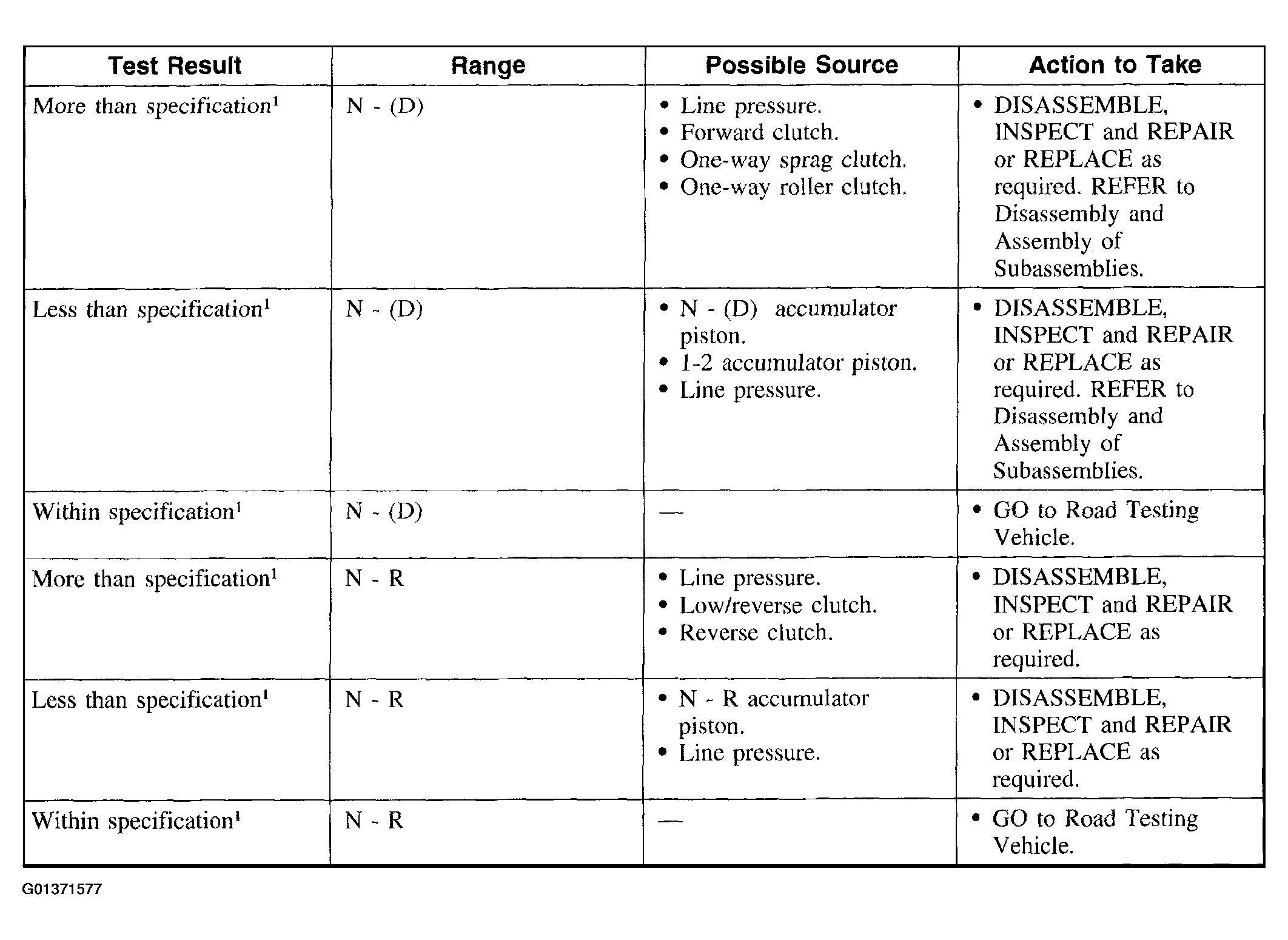

Time Lag Evaluation Chart

Fig 1: Time Lag Evaluation Chart

Courtesy of FORD MOTOR CO.

¹ Specified Time Lag: N to (D) range below approximately 0.9 second

N to R range below approximately 1.1 second
