Output Gear: Disassembly

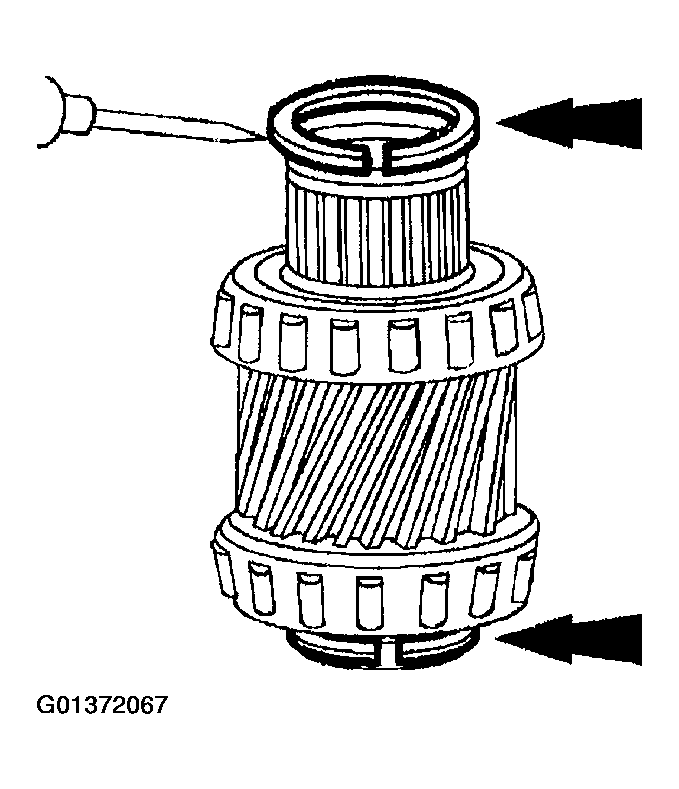

  1. Remove the seal rings.
    Fig 1: Removing Seal Rings
    G01372067Courtesy of FORD MOTOR CO.

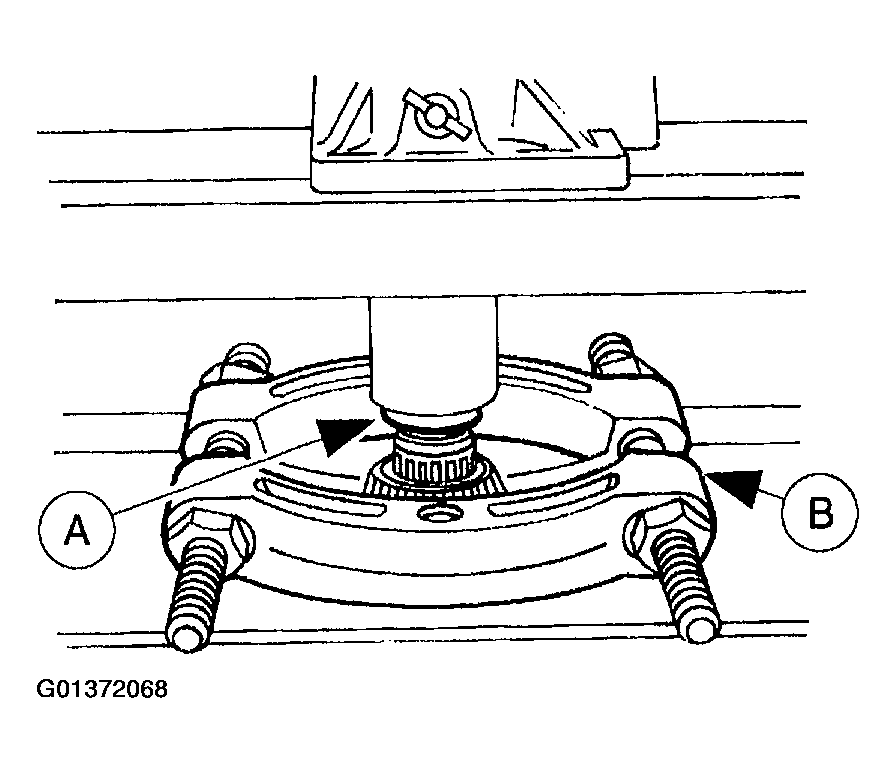

  2. Use (A) Step Plate and (B) Bearing Pulling Attachment to press off both output gear bearings.
Fig 2: Removing Output Gear Bearings
G01372068Courtesy of FORD MOTOR CO.
