Window Glass-Opera: Removal

  1. Remove the rear door window glass (25712); refer to WINDOW GLASS-FRONT AND REAR DOOR .
  2. Remove the rear door glass run retainer and division bar (26900).
    1. Pull back the rear door weatherstrip.
    2. Remove the screw.
    3. Remove the bolt.
    4. Remove the rear door glass run retainer and division bar.

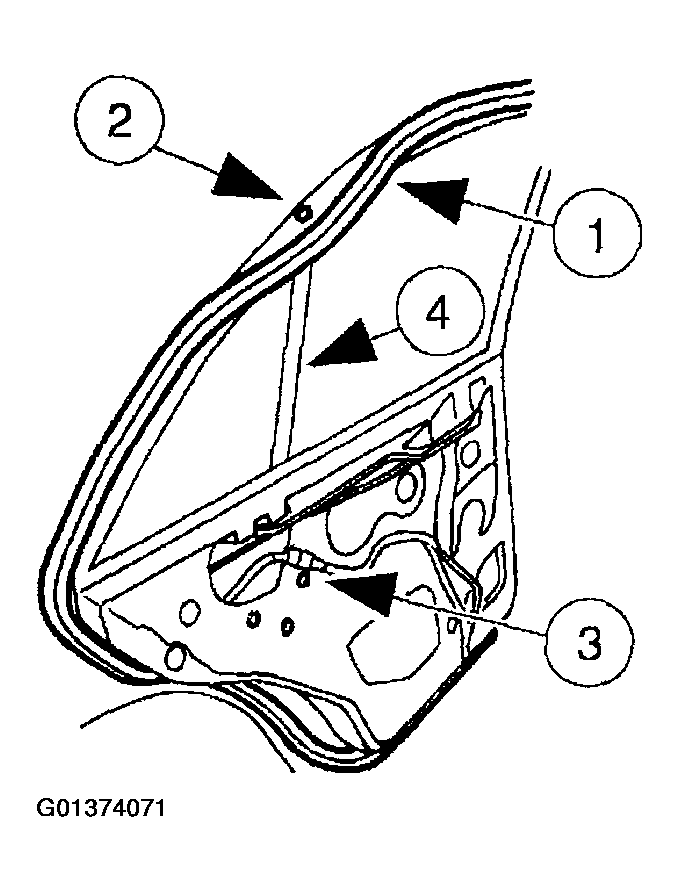

    Fig 1: Removing Rear Door Glass Run Retainer And Division Bar
    G01374071Courtesy of FORD MOTOR CO.
  3. Remove the opera window glass and seal.

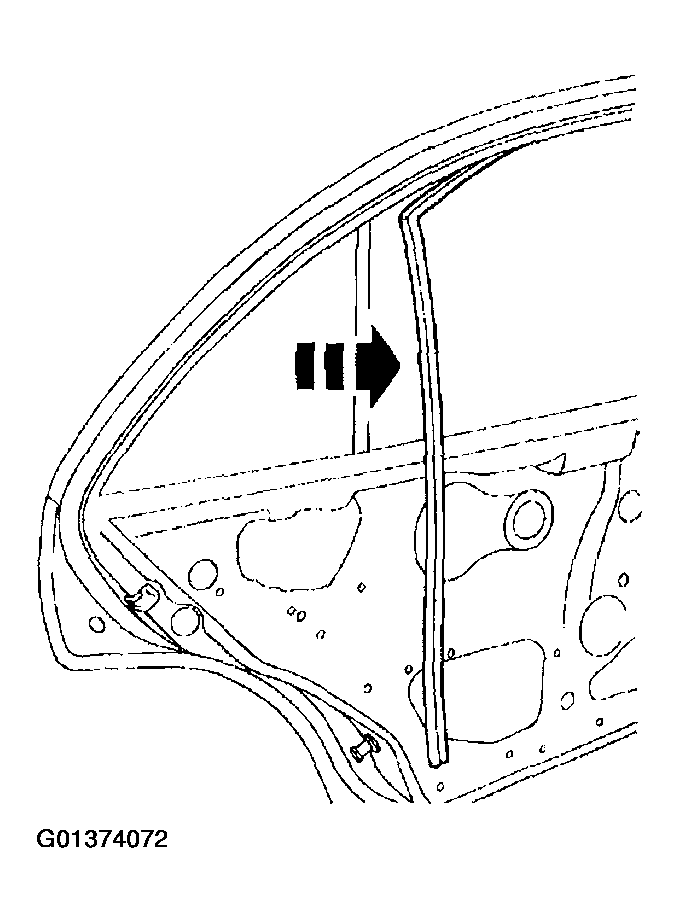

    Fig 2: Removing Opera Window Glass And Seal
    G01374072Courtesy of FORD MOTOR CO.
