Support Straps: Installation

  1. To install, reverse the removal procedure.

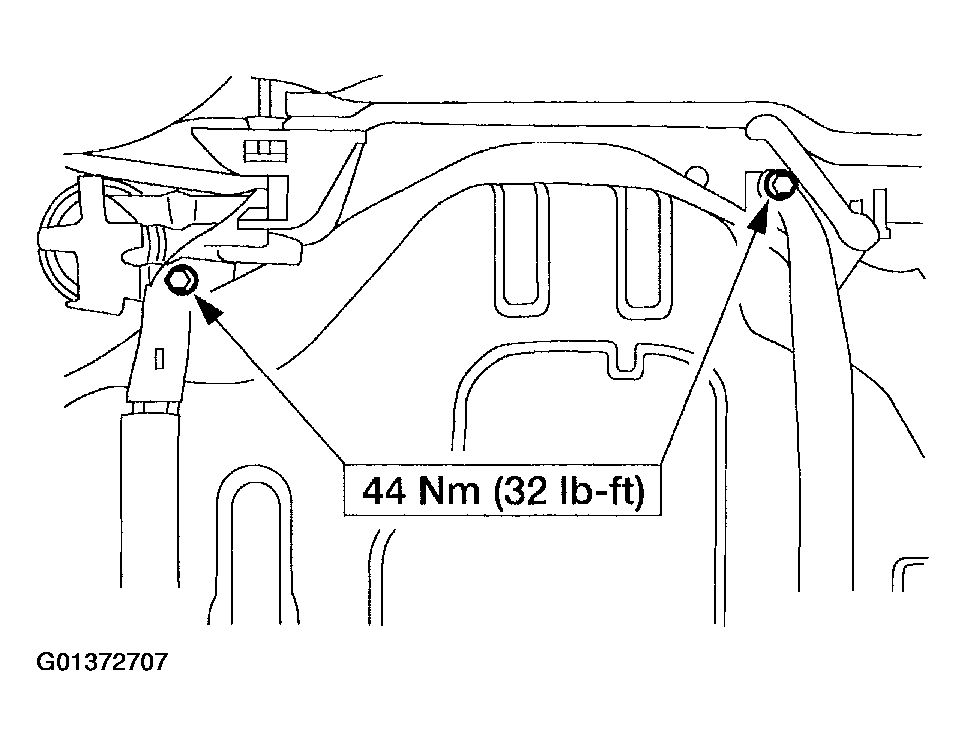

    Fig 1: Installing Fuel Tank Support Strap Bolts
    G01372707Courtesy of FORD MOTOR CO.
