Section 1190 (HVAC Control System - General Information)
>>
Diagnosis And Testing
>>
Climate Control System
>>
Connector Circuit Reference
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Connector Circuit Reference
WARNING:
This page is about a different car, the 2005 Mercury Montego, 2005 Ford Freestyle, and 2005 Ford Five Hundred. However, it is still accessible from the selected car via links, so may be relevant.

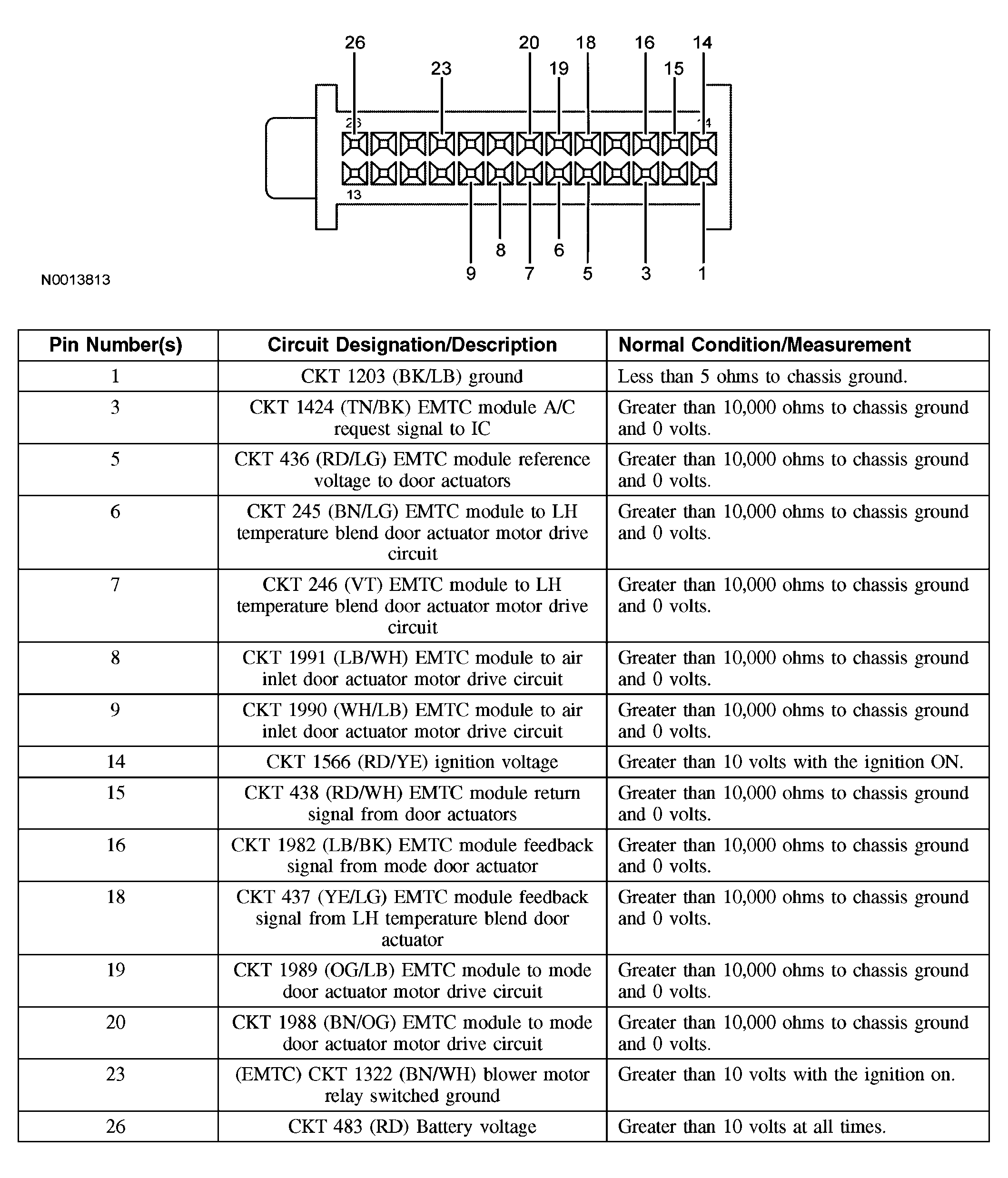

Fig 1: Identifying EMTC Module C294A Connector Pinout
Courtesy of FORD MOTOR CO.
Fig 2: Identifying EATC Module C228A Connector Pinout
Courtesy of FORD MOTOR CO.

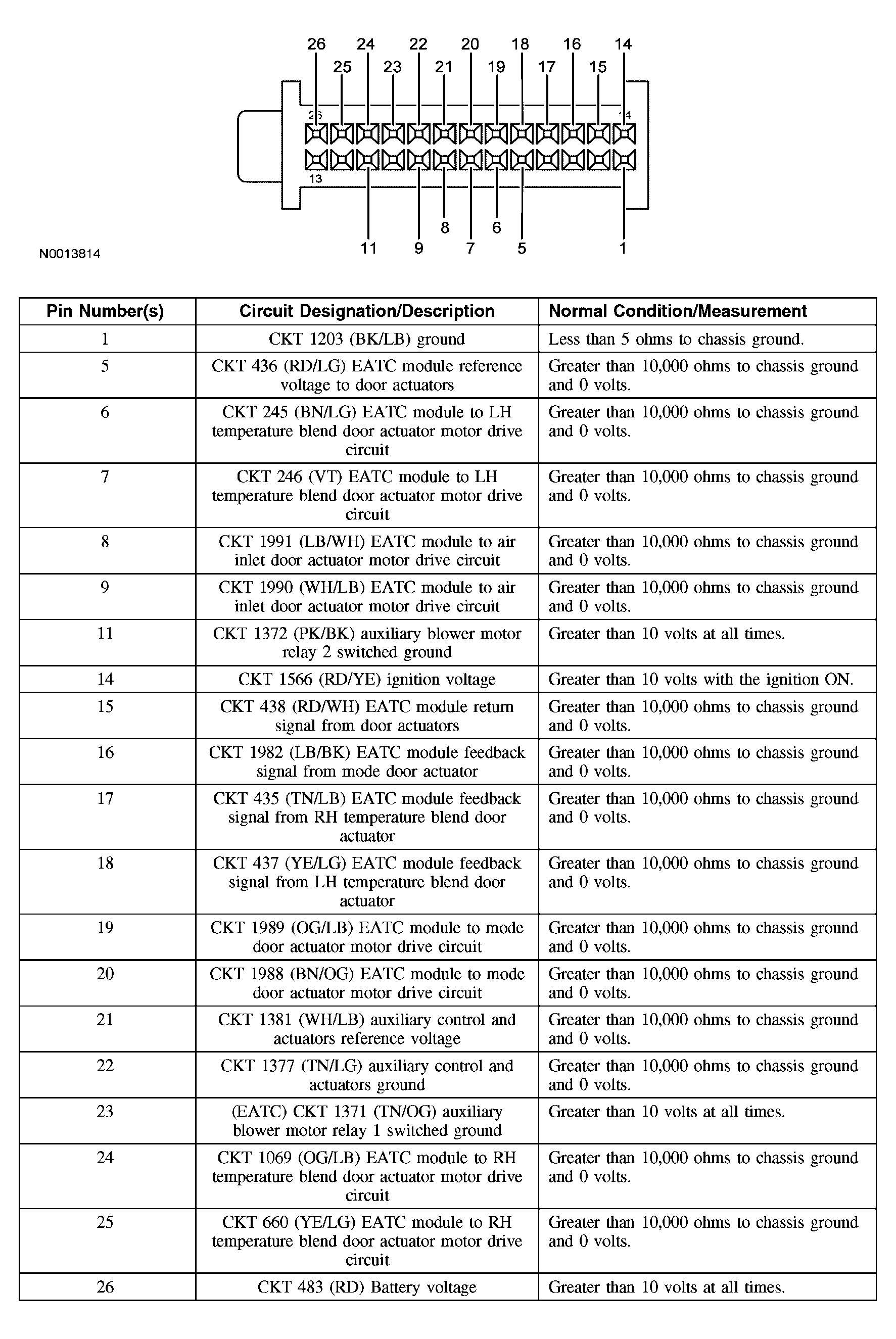

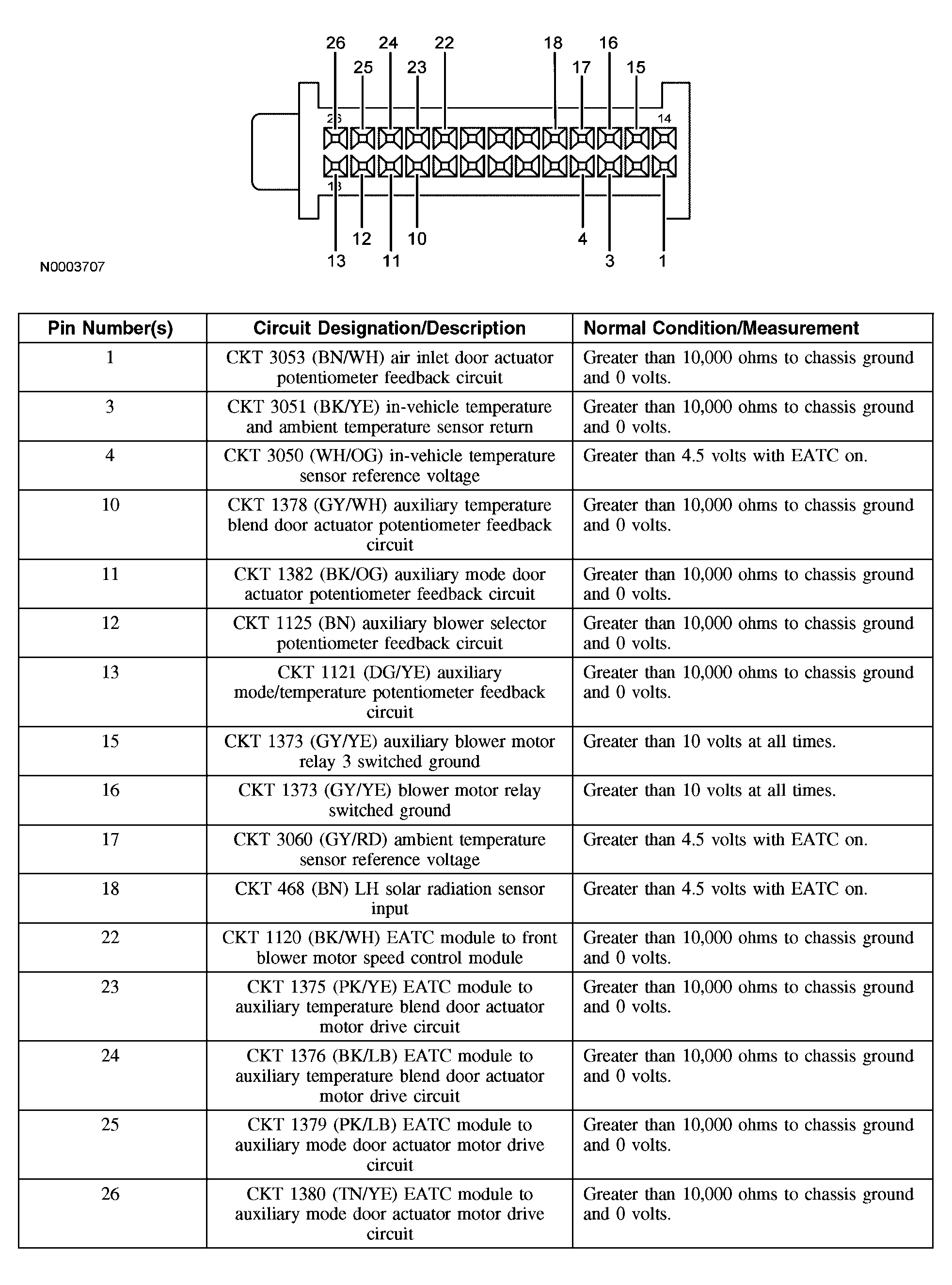

Fig 3: Identifying EATC Module C228B Connector Pinout
Courtesy of FORD MOTOR CO.

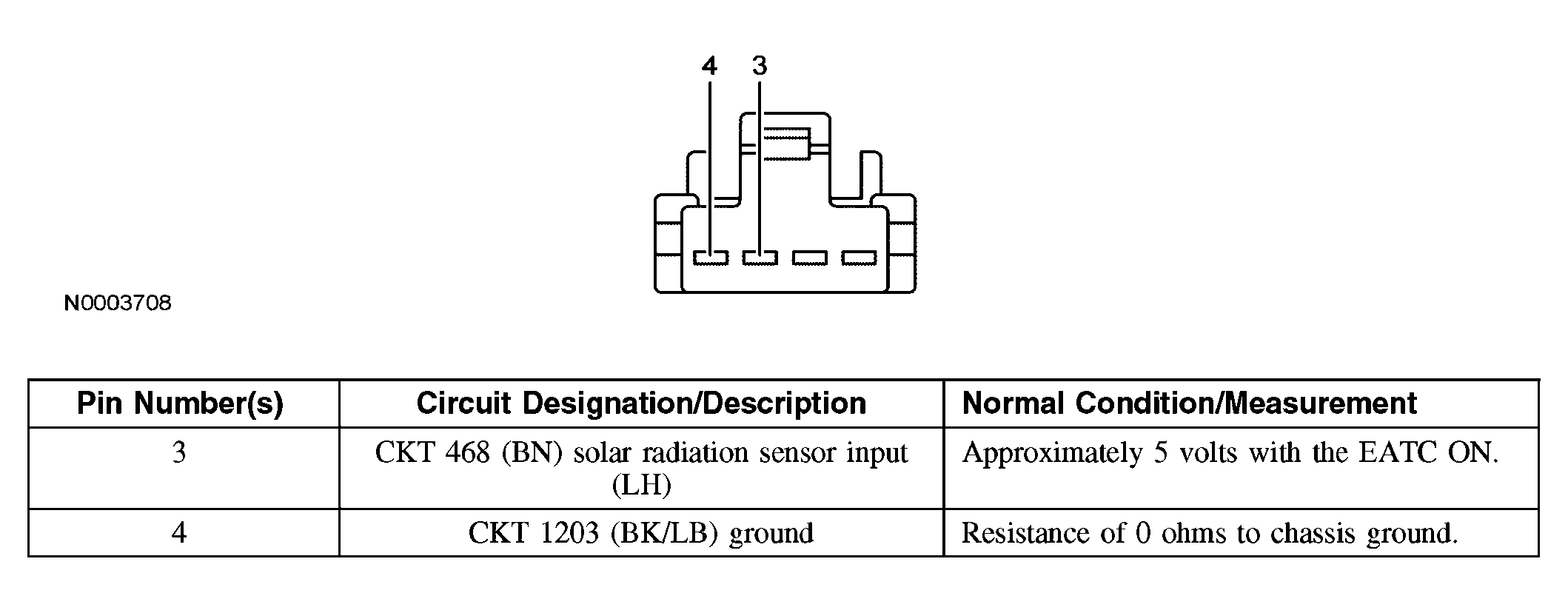

Fig 4: Identifying Solar Radiation Sensor C286 Connector Pinout
Courtesy of FORD MOTOR CO.

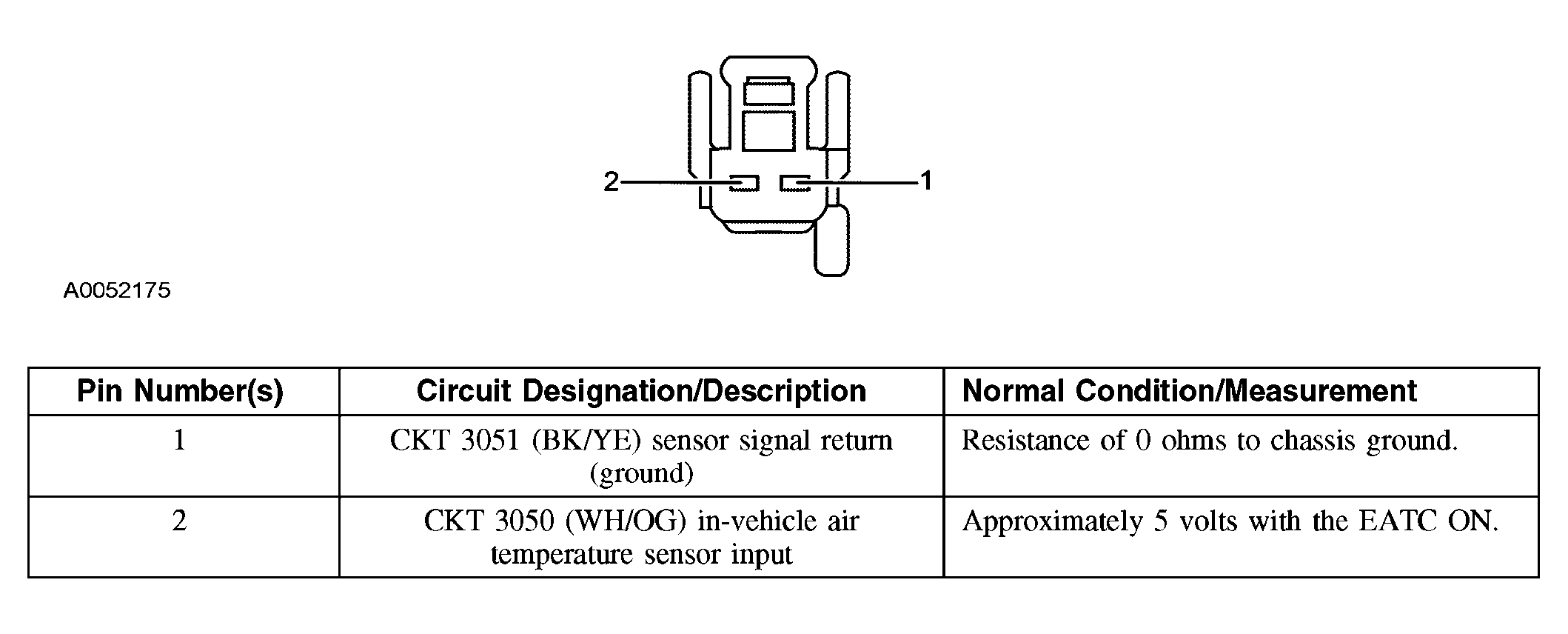

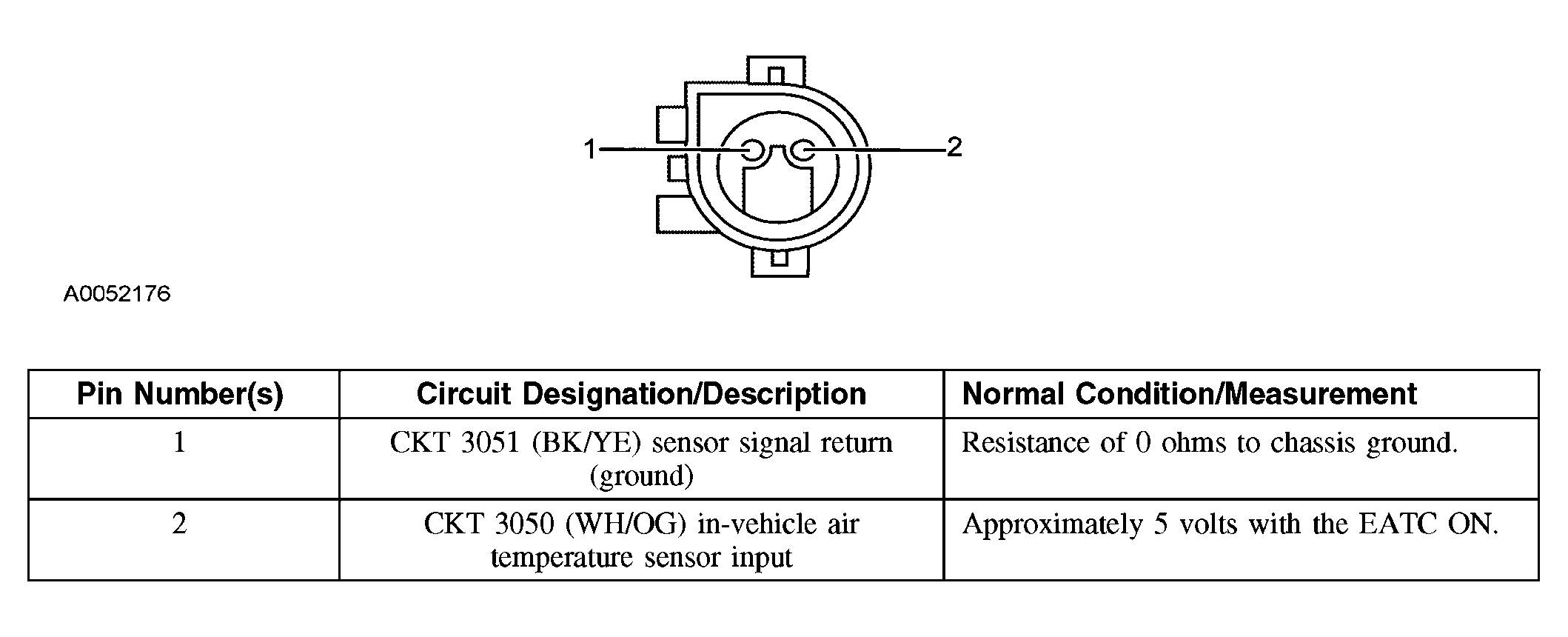

Fig 5: Identifying In-Vehicle Temperature Sensor C233 Connector Pinout
Courtesy of FORD MOTOR CO.
Fig 6: Identifying Ambient Temperature Sensor C132 Connector Pinout
Courtesy of FORD MOTOR CO.

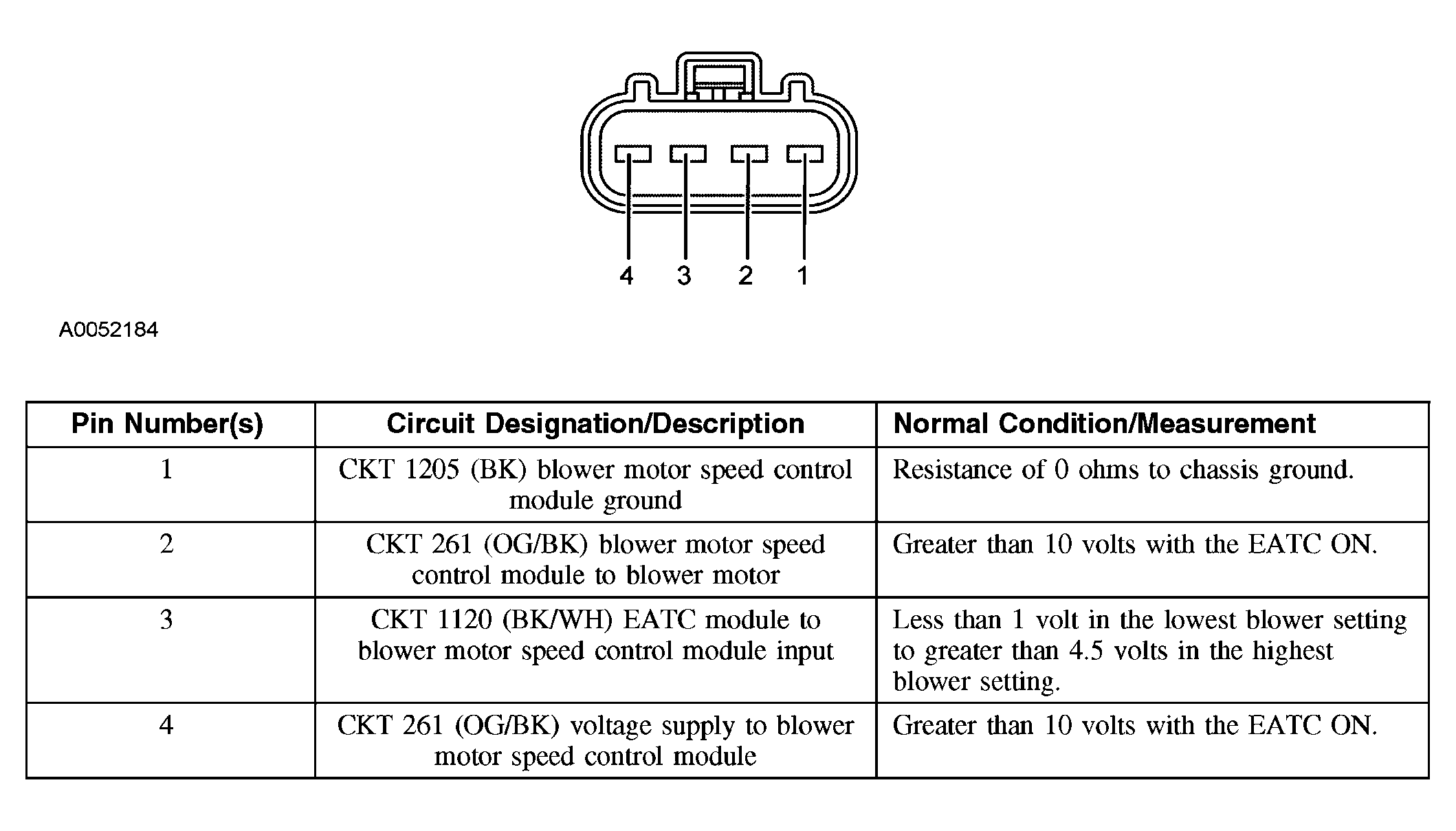

Fig 7: Identifying Blower Motor Speed Control Module C2185 Connector Pinout
Courtesy of FORD MOTOR CO.

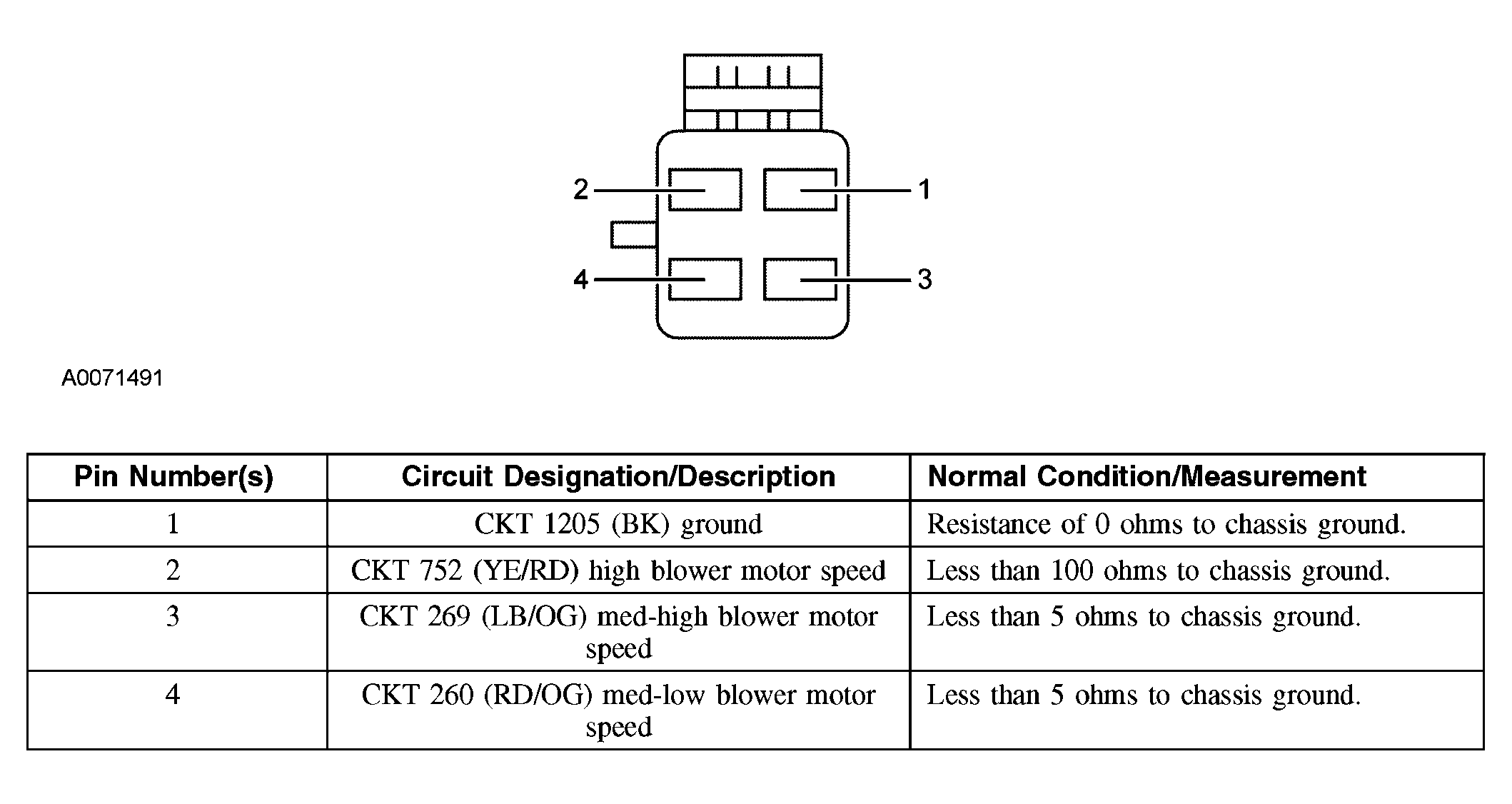

Fig 8: Identifying Blower Motor Switch C294b - Manual Climate Control Connector Pinout
Courtesy of FORD MOTOR CO.

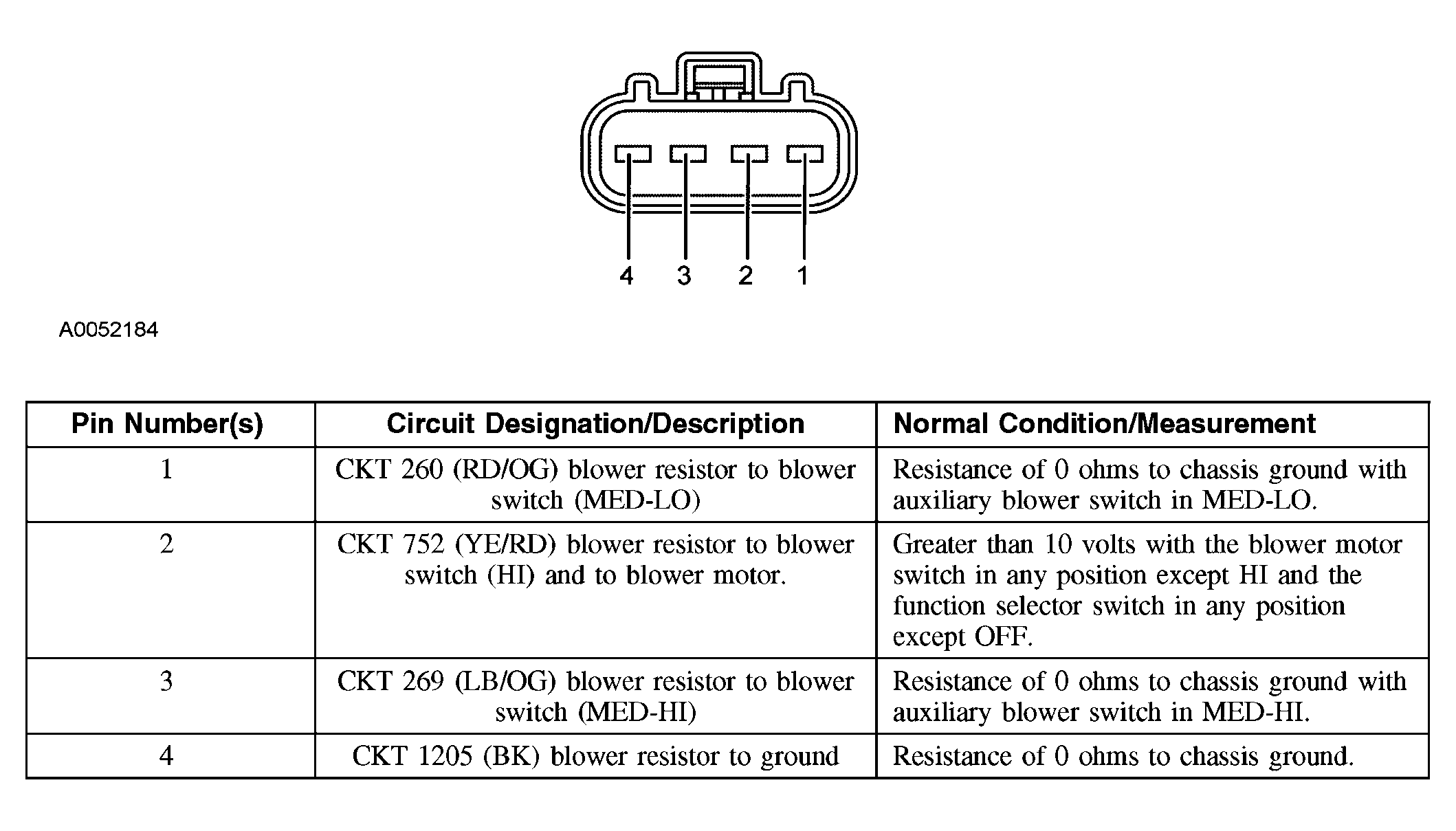

Fig 9: Identifying Blower Motor Resistor C2185 Connector Pinout
Courtesy of FORD MOTOR CO.

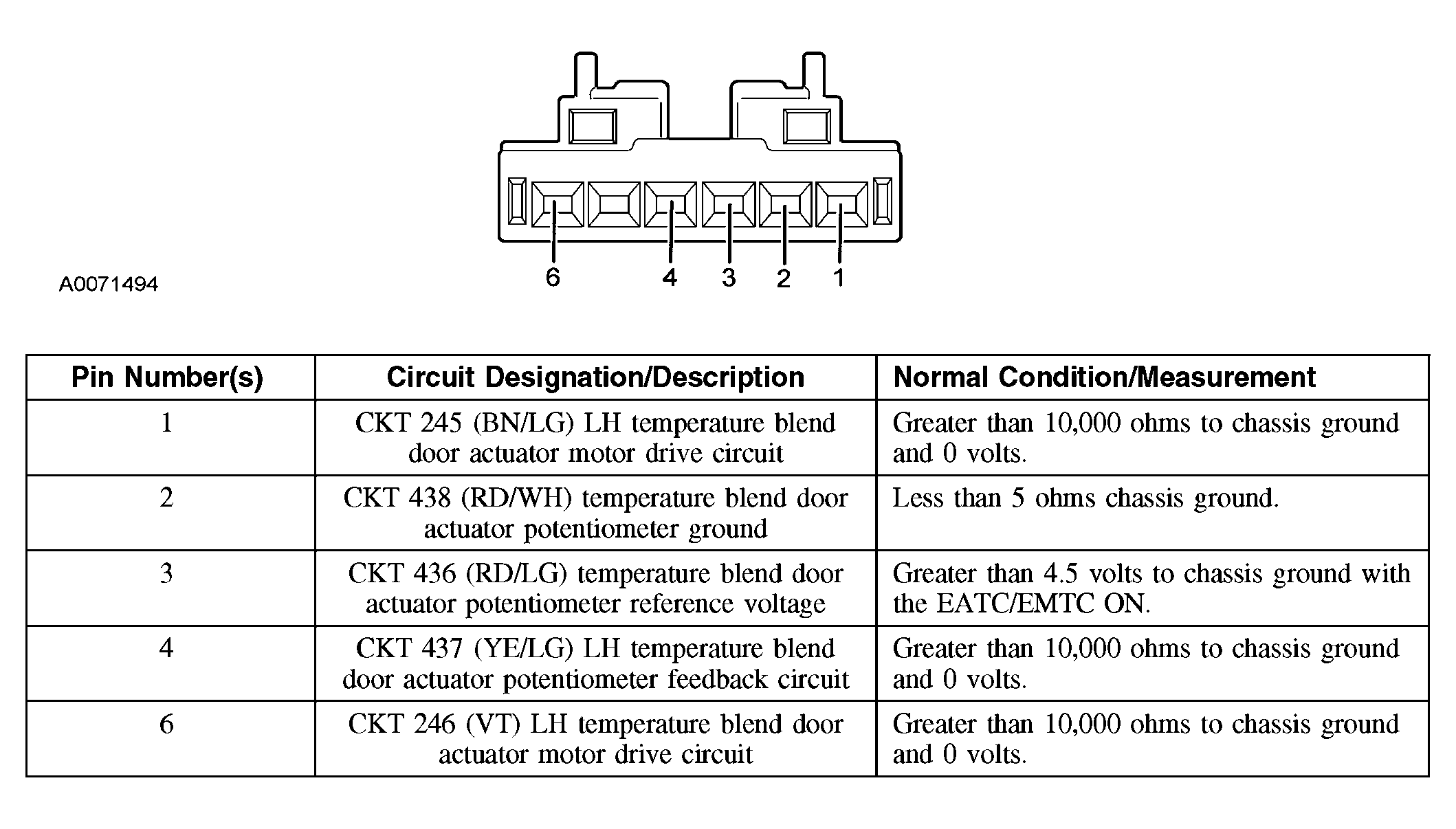

Fig 10: Identifying LH Temperature Blend Door Actuator C2091 Connector Pinout
Courtesy of FORD MOTOR CO.

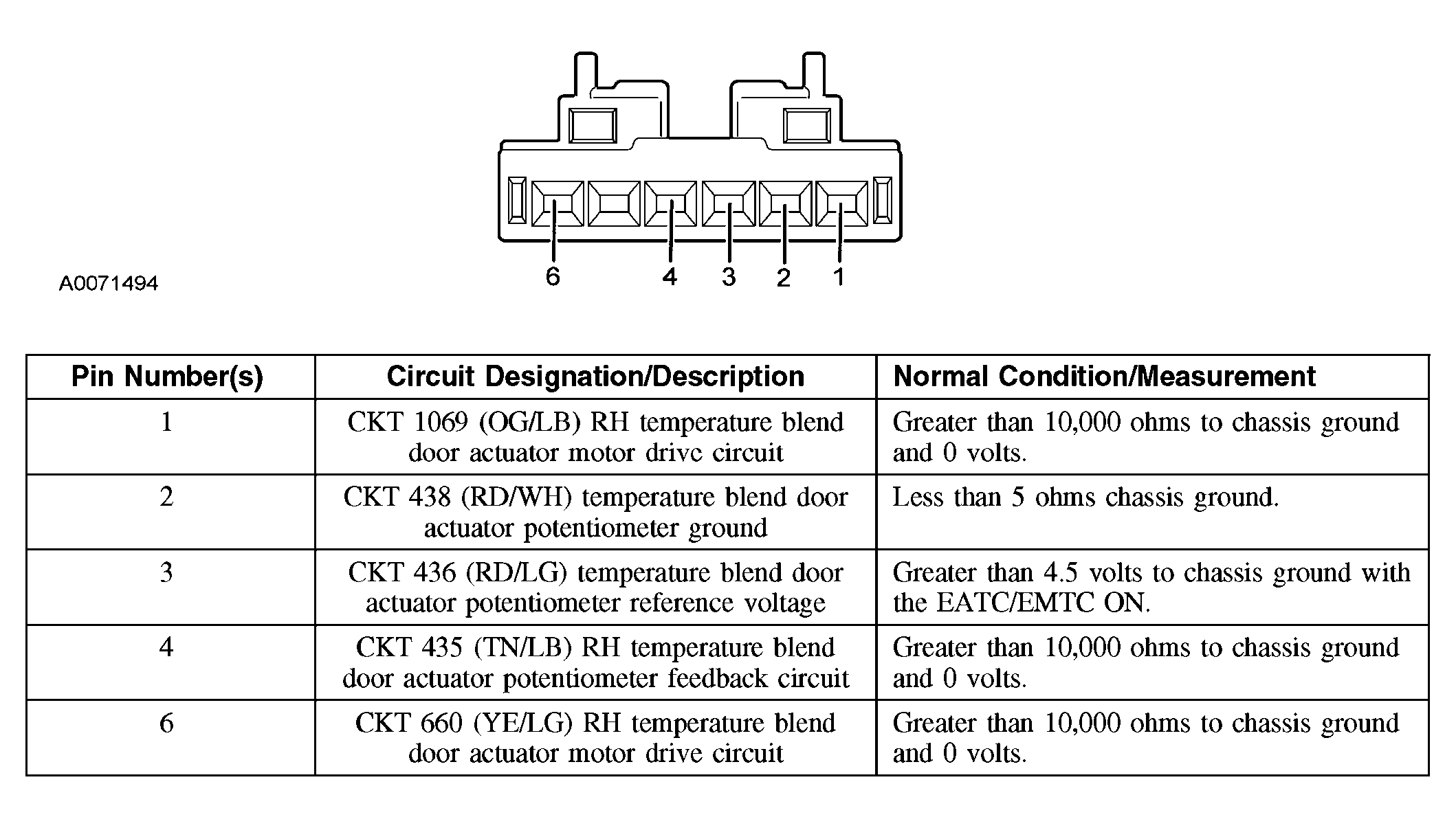

Fig 11: Identifying RH Temperature Blend Door Actuator C2092 Connector Pinout
Courtesy of FORD MOTOR CO.

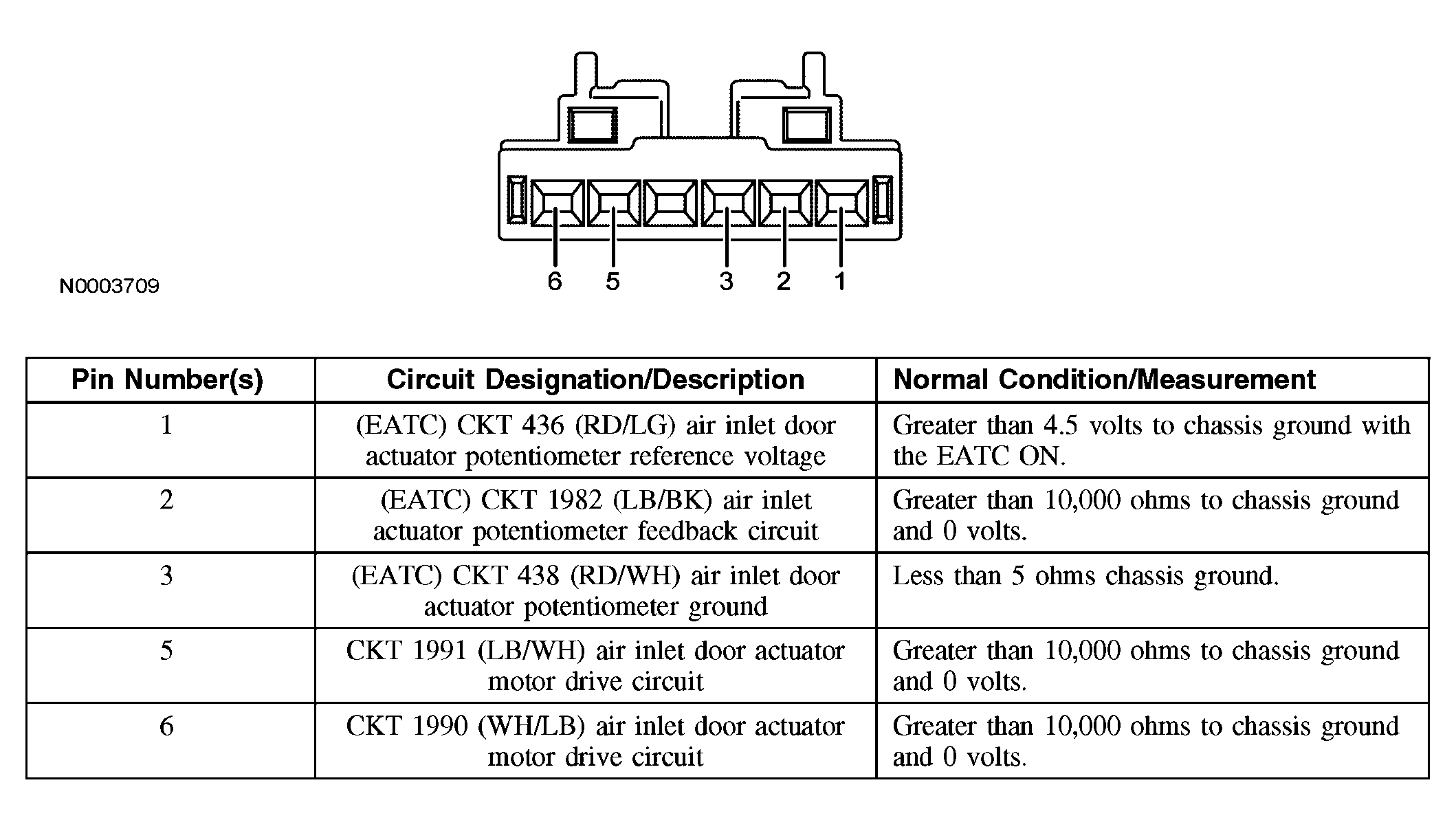

Fig 12: Identifying Air Inlet Actuator C289 Connector Pinout
Courtesy of FORD MOTOR CO.

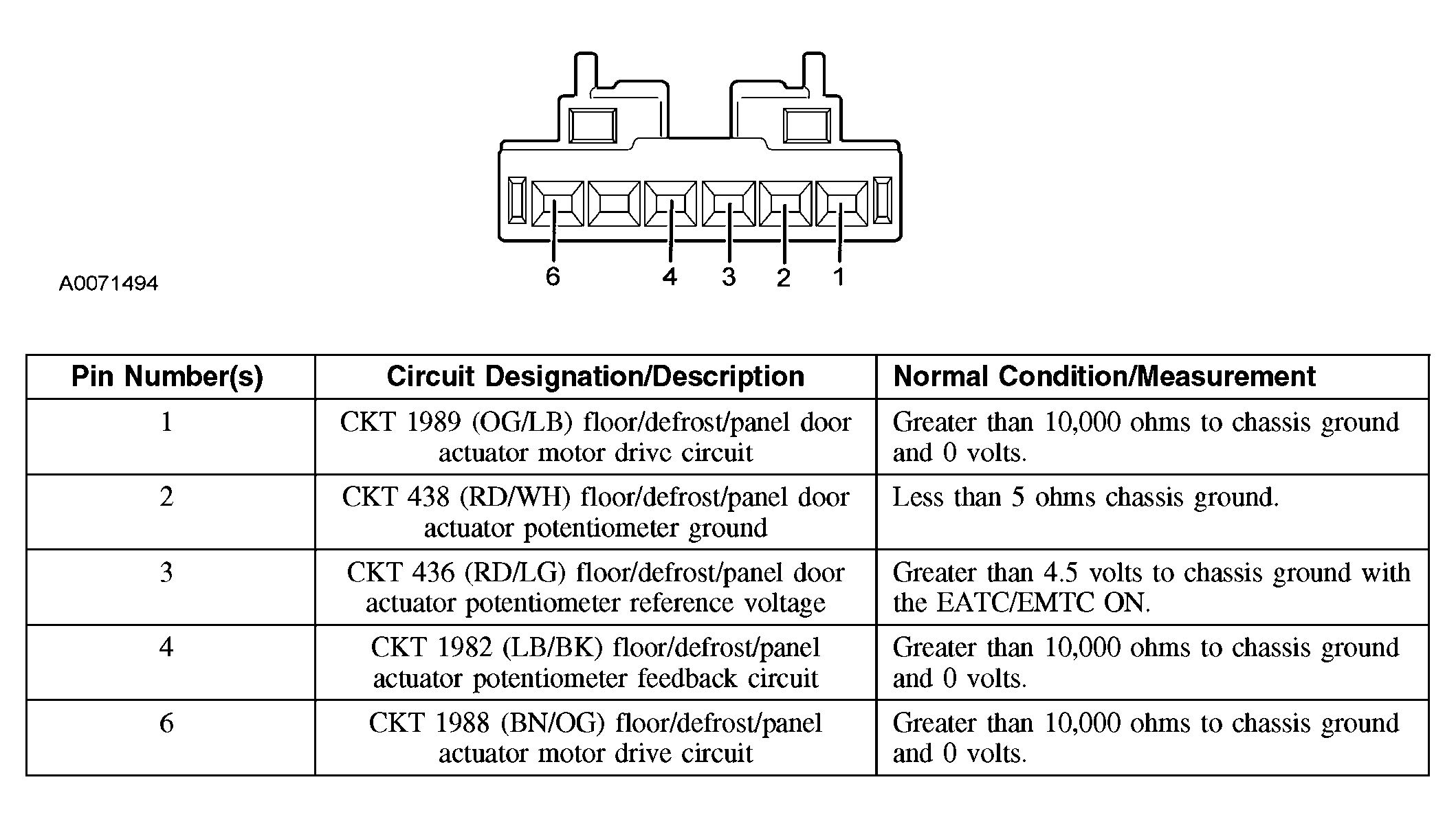

Fig 13: Identifying Floor/Defrost/Panel Actuator C2278 Connector Pinout
Courtesy of FORD MOTOR CO.

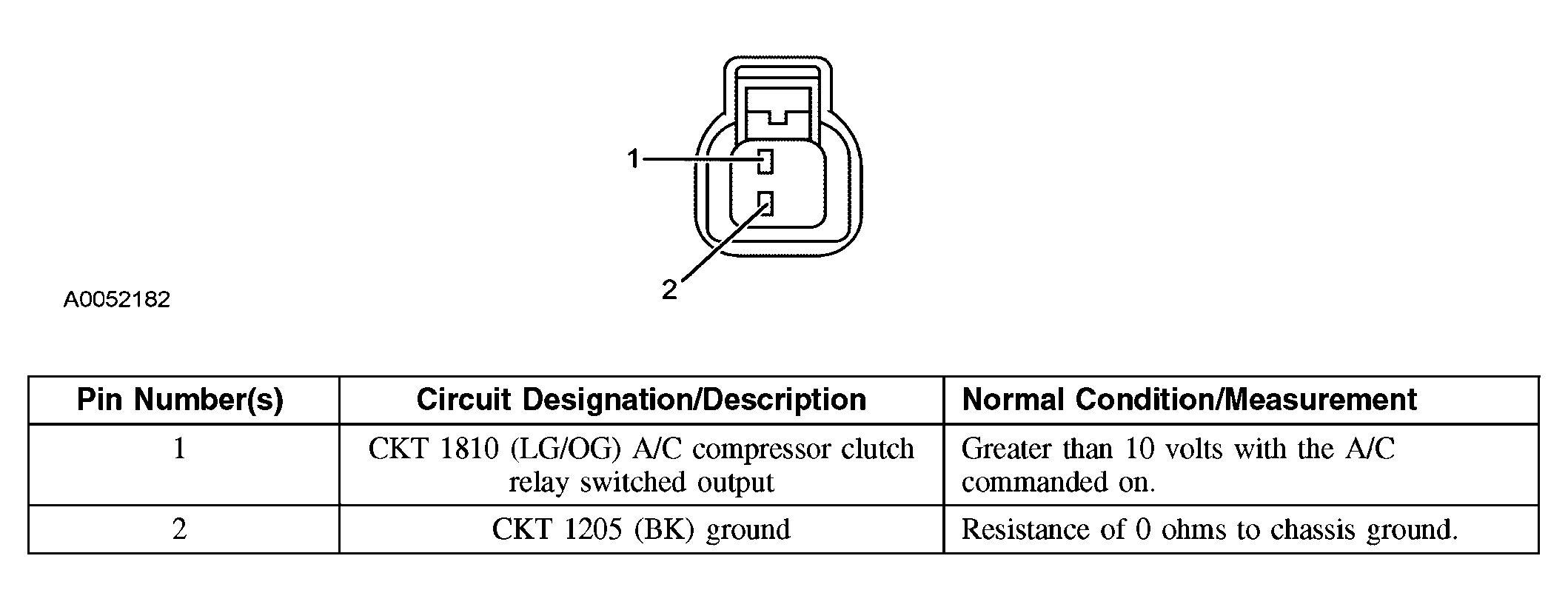

Fig 14: Identifying A/C Compressor Clutch Field Coil C100 Connector Pinout
Courtesy of FORD MOTOR CO.

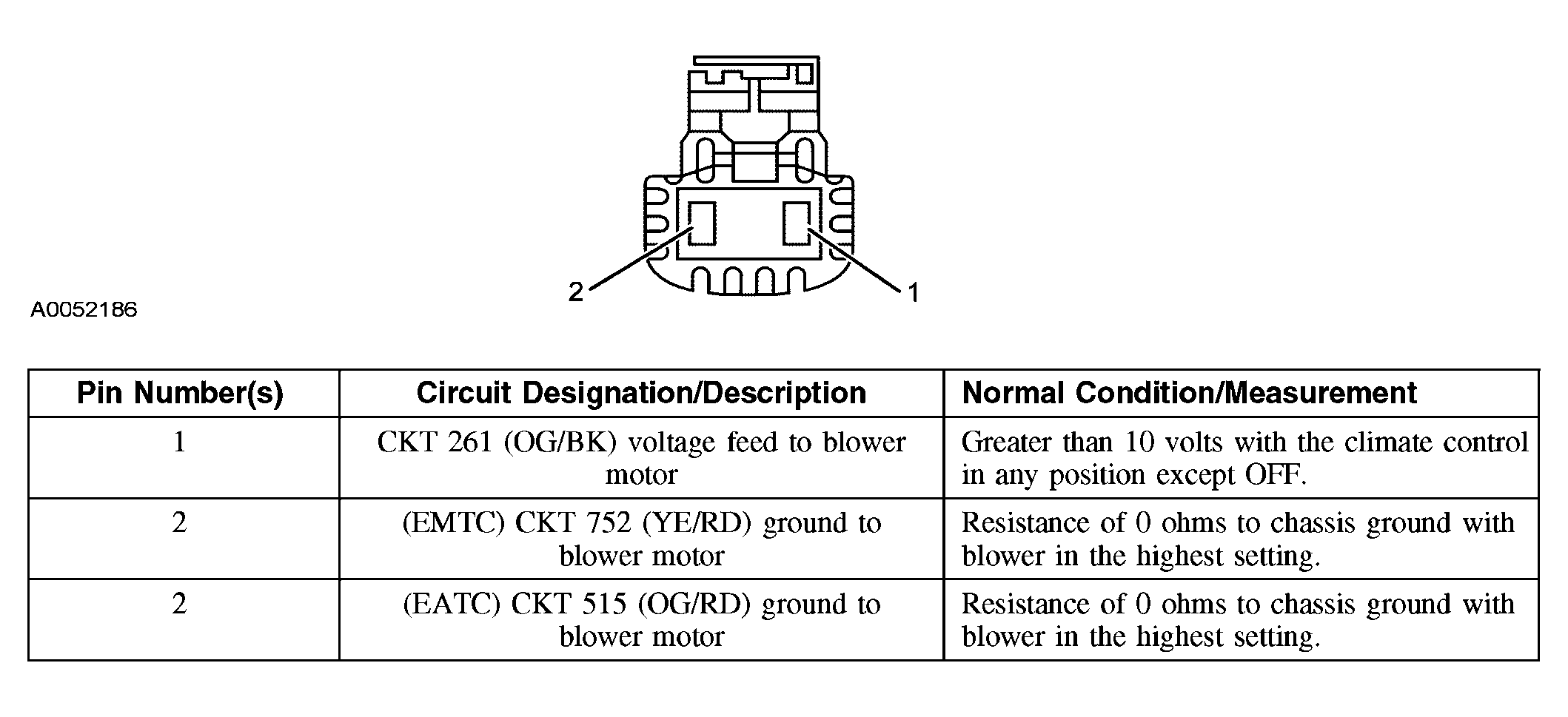

Fig 15: Identifying Blower Motor C2004 Connector Pinout
Courtesy of FORD MOTOR CO.

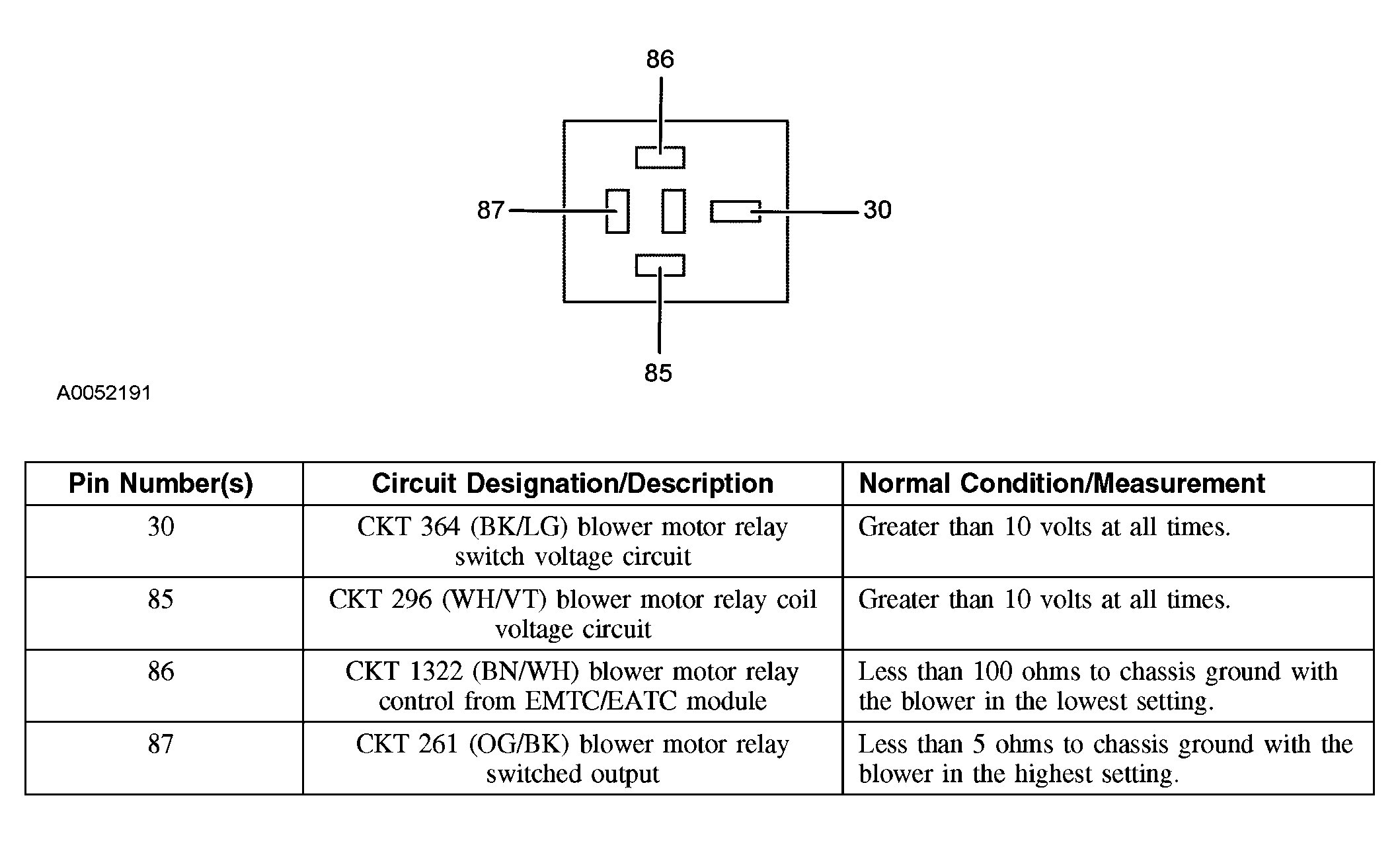

Fig 16: Identifying Blower Motor Relay Connector Pinout
Courtesy of FORD MOTOR CO.

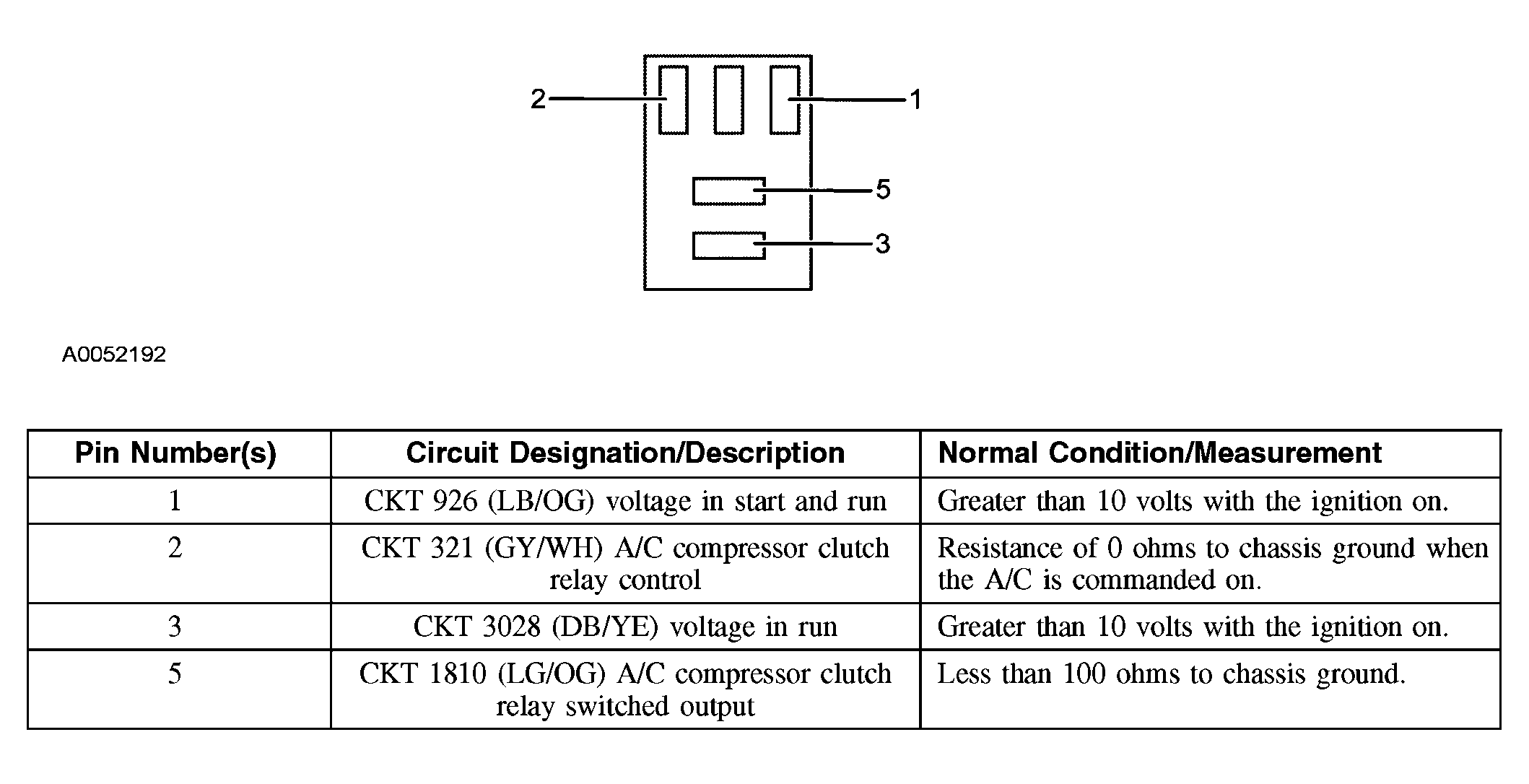

Fig 17: Identifying A/C Compressor Clutch Relay Connector Pinout
Courtesy of FORD MOTOR CO.

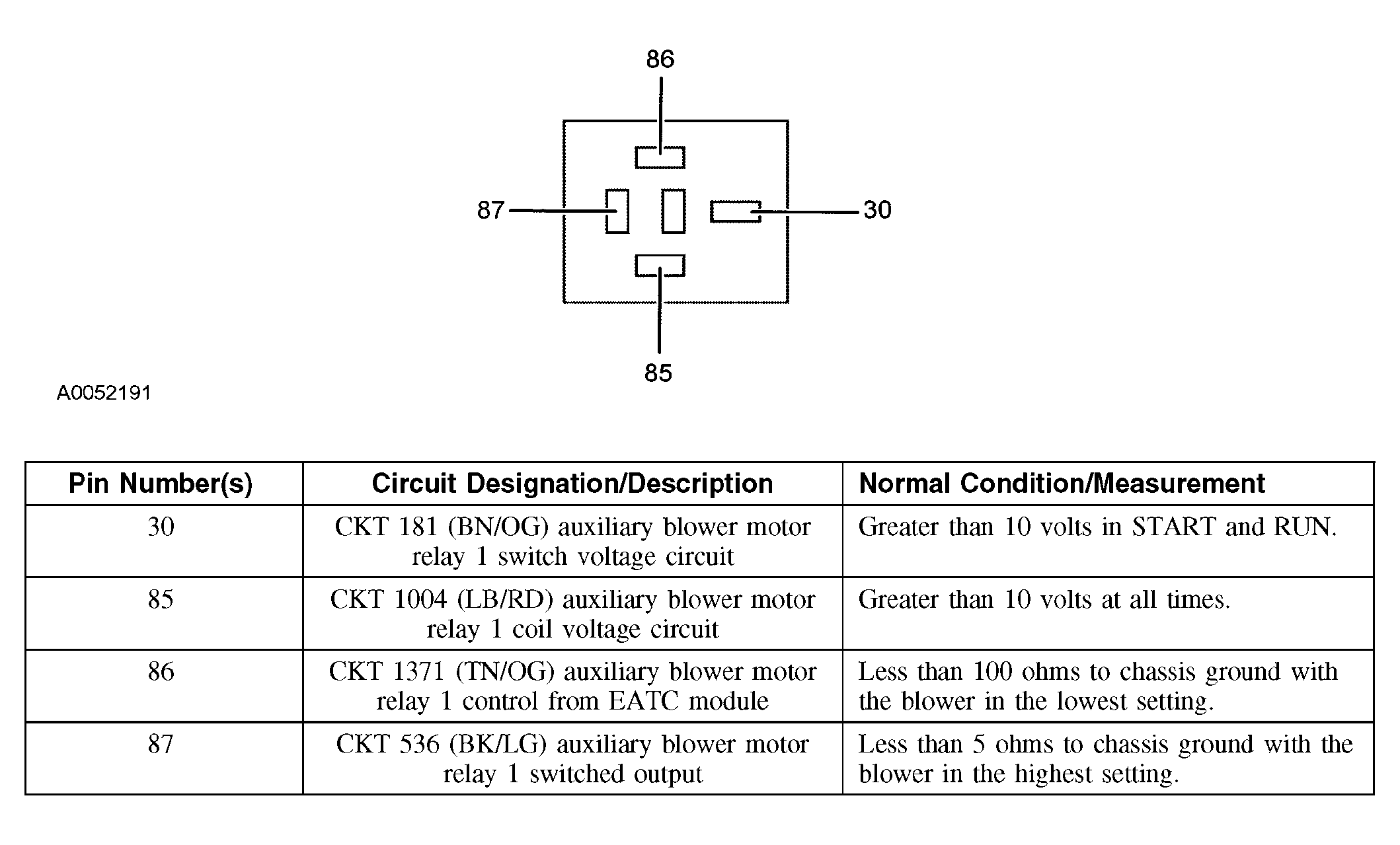

Fig 18: Identifying Auxiliary Blower Motor Relay 1 Connector Pinout
Courtesy of FORD MOTOR CO.

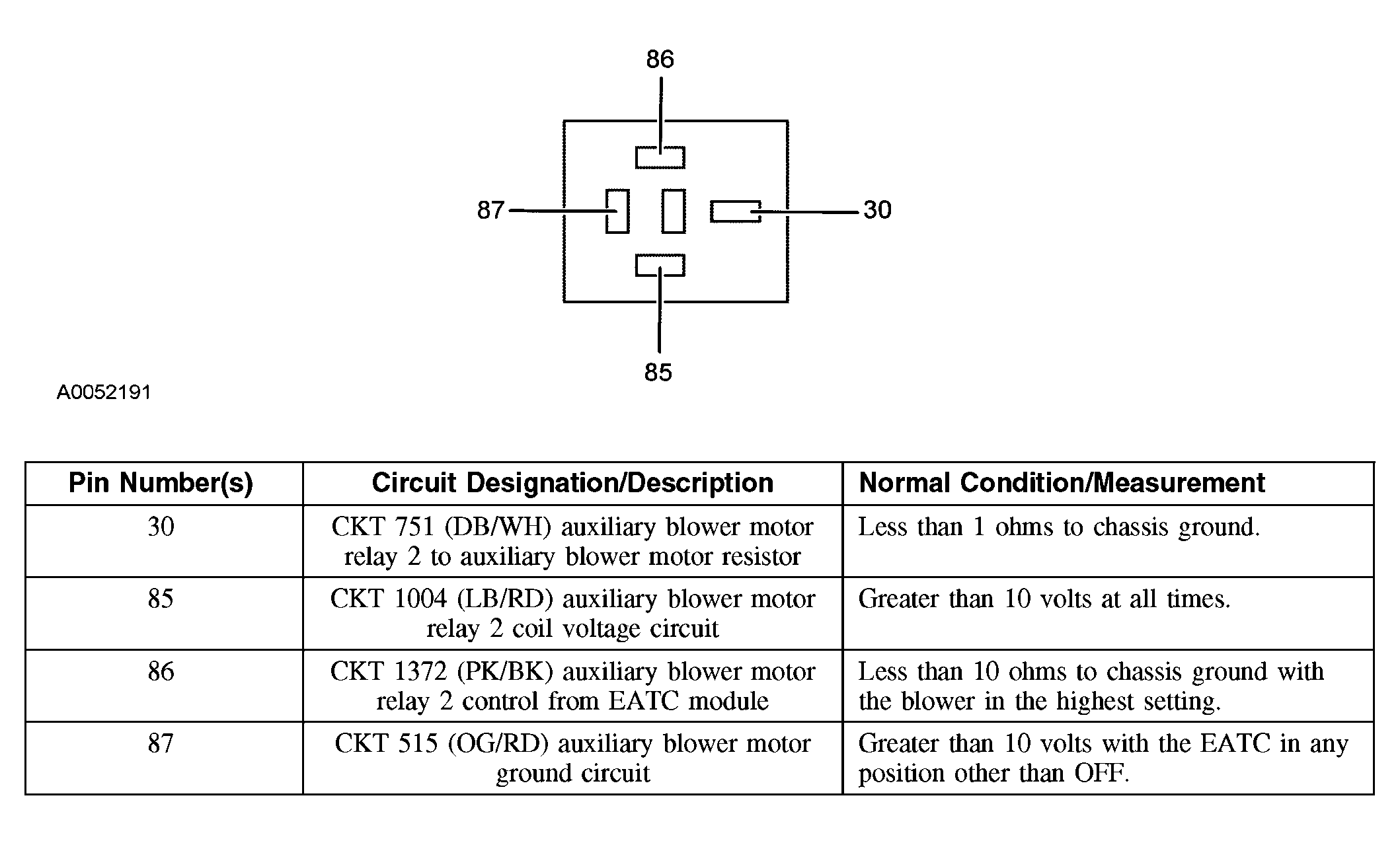

Fig 19: Identifying Auxiliary Blower Motor Relay 2 Connector Pinout
Courtesy of FORD MOTOR CO.

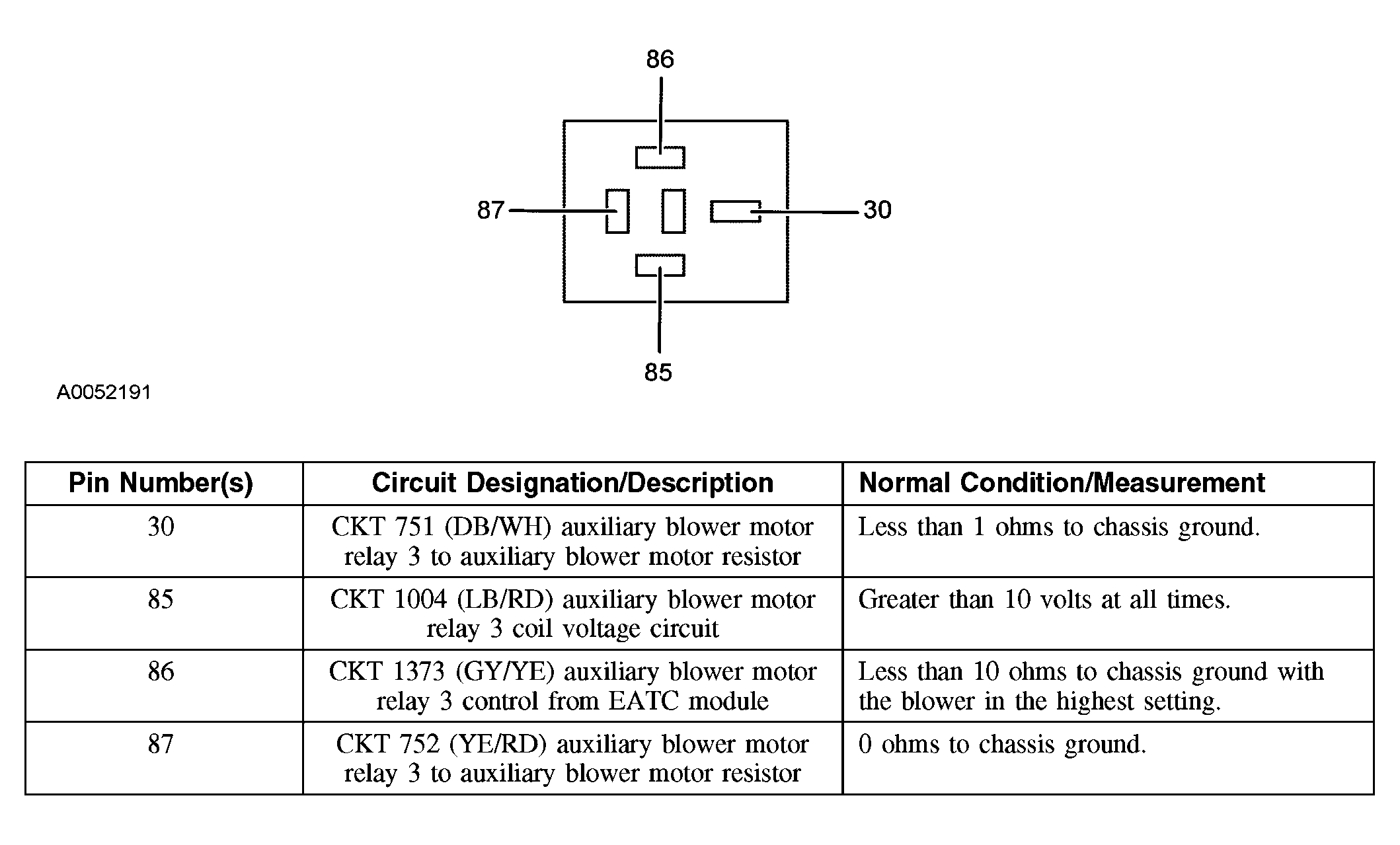

Fig 20: Identifying Auxiliary Blower Motor Relay 3 Connector Pinout
Courtesy of FORD MOTOR CO.

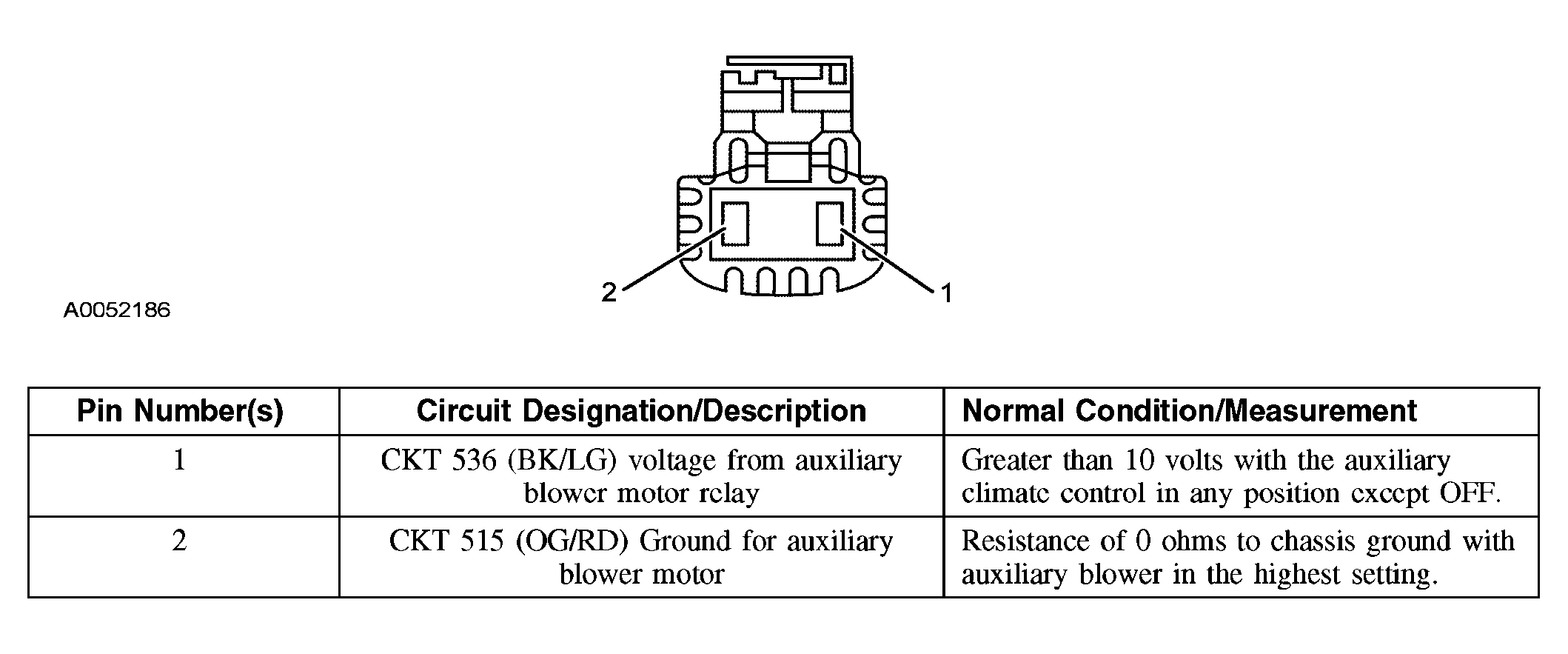

Fig 21: Identifying Blower Motor C3021 Connector Pinout
Courtesy of FORD MOTOR CO.

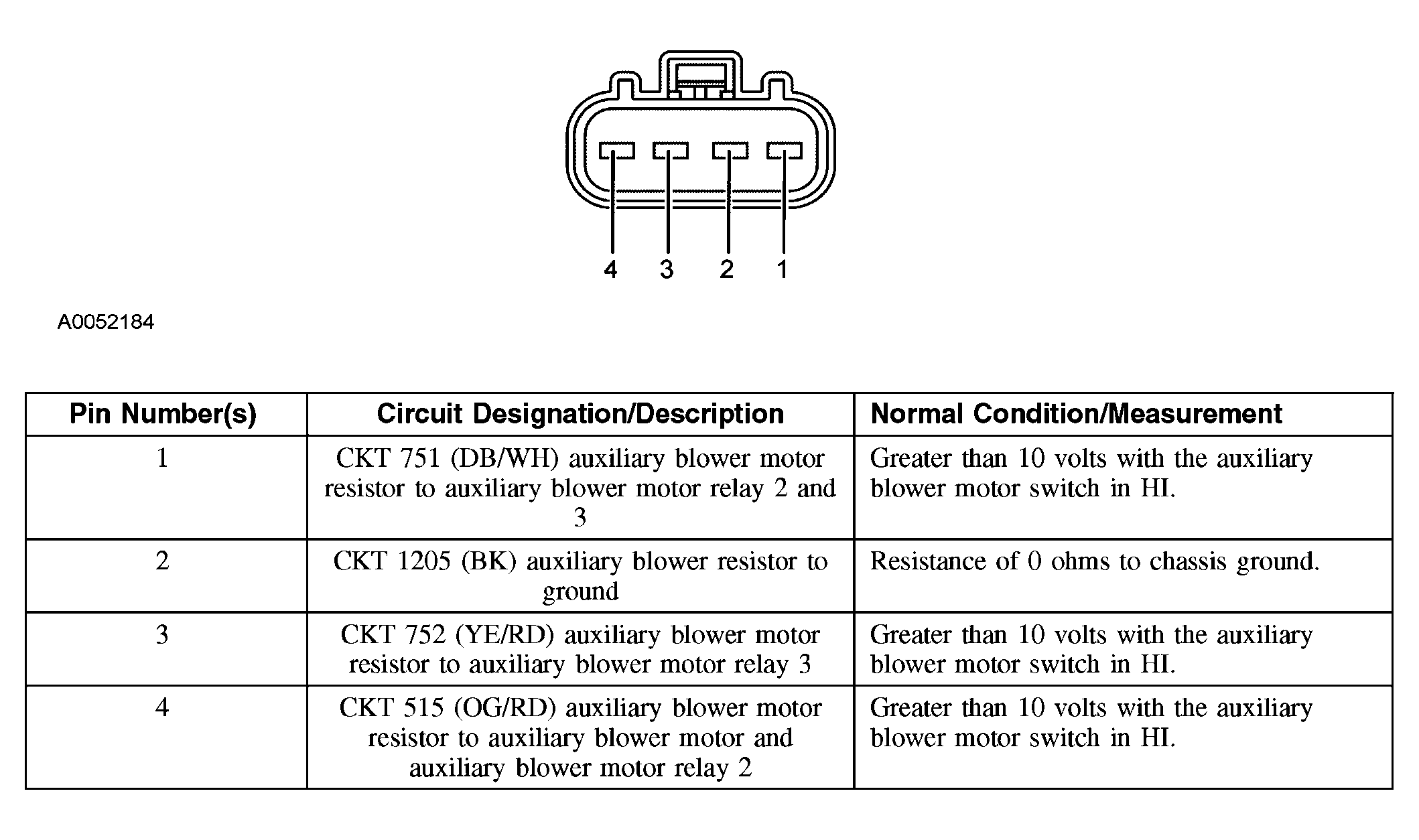

Fig 22: Identifying Auxiliary Blower Motor Resistor C3022 Connector Pinout
Courtesy of FORD MOTOR CO.

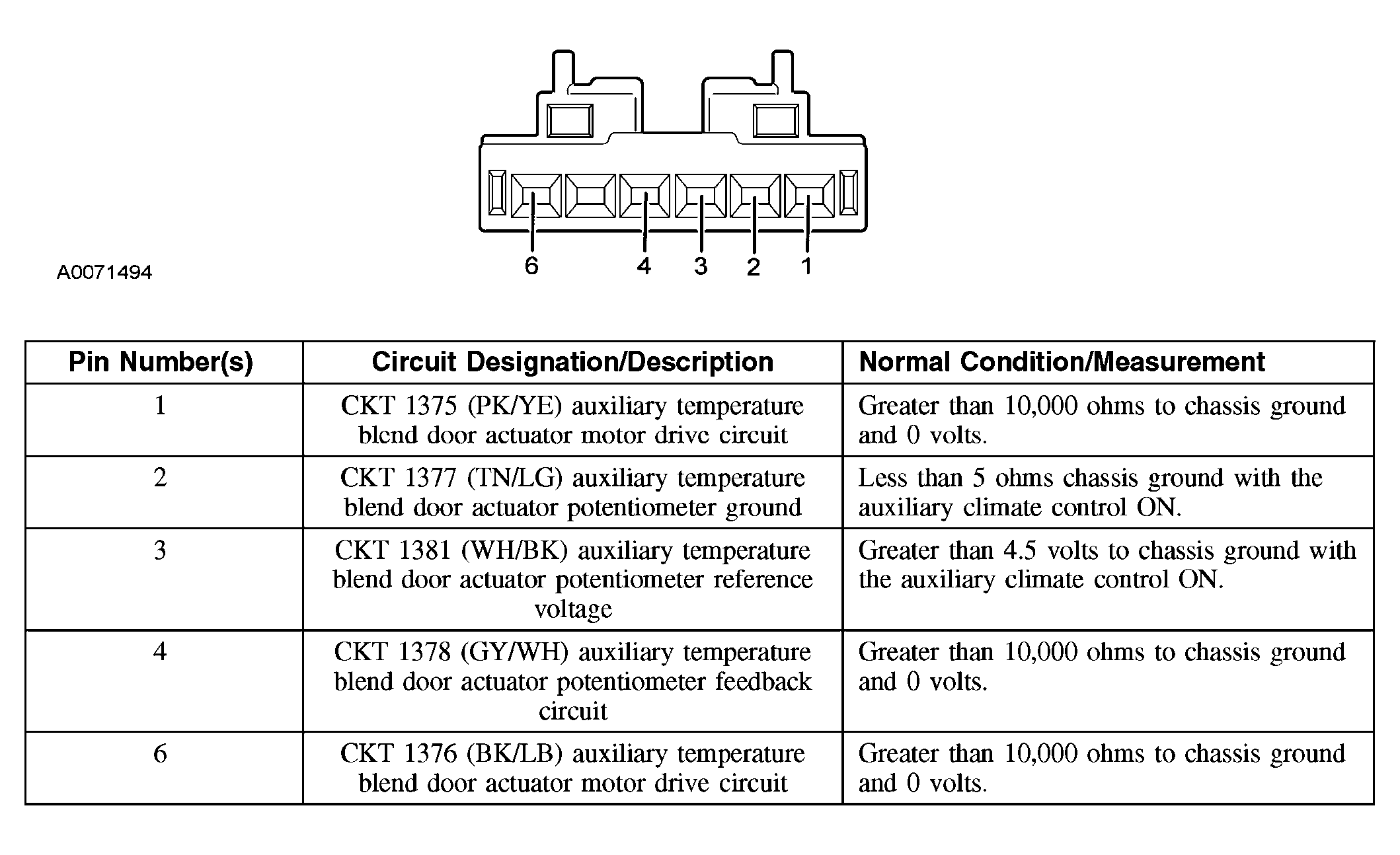

Fig 23: Identifying Auxiliary Temperature Blend Door Actuator C3275 Connector Pinout
Courtesy of FORD MOTOR CO.

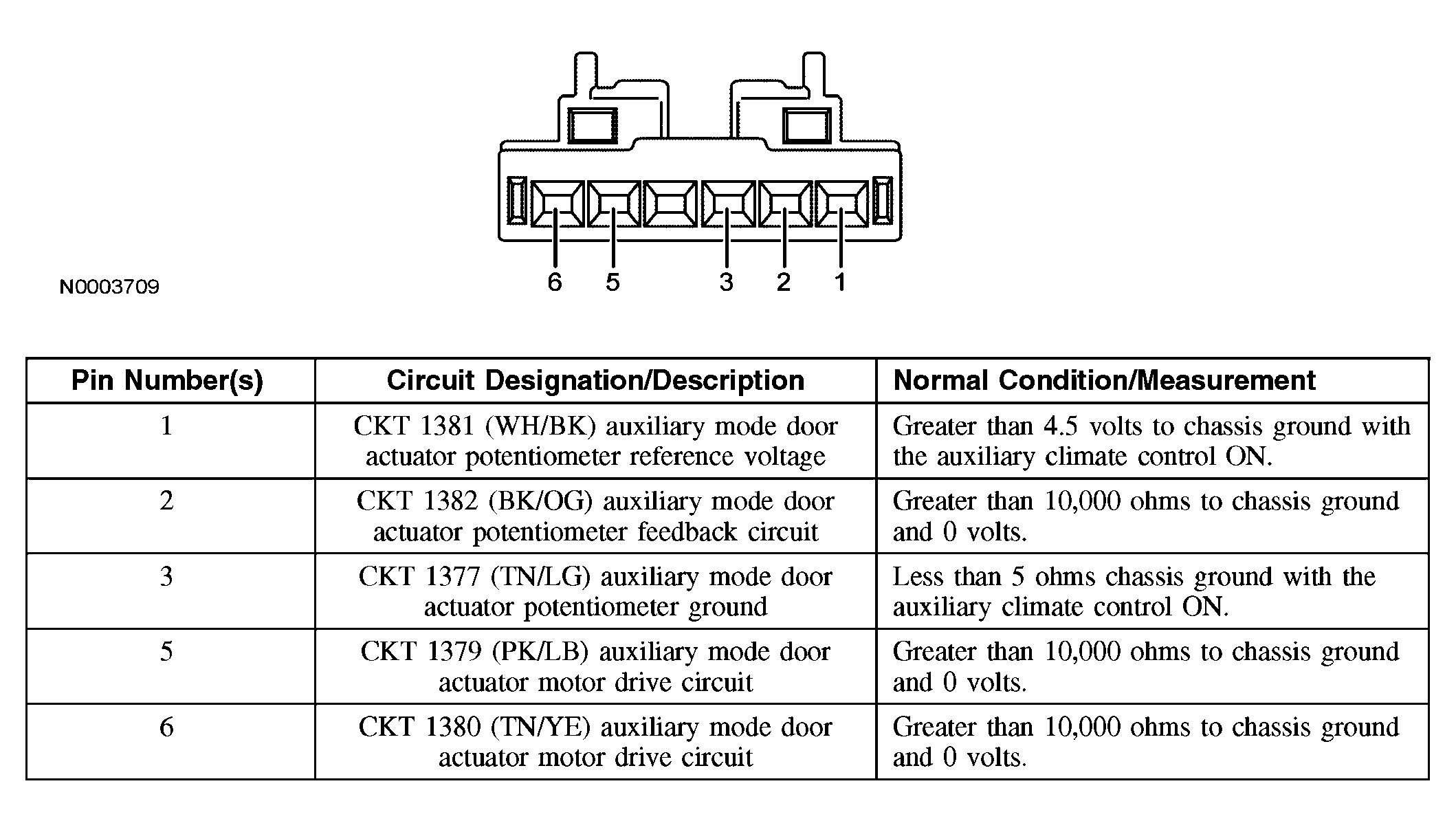

Fig 24: Identifying Auxiliary Mode Door Actuator C3274 Connector Pinout
Courtesy of FORD MOTOR CO.

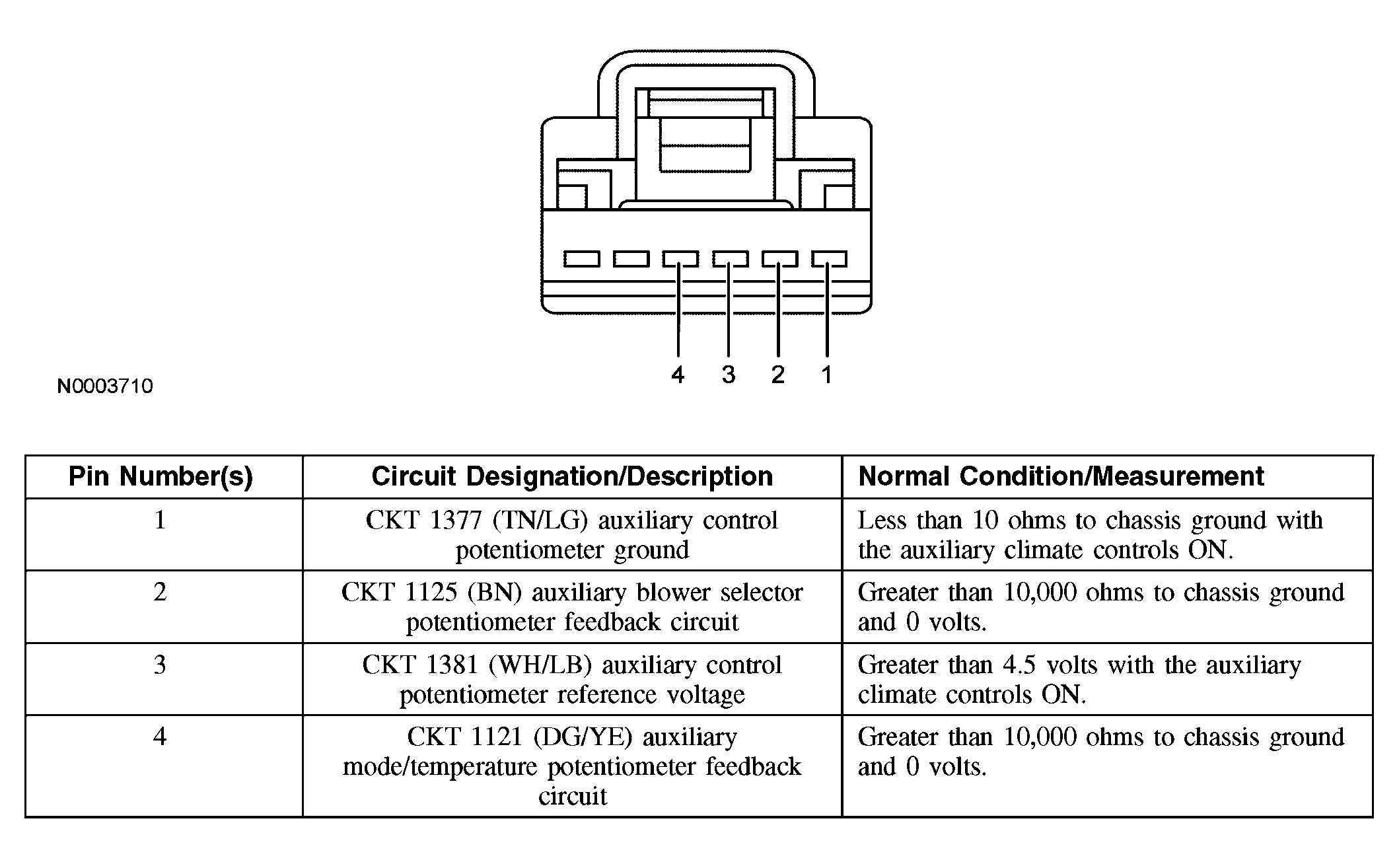

Fig 25: Identifying Auxiliary Climate Control C990 Connector Pinout
Courtesy of FORD MOTOR CO.

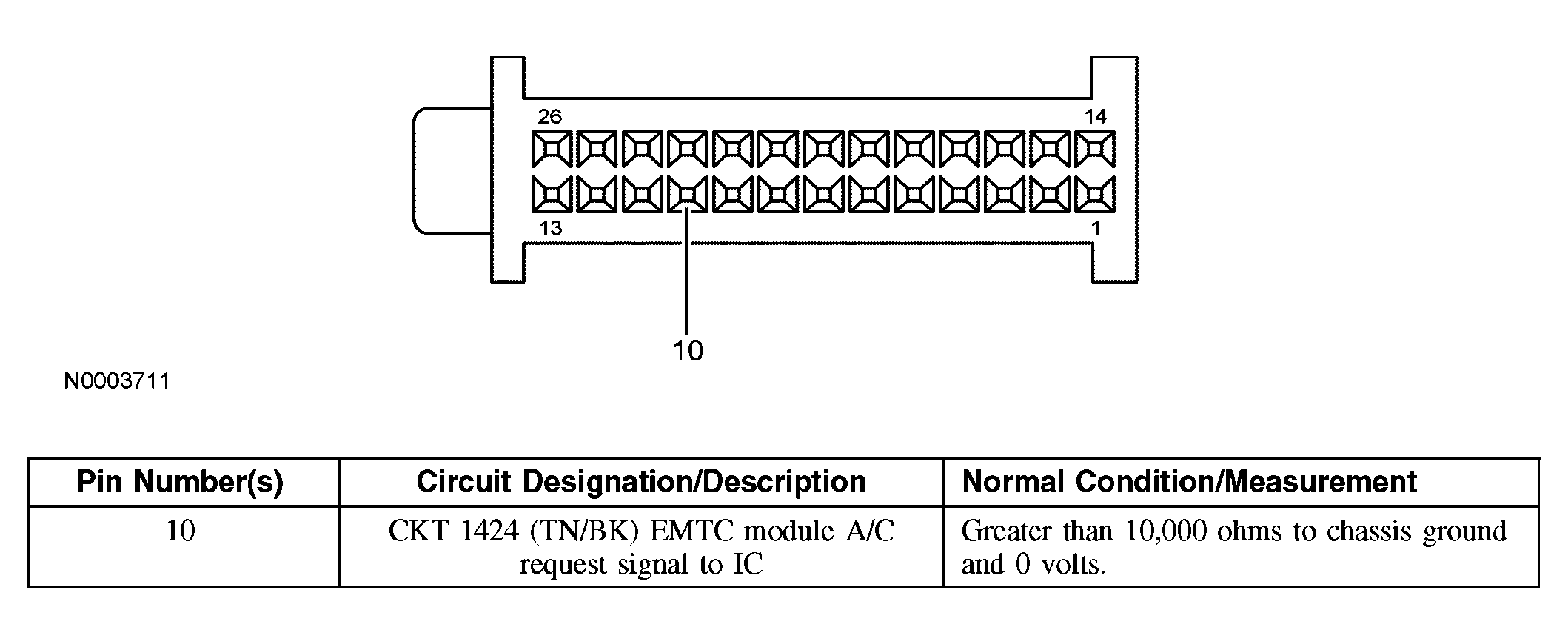

Fig 26: Identifying Instrument Cluster (IC) C220 Connector Pinout
Courtesy of FORD MOTOR CO.
