Transaxle Case: Notes

WARNING: This page is about a different car, the 2006 Mercury Milan and 2006 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOL(S)

G04682227Courtesy of FORD MOTOR CO.
 Slide Hammer
100-001 (T50T-100-A)
G04682228Courtesy of FORD MOTOR CO.
 Remover, Stator Case Bearing
307-163 (T86P-70043-A)
G04682229Courtesy of FORD MOTOR CO.
 Installer, Clutch Housing Oil Seal
308-057 (T77J-7025-G)
G04682230Courtesy of FORD MOTOR CO.
 Installer, Bearing Cup
204-039 (T77F-1217-B)
G04682231Courtesy of FORD MOTOR CO.
 Handle
205-153 (T80T-4000-W)
G04682232Courtesy of FORD MOTOR CO.
 Installer, Differential Bearing Cup
308-162 (T88C-77000-EH)
G04682233Courtesy of FORD MOTOR CO.
 Installer, Halfshaft Oil Seal
308-119 (T87C-77000-H)

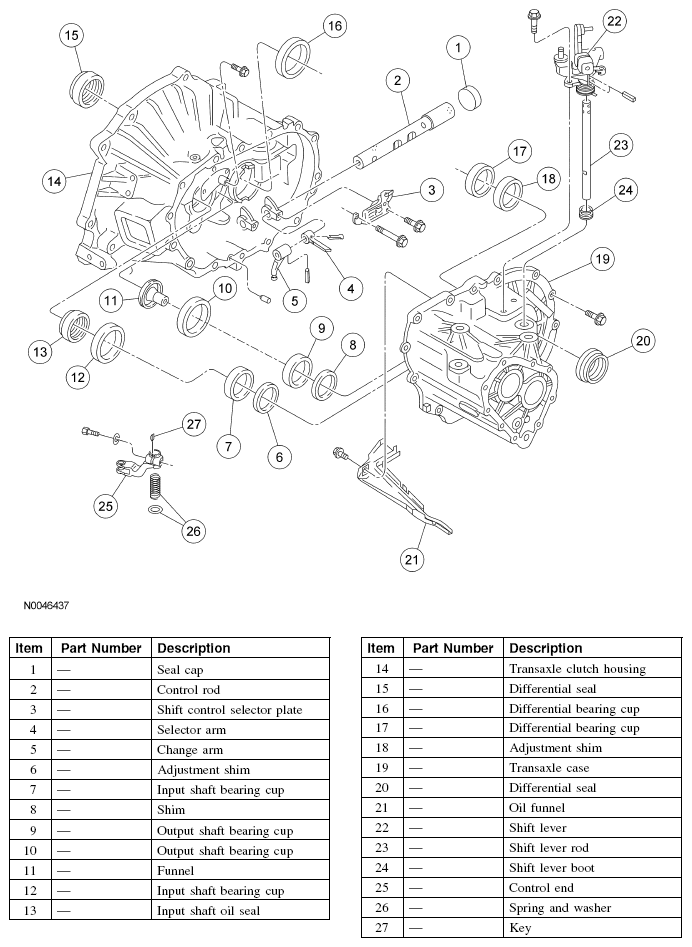

Fig 1: Exploded View Of Transaxle Case
G04682234Courtesy of FORD MOTOR CO.
