Item 8: Front Pump Support Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Using the special tools, assemble the pump.

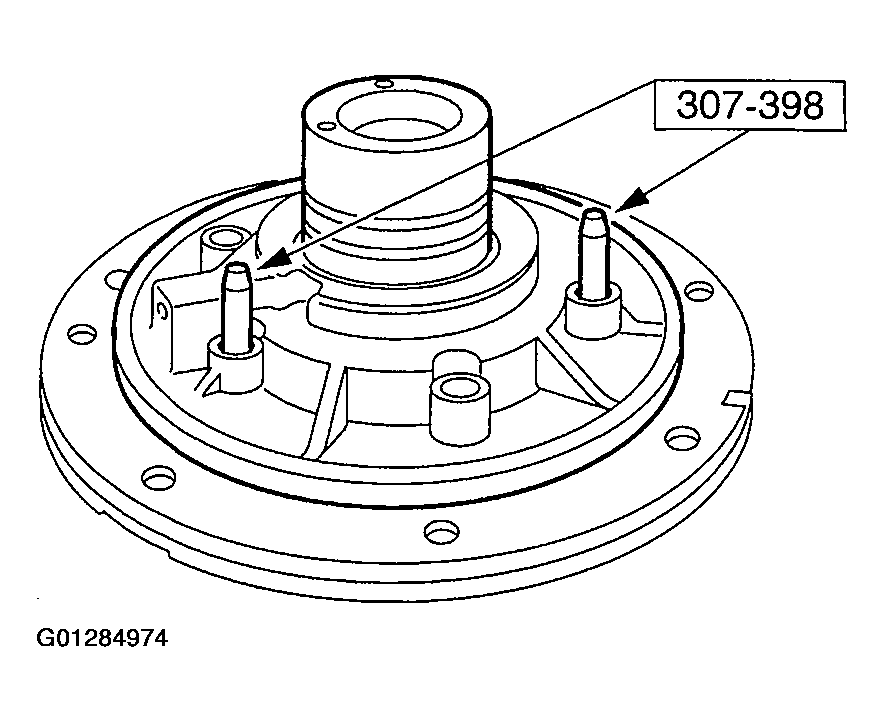

Fig 1: Assembling Pump

Courtesy of FORD MOTOR CO.
