Items 1 and 2: Main Control Valve Body Separator Plate Assembly Note

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Use a new valve body separator plate for main control valve body installation.

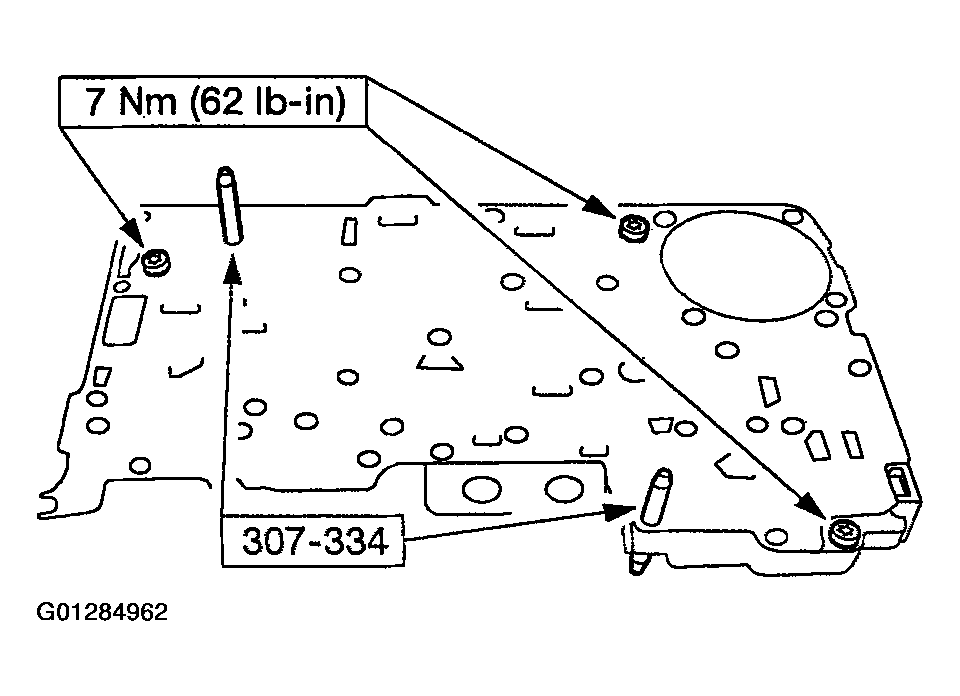

Fig 1: Installing Main Control Valve Body Separator Plate Using Special Tool

Courtesy of FORD MOTOR CO.

Using the special tools, install the main control valve body separator plate.
