Item 4: Reverse Servo Plate Assembly Note
WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.
- Install the reverse servo plate.
WARNING:
The upper and lower servo covers are under spring tension. Use care when separating the two halves. Failure to follow these instructions may result in personal injury.
CAUTION:

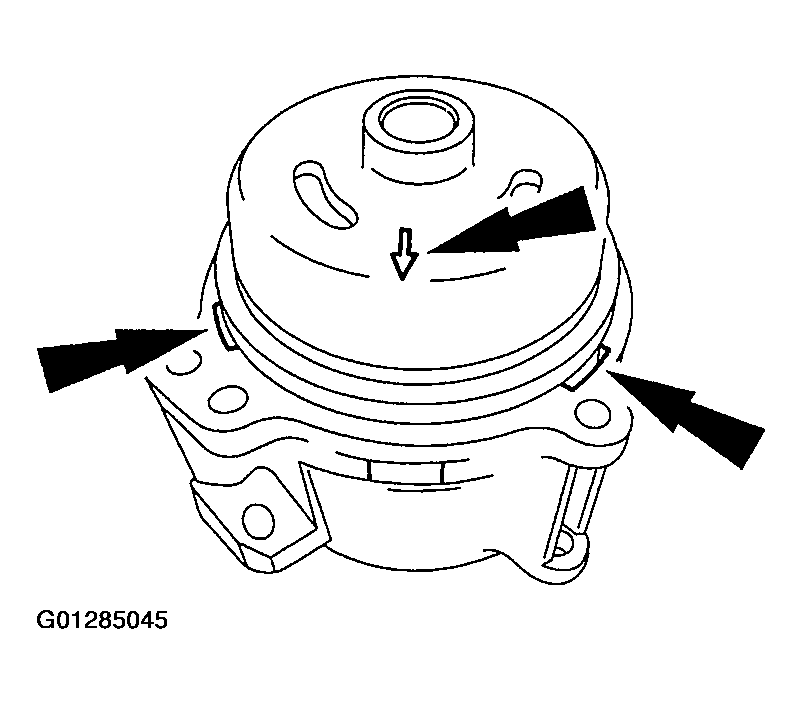

The arrow on the servo plate must be aligned evenly between any two slots on the cover.
