Reverse Servo Assembly: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Inspect the reverse servo piston seal for damage. If damaged, a new piston and seal assembly will need to be installed.

Disassemble the components in the order indicated in the following illustration and table.
To assemble, reverse the disassembly procedure.

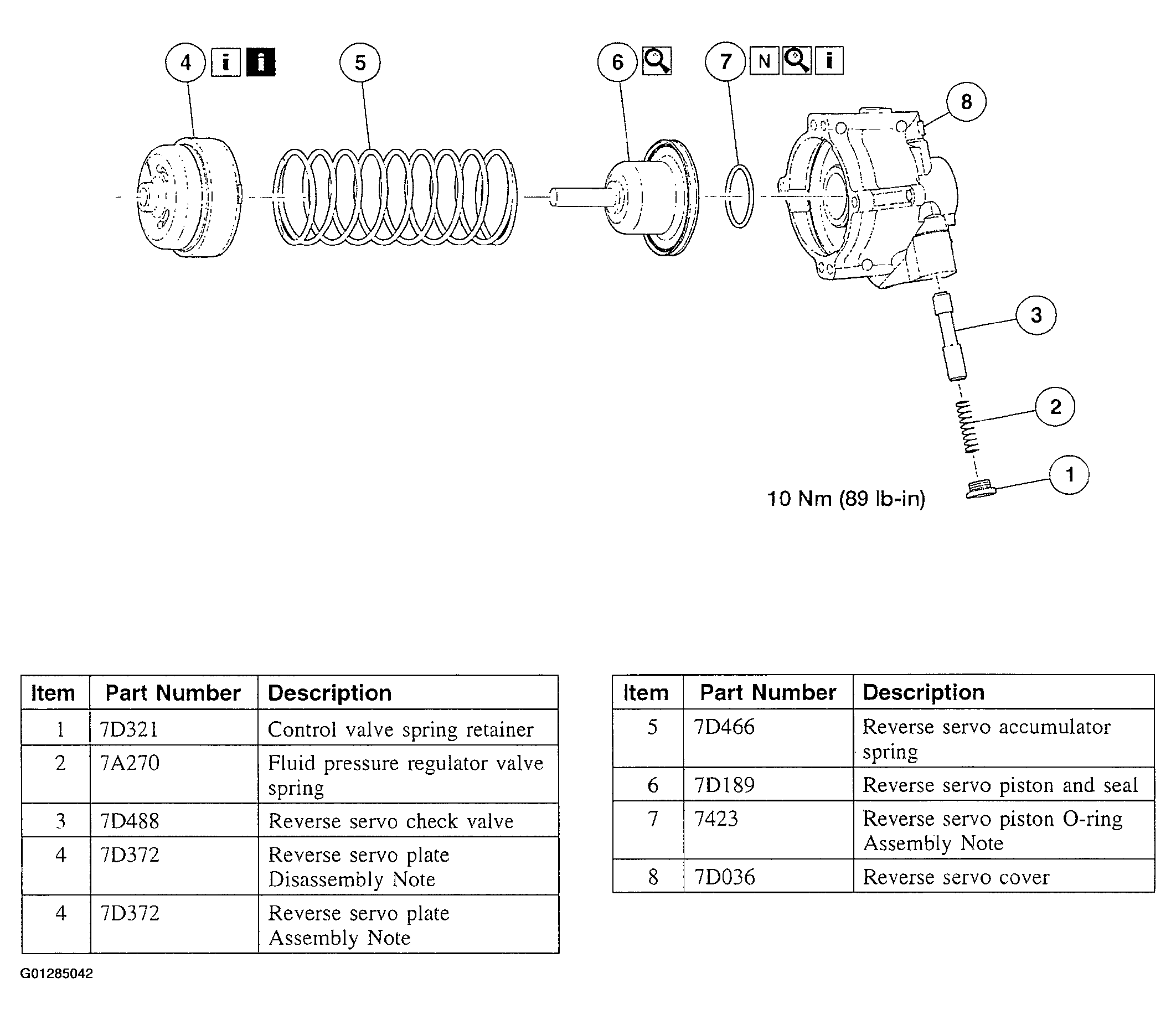

Fig 1: Disassembling View Of Reverse Servo Assembly
Courtesy of FORD MOTOR CO.
