Powertrain Control Module C175c

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

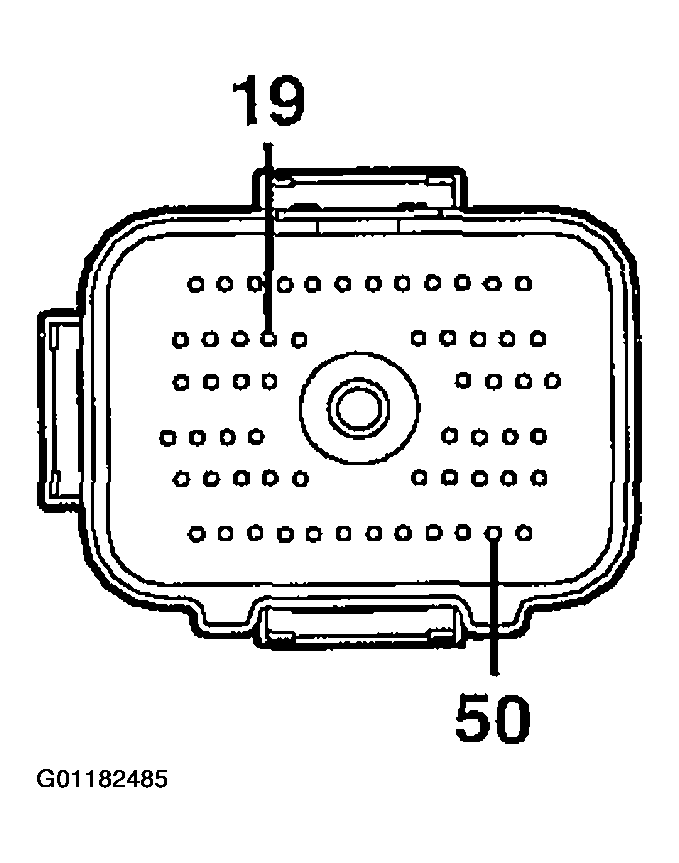

Fig 1: Identifying Powertrain Control Module C175c Connector Pinouts
G01182485Courtesy of FORD MOTOR CO.

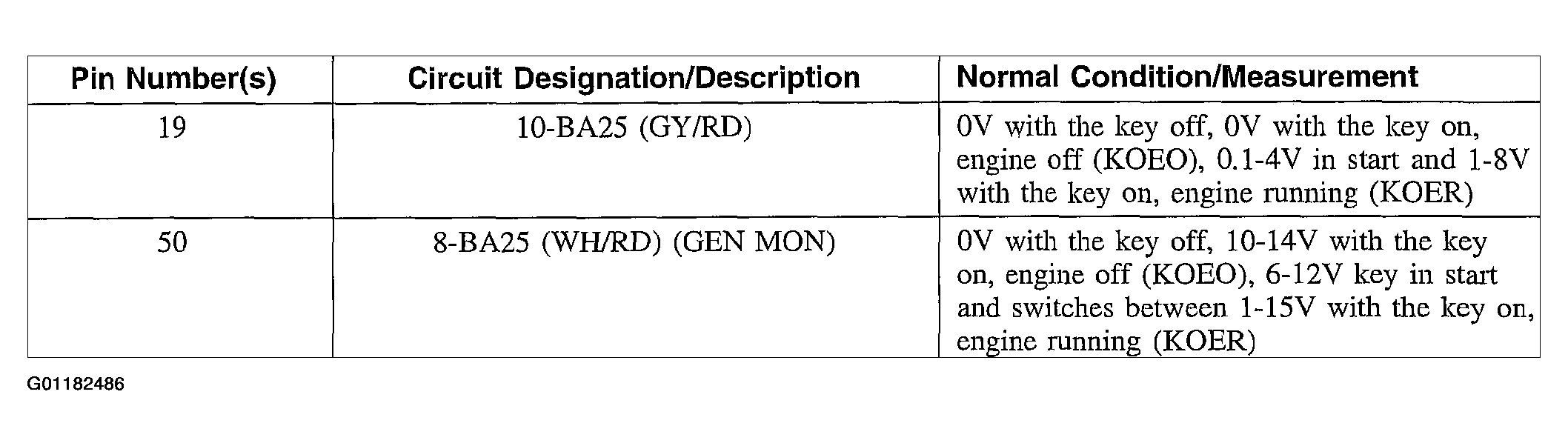

Fig 2: Powertrain Control Module C175c Connector Pin Reference Chart
G01182486Courtesy of FORD MOTOR CO.
