Rear Seat Backrest: Notes

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

Remove the rear seat backrest. For additional information, Refer to REAR SEAT .
Disassemble the components in the order listed in the following 2 illustration and table. To remove individual components, carry out only the following steps:

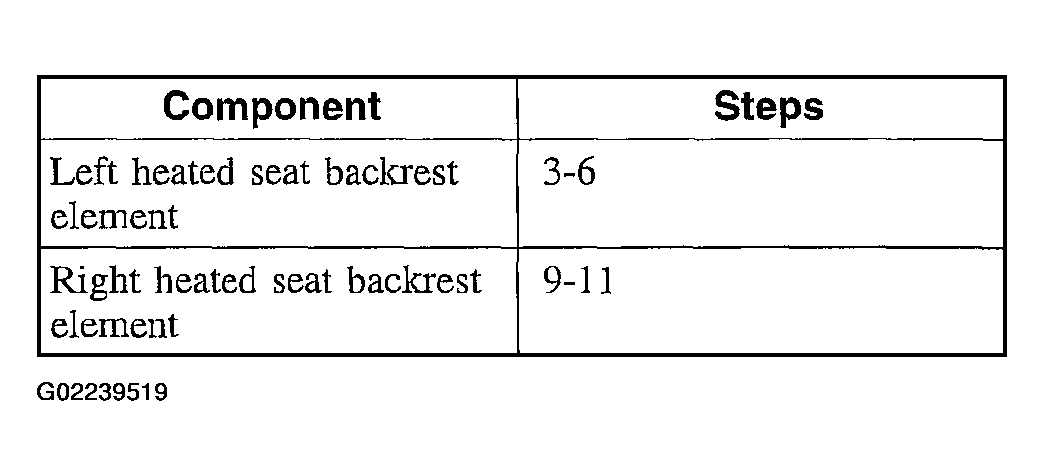

Fig 1: Components Description Chart
Courtesy of FORD MOTOR CO.
To assemble, reverse the disassembly procedure.

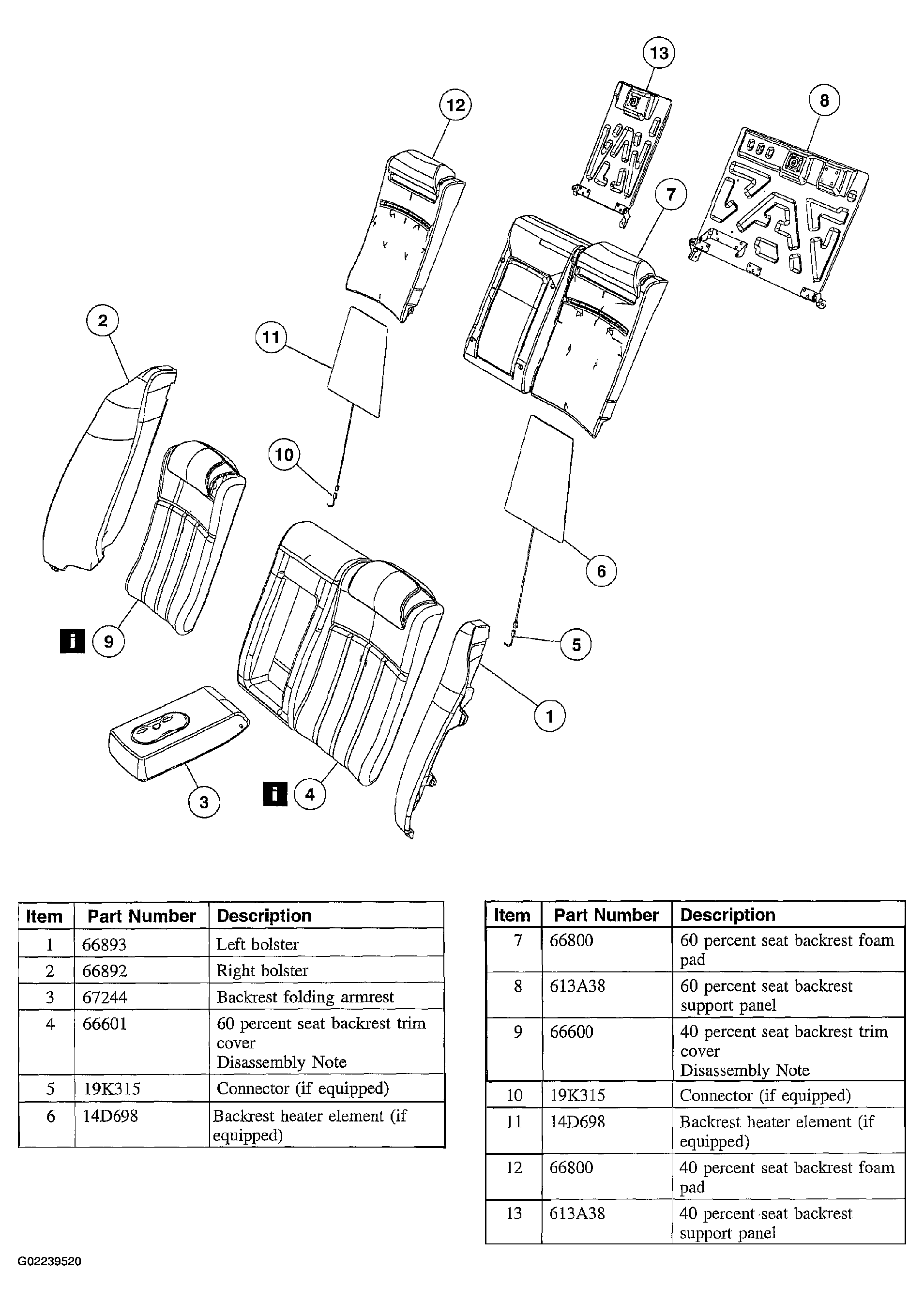

Fig 2: Exploded View Of Rear Seat Backrest Components
Courtesy of FORD MOTOR CO.
