Module - Anti-Lock Brake Control: Installation

WARNING: This page is about a different car, the 2002 Ford RV Cutaway, 2002 Ford Econoline, 2002 Ford E550 Super Duty, 2002 Ford E450 Super Duty, and 2002 Ford Cutaway. However, it is still accessible from the selected car via links, so may be relevant.
  1. To install, reverse the removal procedure.

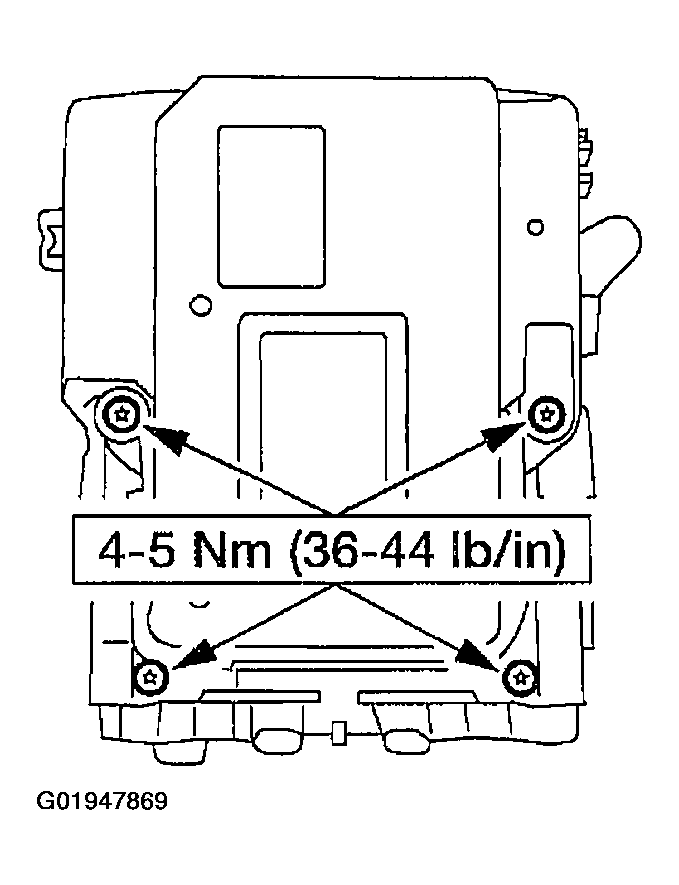

    Fig 1: Installing Anti-Lock Brake Control Module
    G01947869Courtesy of FORD MOTOR CO.

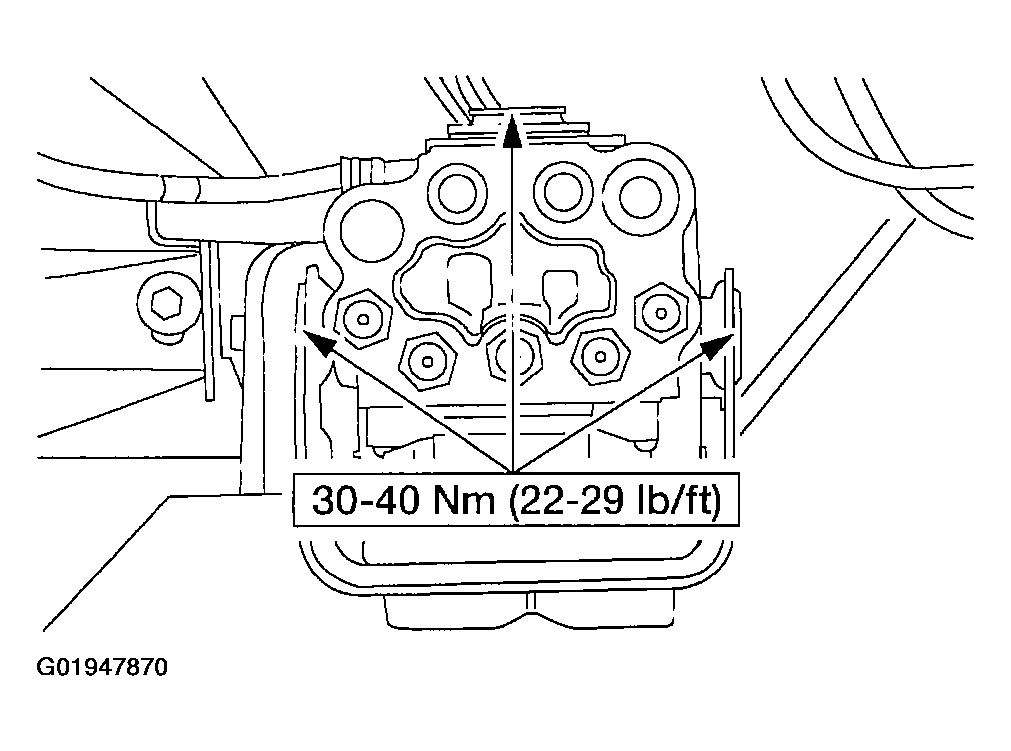

    Fig 2: Installing HCU Bracket
    G01947870Courtesy of FORD MOTOR CO.
