Special Tool(s)

WARNING: This page is about a different car, the 2003 Lincoln LS. However, it is still accessible from the selected car via links, so may be relevant.

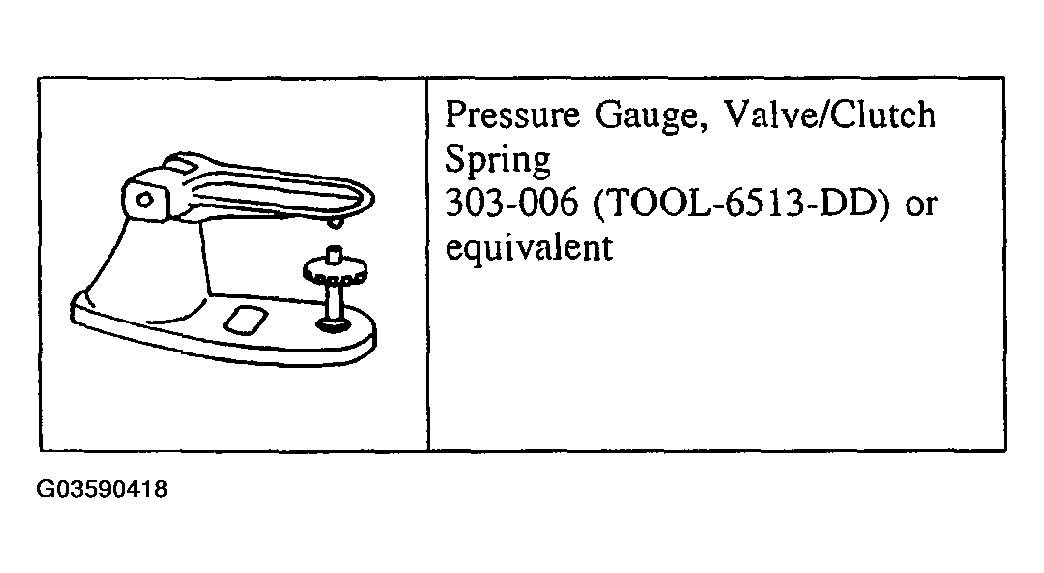

Fig 1: Identifying Special Tool - Valve Spring Strength

Courtesy of FORD MOTOR CO.

Use a Valve/Clutch Spring Pressure Gauge to check the valve spring for correct strength at the specified valve spring length.
- Refer to the appropriate article in ENGINES for the procedure.
- If out of specification, install new components as necessary. Refer to the appropriate article in ENGINES for the procedure.

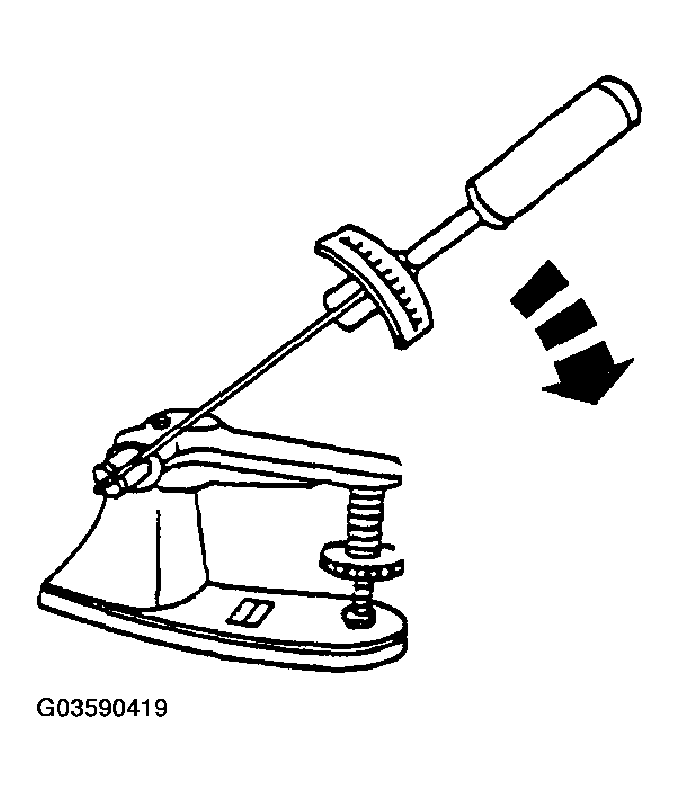

  Fig 2: Checking Valve Spring For Correct Strength At Specified Valve Spring Length
  Courtesy of FORD MOTOR CO.
