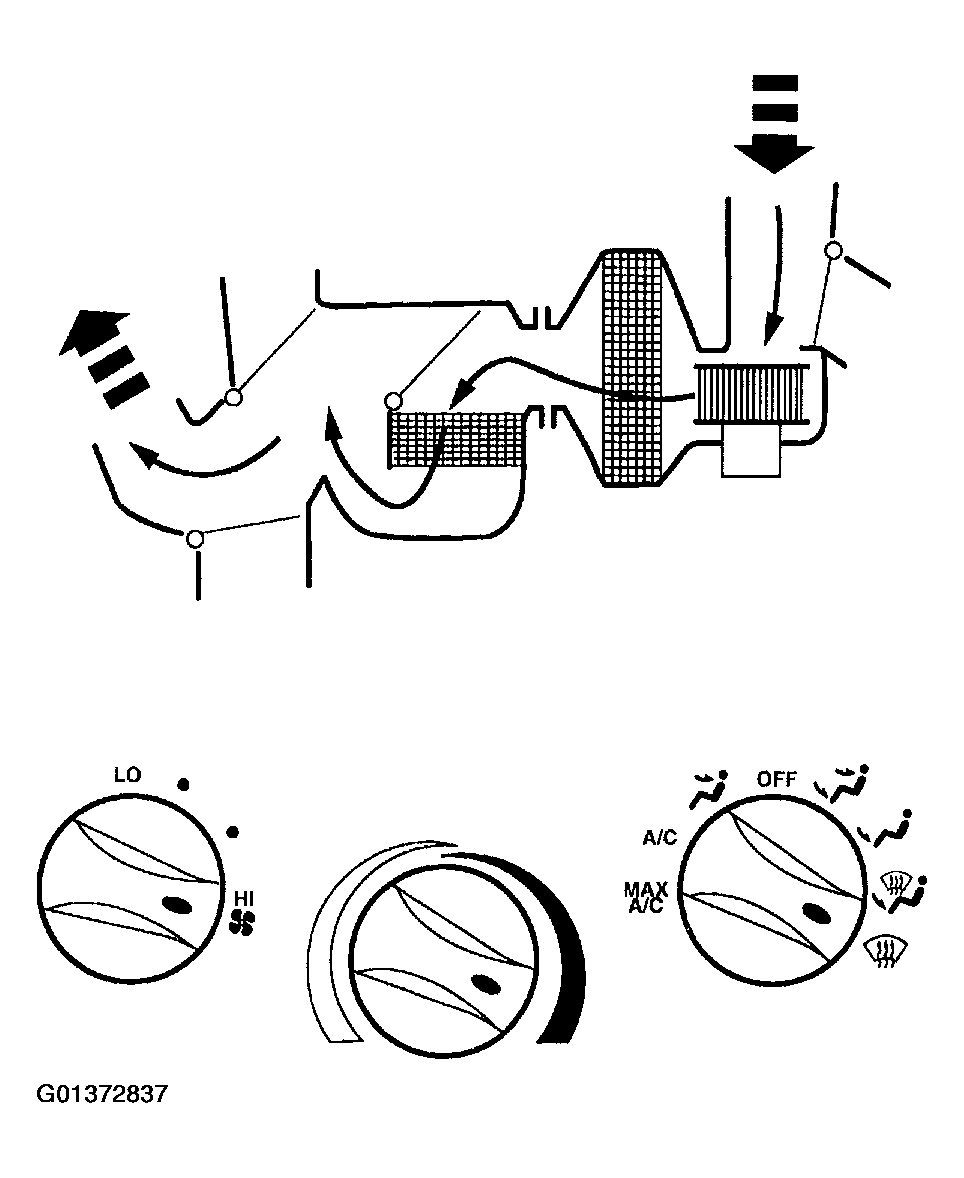

System Airflow Description - Manual Climate Control: Defrost
When DEFROST is selected:
- The air inlet door vacuum control motor is at no vacuum, admitting only outside air into the passenger compartment.
- The panel/floor door and floor/defrost door vacuum control motors are at no vacuum, directing airflow to the defroster duct and the side window demisters.
- The temperature can be adjusted to heat or cool the air below the outside temperature.
- The A/C compressor will operate if the outside temperature is above approximately 6°C (43°F).
- The blower motor is on.
