Disabling System (Tracker)

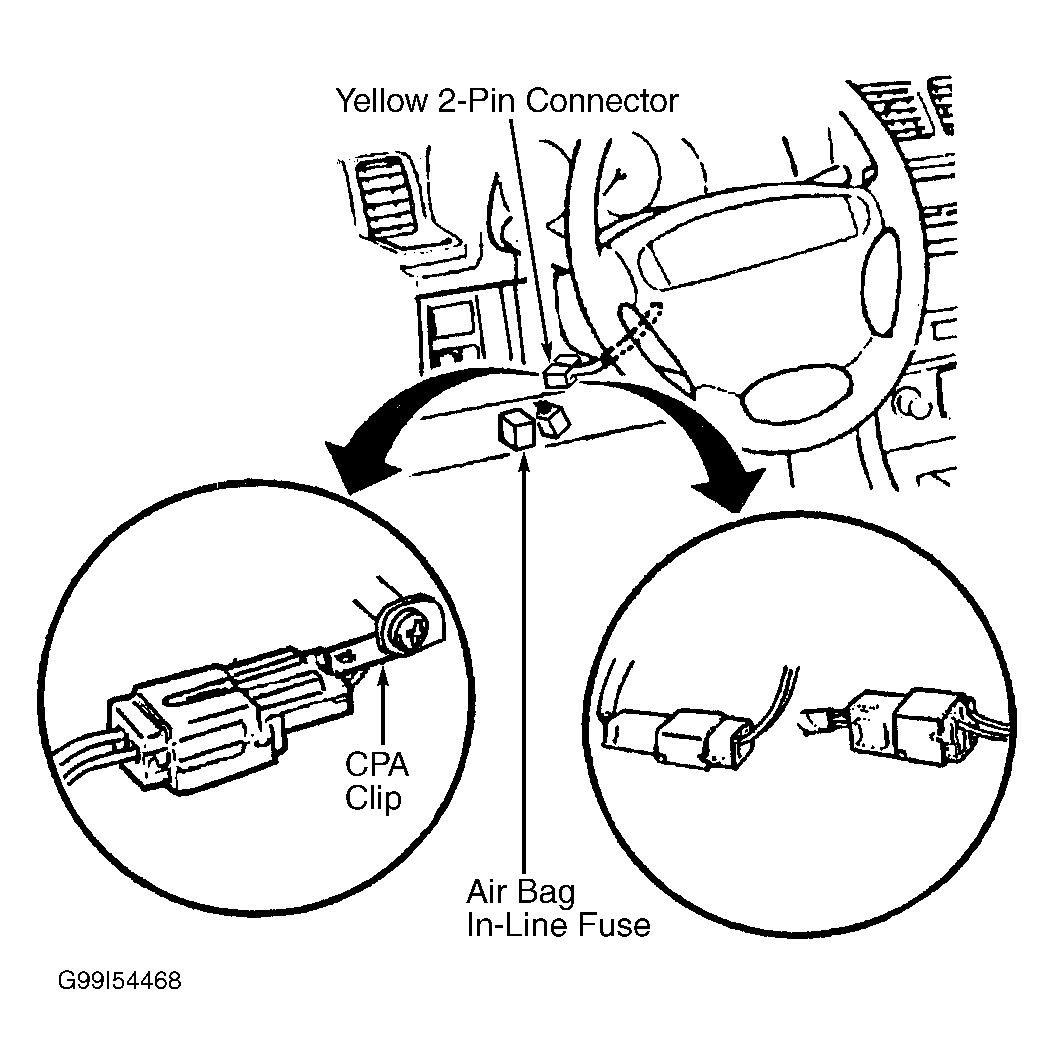

- Before proceeding, follow air bag service precautions. See SERVICE PRECAUTIONS . Ensure front wheels are in straight-ahead position. Remove key. Remove AIR BAG fuse from in-line fuse holder located near base of steering column. See Fig 1.
- Zone 3
To disable driver air bag module and coil located in SIR Zone 3, remove steering column opening trim plate. Remove Connector Position Assurance (CPA) clip, release lock tab, and disconnect driver air bag Yellow 2-pin connector. See Fig 1.
- Zone 5

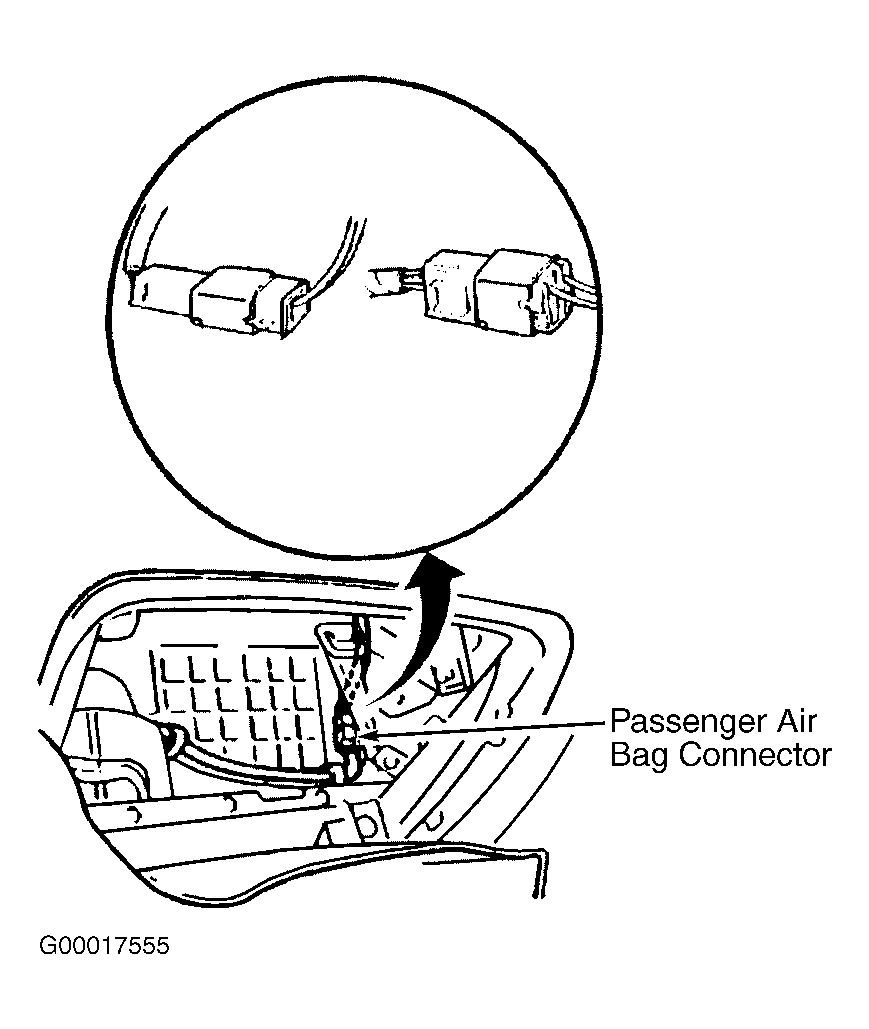

To disable passenger air bag module located in SIR Zone 5, open glove box. Push inward on left and right-side stoppers and rotate glove box downward. Remove CPA clip, and disconnect Yellow 2-pin passenger-side air bag connector. See Fig 2.
- Zone 8
To disable inflatable restraint Sensing and Diagnostic Module (SDM) located in SIR Zone 8, disable Zones 3 and 5. Remove CPA clip from components Yellow connector. Disconnect components Yellow connector from vehicle harness Yellow connectors.
