Pinpoint Test E: No Communication With The Electronic Automatic Temperature Control (EATC) Module

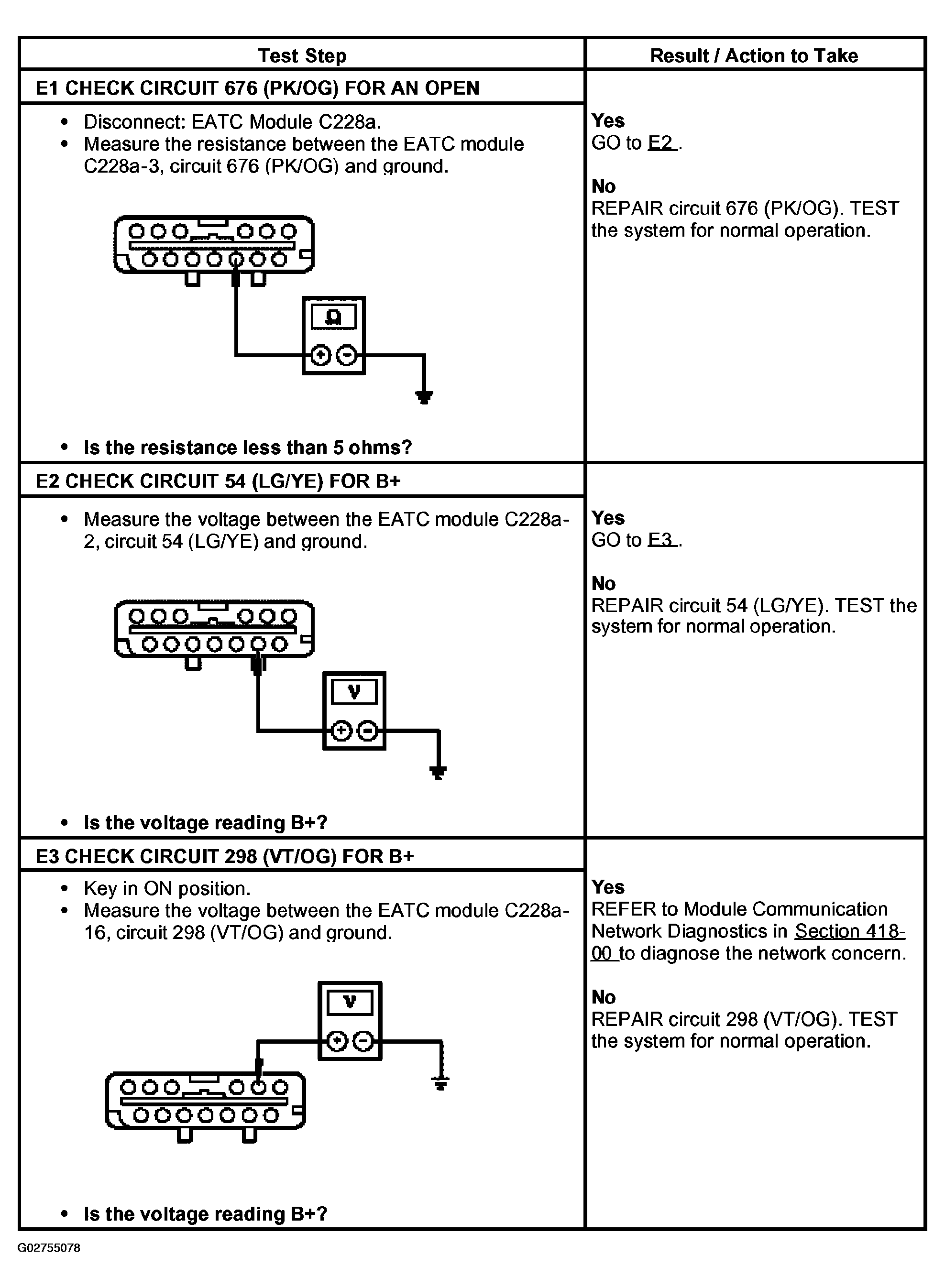

Fig 1: Pinpoint Test E: No Communication With Electronic Automatic Temperature Control (EATC) Module (Step E1-E3)
G02755078Courtesy of FORD MOTOR CO.
