Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

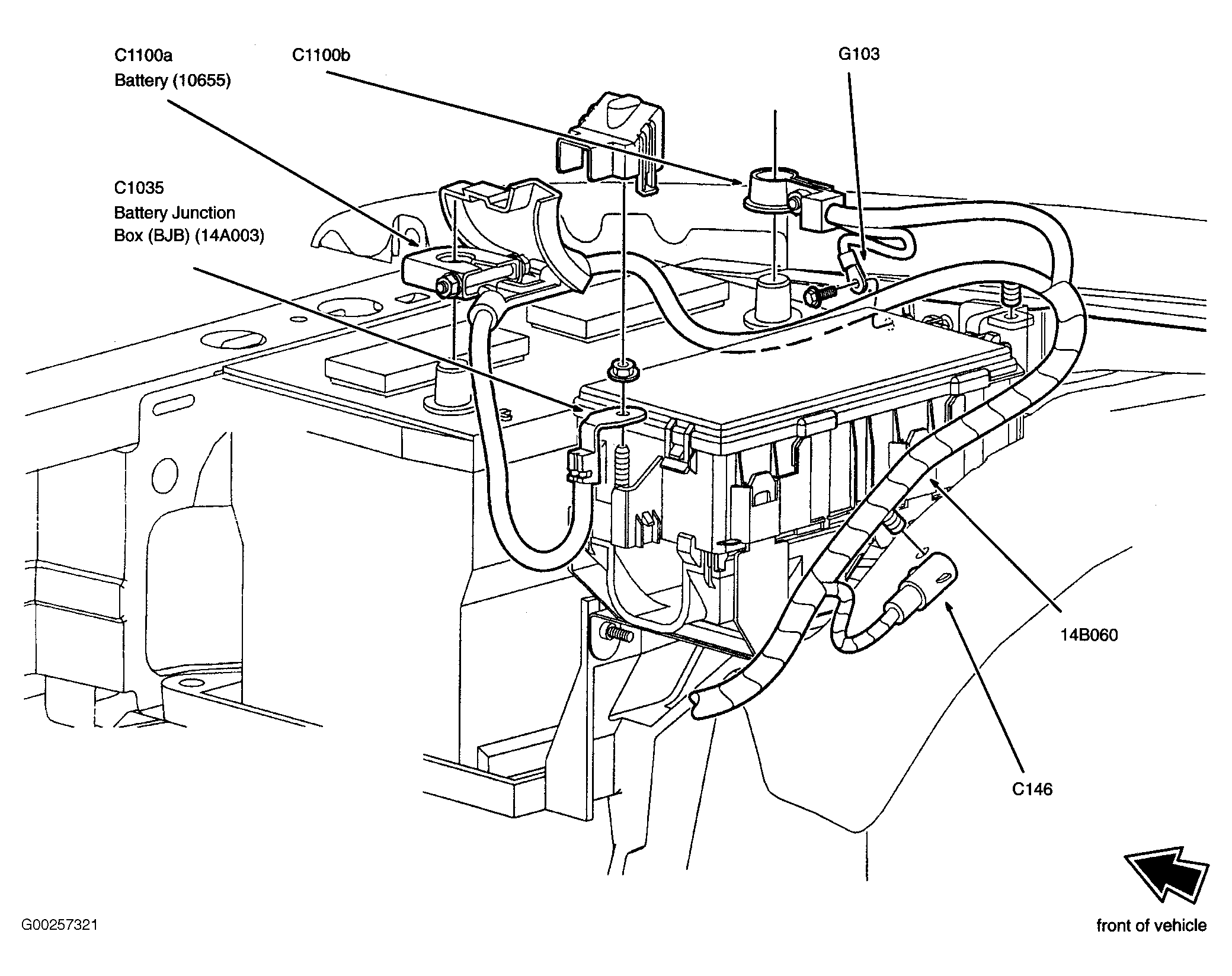

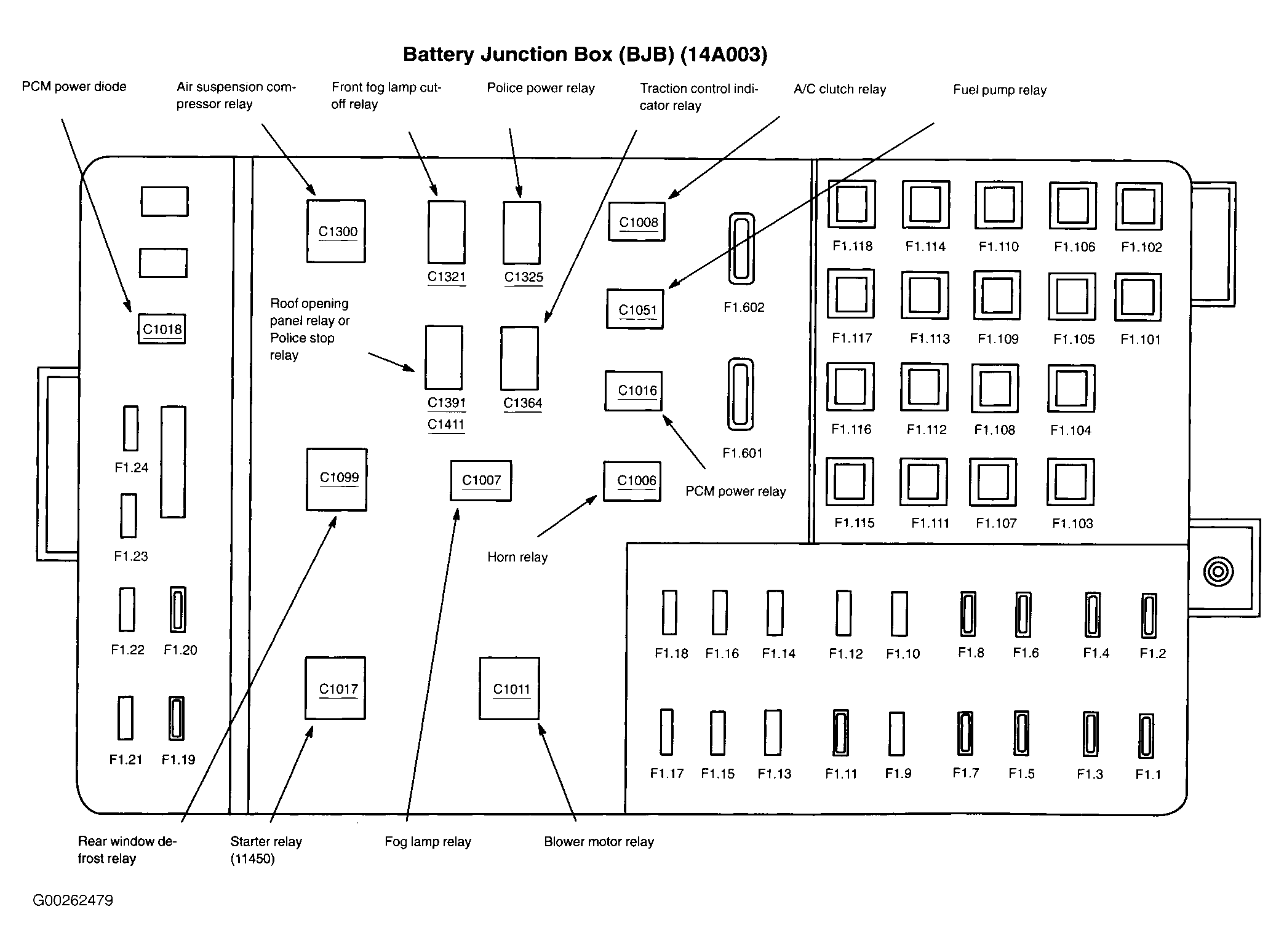

Fig 1: Battery Junction Box (BJB)
Courtesy of FORD MOTOR CO.
Fig 2: Front Of Engine Compartment
Courtesy of FORD MOTOR CO.

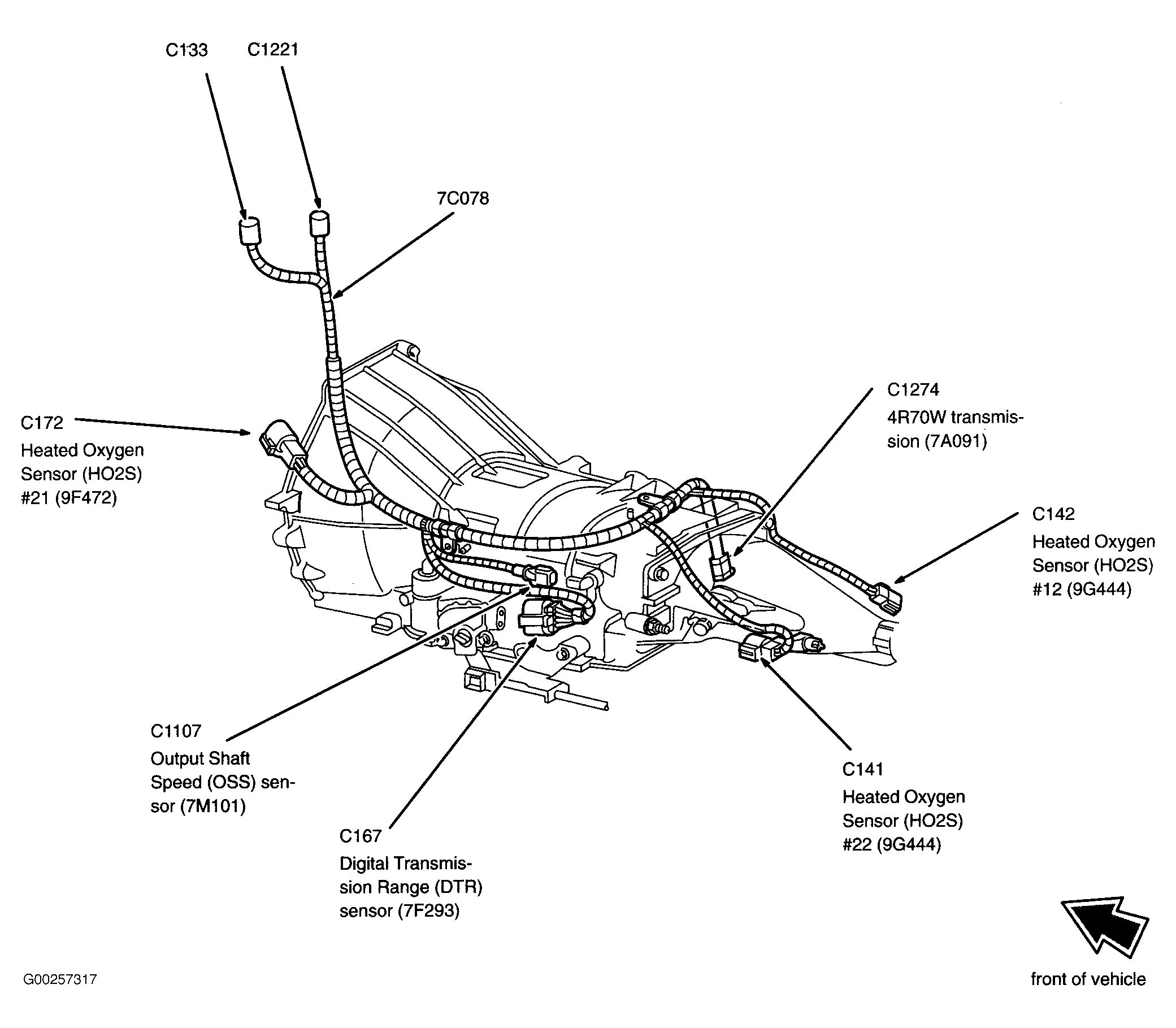

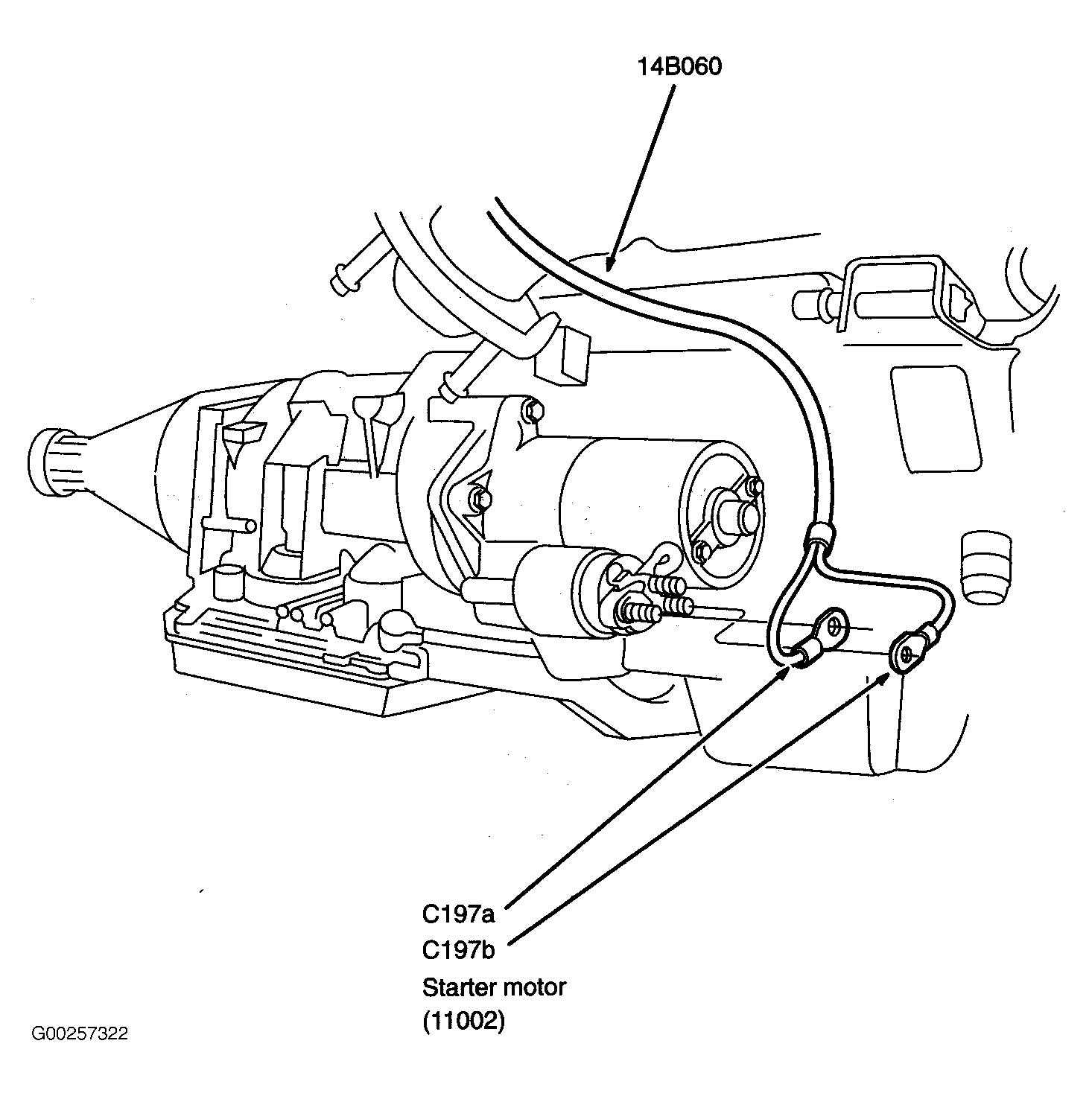

Fig 3: Transmission
Courtesy of FORD MOTOR CO.

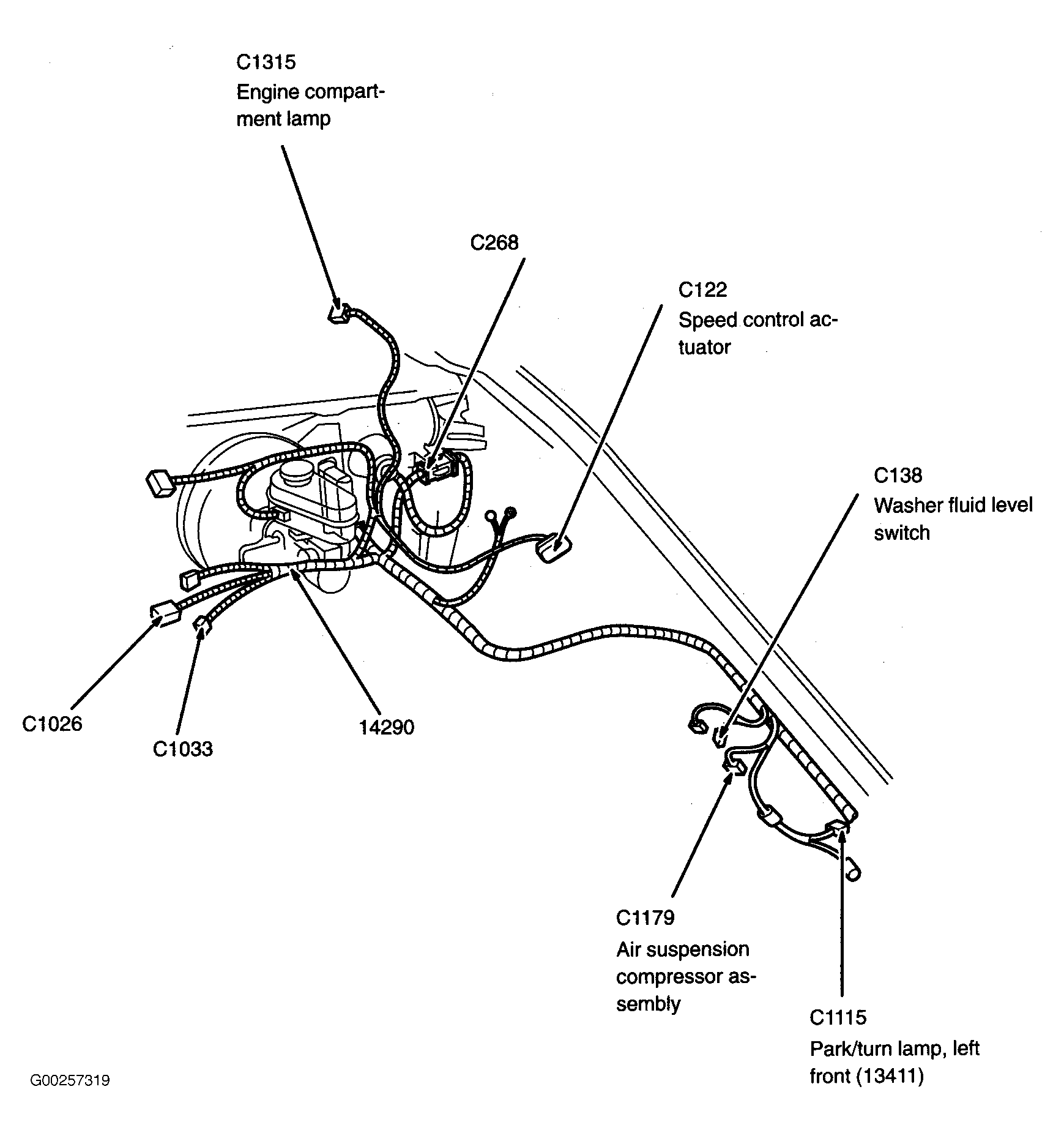

Fig 4: Left Side Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 5: Left Side Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 6: Right Side Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 7: Right Front Of Engine Compartment
Courtesy of FORD MOTOR CO.
Fig 8: Right Rear Of Engine
Courtesy of FORD MOTOR CO.

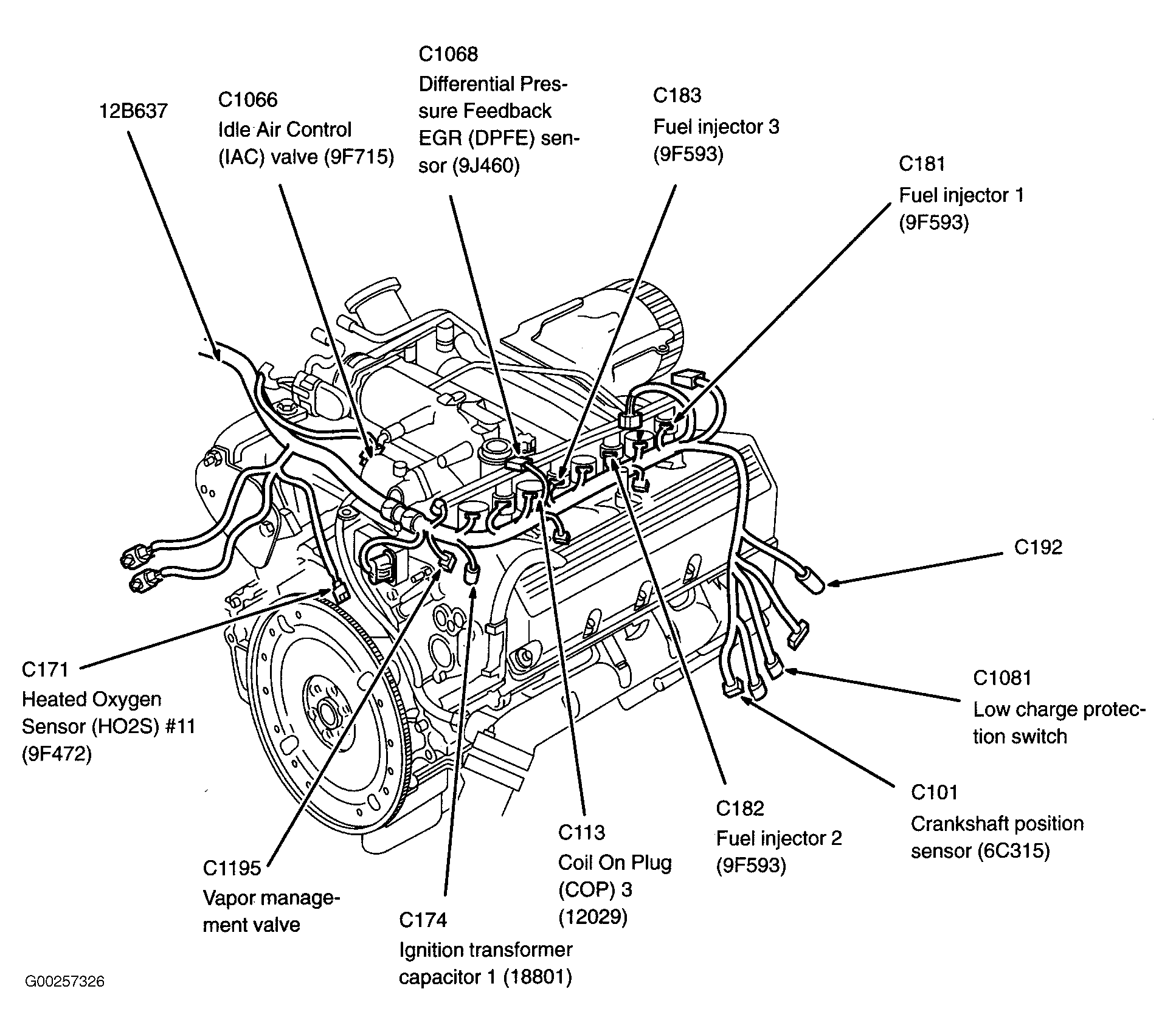

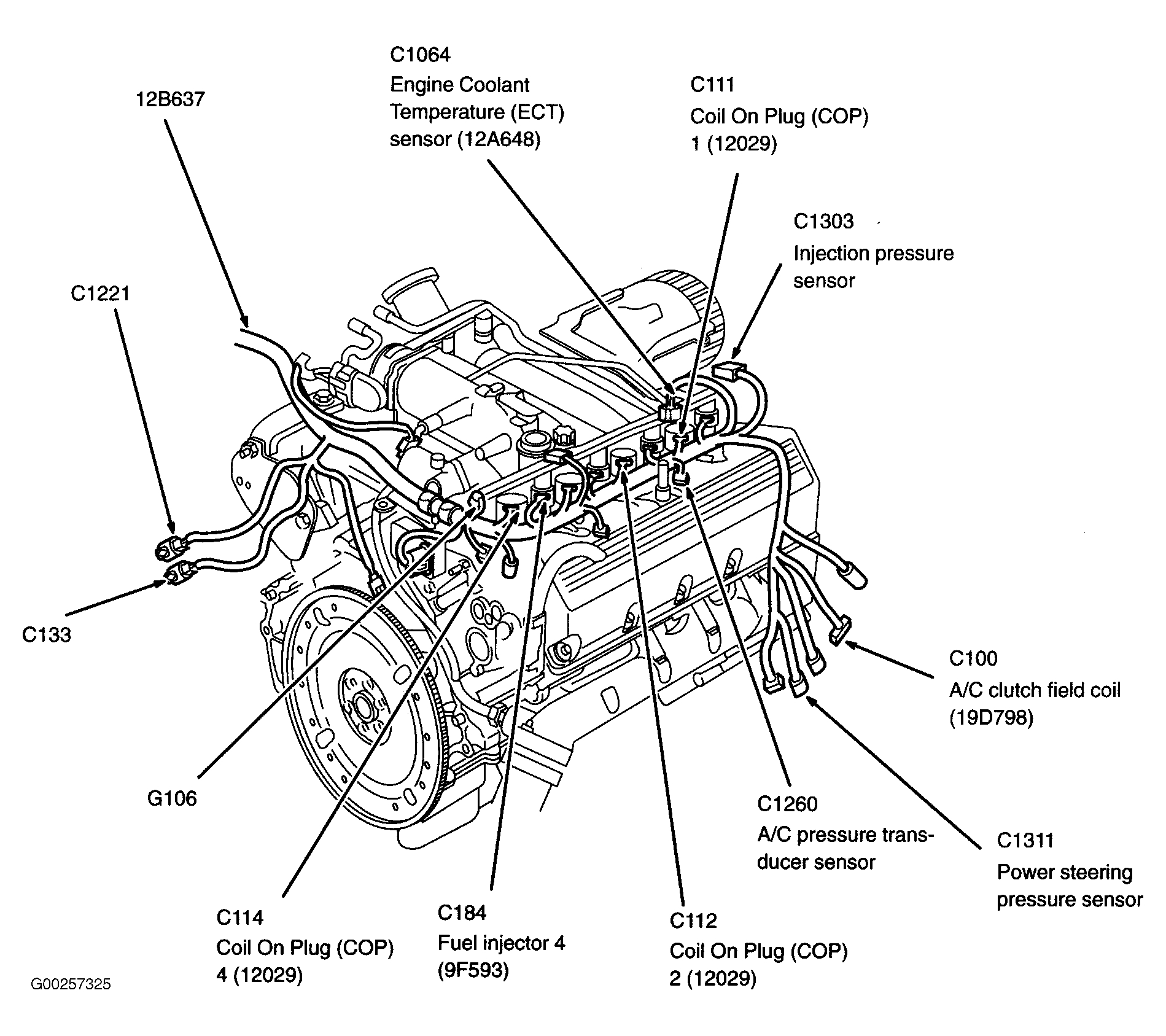

Fig 9: Left Side Of Engine
Courtesy of FORD MOTOR CO.

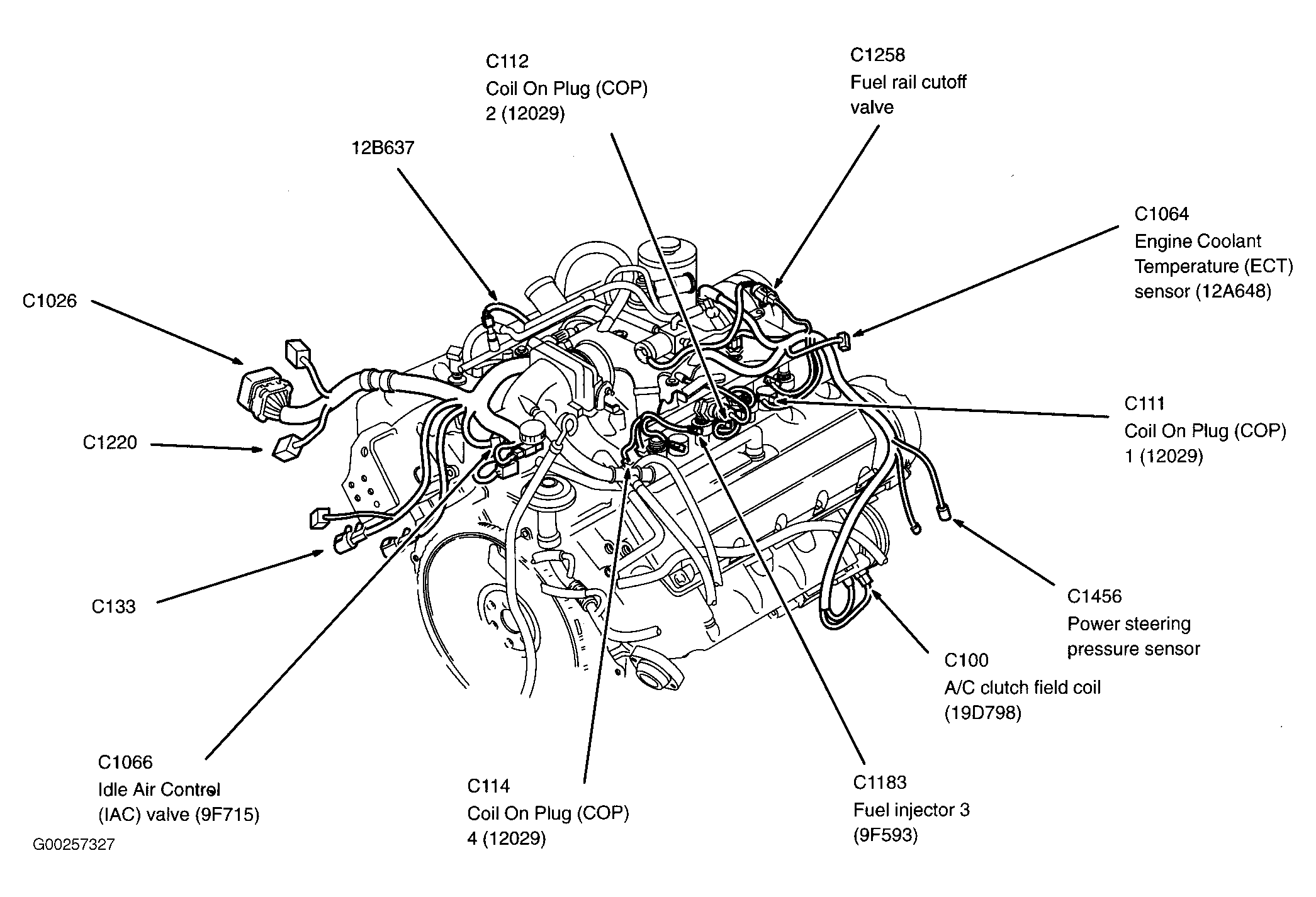

Fig 10: Left Side Of Engine
Courtesy of FORD MOTOR CO.

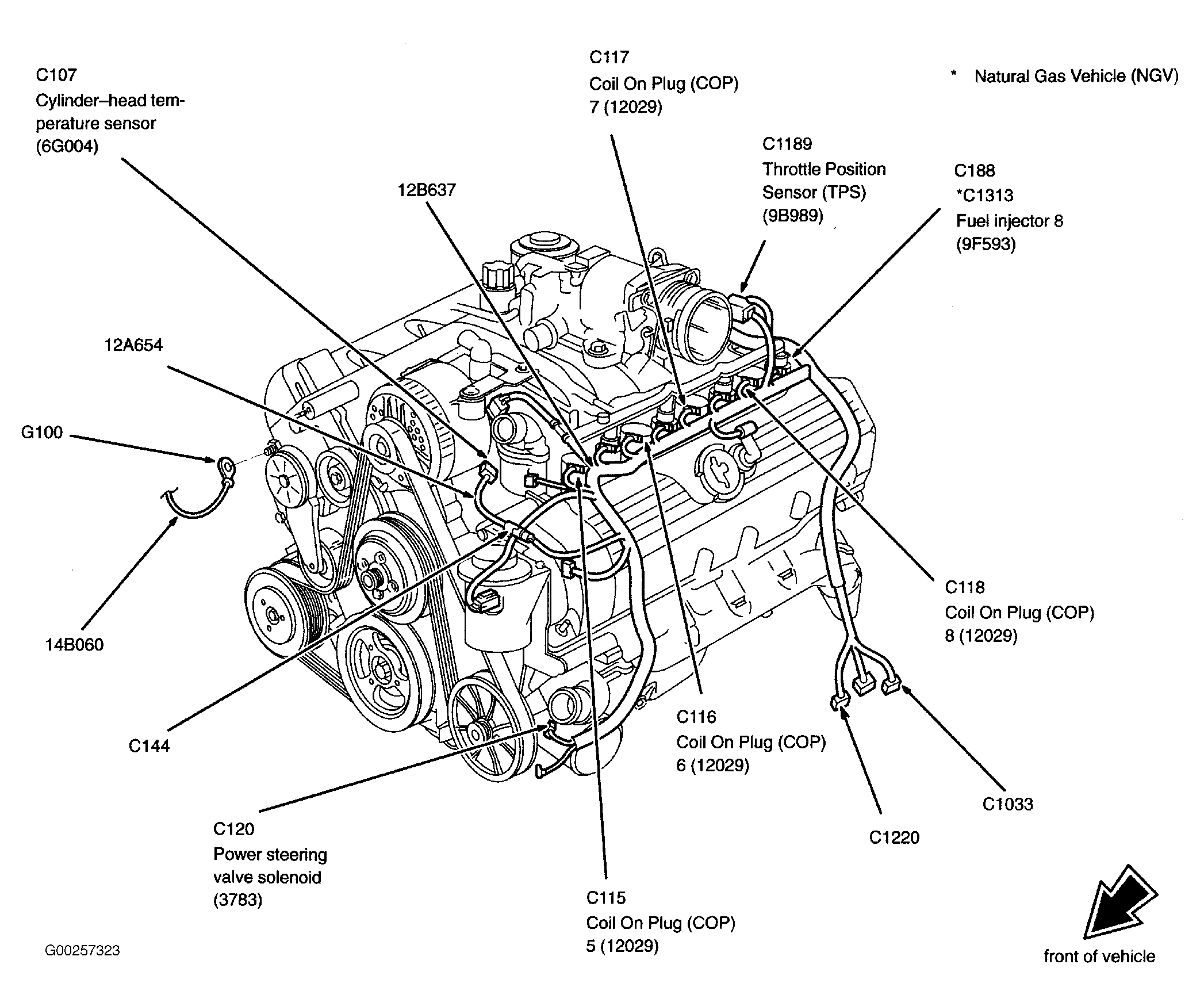

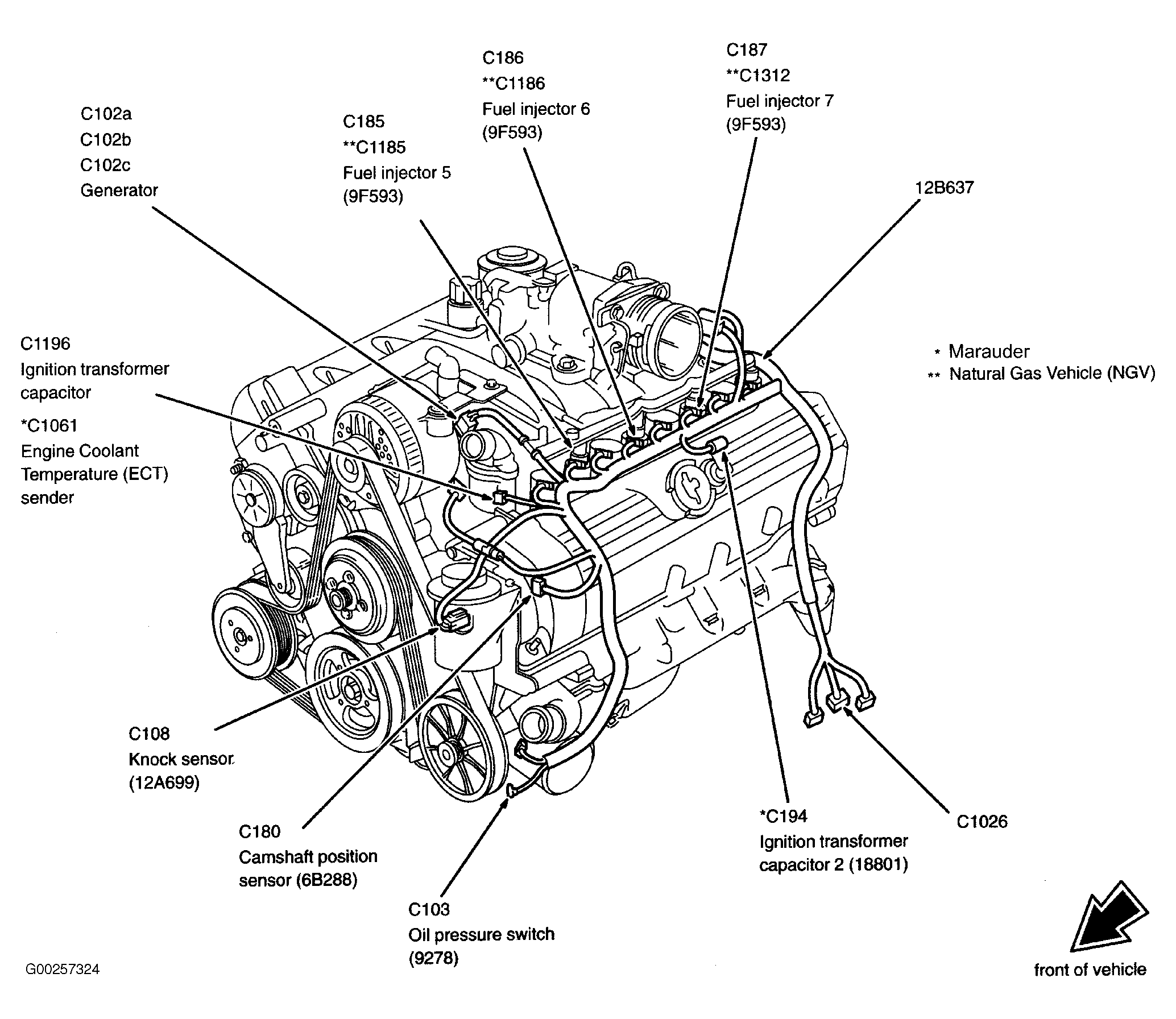

Fig 11: Right Side Of Engine (Except Natural Gas)
Courtesy of FORD MOTOR CO.

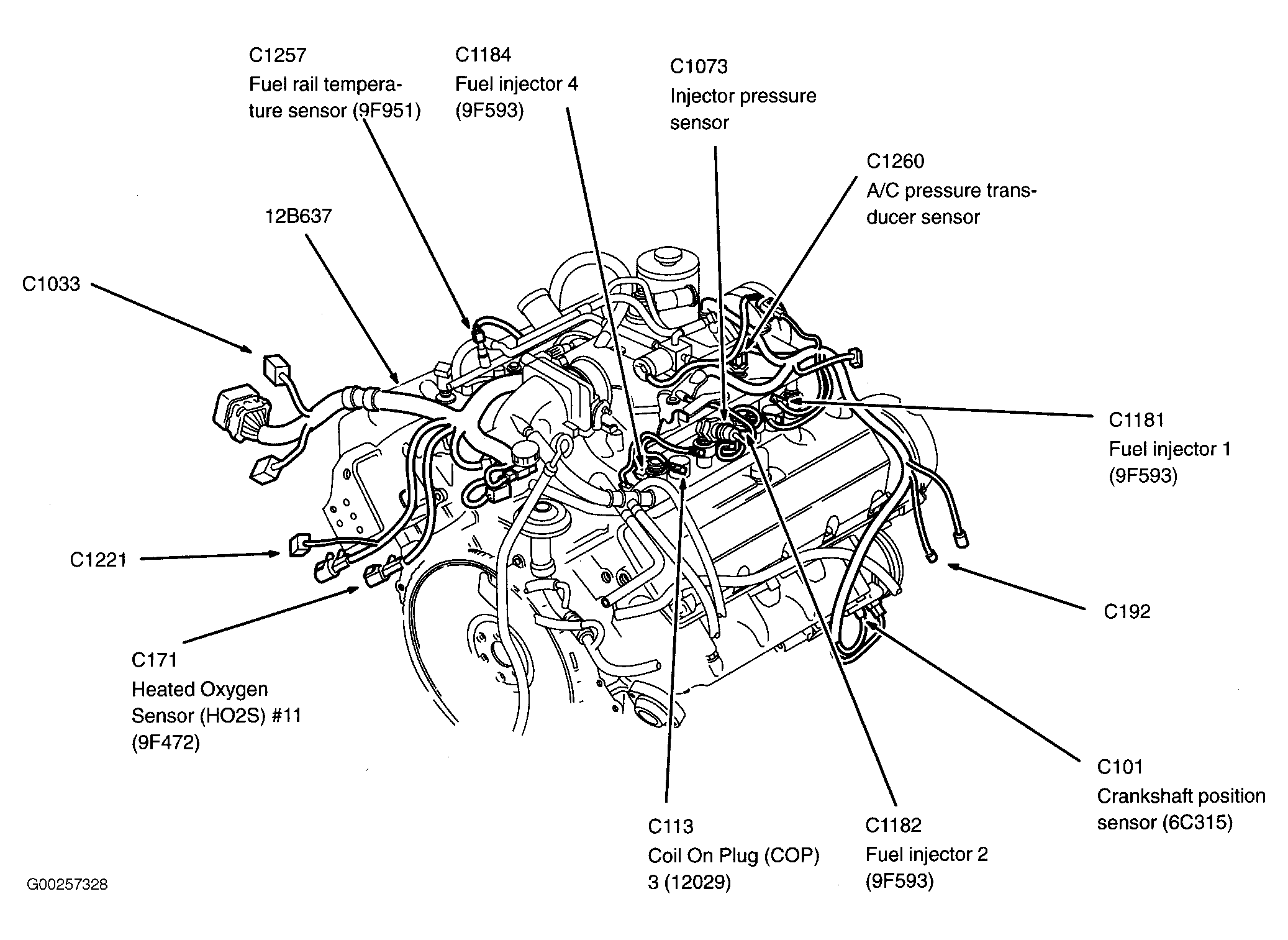

Fig 12: Right Side Of Engine (Except Natural Gas)
Courtesy of FORD MOTOR CO.
Fig 13: Top Of Engine (Natural Gas)
Courtesy of FORD MOTOR CO.
Fig 14: Right Side Of Engine (Natural Gas)
Courtesy of FORD MOTOR CO.
Fig 15: Rear Of Dash
Courtesy of FORD MOTOR CO.
Fig 16: Rear Of Dash
Courtesy of FORD MOTOR CO.
Fig 17: Rear Of Dash
Courtesy of FORD MOTOR CO.
Fig 18: Rear Of Dash
Courtesy of FORD MOTOR CO.

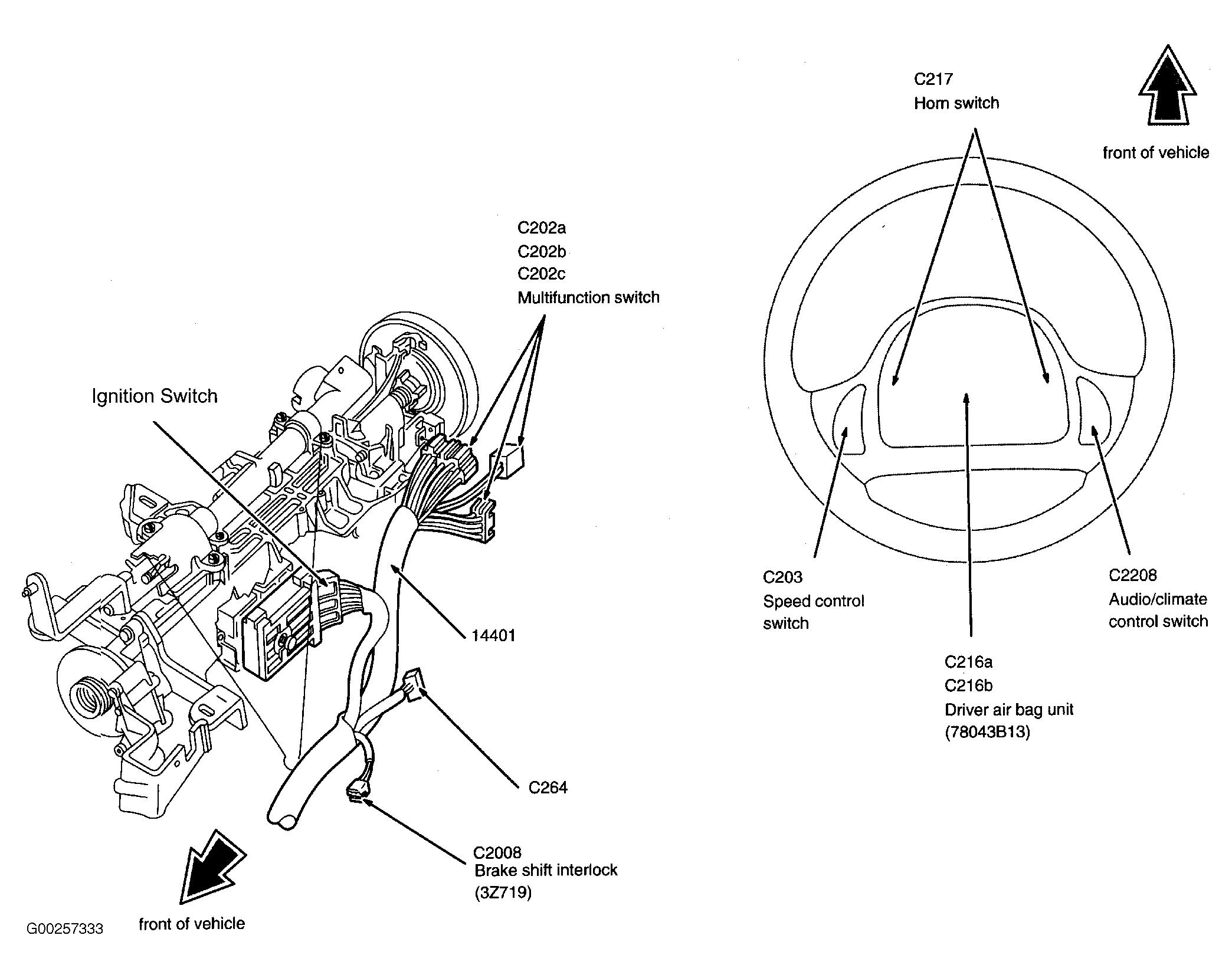

Fig 19: Steering Column & Steering Wheel
Courtesy of FORD MOTOR CO.
Fig 20: Left Kick Panel
Courtesy of FORD MOTOR CO.
Fig 21: Left Front Door
Courtesy of FORD MOTOR CO.
Fig 22: Right Kick Panel
Courtesy of FORD MOTOR CO.

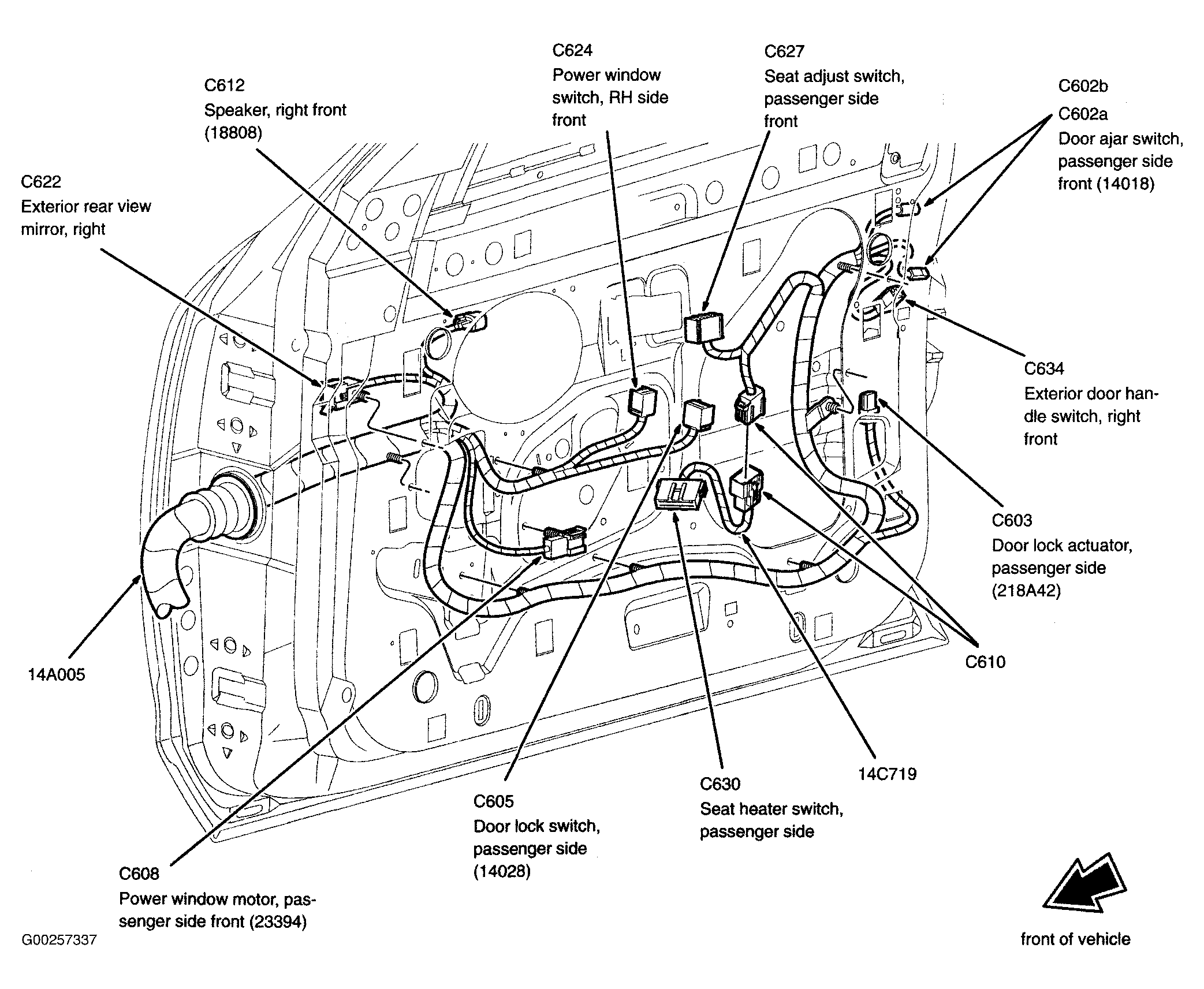

Fig 23: Right Front Door
Courtesy of FORD MOTOR CO.

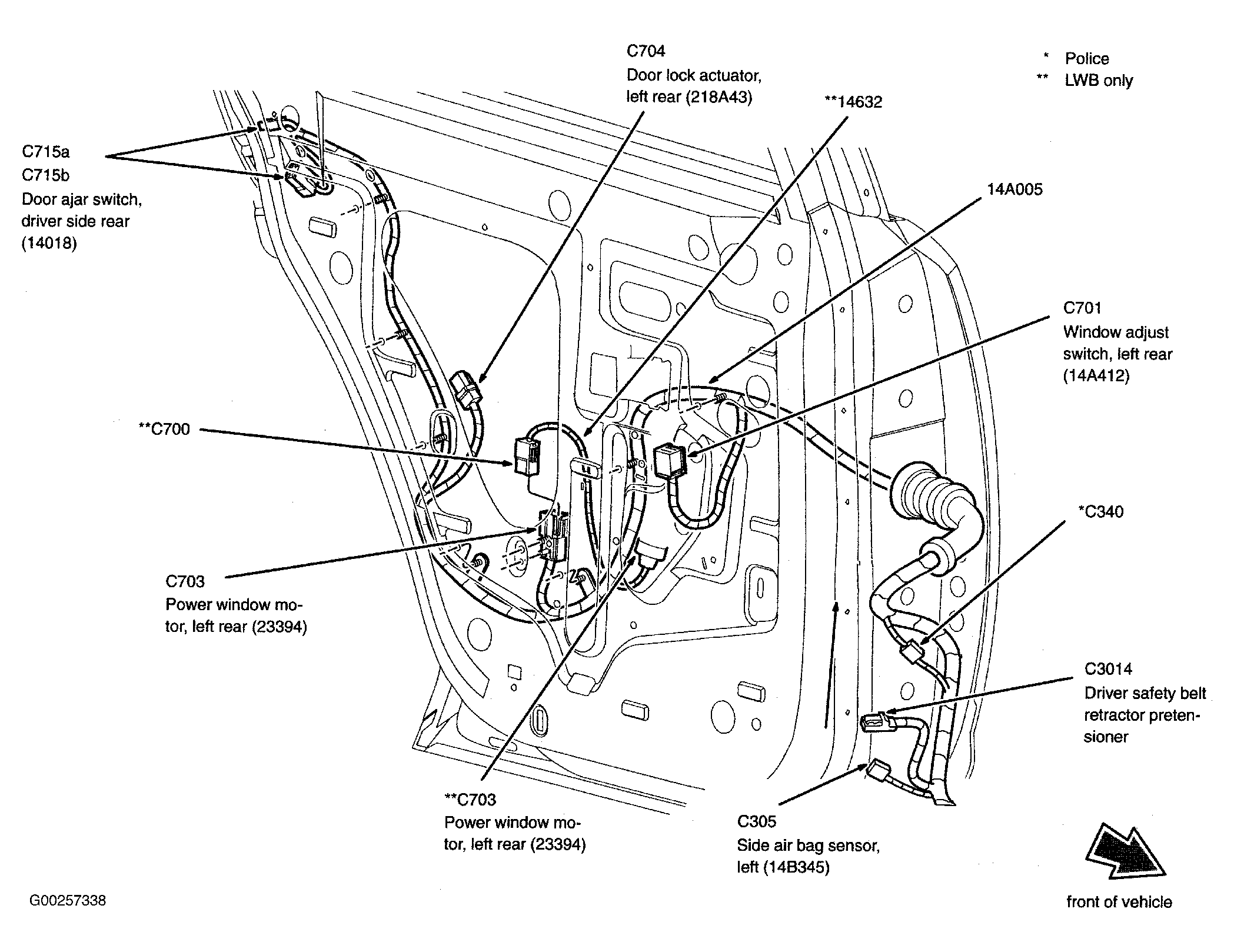

Fig 24: Left Rear Door
Courtesy of FORD MOTOR CO.

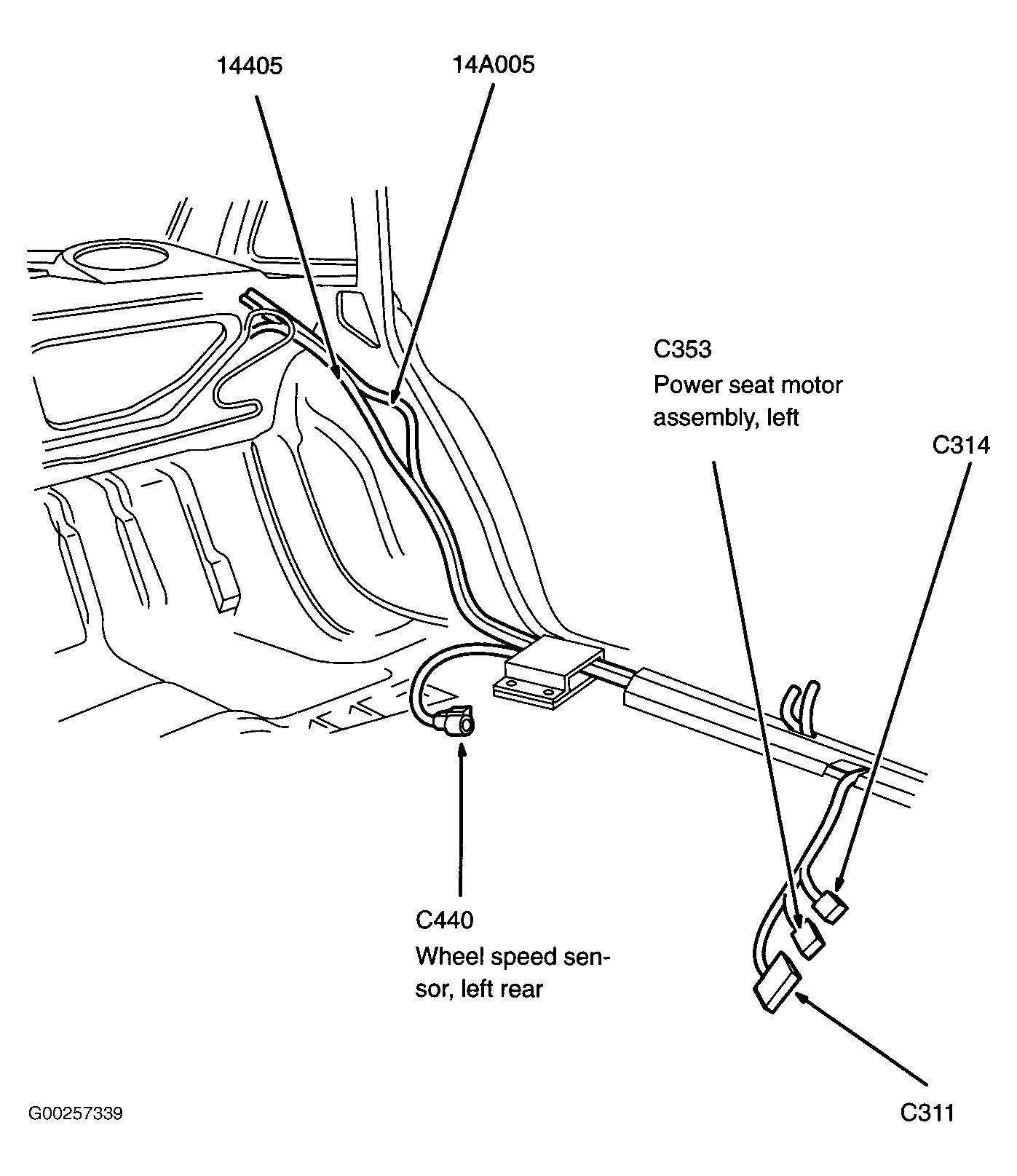

Fig 25: Left Rear Wheelwell Area
Courtesy of FORD MOTOR CO.

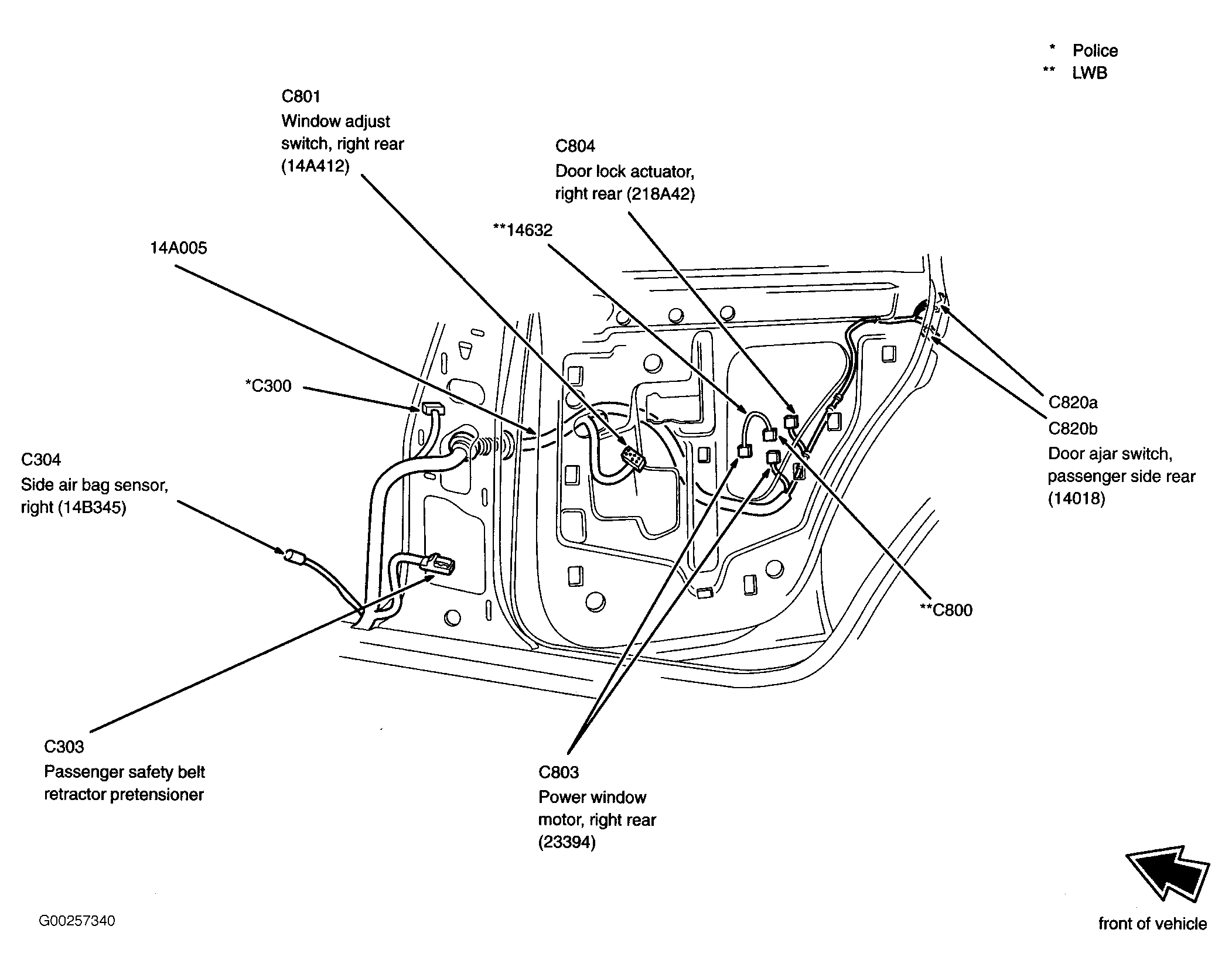

Fig 26: Right Rear Door
Courtesy of FORD MOTOR CO.

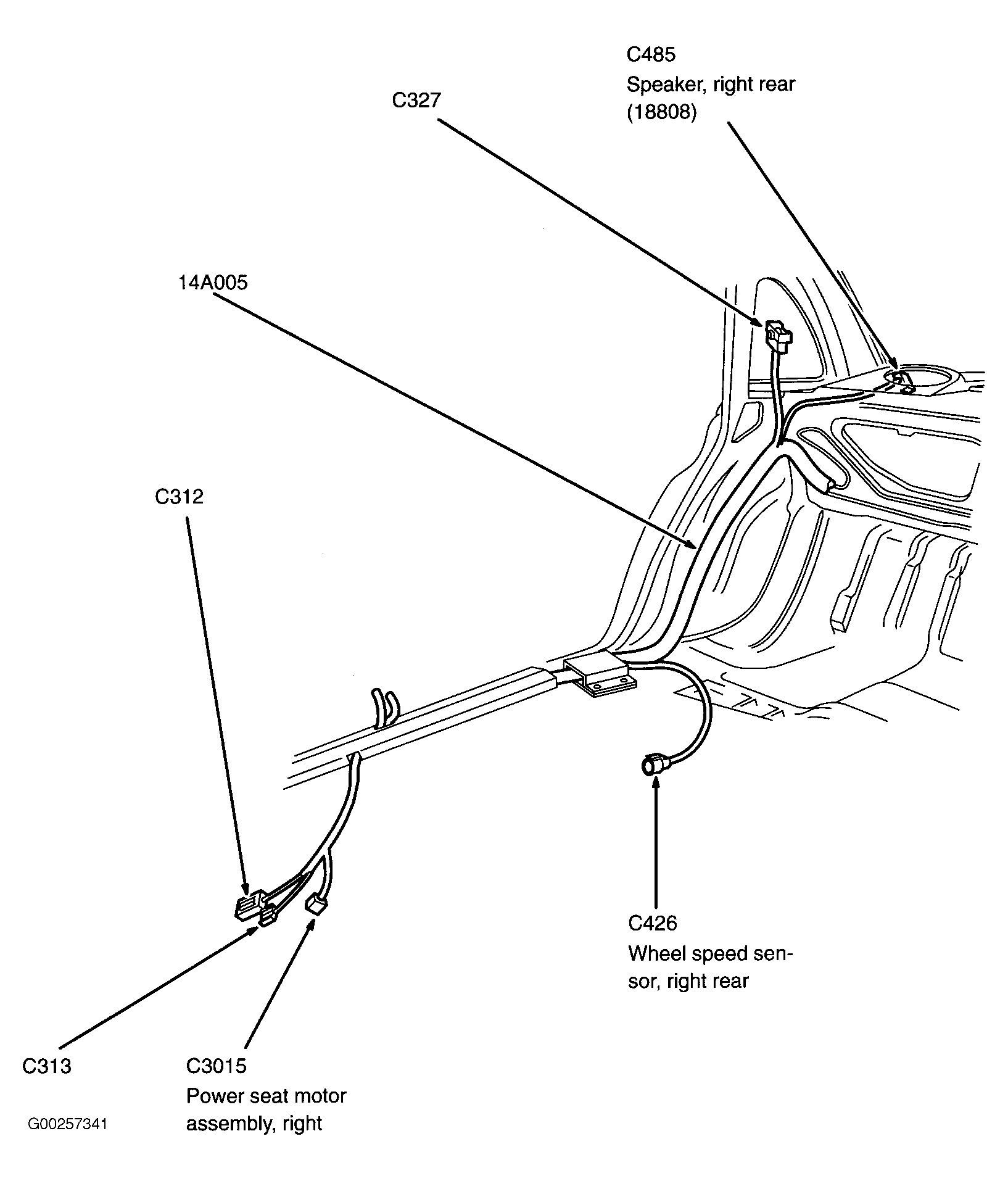

Fig 27: Right Rear Wheelwell Area
Courtesy of FORD MOTOR CO.
Fig 28: Rear Shelf
Courtesy of FORD MOTOR CO.
Fig 29: Fuel Tank (Except Natural Gas)
Courtesy of FORD MOTOR CO.

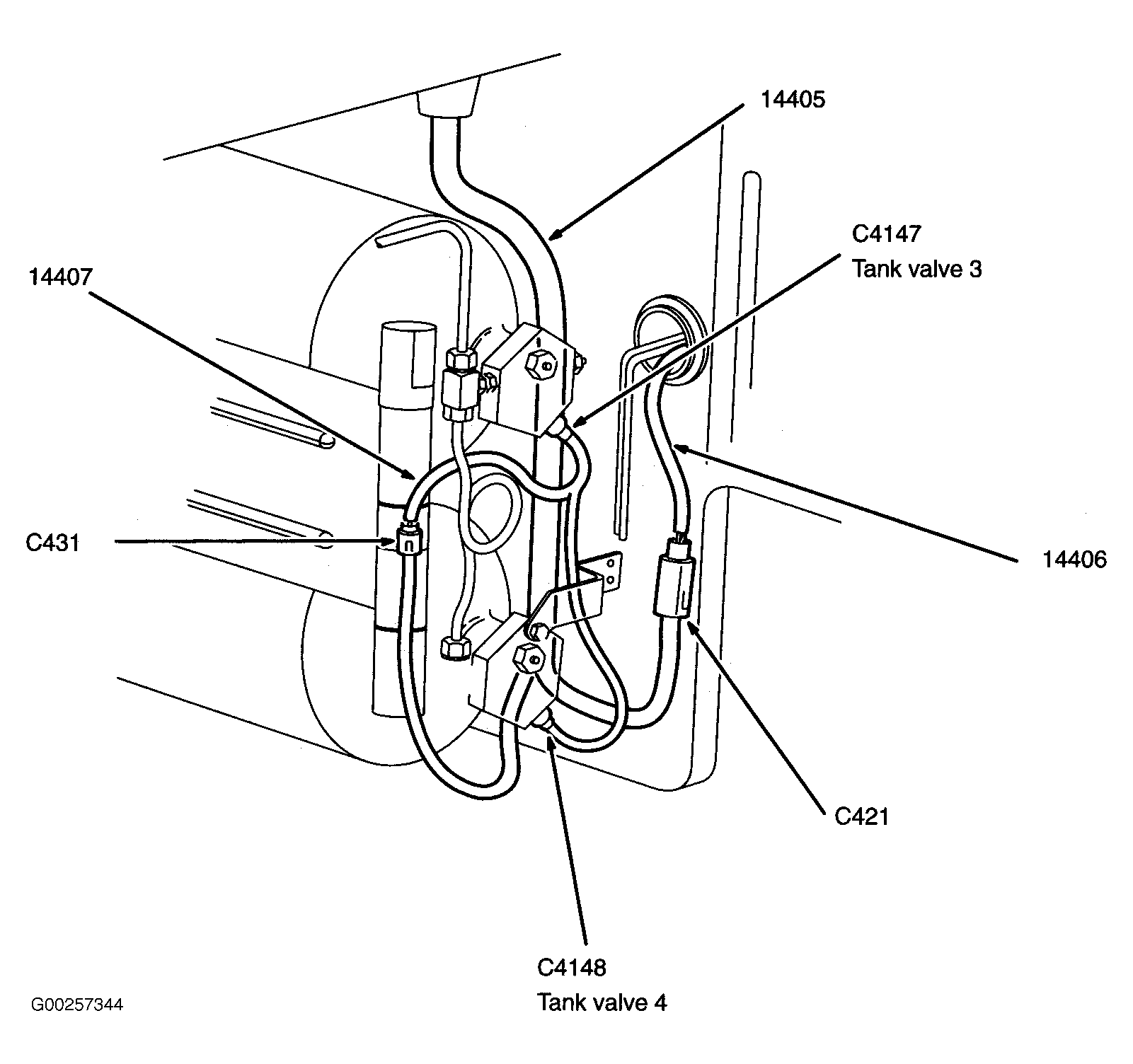

Fig 30: Fuel Tanks (Natural Gas)
Courtesy of FORD MOTOR CO.

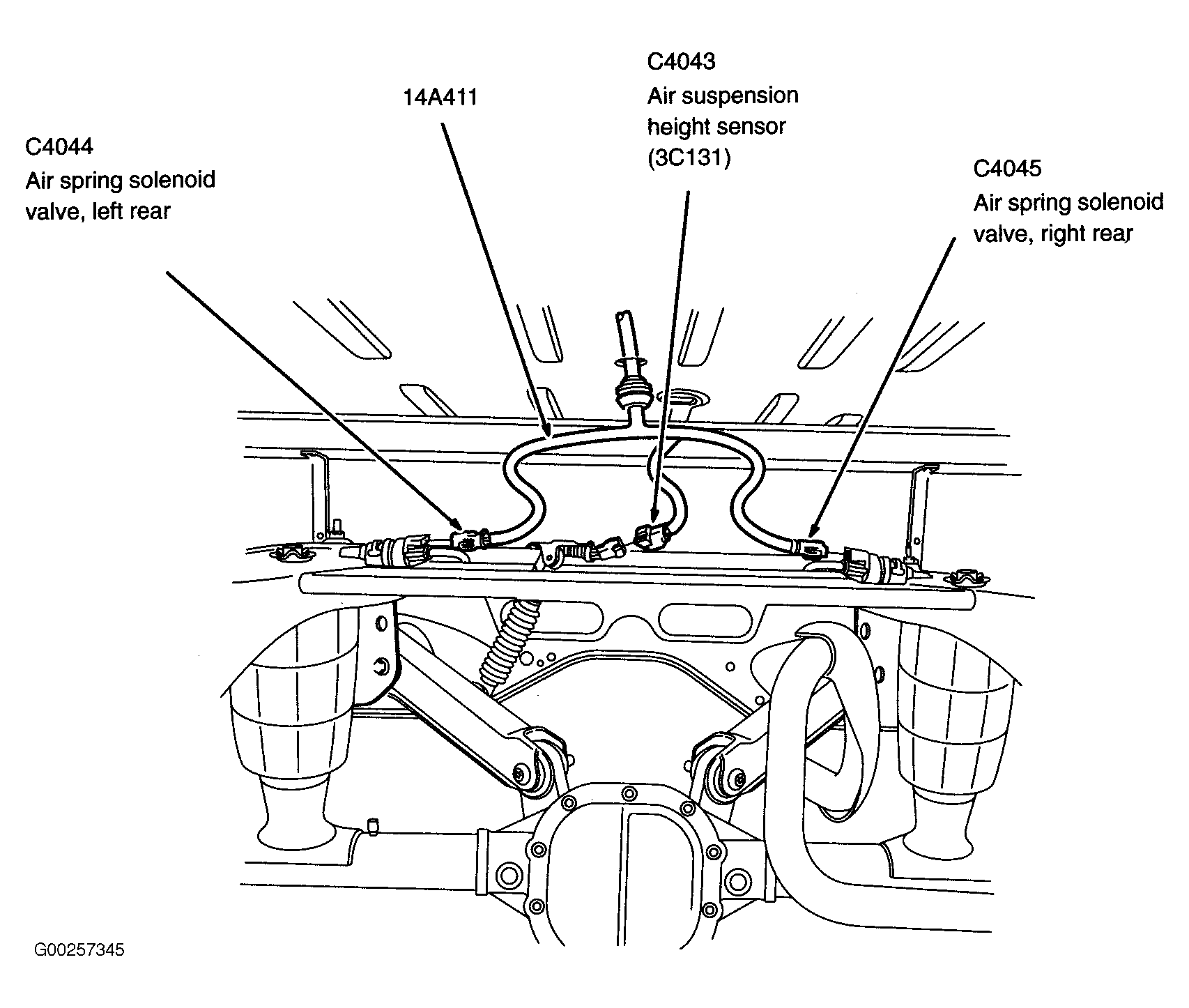

Fig 31: Rear Axle
Courtesy of FORD MOTOR CO.
Fig 32: Front Of Luggage Compartment
Courtesy of FORD MOTOR CO.
Fig 33: Rear Of Luggage Compartment
Courtesy of FORD MOTOR CO.

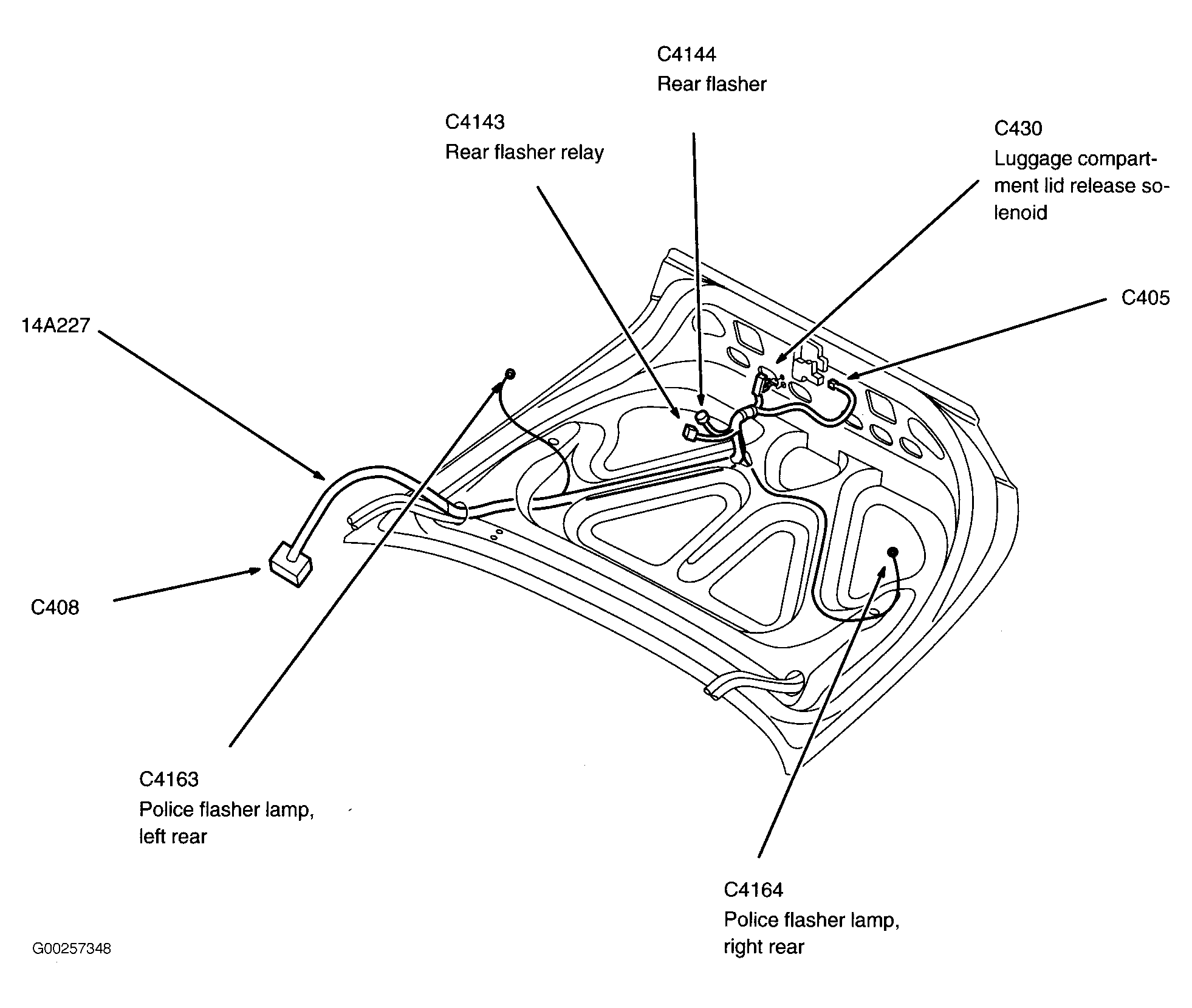

Fig 34: Luggage Compartment Lid
Courtesy of FORD MOTOR CO.

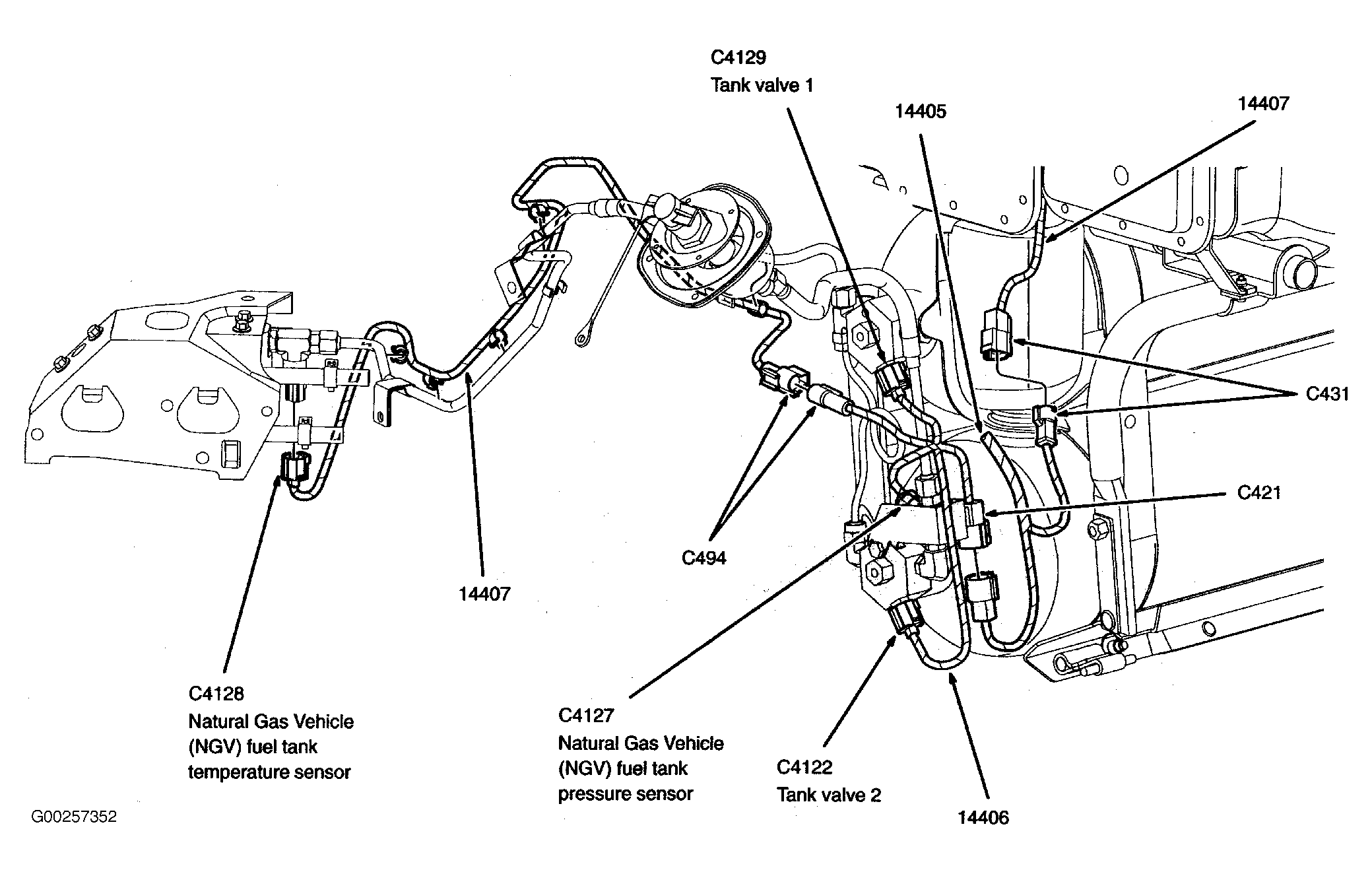

Fig 35: Fuel Tanks (Natural Gas)
Courtesy of FORD MOTOR CO.

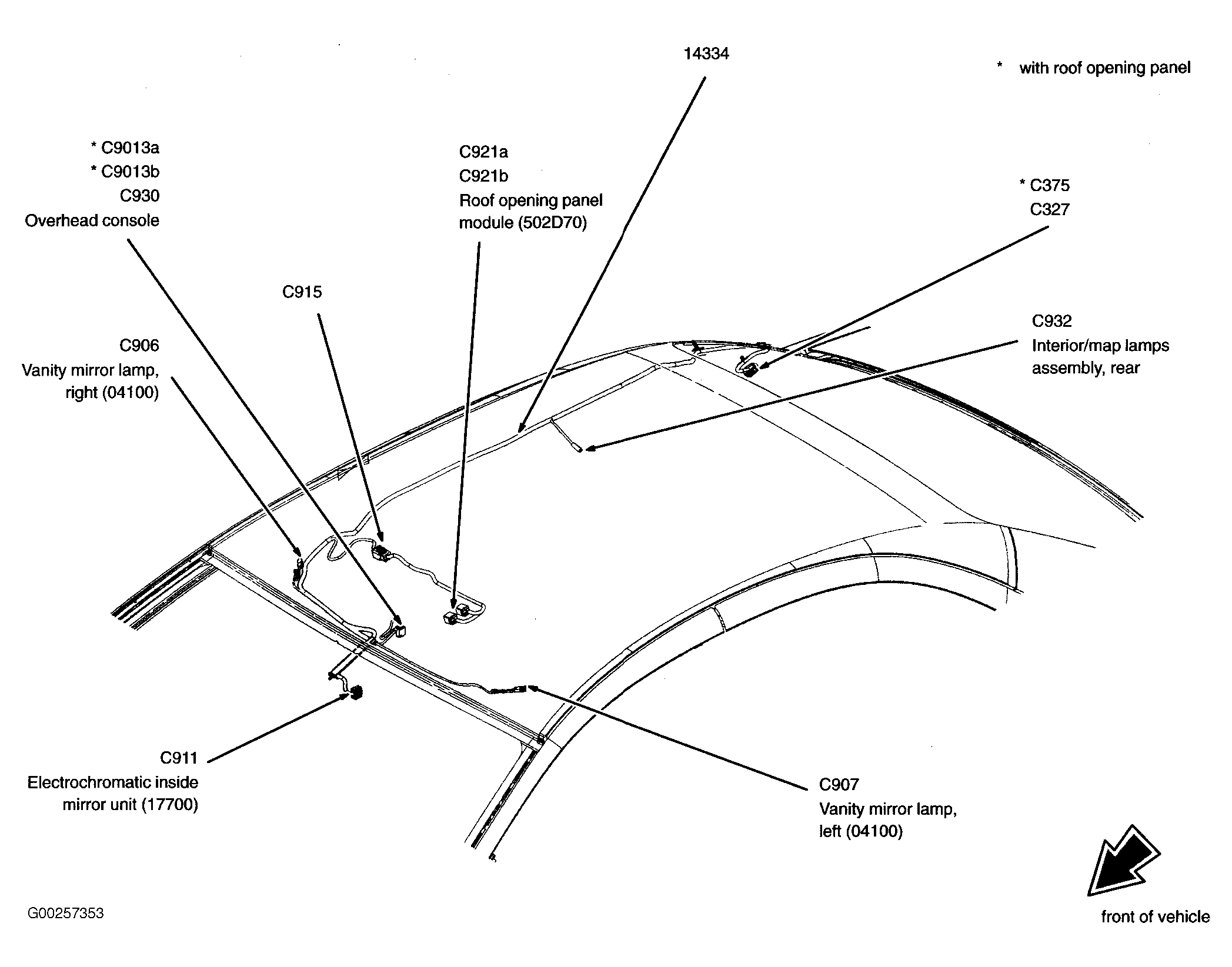

Fig 36: Roof
Courtesy of FORD MOTOR CO.

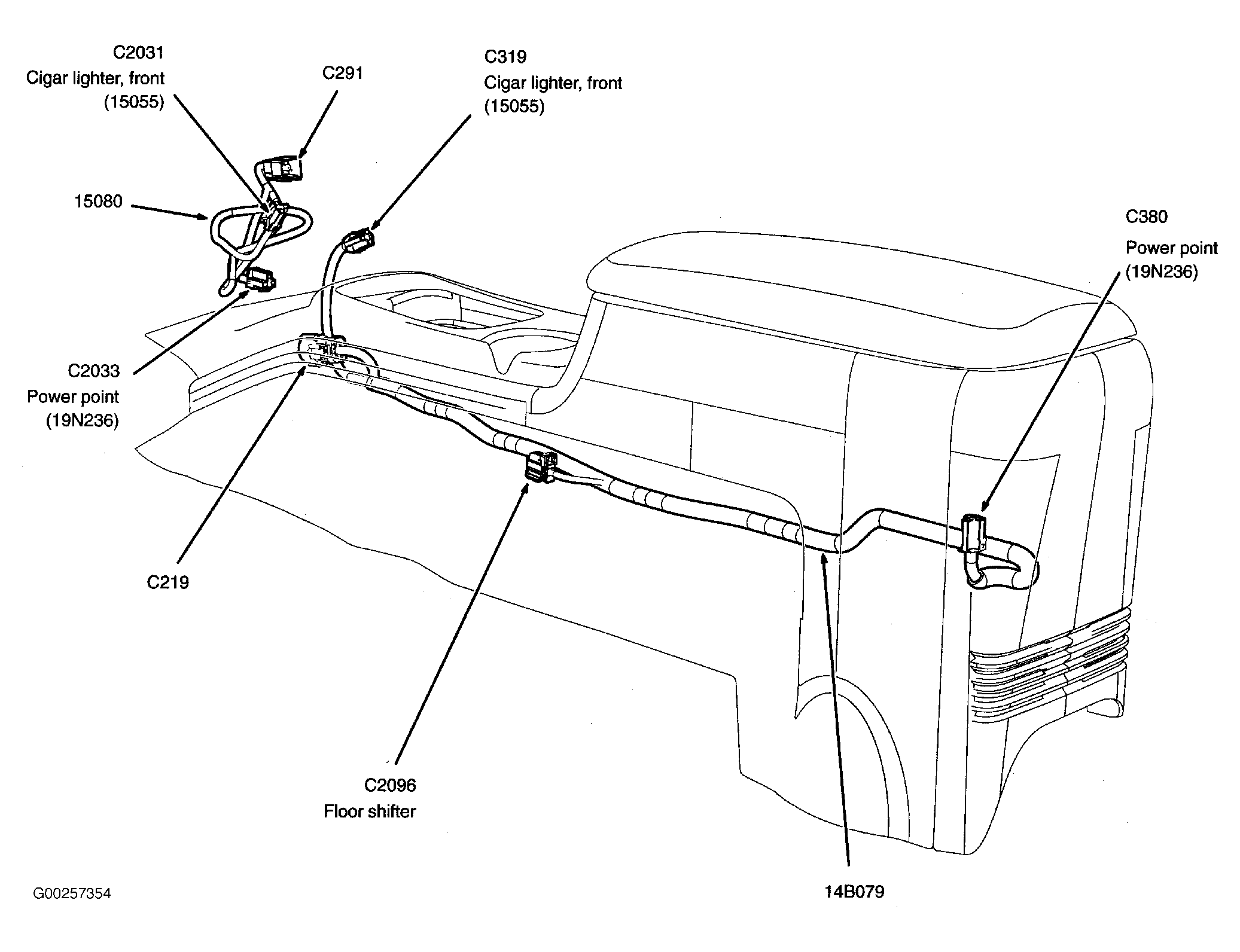

Fig 37: Center Console
Courtesy of FORD MOTOR CO.
Fig 38: Driver Seat
Courtesy of FORD MOTOR CO.
Fig 39: Passenger Seat
Courtesy of FORD MOTOR CO.
