Pinpoint Test D: Steering Is Very Difficult/Very Easy

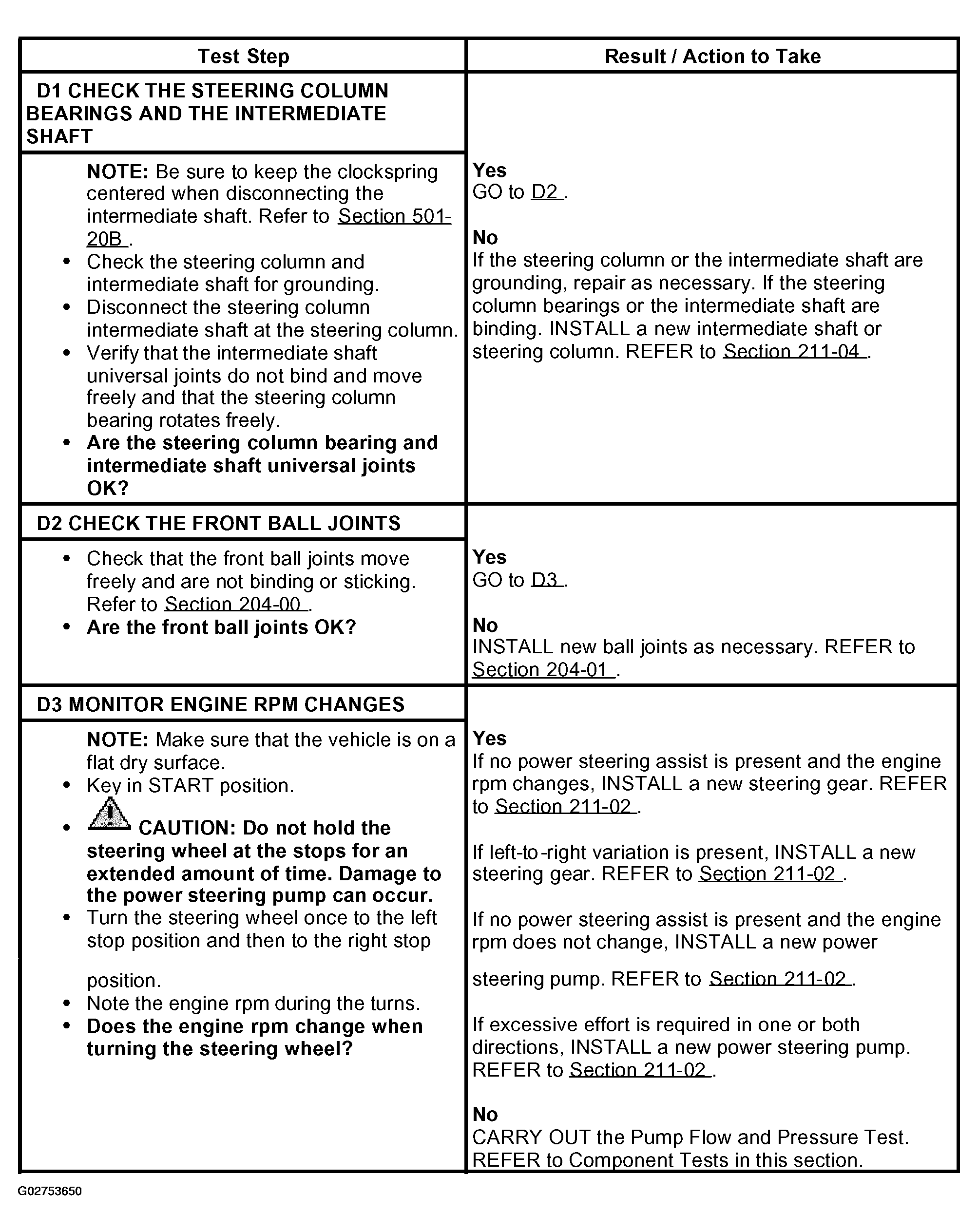

Fig 1: Pinpoint Test D: Steering Is Very Difficult/Very Easy (Steps D1-D3)
G02753650Courtesy of FORD MOTOR CO.
