Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure

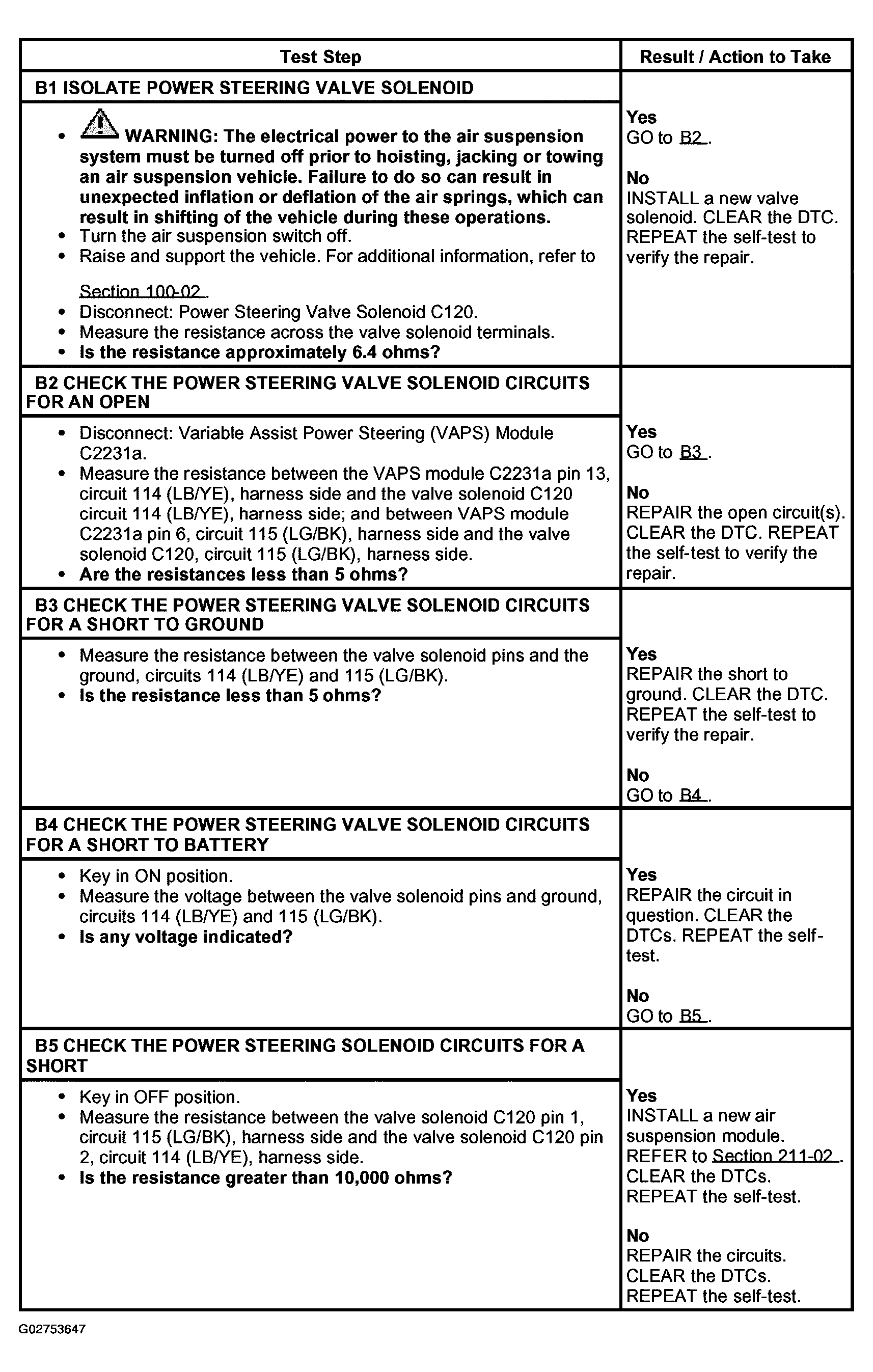

Fig 1: Pinpoint Test B: DTC 1897 - Steering VAPS Circuit Loop Failure (Steps B1-B5)
G02753647Courtesy of FORD MOTOR CO.
