Air Suspension Module

MODULE - AIR SUSPENSION

REMOVAL
1. Disconnect the battery ground cable.

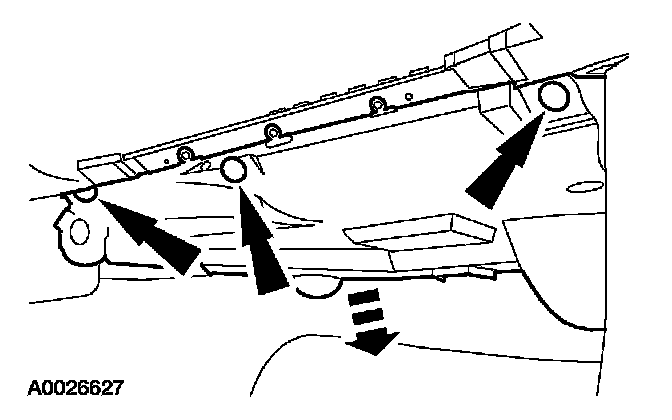

2. Remove the pin-type retainers and lower the instrument panel lower insulator.

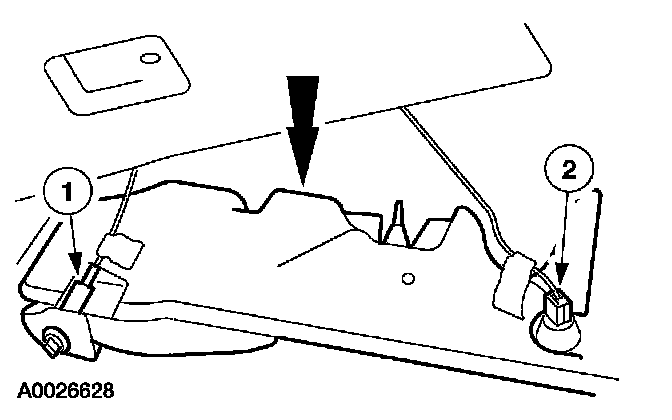

3. Remove the instrument panel lower insulator.
1 Disconnect the power point electrical connector.
2 Remove the footwell lamp.

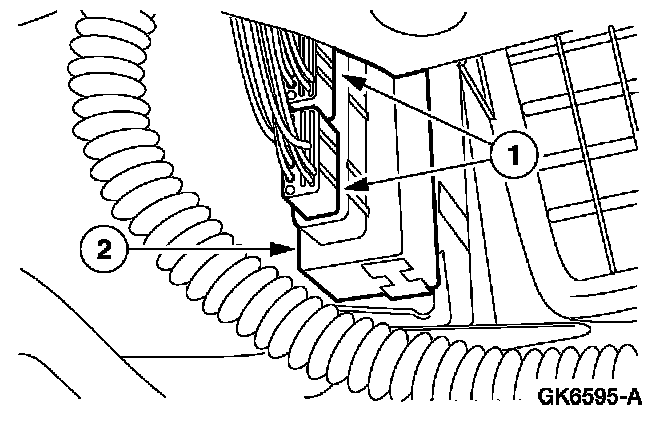

4. Remove the air suspension module.
1 Disconnect the electrical connectors.
2 Release the spring clips to remove the module from the bracket.

INSTALLATION
1. To install, reverse the removal procedure.
- Check for correct operation.
