Control Module HVAC: Service and Repair

BLOWER MOTOR SPEED CONTROL

REMOVAL







1. Remove the nuts and position aside the vapor management valve (VMV).

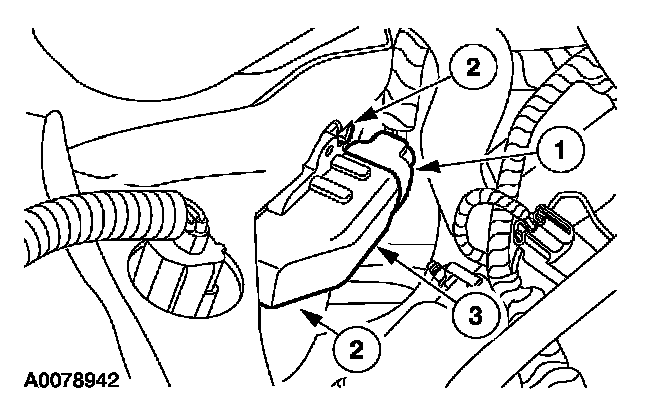

2. Remove the blower motor speed control.
1 Disconnect the electrical connector.
2 Remove the screws.
3 Remove the blower motor speed control.

INSTALLATION
1. To install, reverse the removal procedure.
