Pinpoint Test K: The Remote Keyless Entry Transmitter Is Out Of Synchronization

NOTE: All remote transmitters must be present to begin diagnosis of the remote keyless entry (RKE) system.

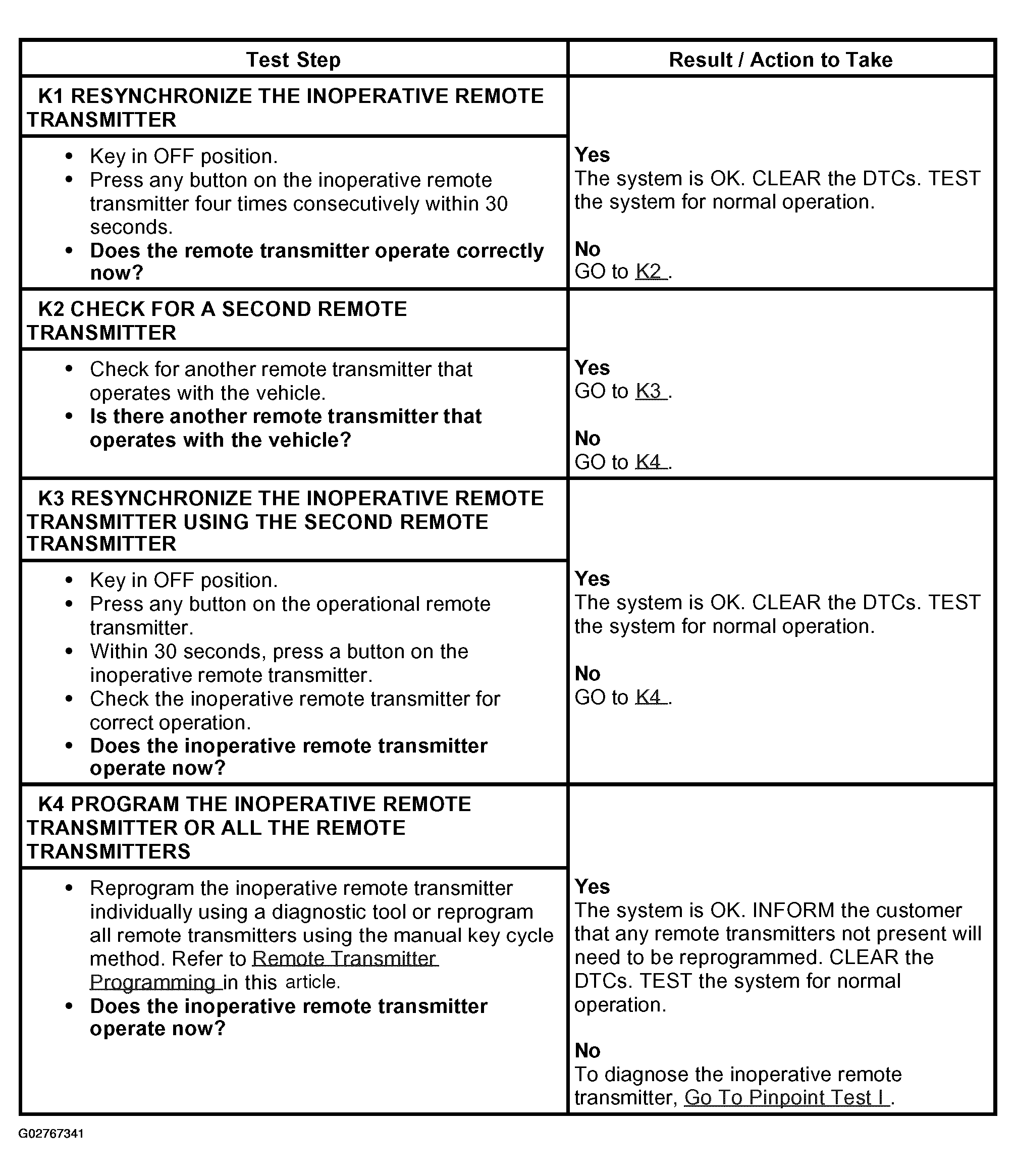

Fig 1: Pinpoint Test K: Remote Keyless Entry Transmitter Is Out Of Synchronization (Steps K1-K4)
G02767341Courtesy of FORD MOTOR CO.
