Body Control Module: Service and Repair

VEHICLE SECURITY MODULE

REMOVAL

1. CAUTION: Electronic modules are sensitive to electrical charges. If exposed to these charges, damage may result.

Disconnect the battery.







2. Remove the RH A-pillar lower trim panel.

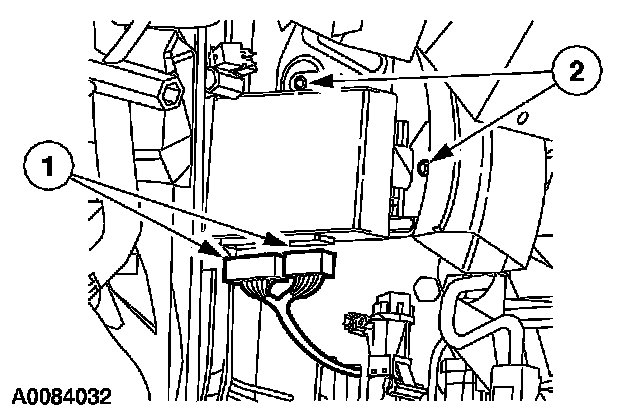

3. Remove the vehicle security module.
1 Disconnect the electrical connectors.
2 Remove the nuts.

INSTALLATION

1. NOTE: If installing a new module it is necessary to reprogram the remote keyless entry (RKE) transmitters.

To install, reverse the removal procedure.
