Wiper Control Module: Service and Repair

MODULE - WIPER

REMOVAL
1. Remove the engine cover.

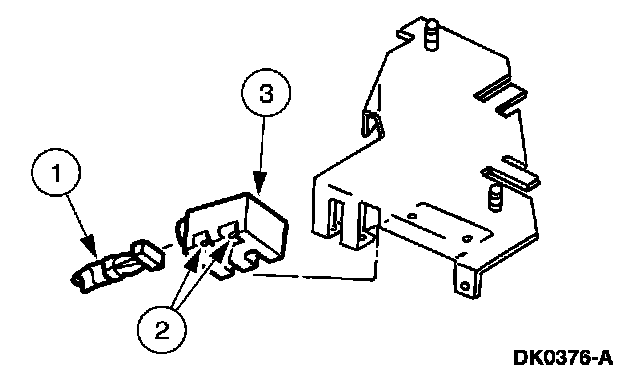

2. Remove the wiper module.
1 Disconnect the electrical connector.
2 Push the detent tabs on the wiper control module through the holes in the mounting bracket and slide the module off the bracket.
3 Remove the wiper control module.

INSTALLATION
1. To install, reverse the removal procedure.
